Antenna Cord Sub-Assy No.2

Audio & Visual System:

ANTENNA CORD SUB-ASSY NO.2

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY




2. REMOVE ANTENNA CORD SUB-ASSY N0.2
a. Disconnect each connector.

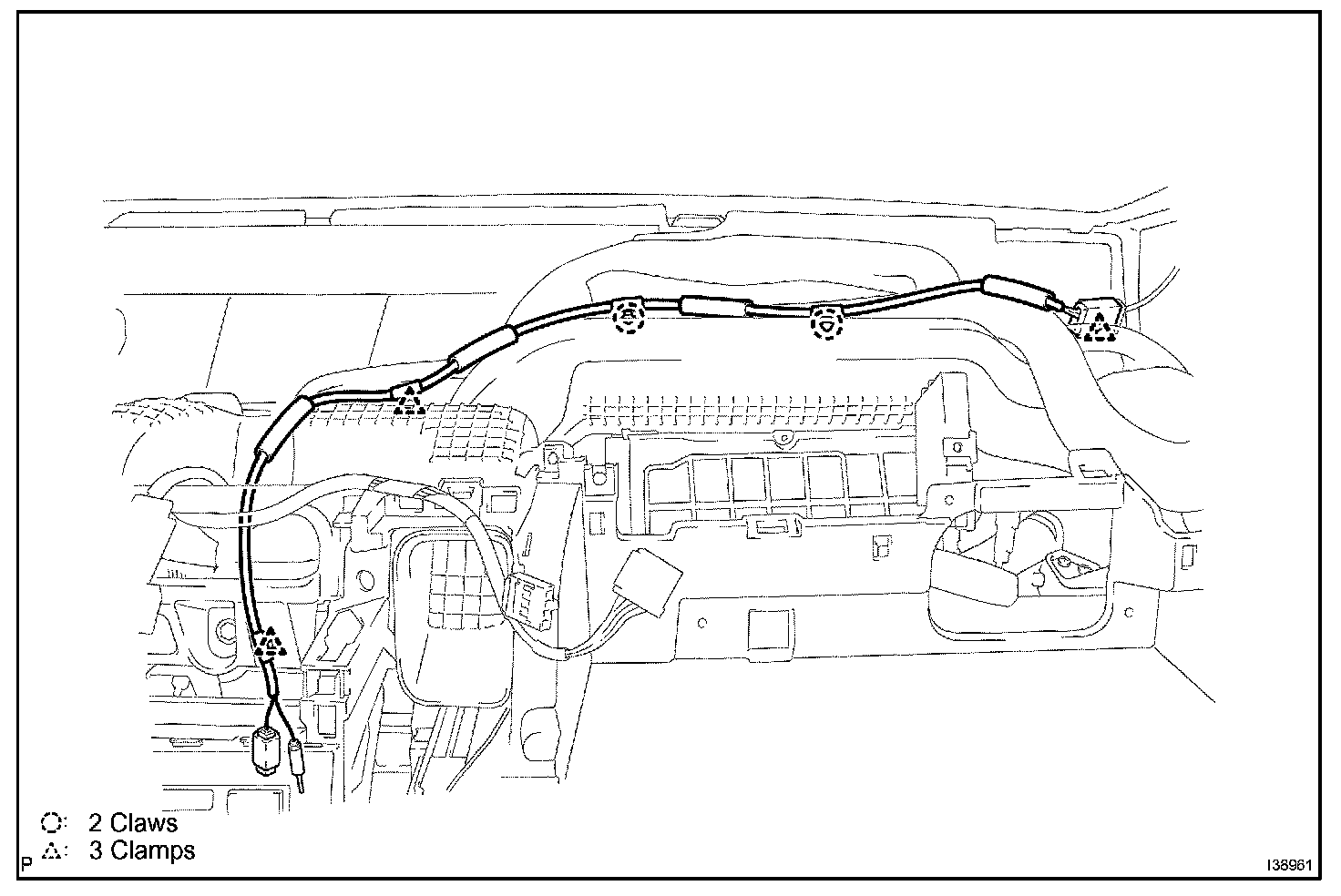

b. Remove the 3 clamps and disengage the 2 claws,and then remove the antenna cord sub-assy No.2.

3. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
