Push Button Start System and Hybrid Vehicle Immobilizer System

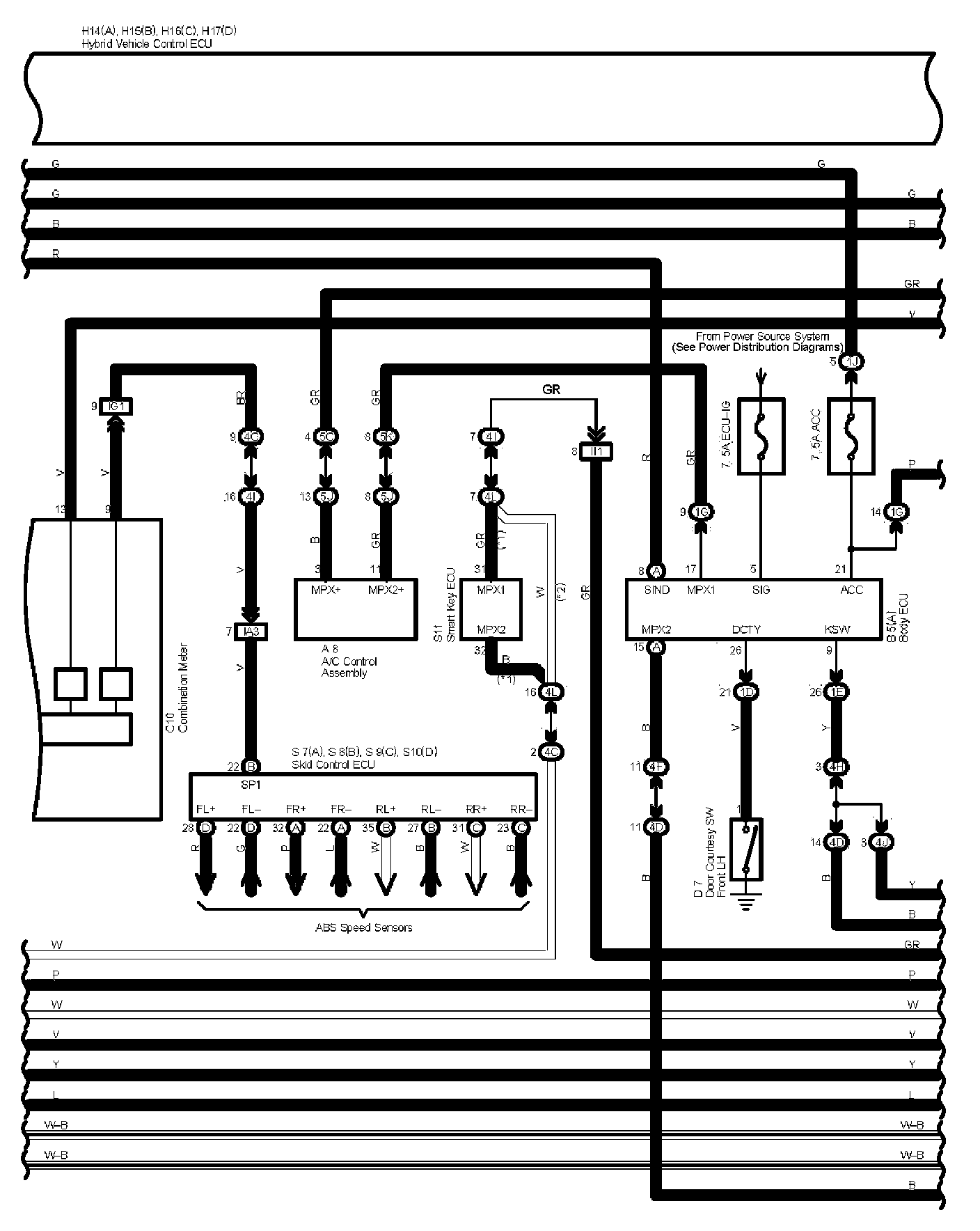

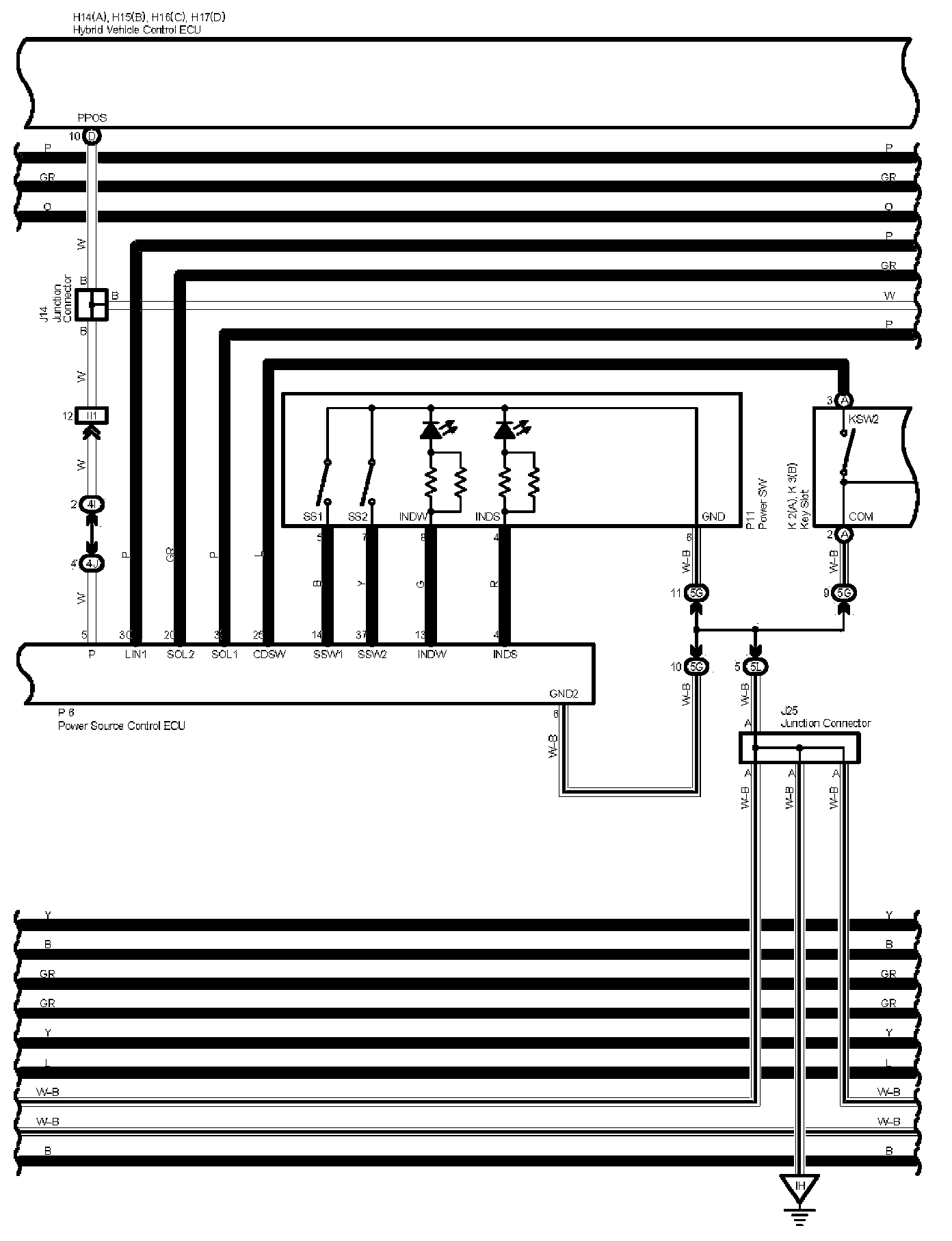

Push Button Start System And Hybrid Vehicle Immobilizer System Part 1:

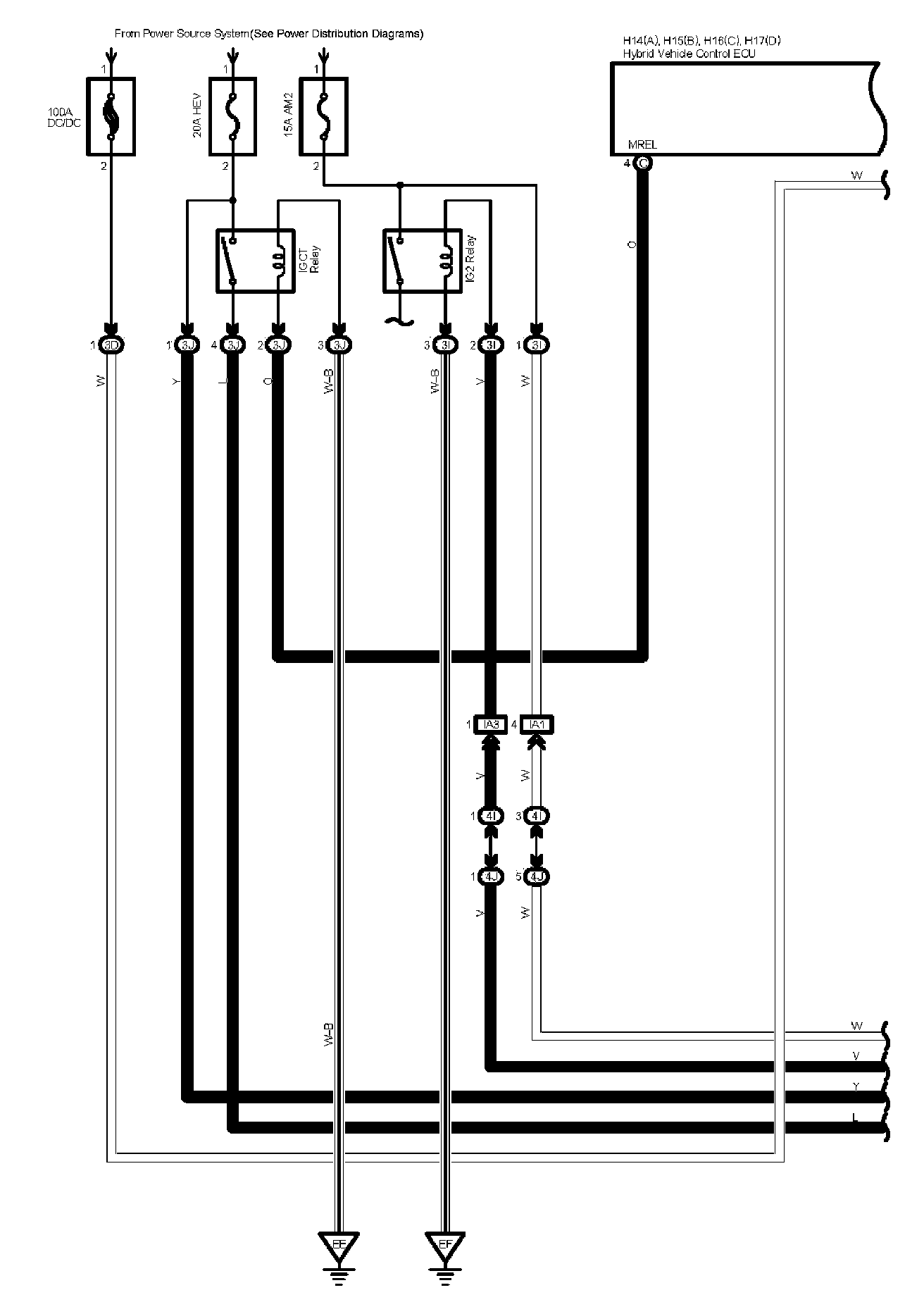

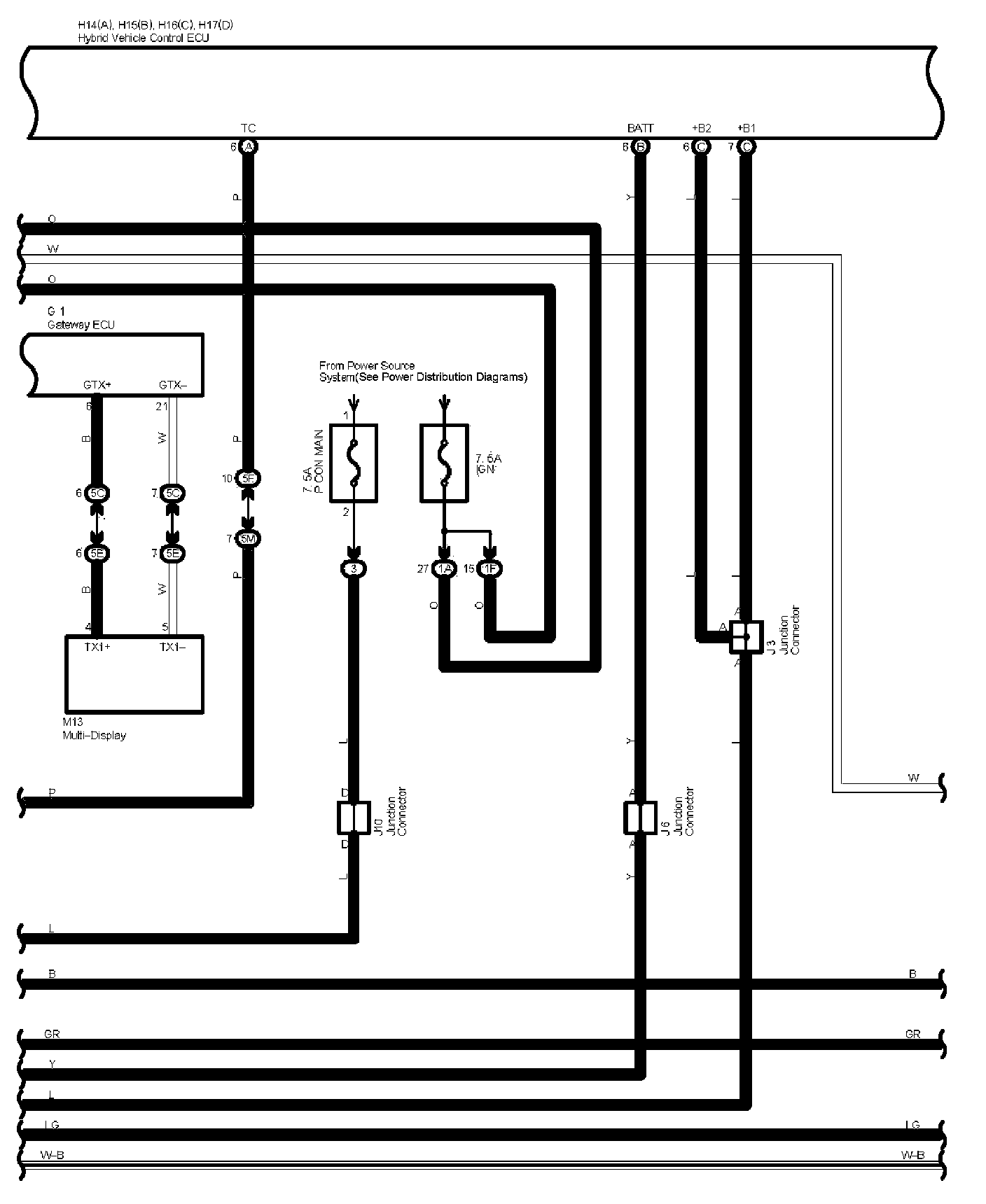

Push Button Start System And Hybrid Vehicle Immobilizer System Part 2:

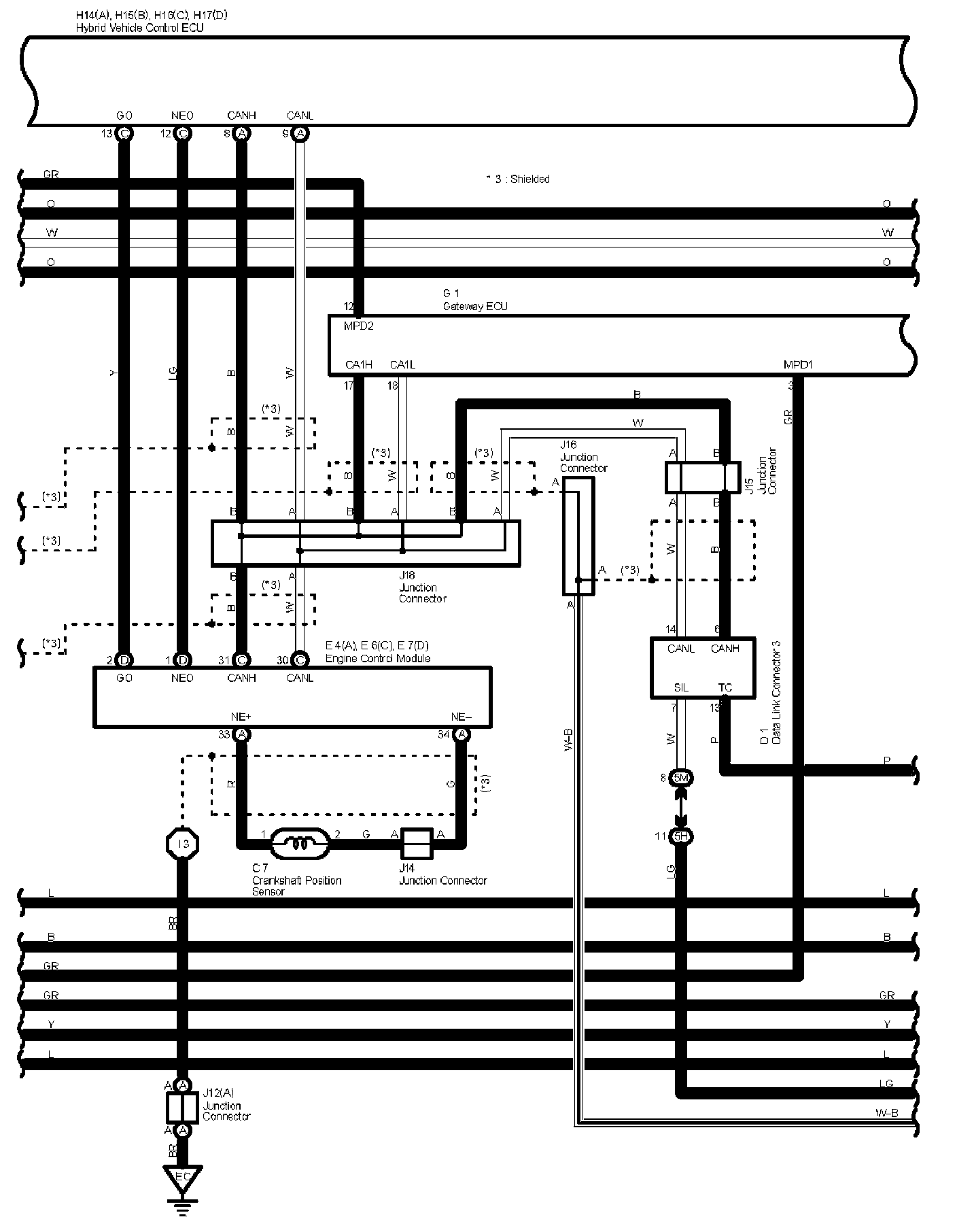

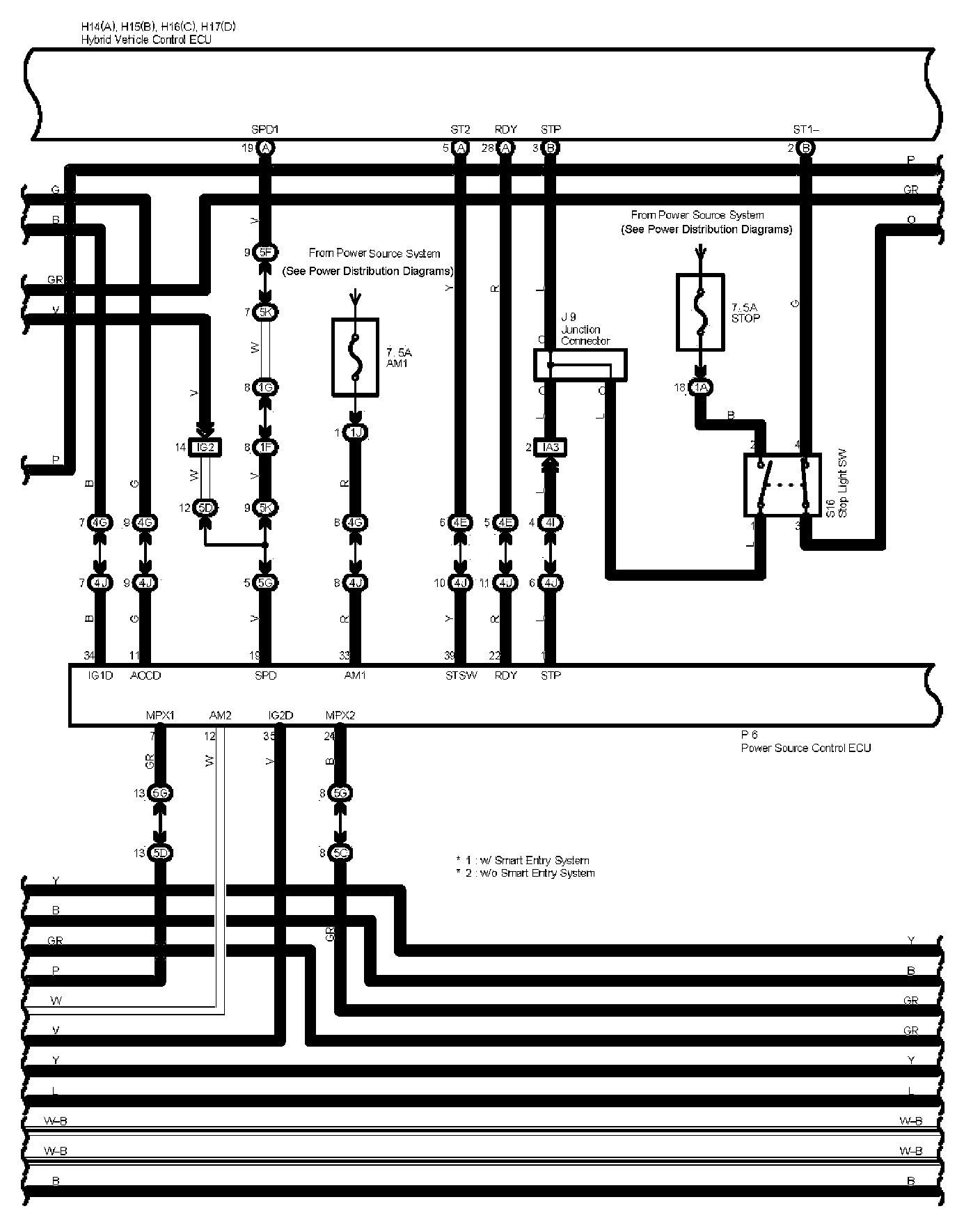

Push Button Start System And Hybrid Vehicle Immobilizer System Part 3:

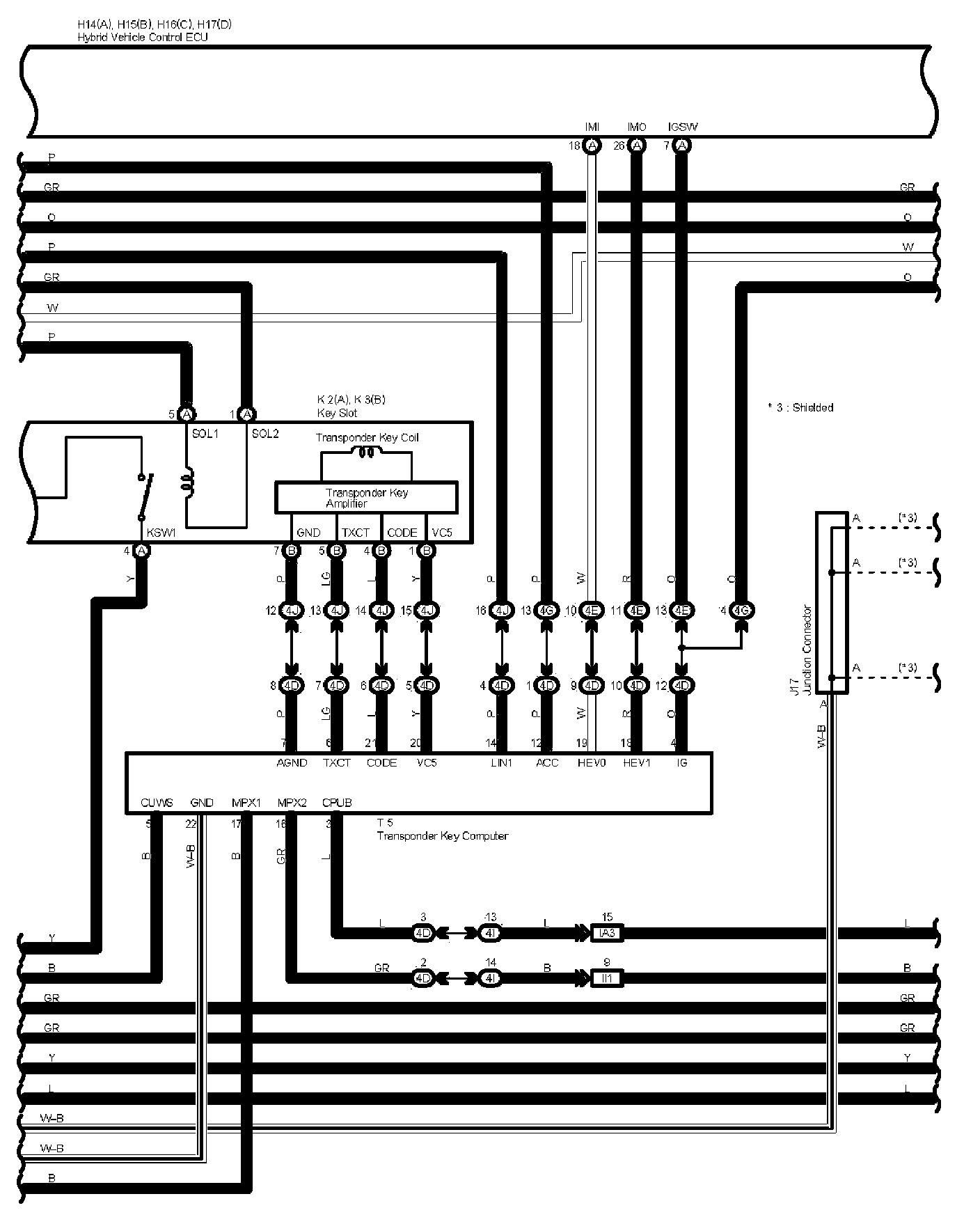

Push Button Start System And Hybrid Vehicle Immobilizer System Part 2:

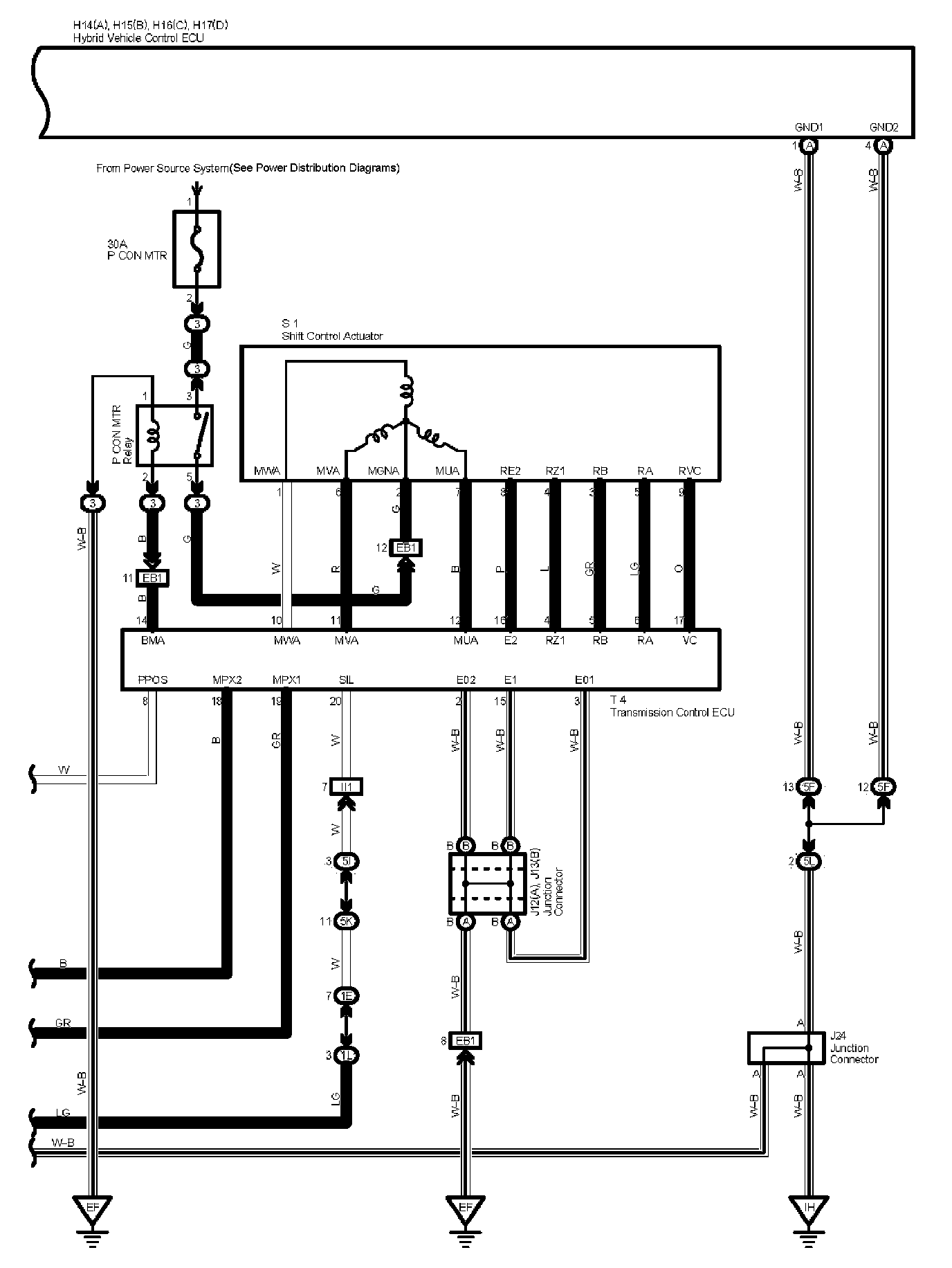

Push Button Start System And Hybrid Vehicle Immobilizer System Part 1:

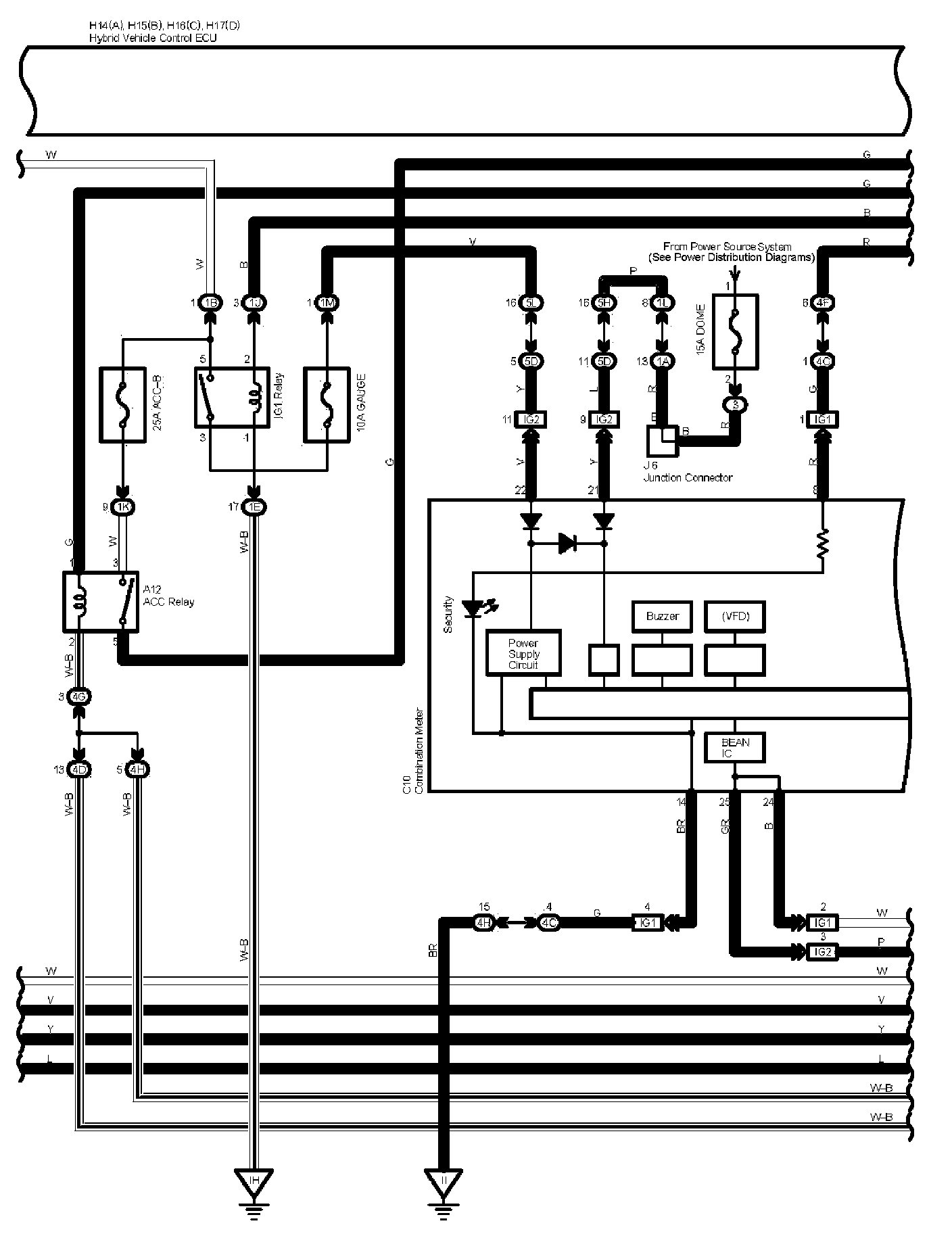

Push Button Start System And Hybrid Vehicle Immobilizer System Part 2:

Push Button Start System And Hybrid Vehicle Immobilizer System Part 3:

Push Button Start System And Hybrid Vehicle Immobilizer System Part 4:

Push Button Start System And Hybrid Vehicle Immobilizer System Part 5:

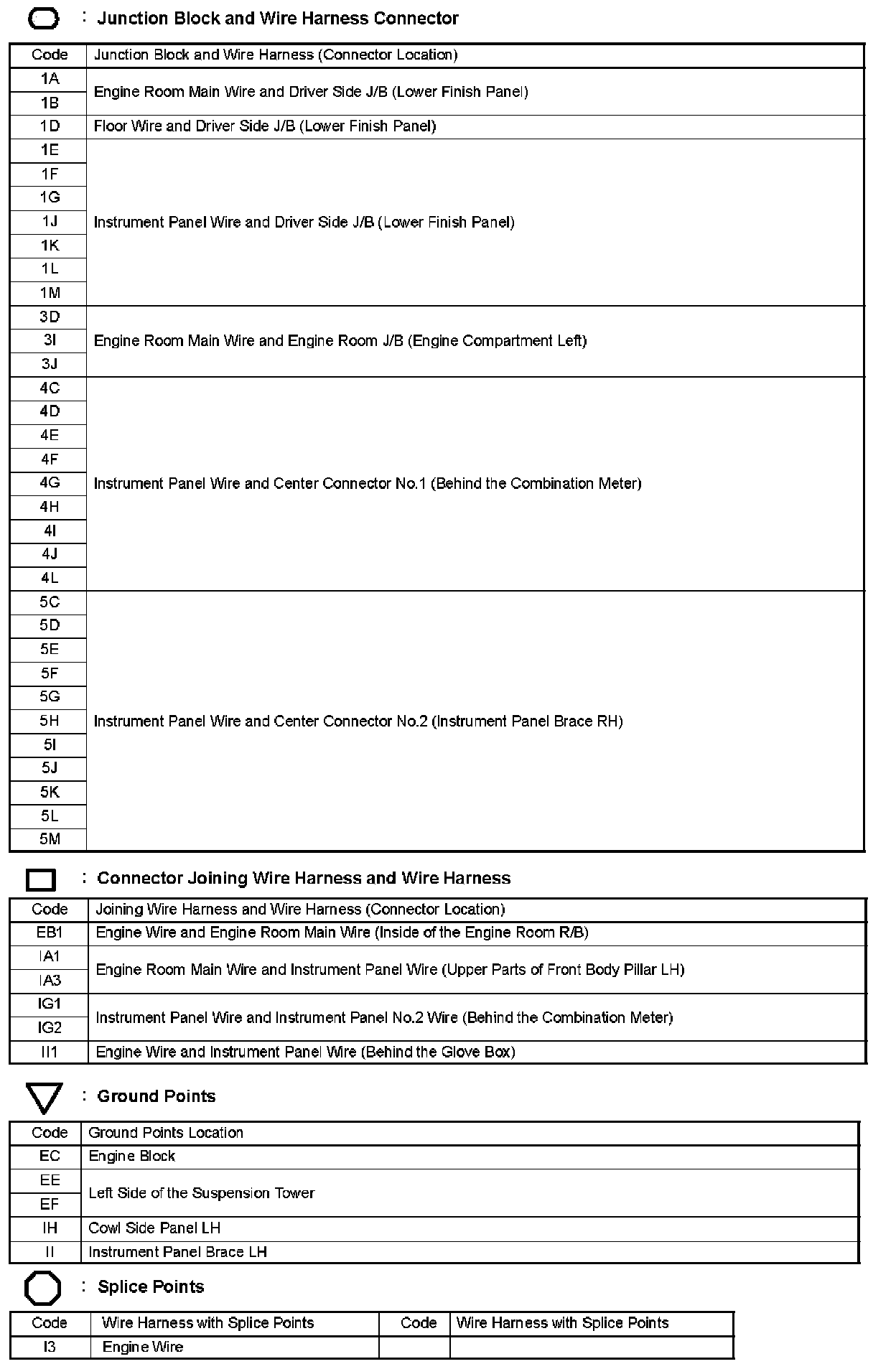

Diagram Legend Part 1:

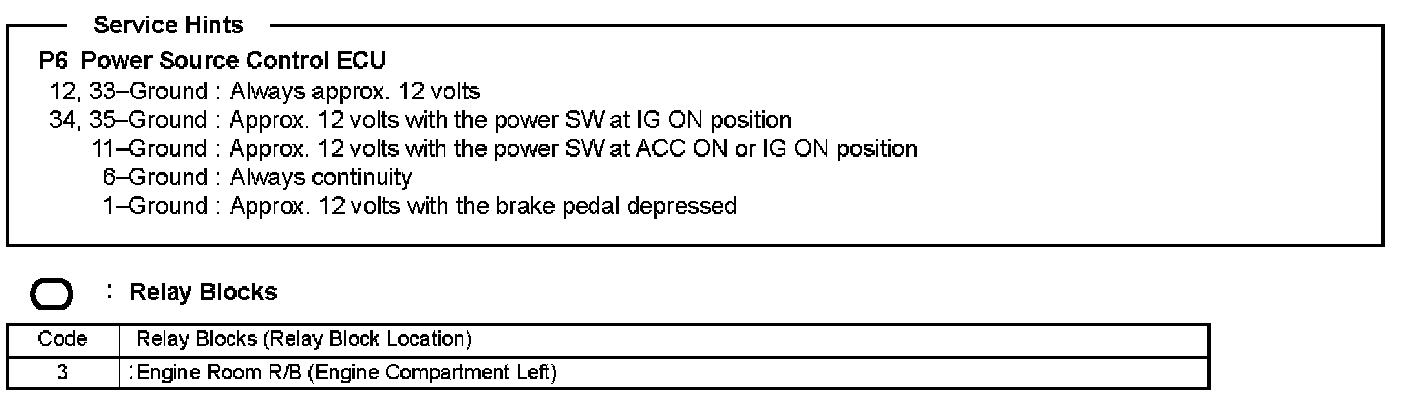

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
