Antitheft and Alarm Systems: Locations

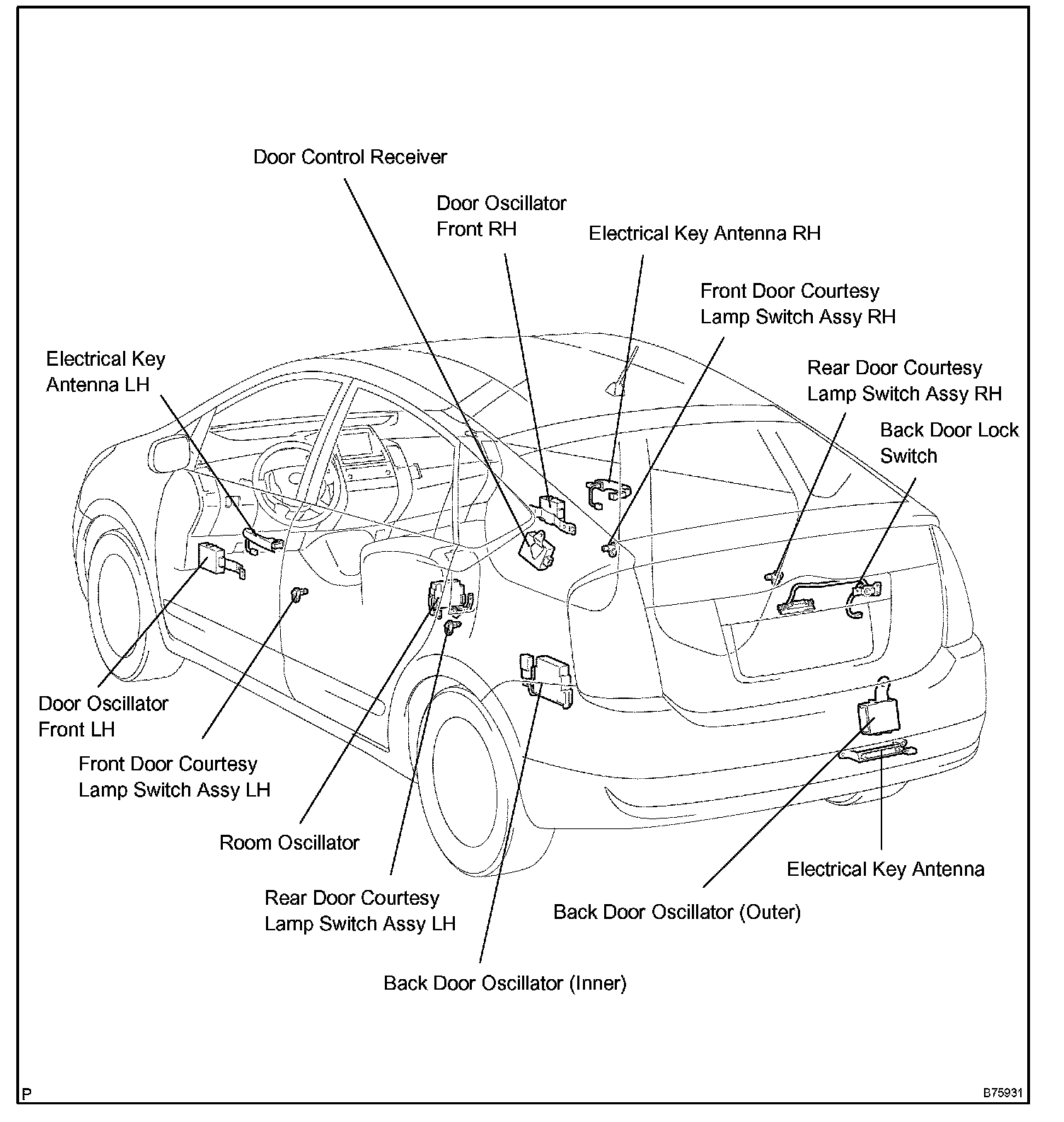

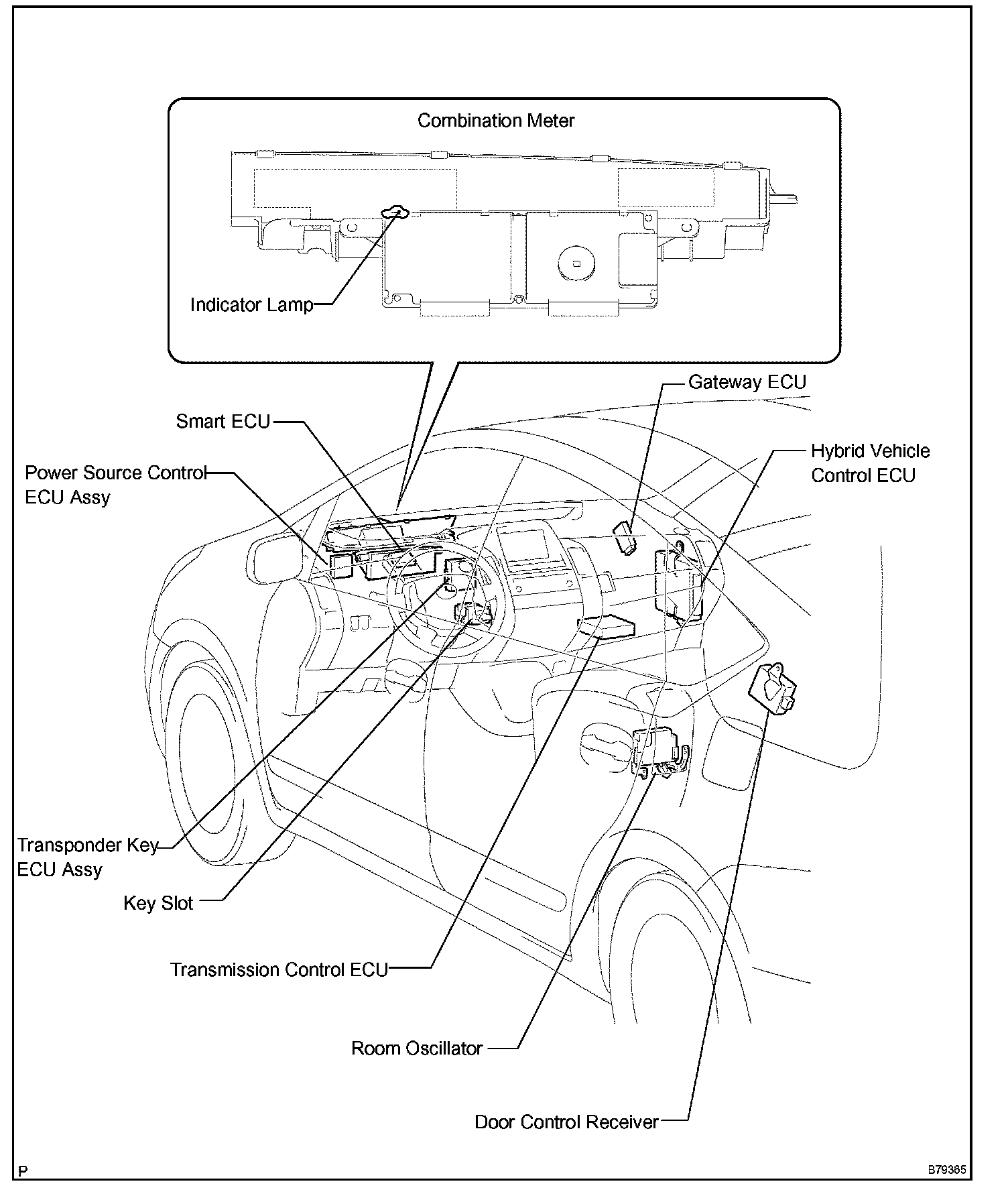

Smart Entry System:





Smart Entry System:

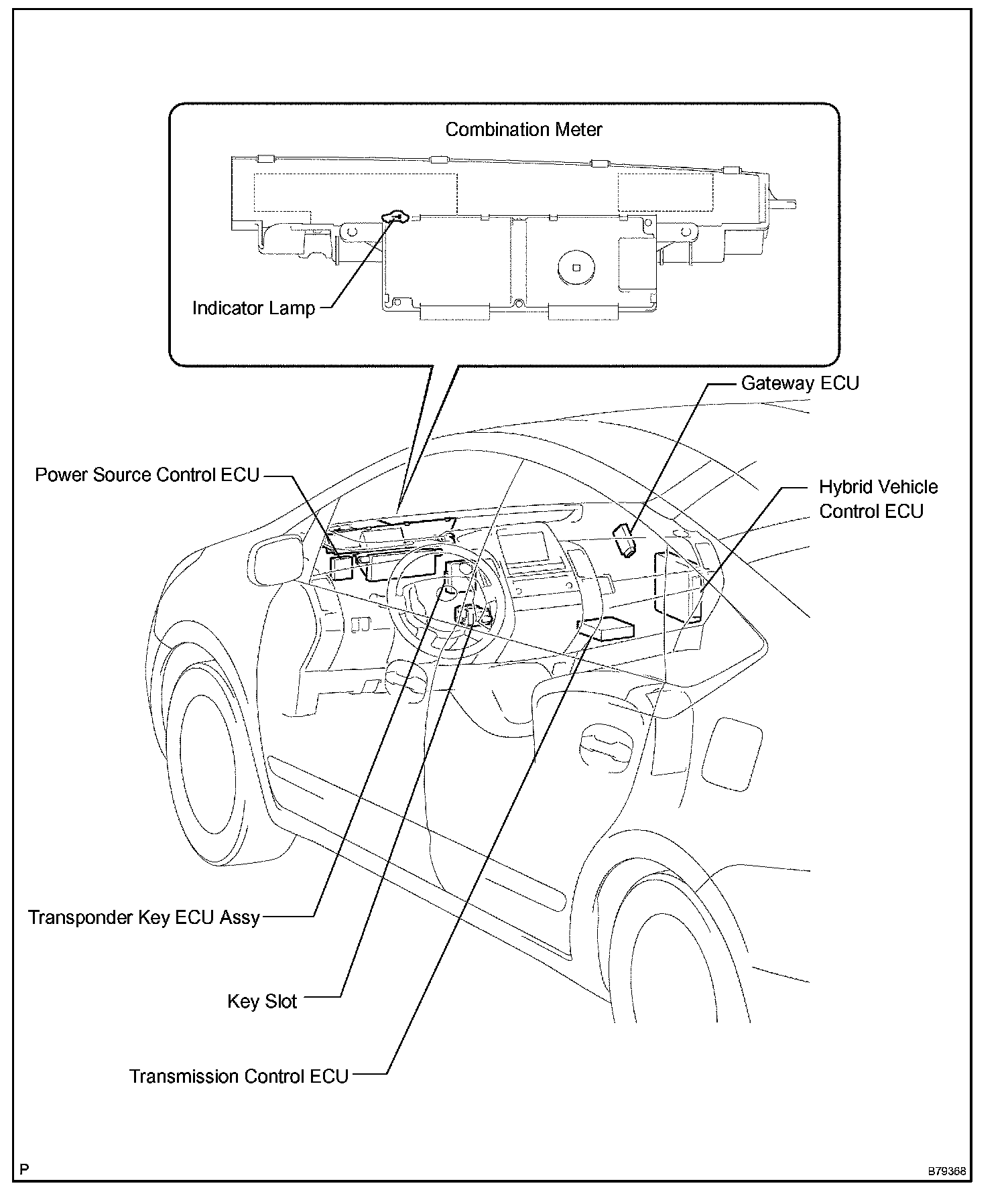

Engine Immobilizer System:





Engine Immobilizer System (W/O Smart Entry System):

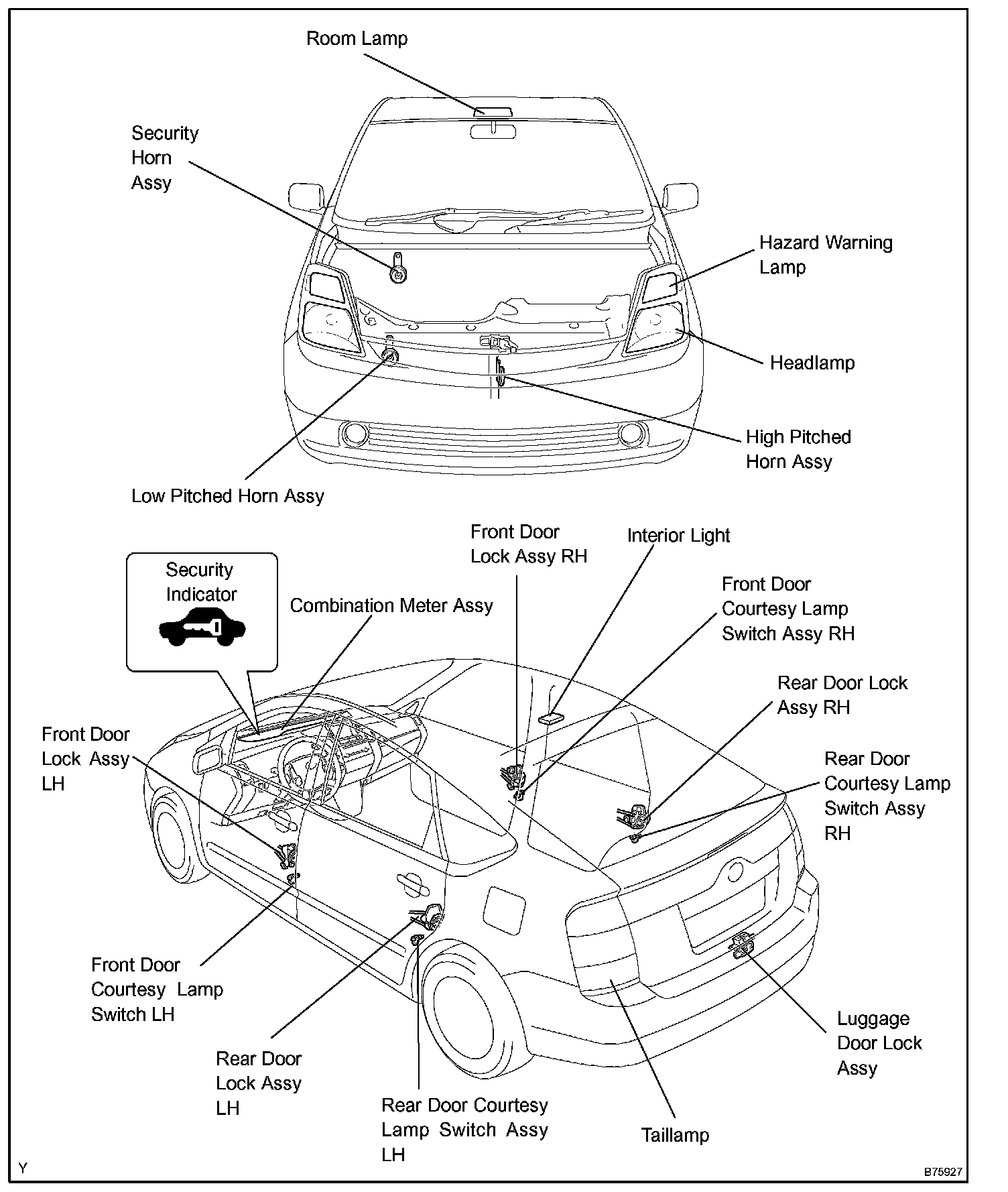

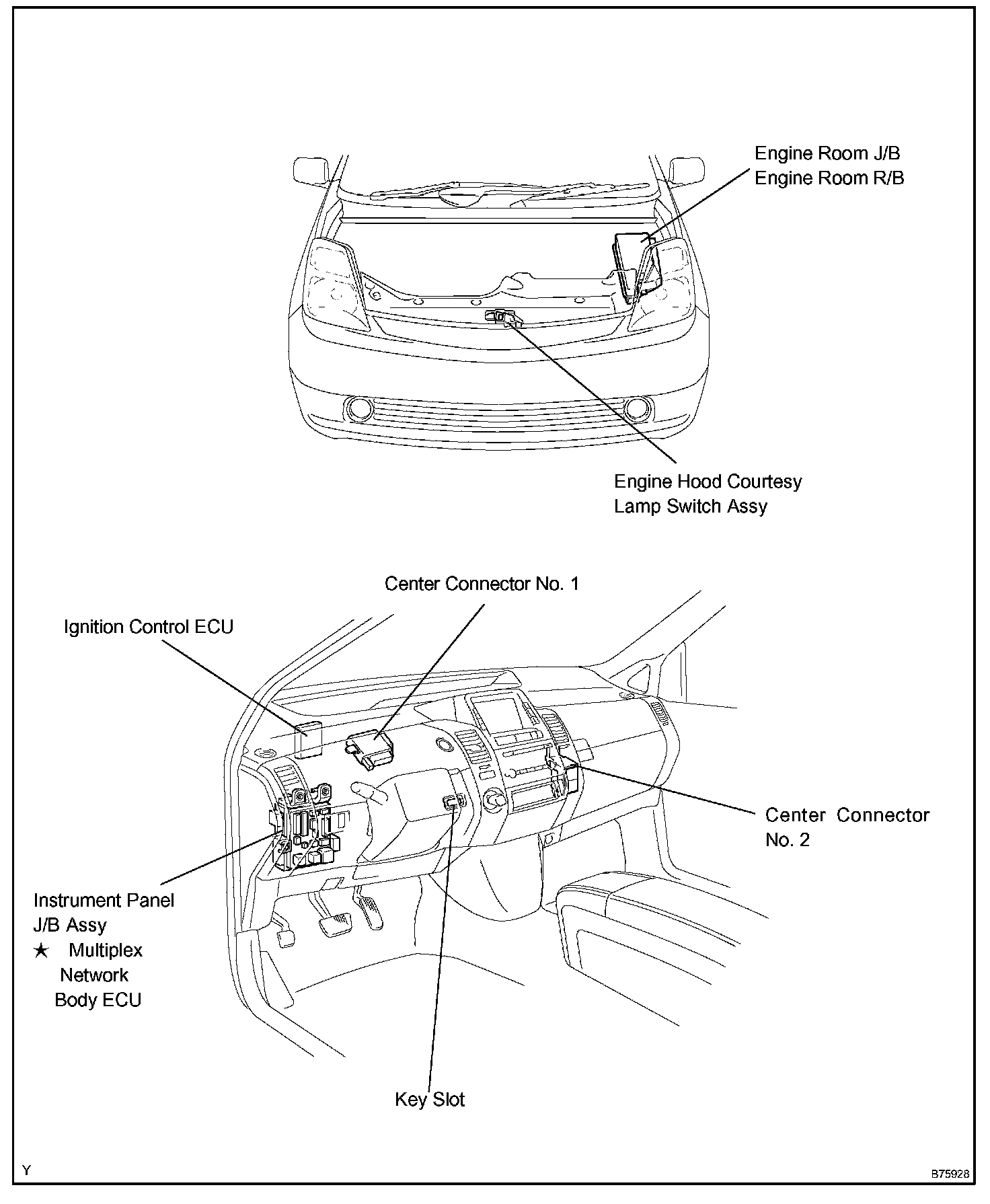

Theft Deterrent System:





Theft Deterrent System:
