Component Inspection

INSPECTION

1. INSPECT OUTSIDE DOOR HANDLE




a. Remove the outside door handle.

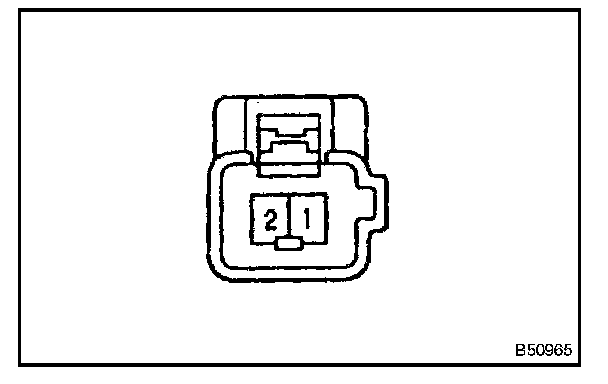

b. Check the resistance between the terminals of the connector when the switch is operated.

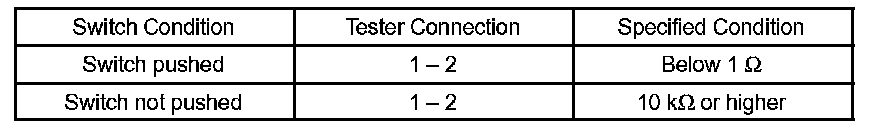

Standard:
If the result is not as specified, replace the outside door handle.

2. INSPECT SMART KEY CANCEL SWITCH




a. Remove the outside door handle.

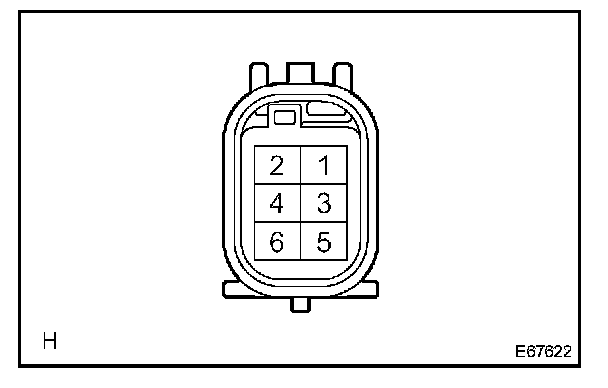

b. Check the resistance between the terminals of the connector when the switch is operated.

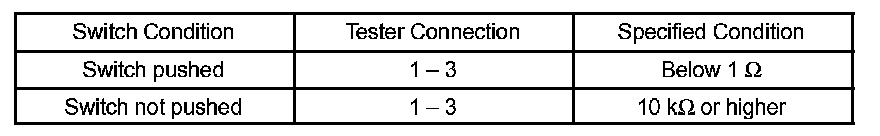

Standard:
If the result is not as specified, replace the smart system cancel switch.
