Engine Immobilizer System (W/ Smart Key System)
TERMINALS OF ECUTerminals Of ECU/Pinouts:

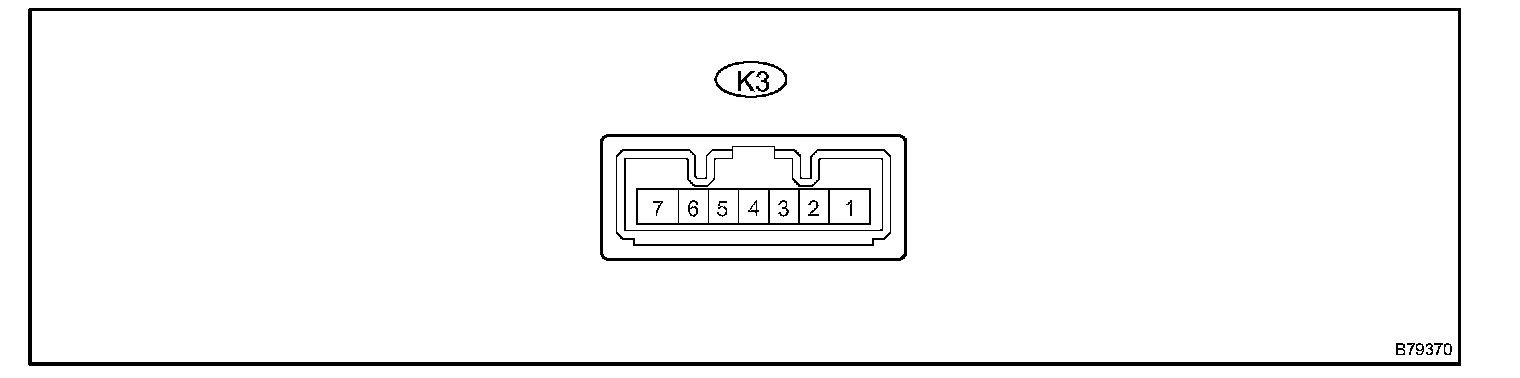

1. CHECK KEY SLOT
a. Disconnect the K3 key slot connector.
b. Measure the resistance of the terminal of the wire harness side connector.

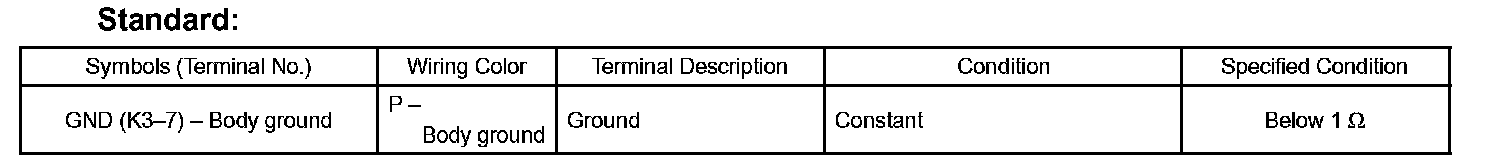

Standard:
If the result is not as specified, the wire harness side may have a malfunction.
c. Reconnect the K3 key slot connector.
d. Measure the resistance and voltage of each terminal of wire harness side connector.

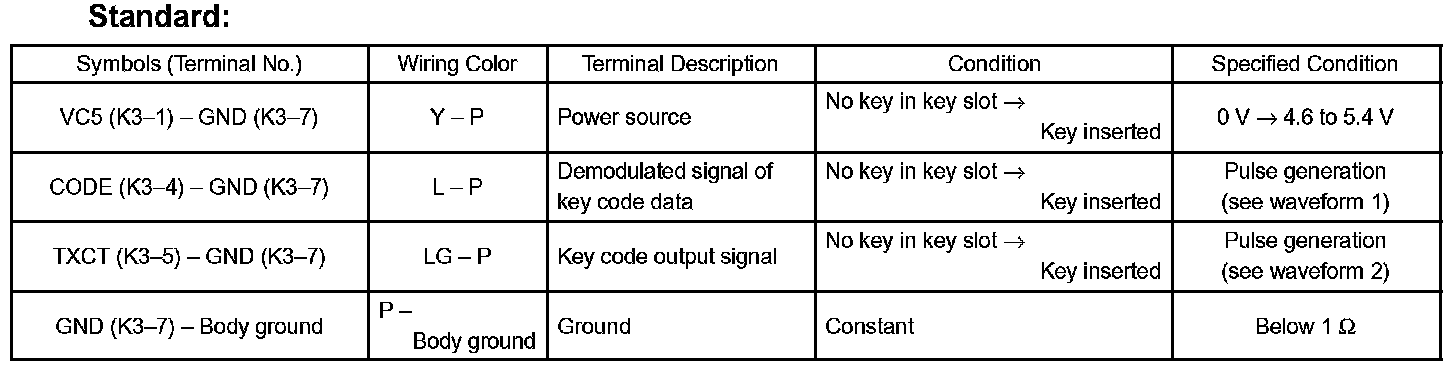

Standard:
If the result is not as specified, the key slot (amplifier) may have a malfunction.

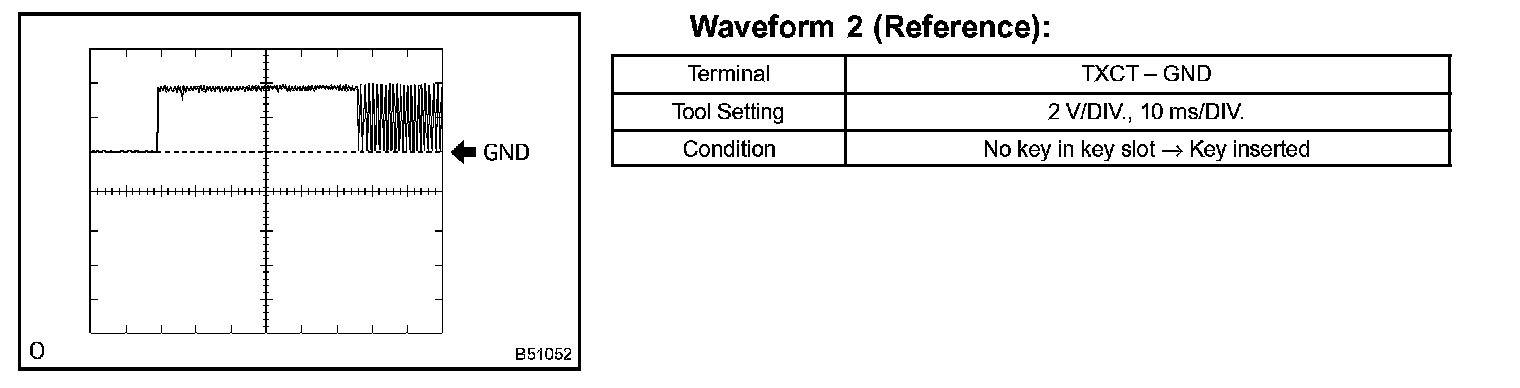

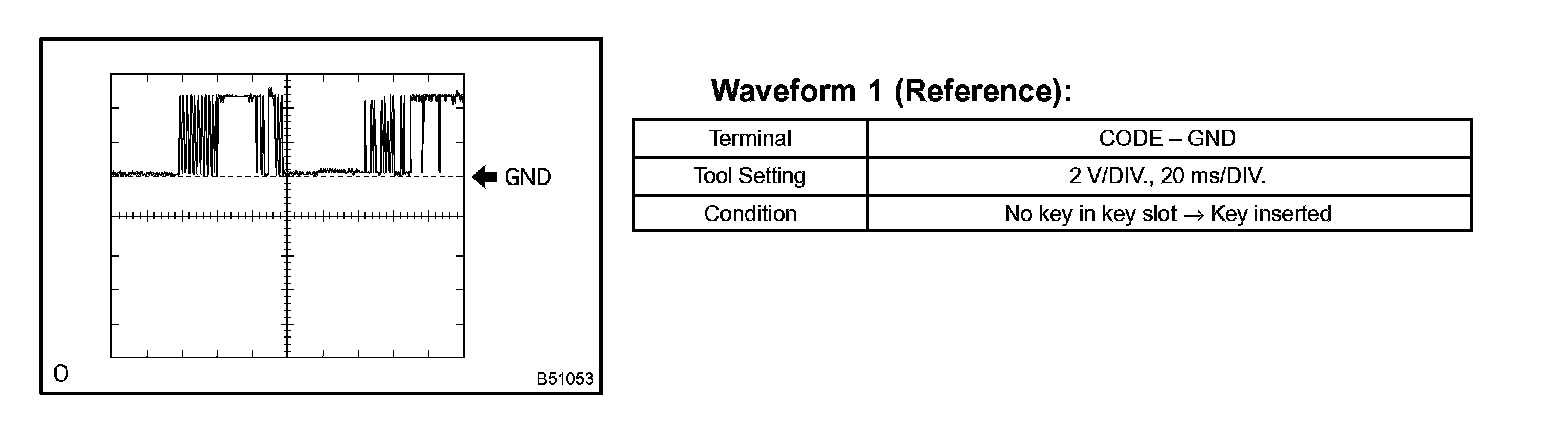

Oscilloscope Waveforms Part 1:
Oscilloscope Waveforms Part 2:
e. Inspect using an oscilloscope.
Terminals Of ECU/Pinouts:

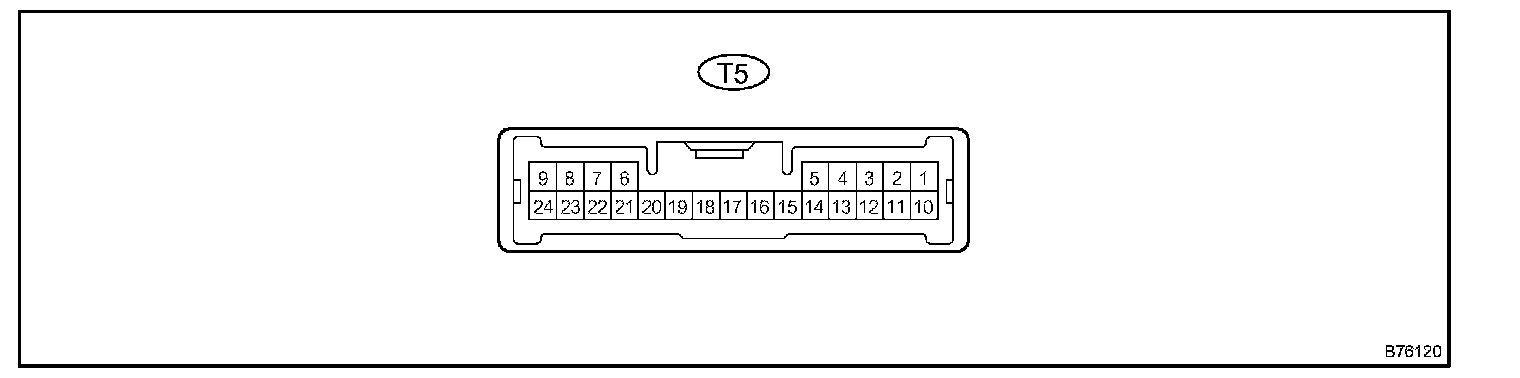

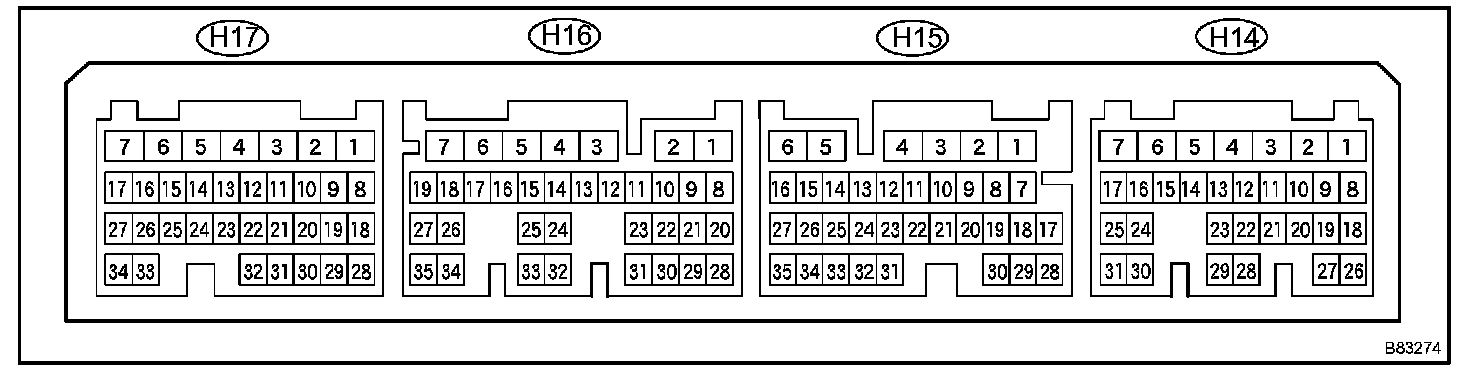

2. CHECK TRANSPONDER KEY ECU
a. Disconnect the T5 ECU connector.
b. Measure the resistance and voltage of each terminal of the wire harness side connector.

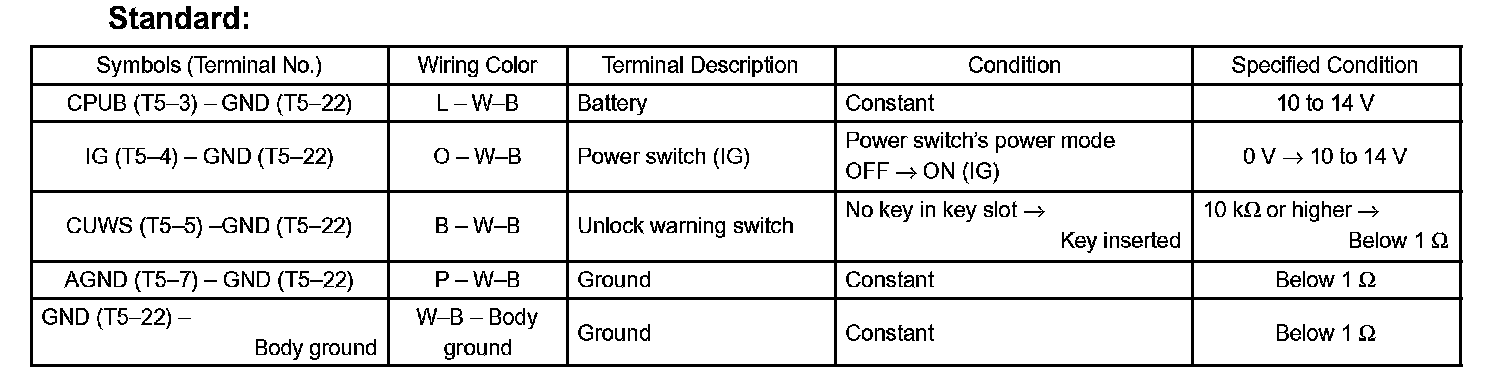

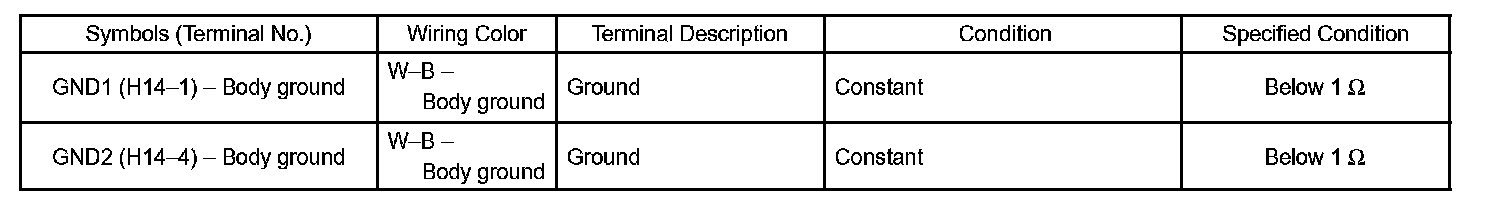

Standard:
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the T5 ECU connector.
d. Measure the voltage of each terminal of the connector.
Standard:
If the result is not as specified, the ECU may have a malfunction.

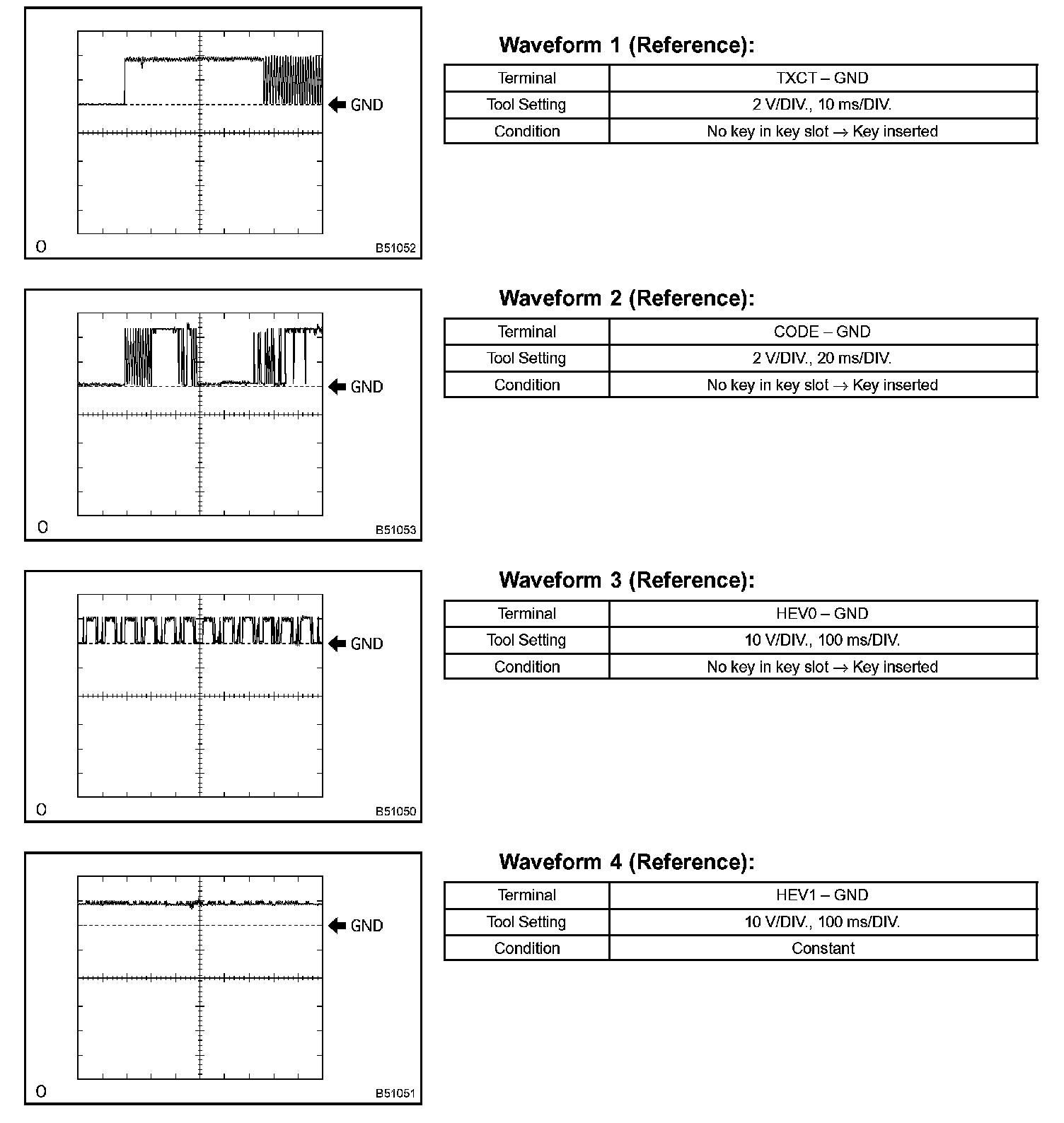

Oscilloscope Waveforms:
e. Inspect using an oscilloscope.

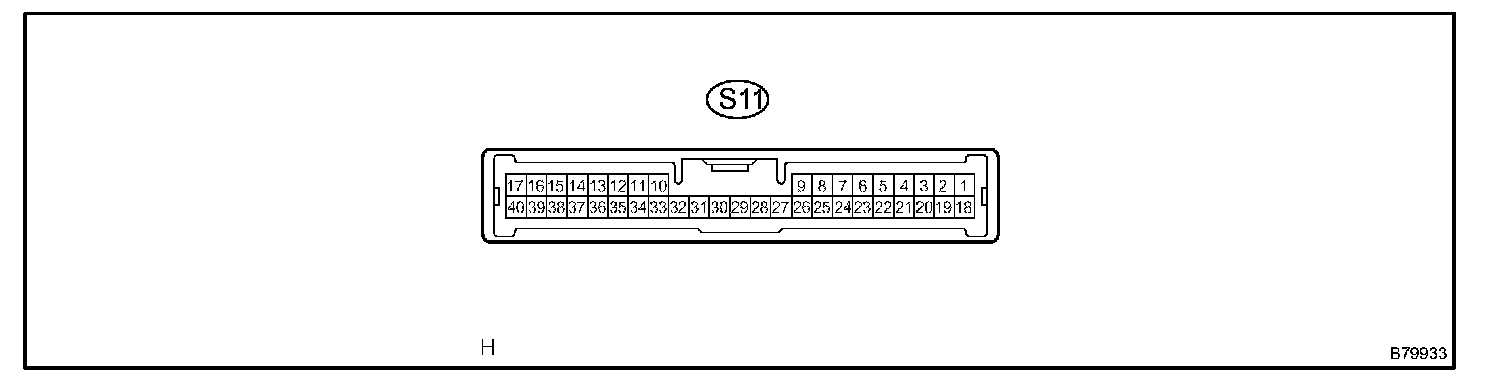

Terminals Of ECU/Pinouts:
3. CHECK SMART ECU
a. Disconnect the S11 ECU connector.
b. Measure the voltage and resistance of each terminal of the wire harness side connector.

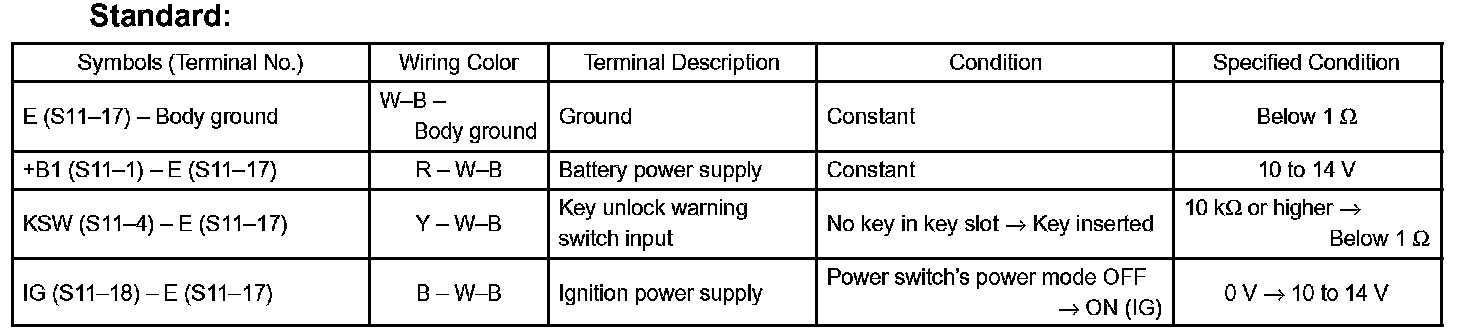

Standard:
If the result is not as specified, the wire harness side may have a malfunction.
Terminals Of ECU/Pinouts:
4. CHECK HYBRID VEHICLE CONTROL ECU

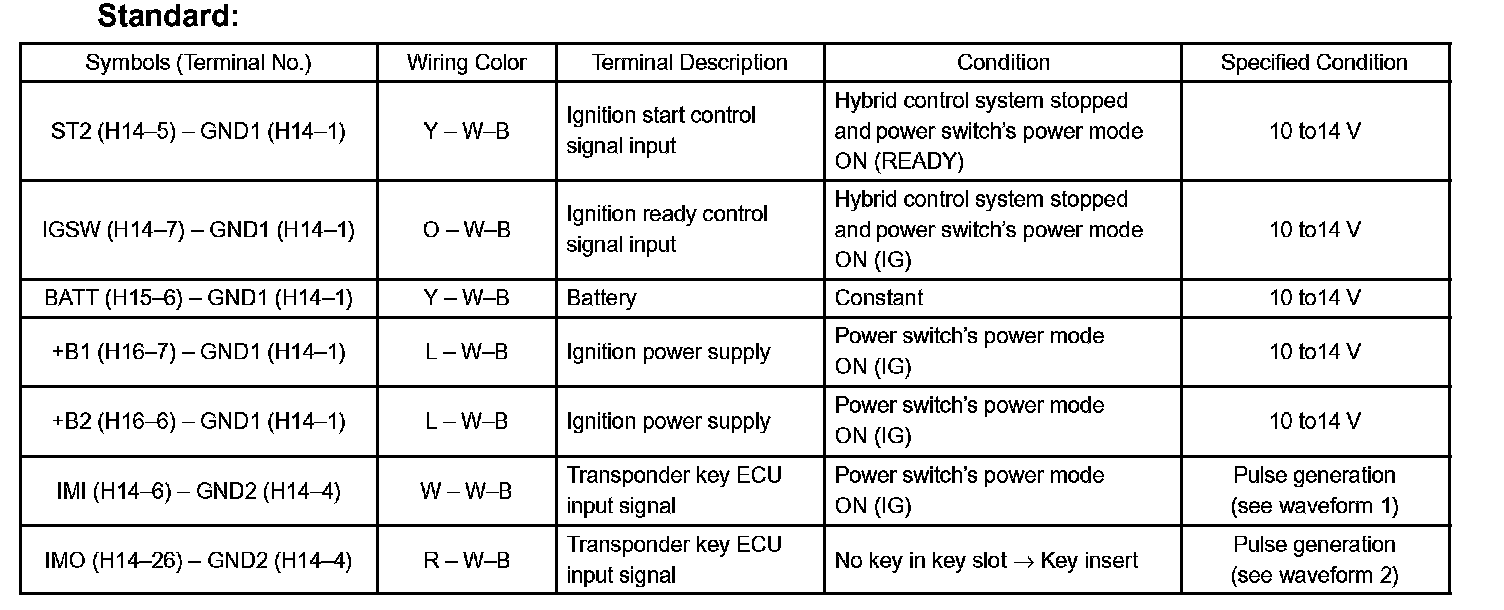

a. Measure the resistance and voltage of each terminal of the connectors.
Standard:
If the result is not as specified, the ECU may have a malfunction.

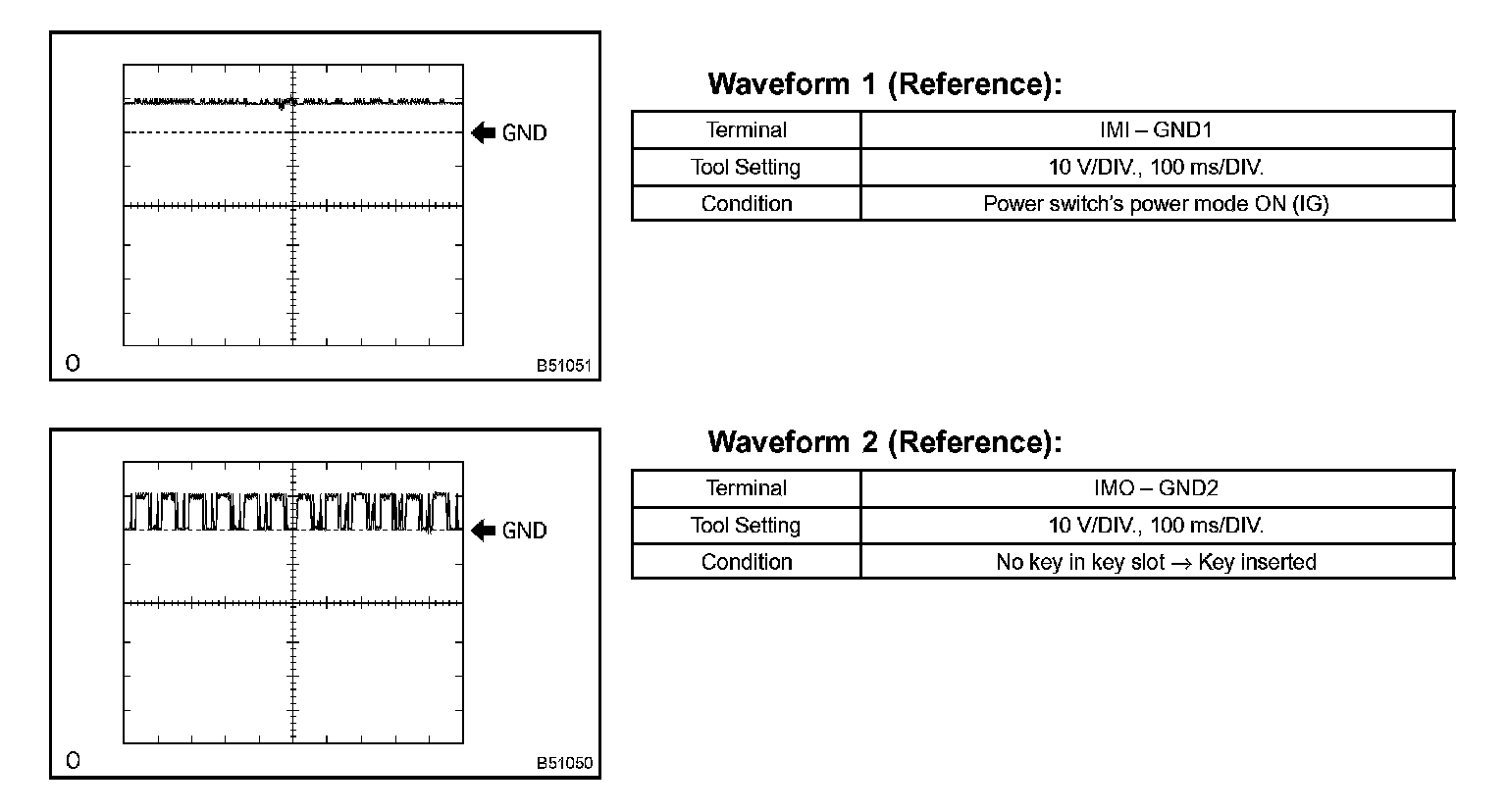

Oscilloscope Waveforms:
b. Inspect using an oscilloscope.
