With Manufacturer's Scan Tool

CHECK DTC

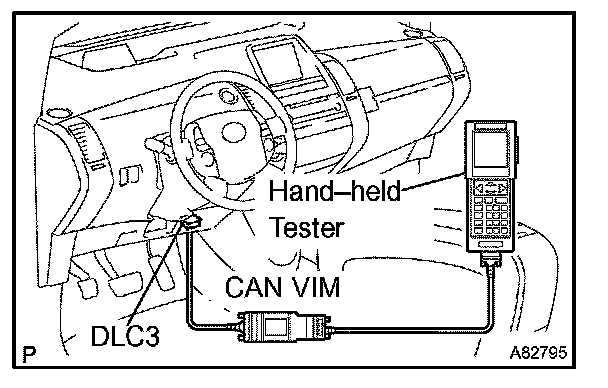

a. Connect the hand-held tester together with the Controller Area Network Vehicle Interface Module (CAN VIM). The connect the CAN VIM to the DLC3.
b. Turn the power switch ON (IG).
c. Read the DTCs by following the directions on the tester's screen.

HINT: Refer to the hand-held tester operator's manual for further details.
