Symptom Diagnostic Procedures

POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This circuit provides power to operate the transponder key ECU assy.

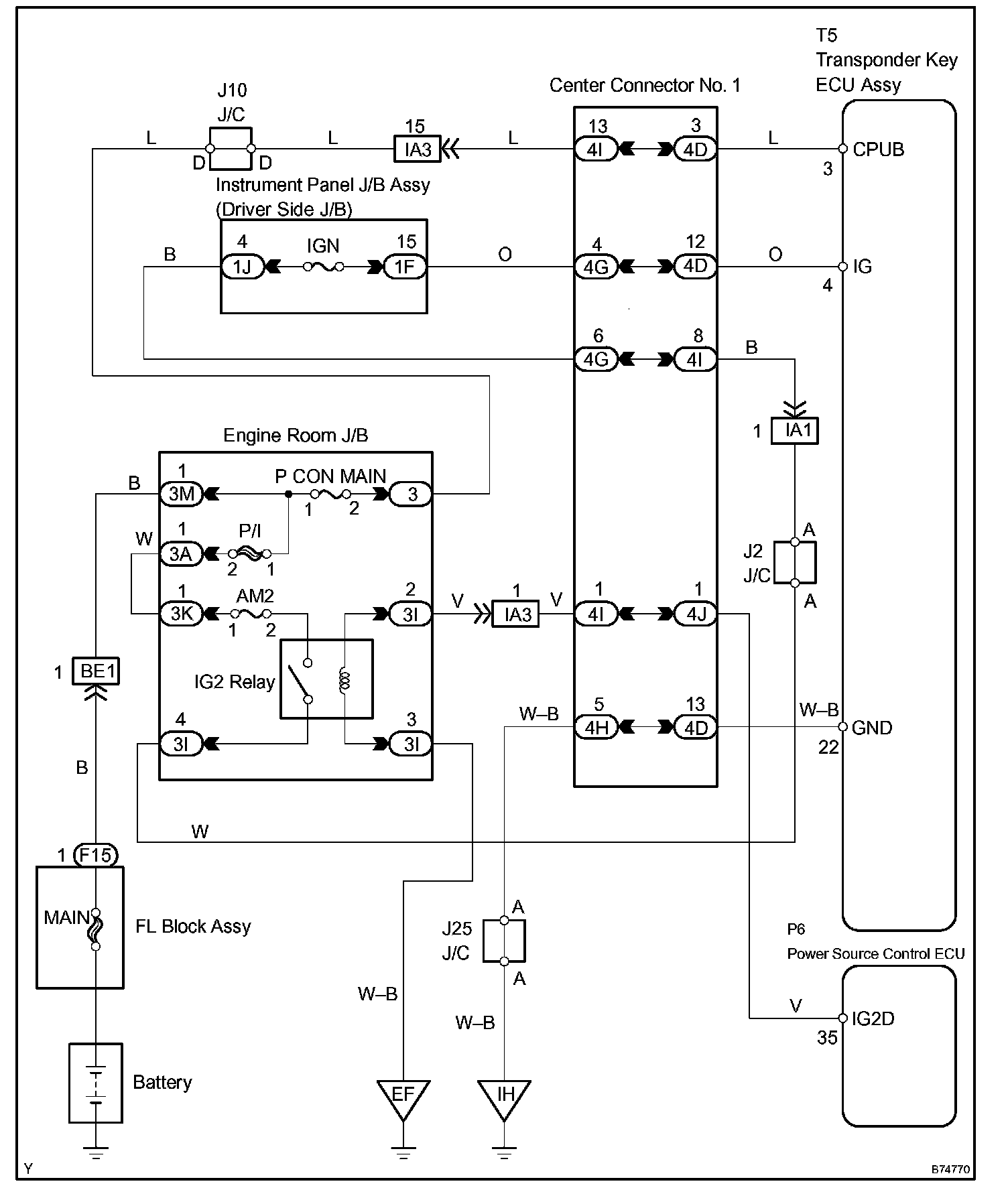

Wiring Diagram:

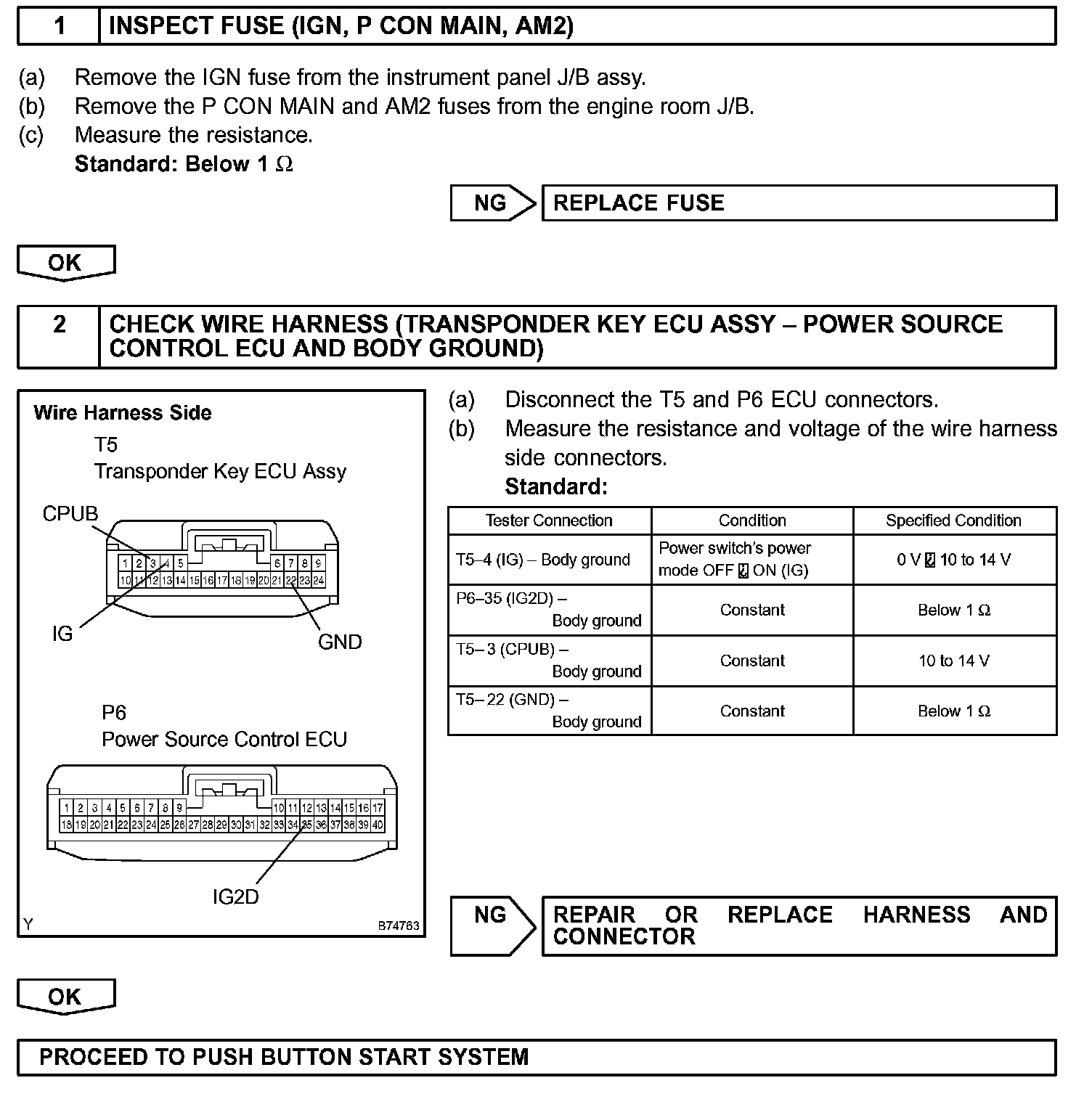

Step 1 - 2:




INSPECTION PROCEDURE
