Smart Back Door Unlock Function Does Not Operate When (Smart Key Is Outside Back Door)

SMART BACK DOOR UNLOCK FUNCTION DOES NOT OPERATE WHEN SMART KEY IS OUTSIDE BACK DOOR

CIRCUIT DESCRIPTION
When the back door opener switch is turned ON, the smart ECU uses the back door oscillator (outer) and antenna to output a request signal to the outside of the vehicle for a distance of approximately 1.0 m from the back door. A smart key near the back door detects this request and transmits its ID code. The wireless door lock receiver receives the ID code and sends this ID code to the smart ECU. The smart ECU checks if the ID code is valid. If the ID code is verified, the smart ECU sends a back door open signal to the instrument panel J/B assy (multiplex network body ECU) using the multiplex communication line and stops outputting request signals. The instrument panel J/B assy (multiplex network body ECU) then unlocks the back door.

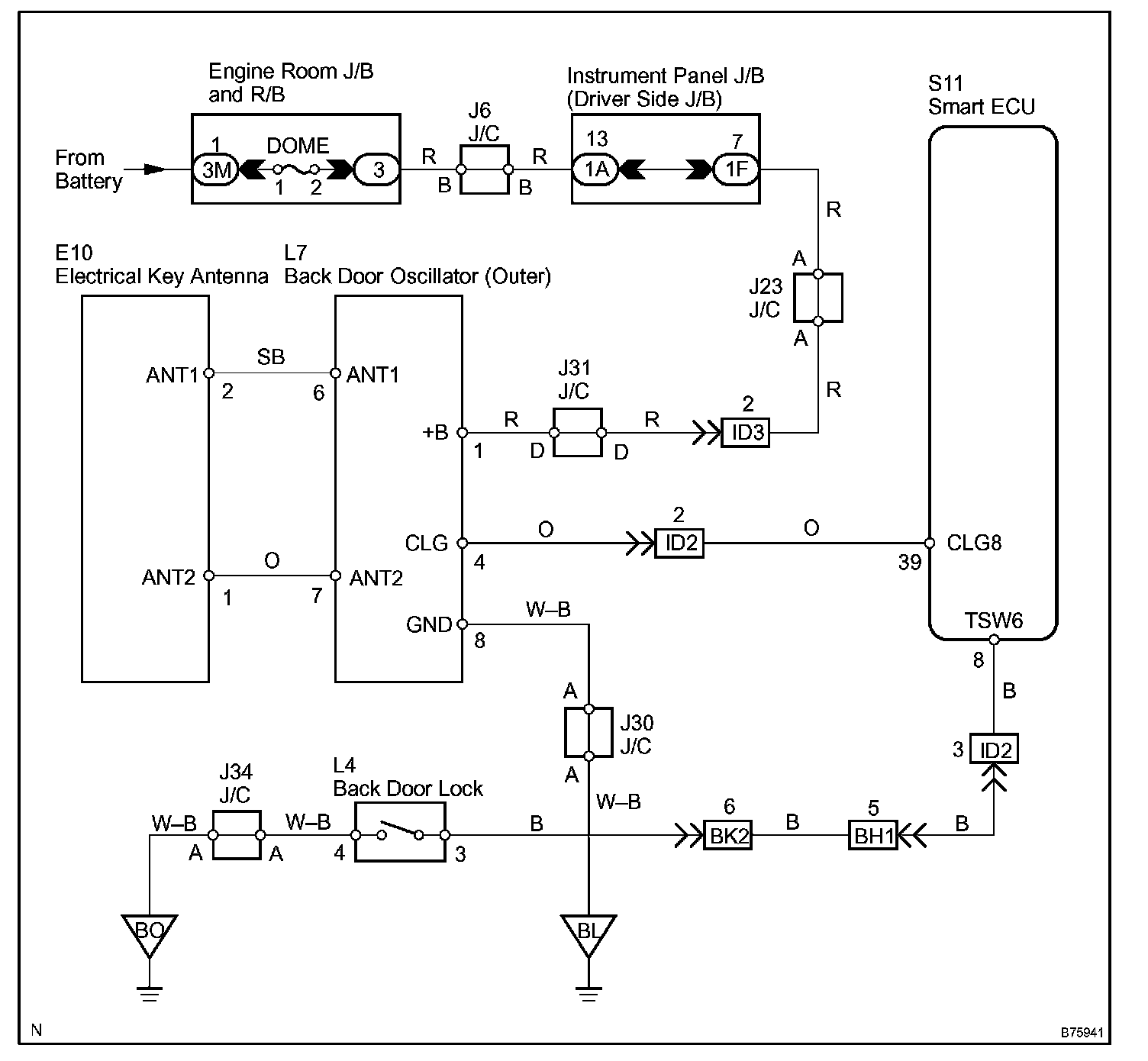

Wiring Diagram:

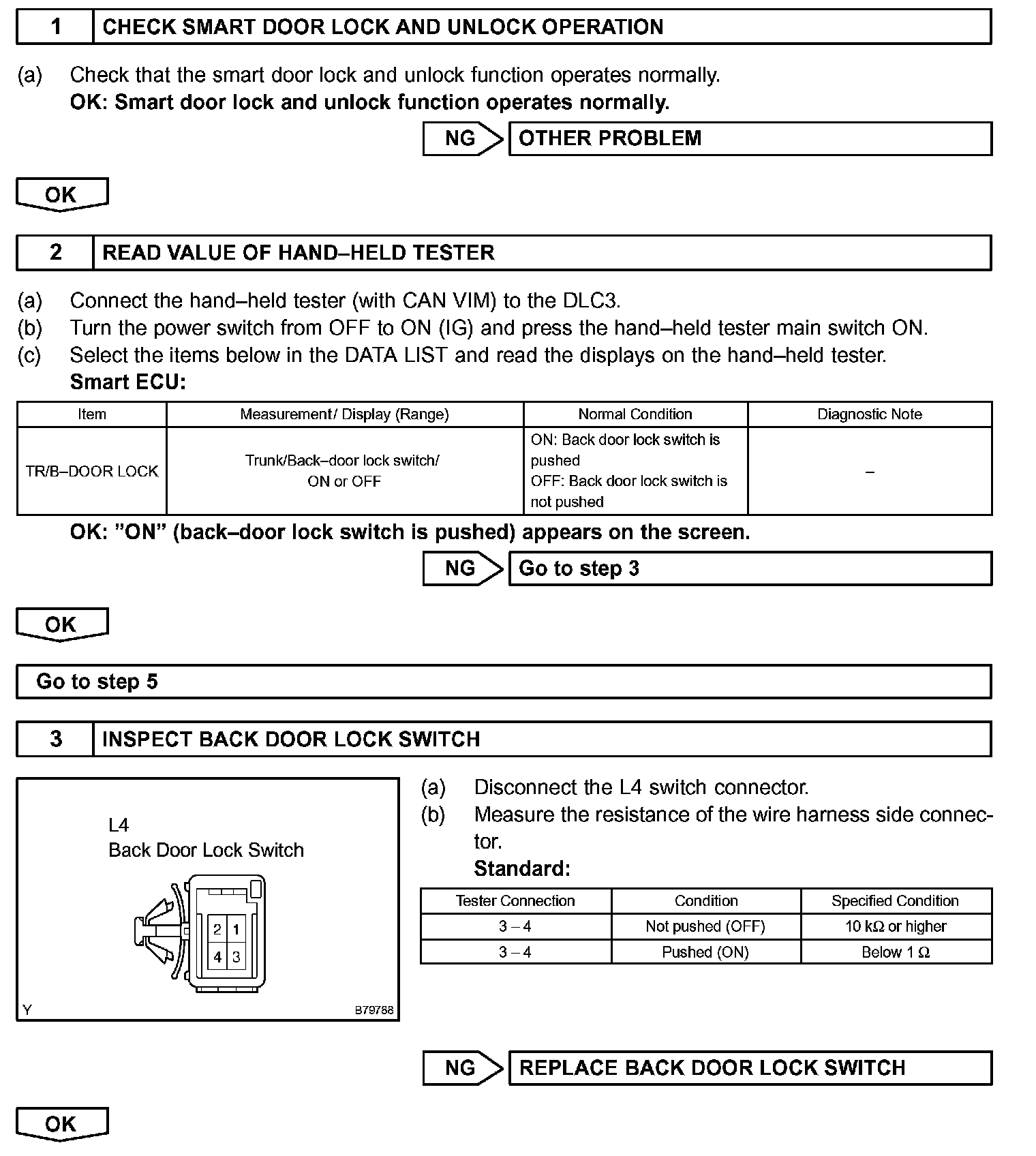

Step 1 - 3:

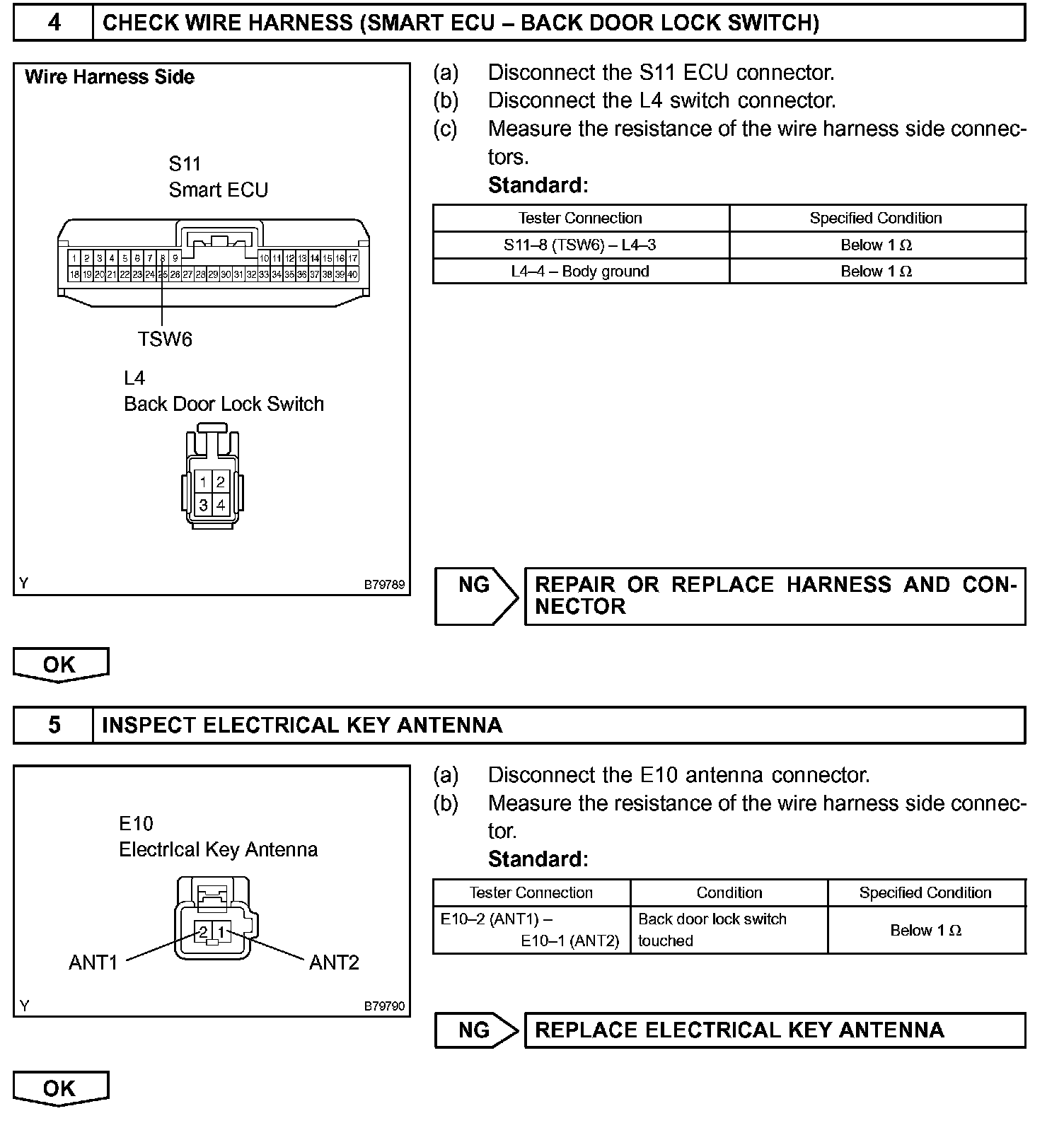

Step 4 - 5:

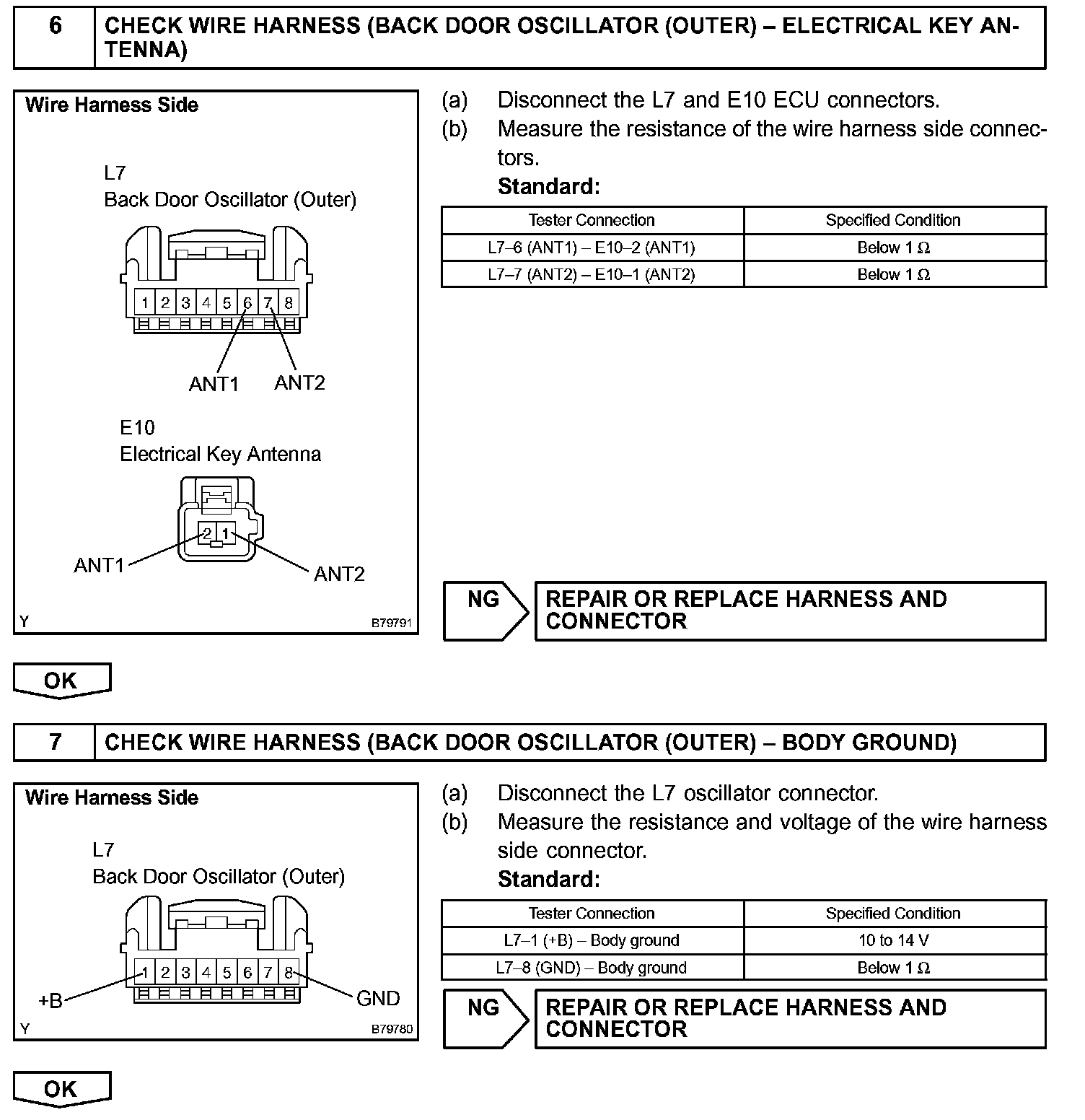

Step 6 - 7:

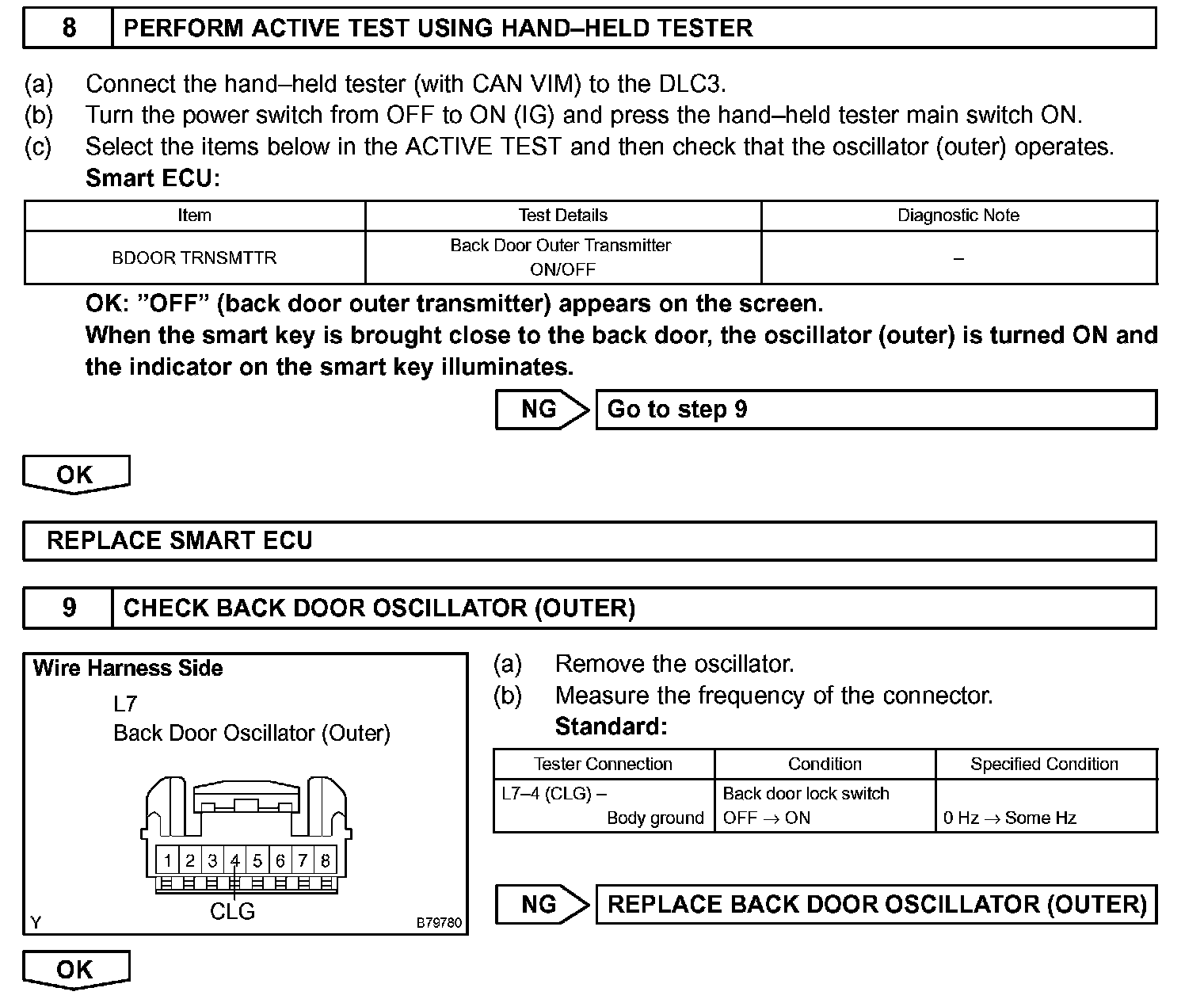

Step 6 - 9:

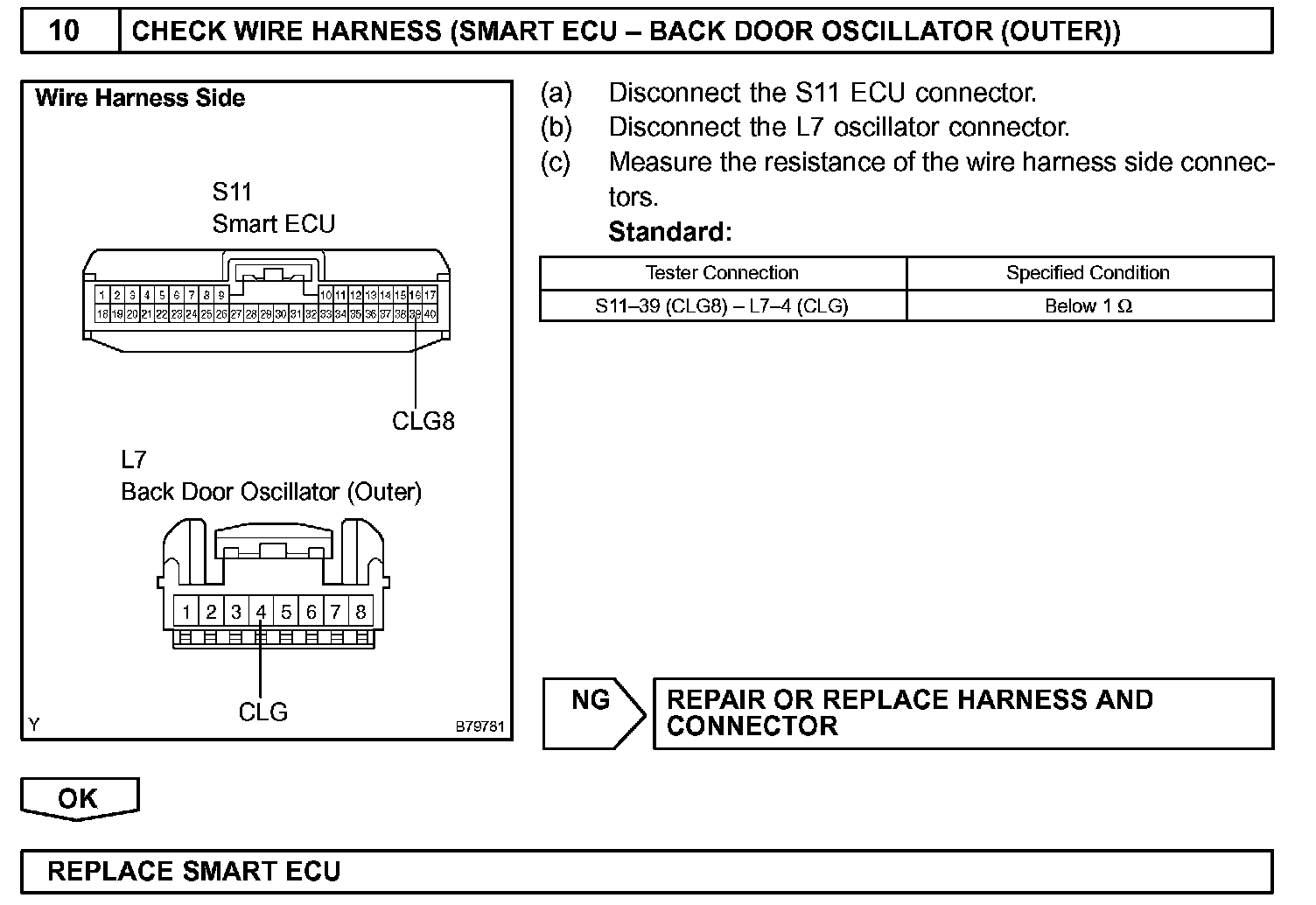

Step 10:

INSPECTION PROCEDURE
