Smart Functions Do Not Operate At All

SMART FUNCTIONS DO NOT OPERATE AT ALL

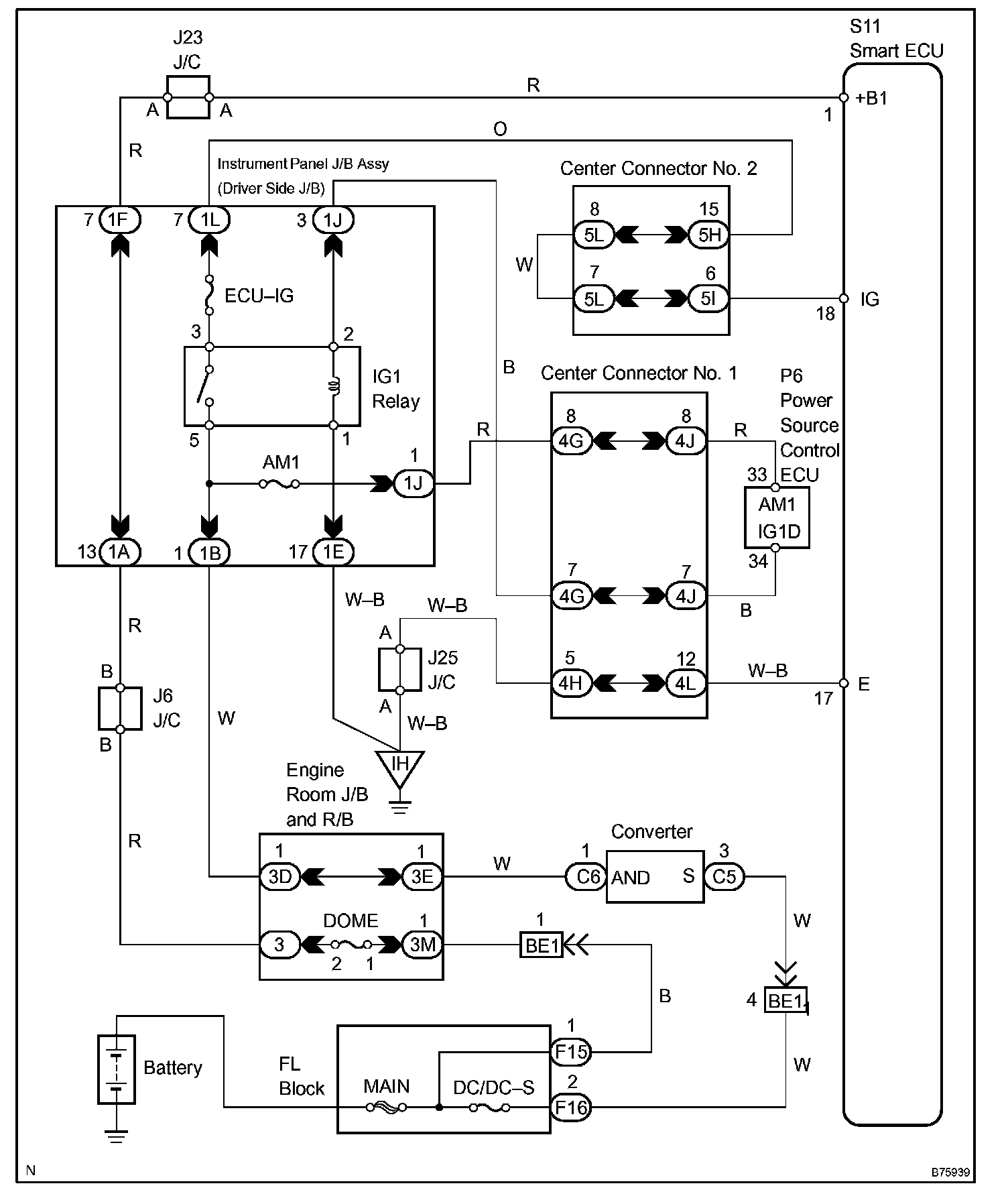

CIRCUIT DESCRIPTION
When the smart functions do not operate at all, it is possible that the smart ECU is malfunctioning or that the wire harness leading to the smart ECU is short-circuited.
