Smart Lock and Unlock Functions Do Not Operate On Driver Door
SMART LOCK AND UNLOCK FUNCTIONS DO NOT OPERATE ON DRIVER DOORCIRCUIT DESCRIPTION
Both the smart lock and unlock functions do not operate when: 1) nothing is output from the driver door outside oscillator, 2) the smart entry system is disabled through customization, or 3) the entire power door lock control system is malfunctioning.

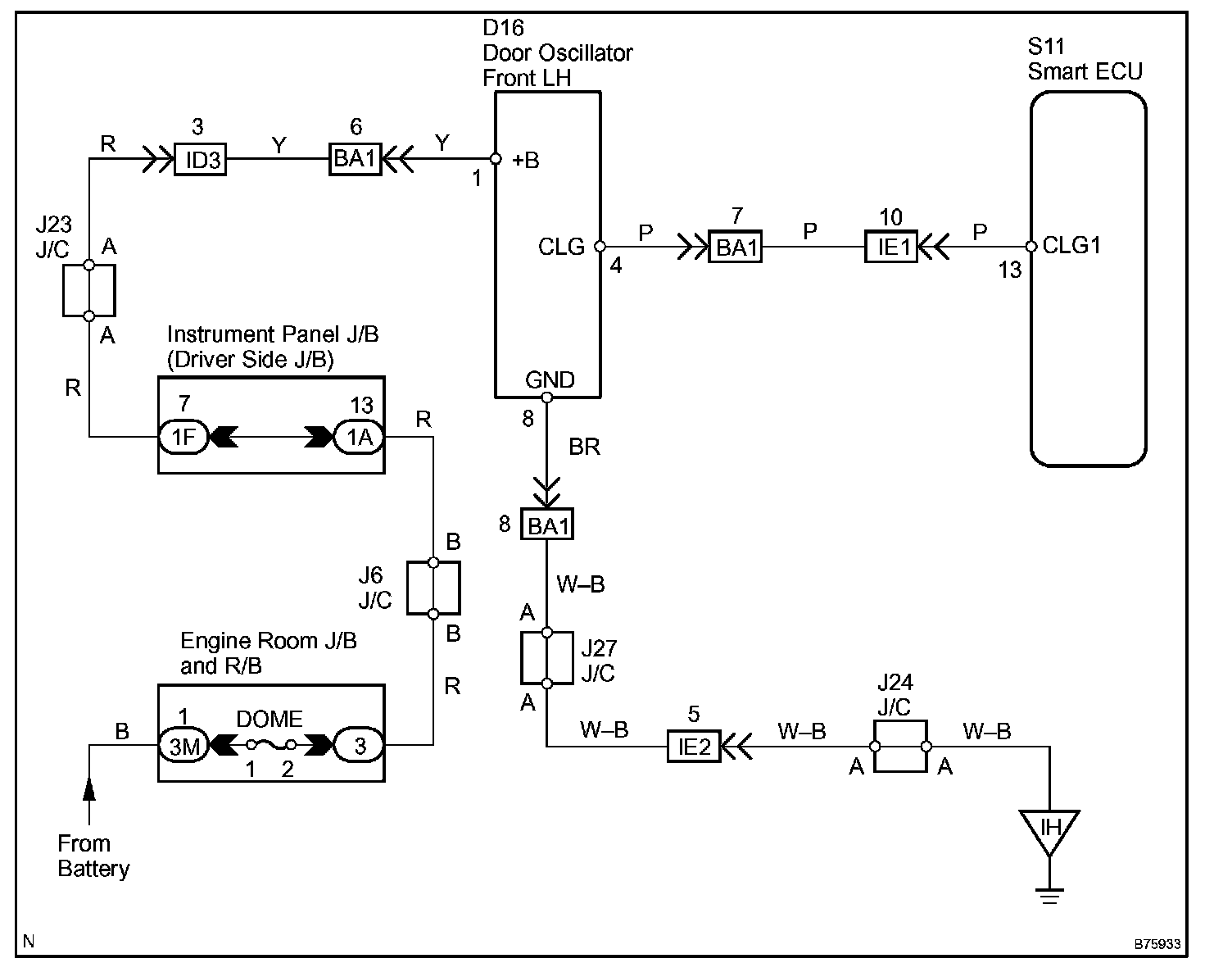

Wiring Diagram:

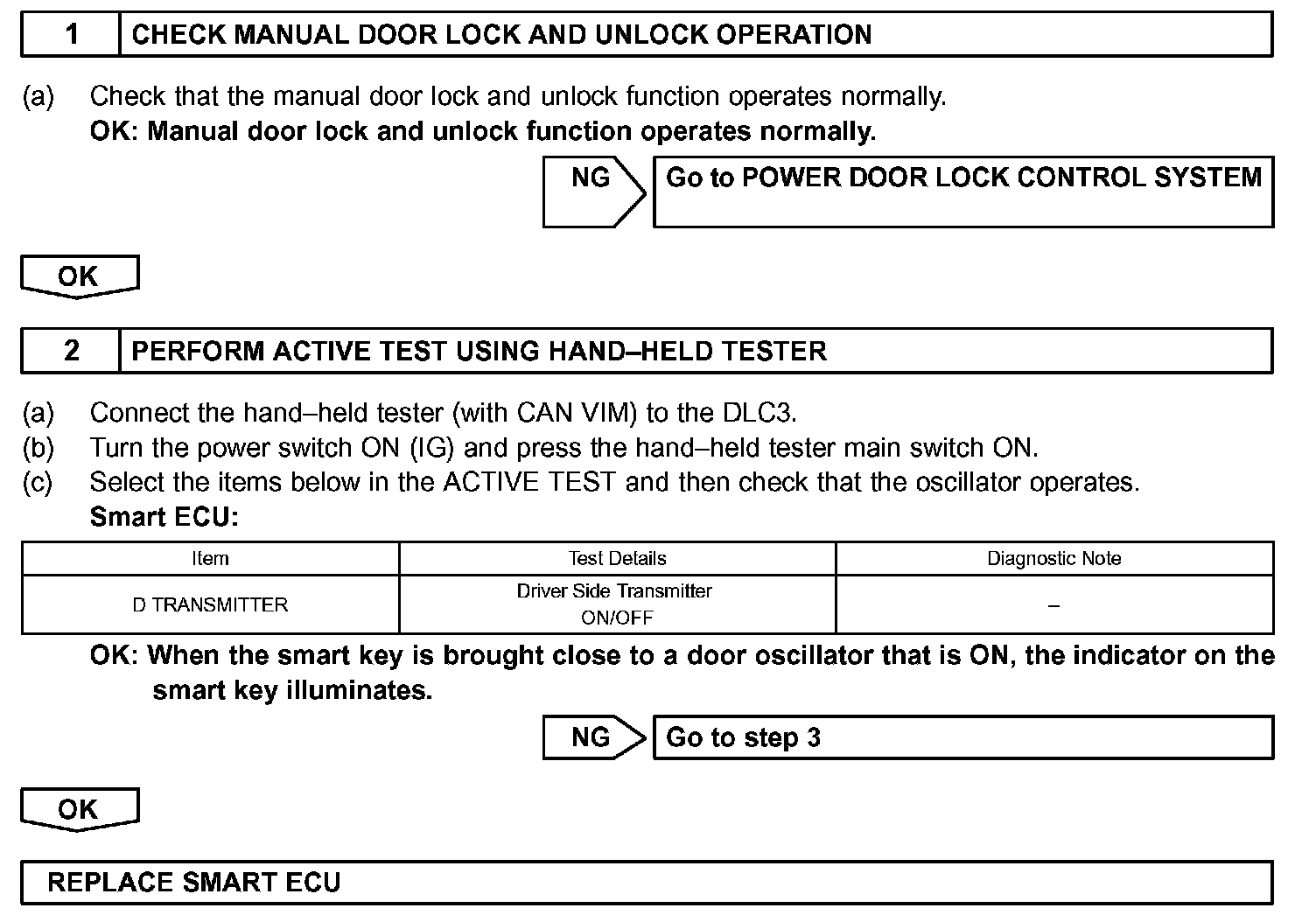

Step 1 - 2:

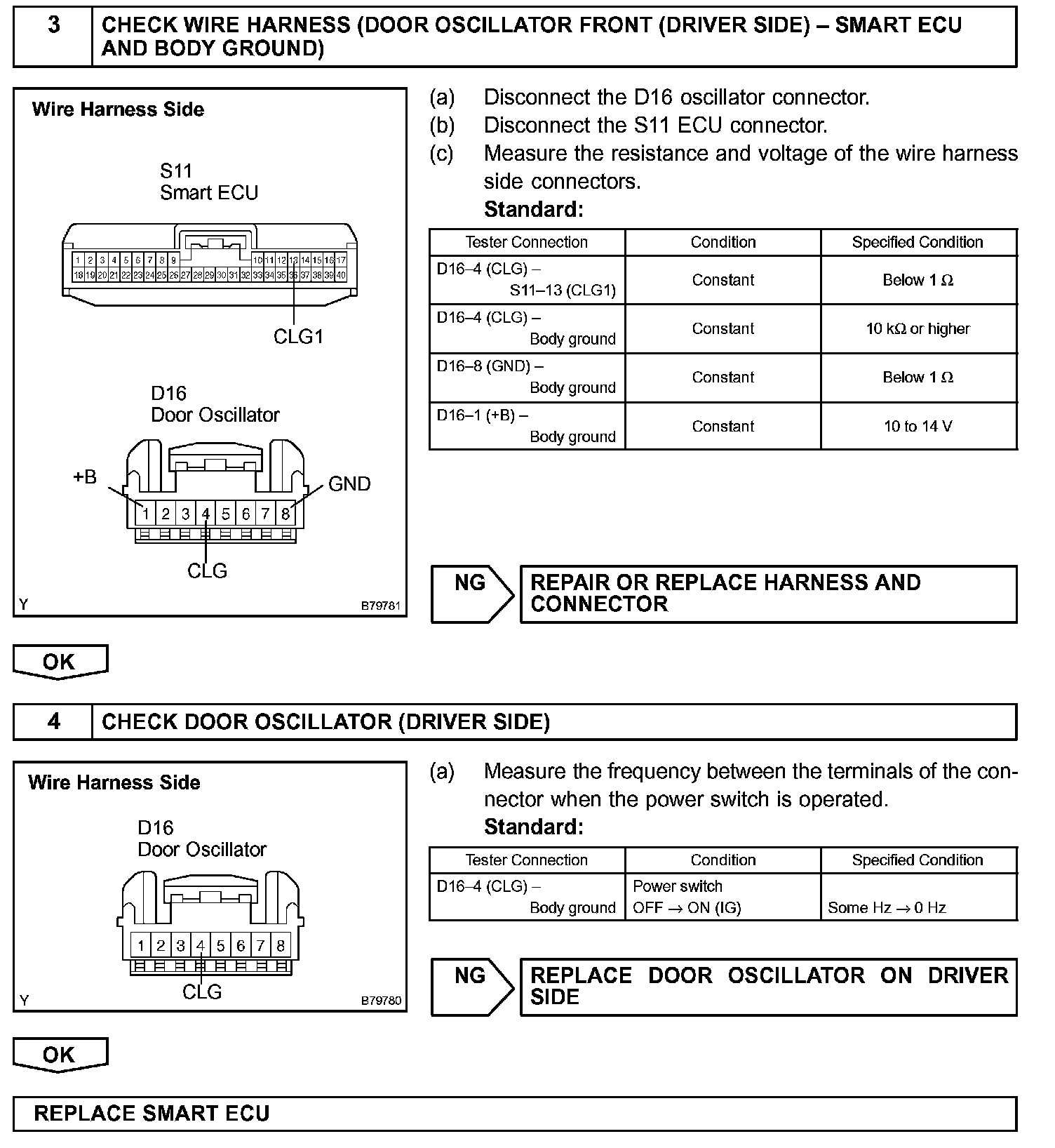

Step 3 - 4:
INSPECTION PROCEDURE
