Smart Lock and Unlock Functions Do Not Operate on Passenger Side Door

SMART LOCK AND UNLOCK FUNCTIONS DO NOT OPERATE ON PASSENGER DOOR

CIRCUIT DESCRIPTION
Both the smart lock and unlock functions do not operate when: 1) nothing is output from the passenger door outside oscillator, 2) the smart entry system is disabled through customization, or 3) the entire power door lock control system is malfunctioning.

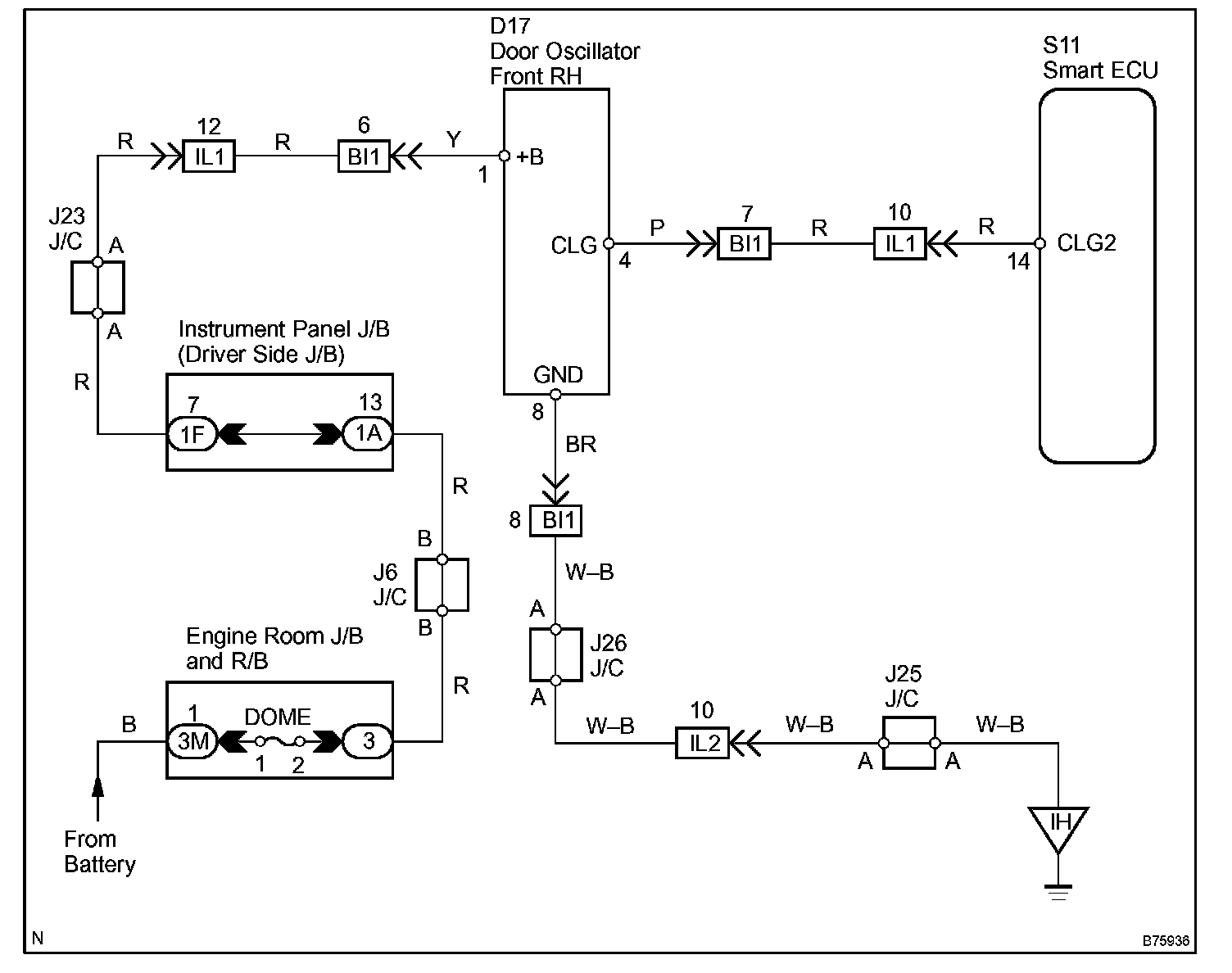

Wiring Diagram:

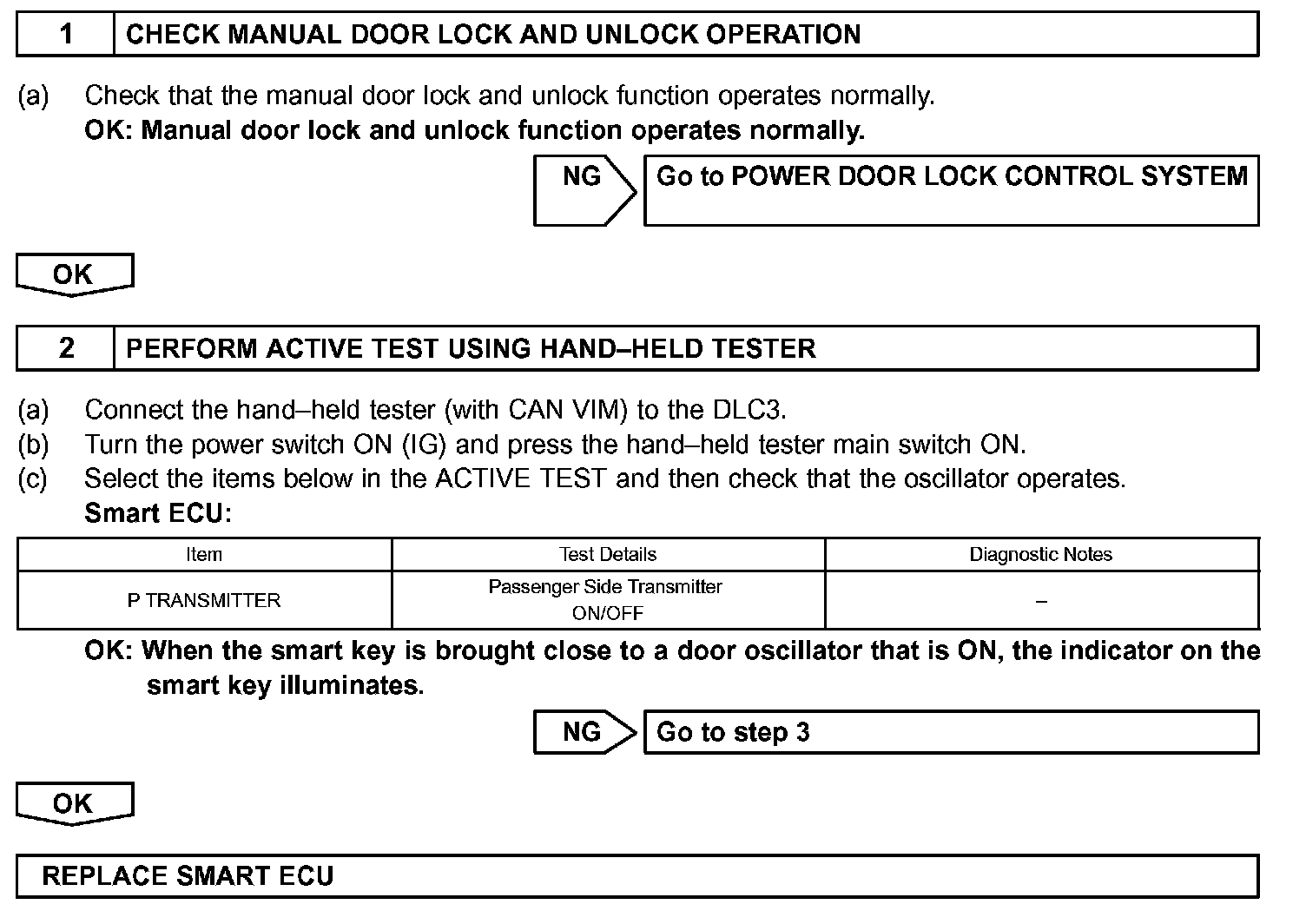

Step 1 - 2:

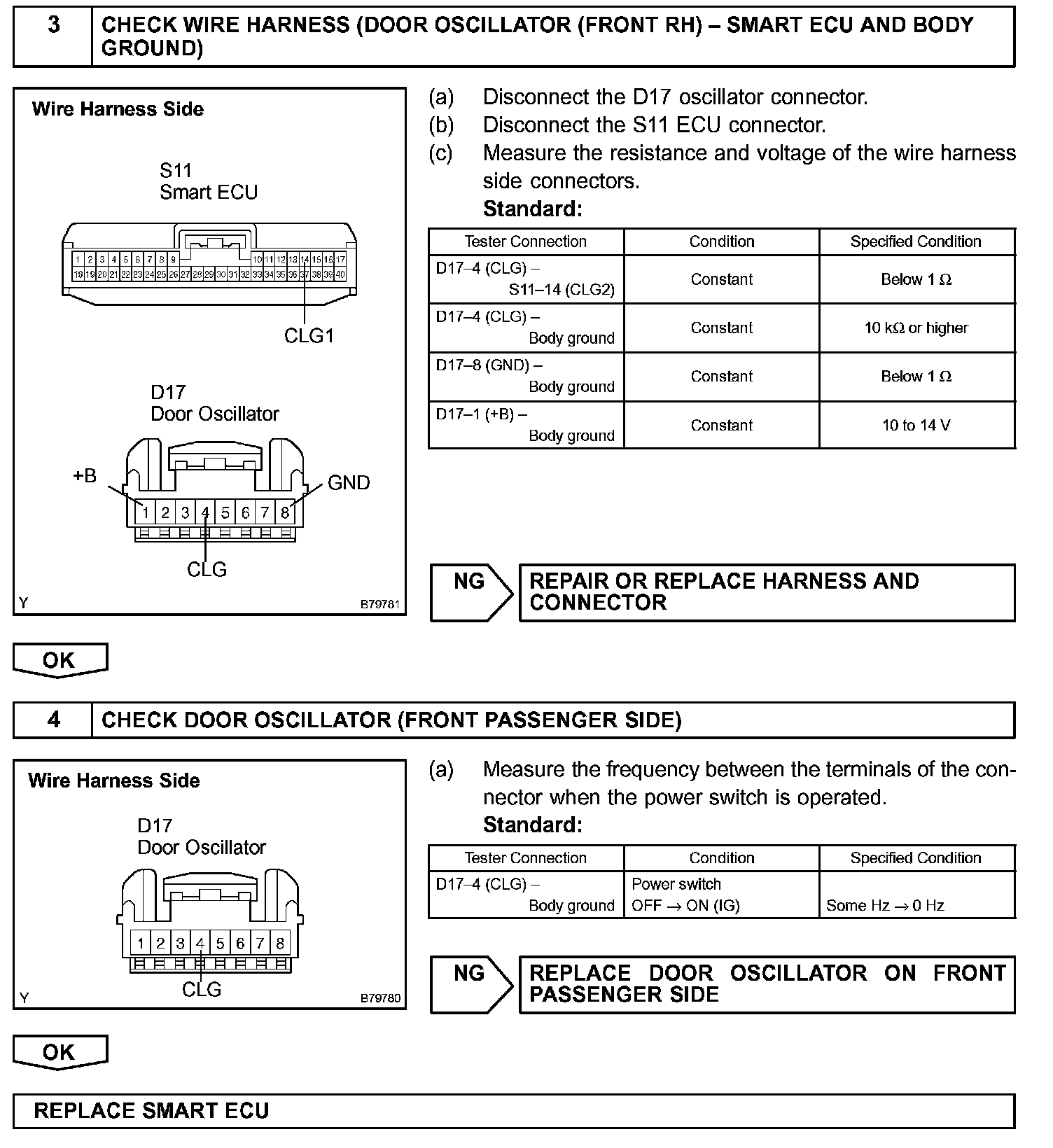

Step 3 - 4:

INSPECTION PROCEDURE
