ECU Power Source Circuit

ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This circuit provides power to operate the multiplex network body ECU.

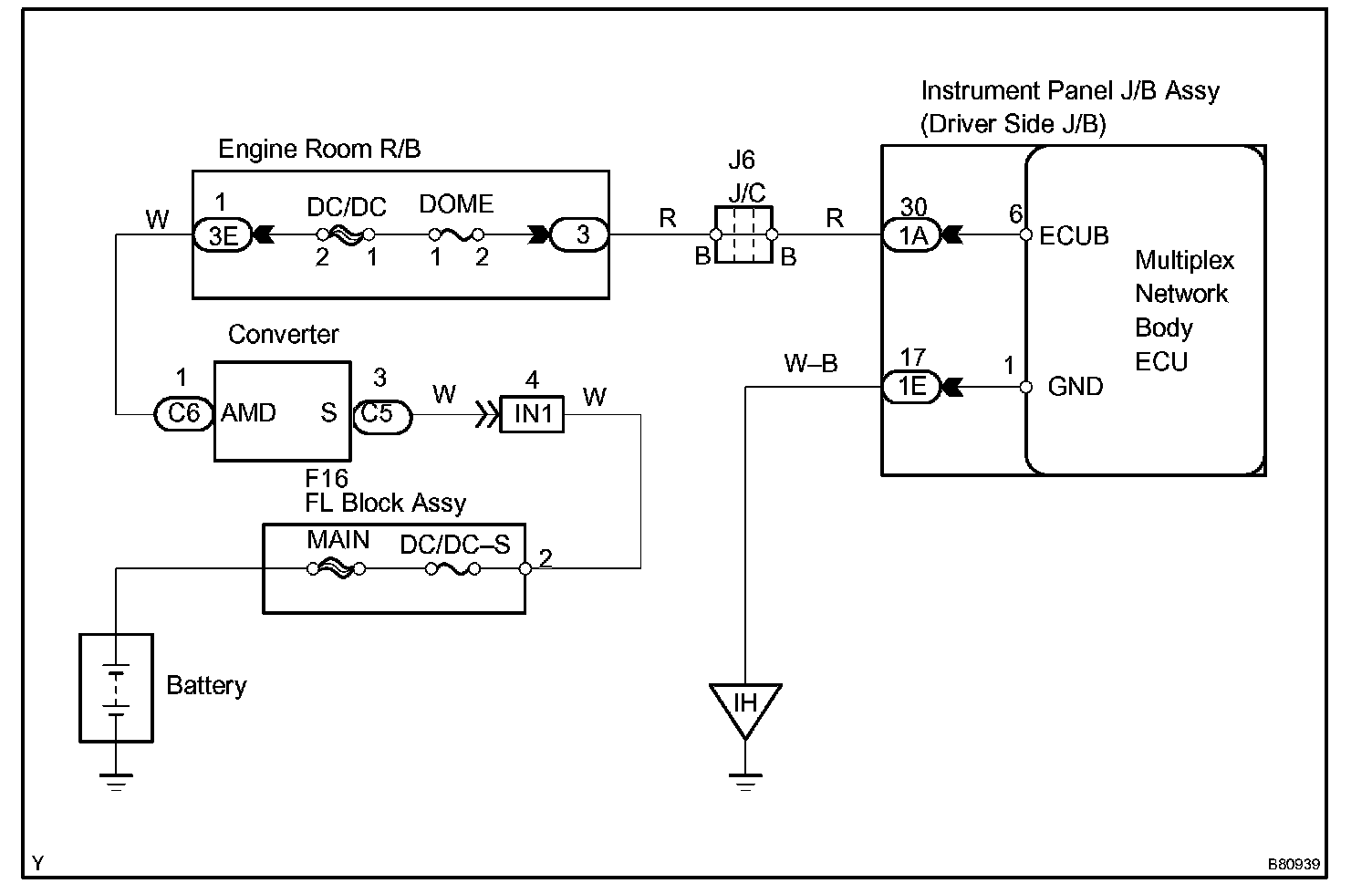

Wiring Diagram:

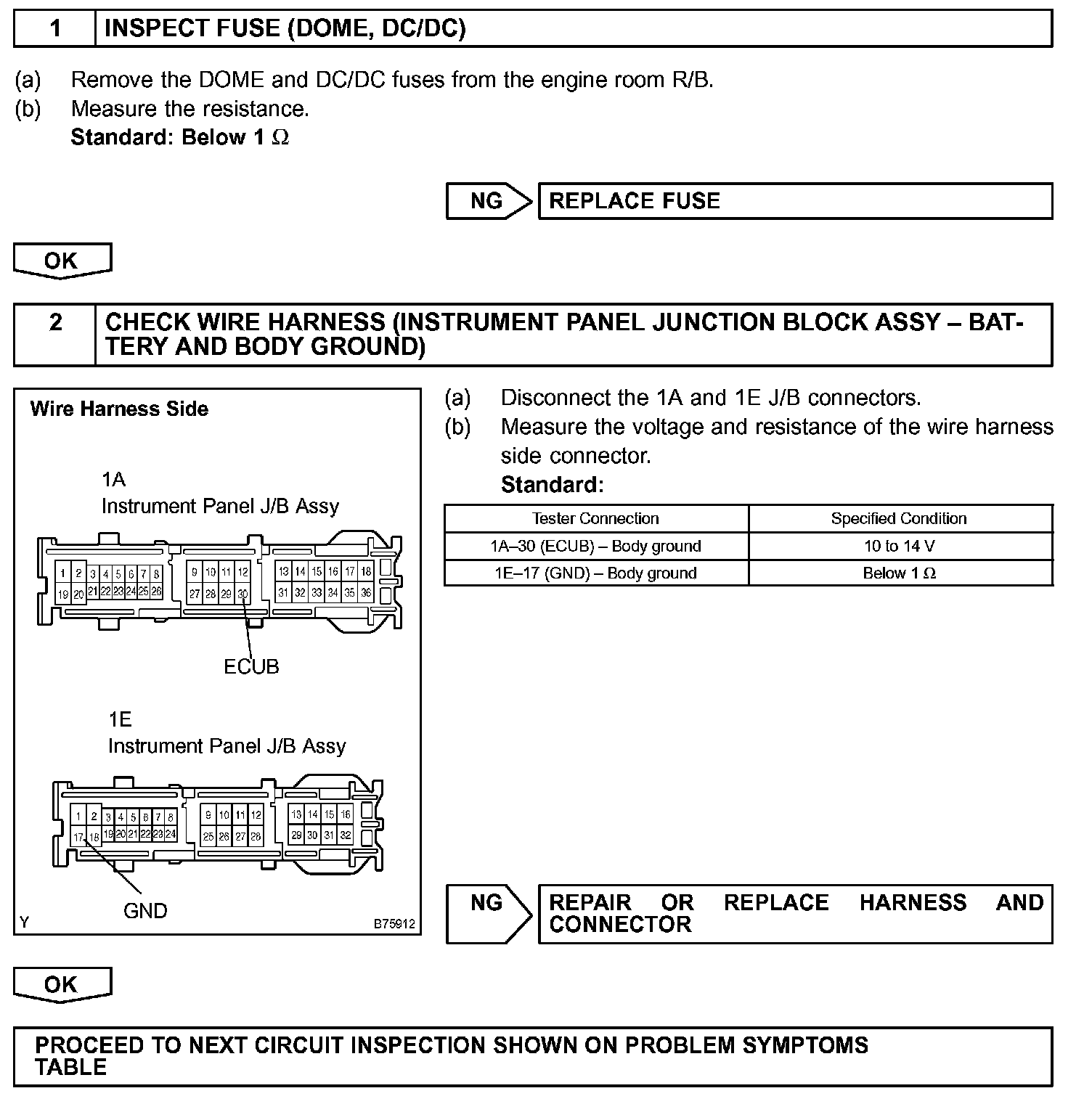

Step 1 - 2:




INSPECTION PROCEDURE
