Horn Circuit

HORN CIRCUIT

CIRCUIT DESCRIPTION
When the theft deterrent system is switched from the armed state to the alarm sounding state, the multiplex network body ECU turns on the HORN relay, causing the horn to sound at intervals of 0.4 seconds.

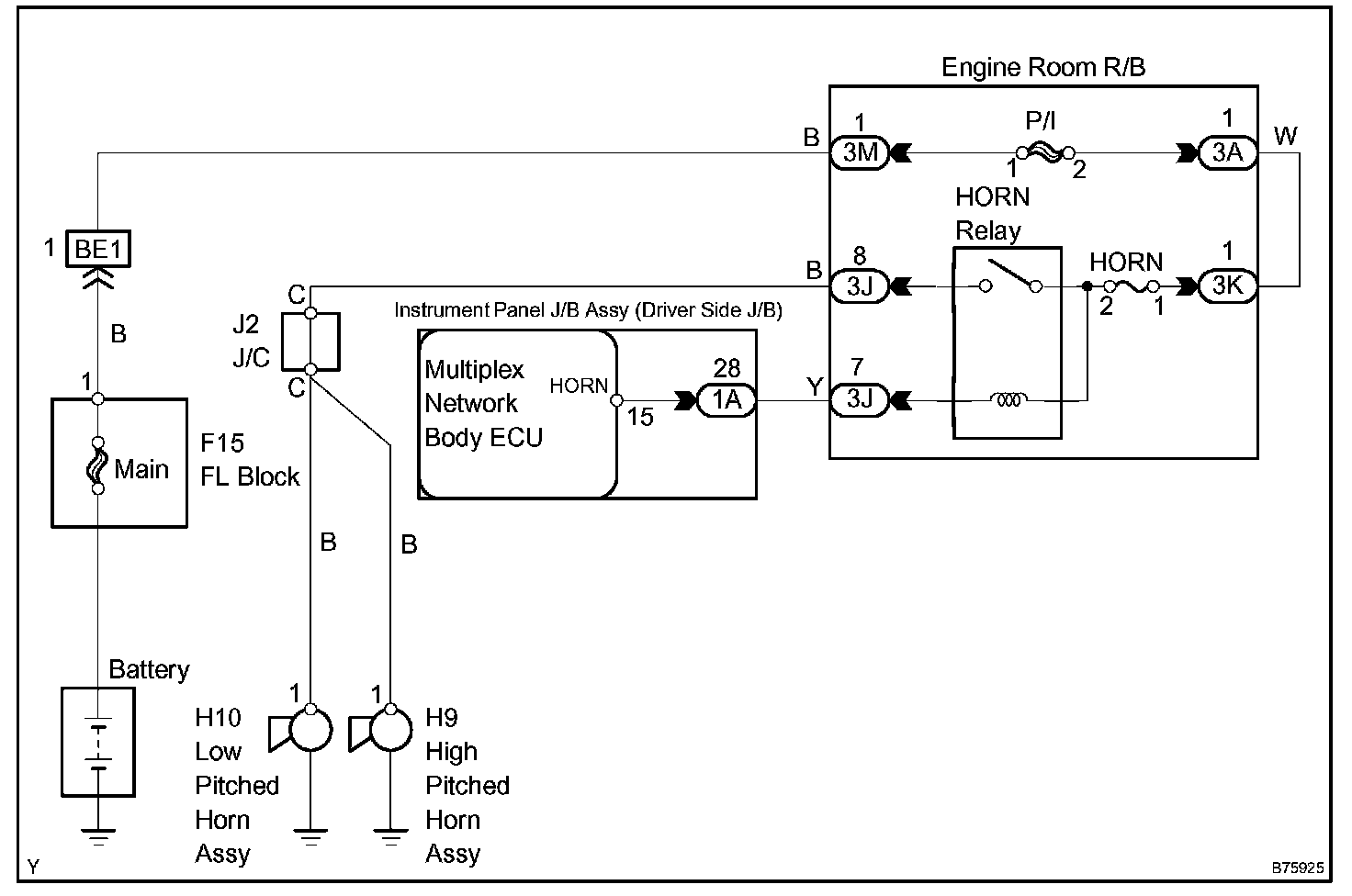

Wiring Diagram:

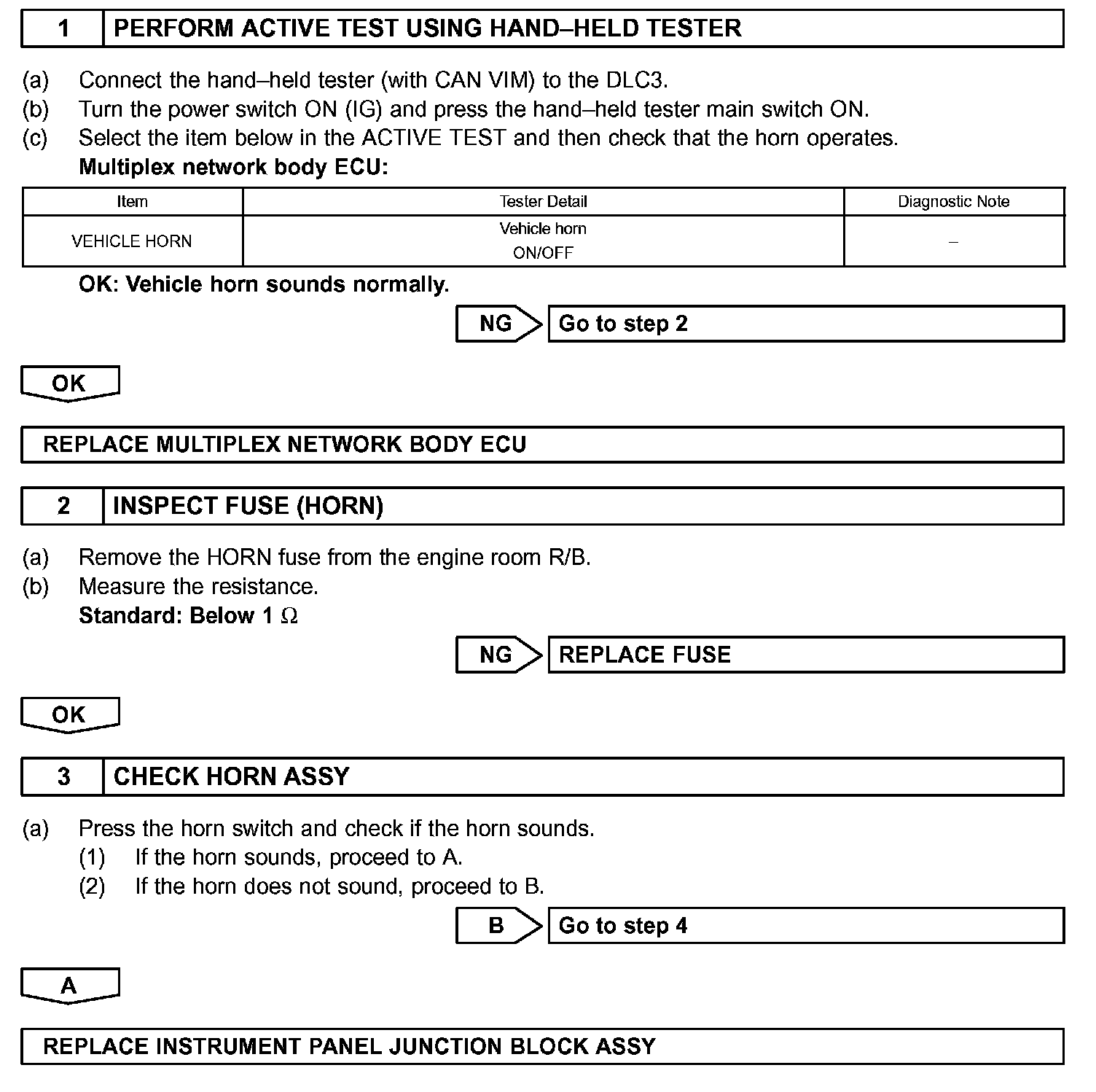

Step 1 - 3:

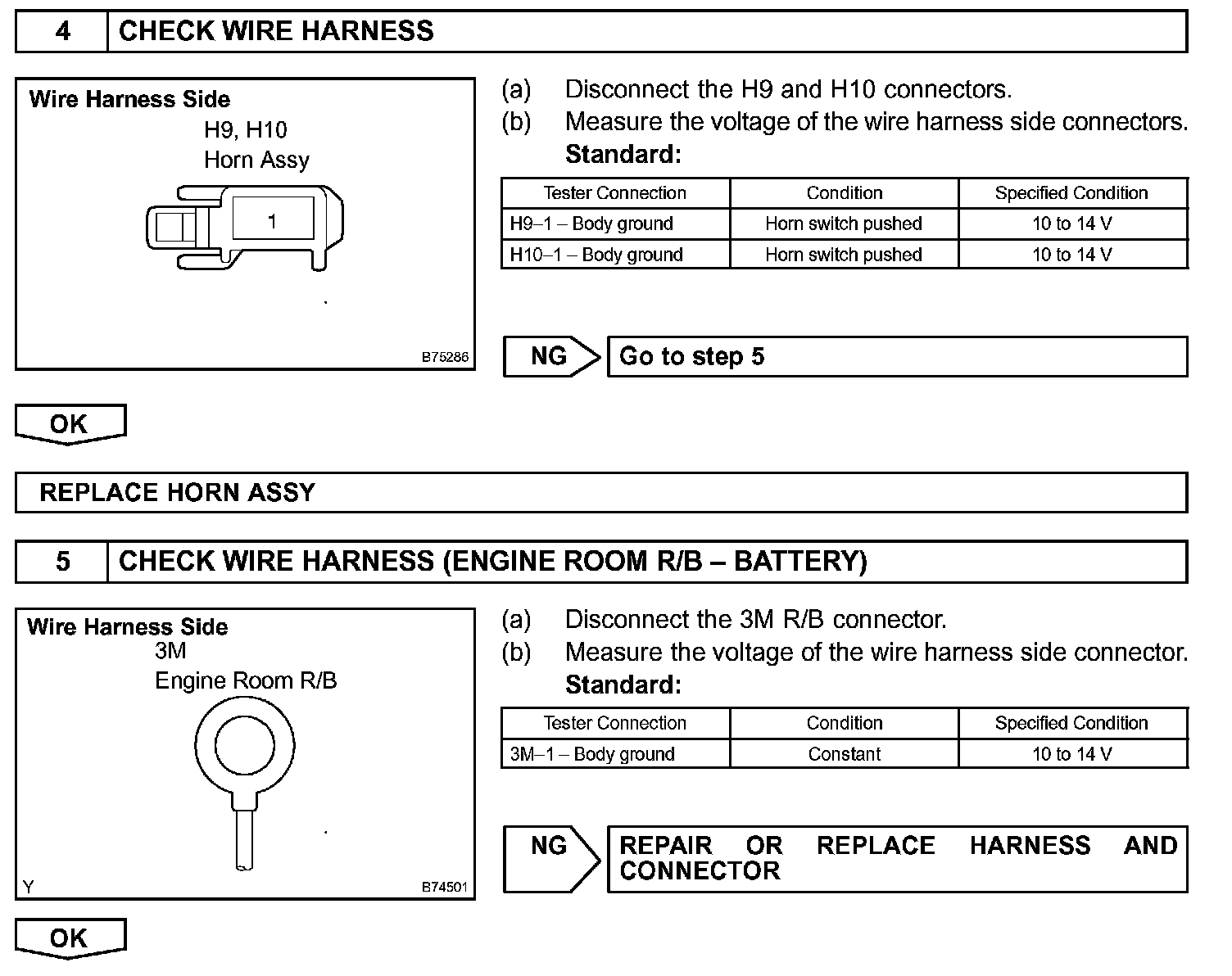

Step 4 - 5:

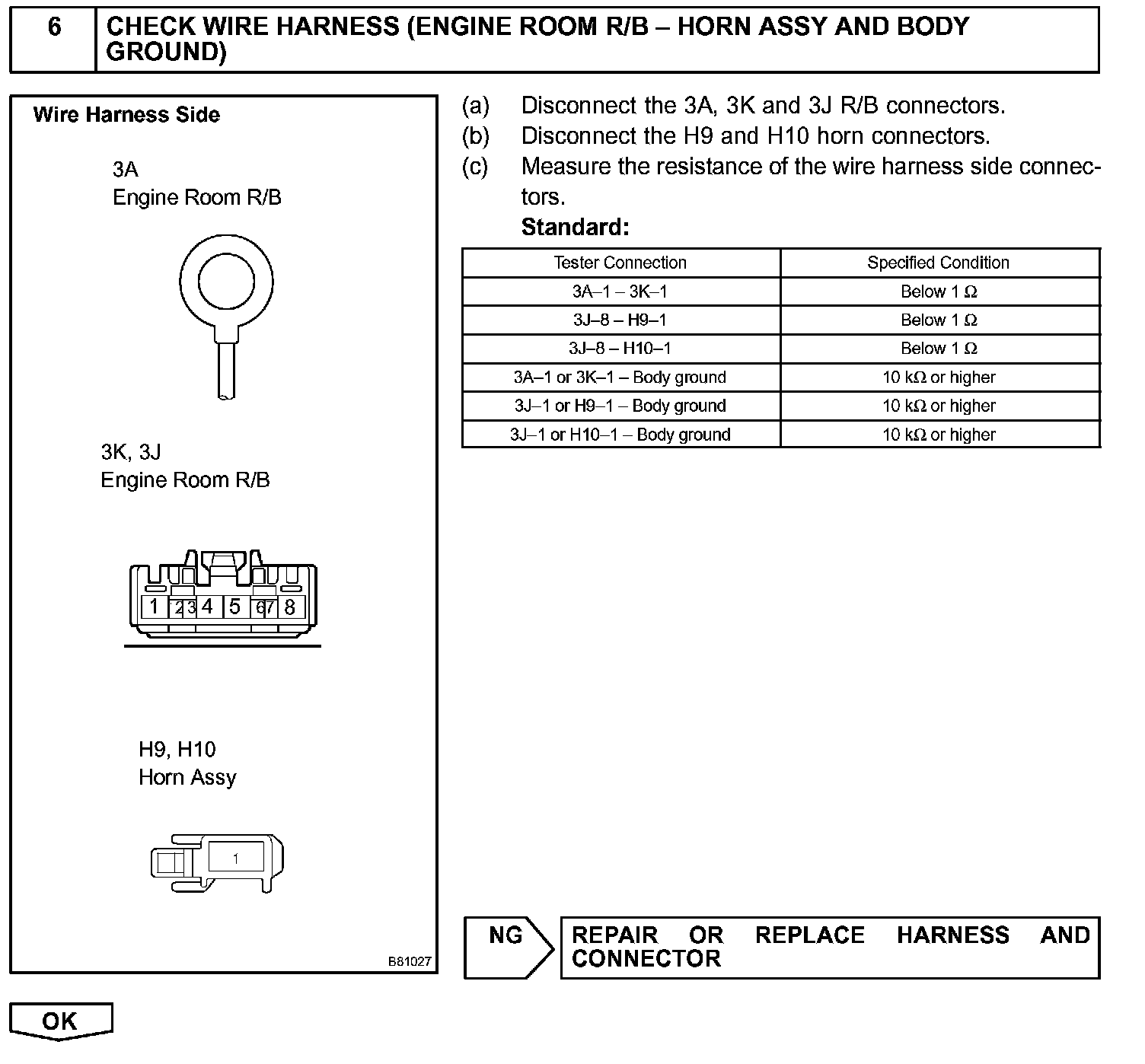

Step 6:

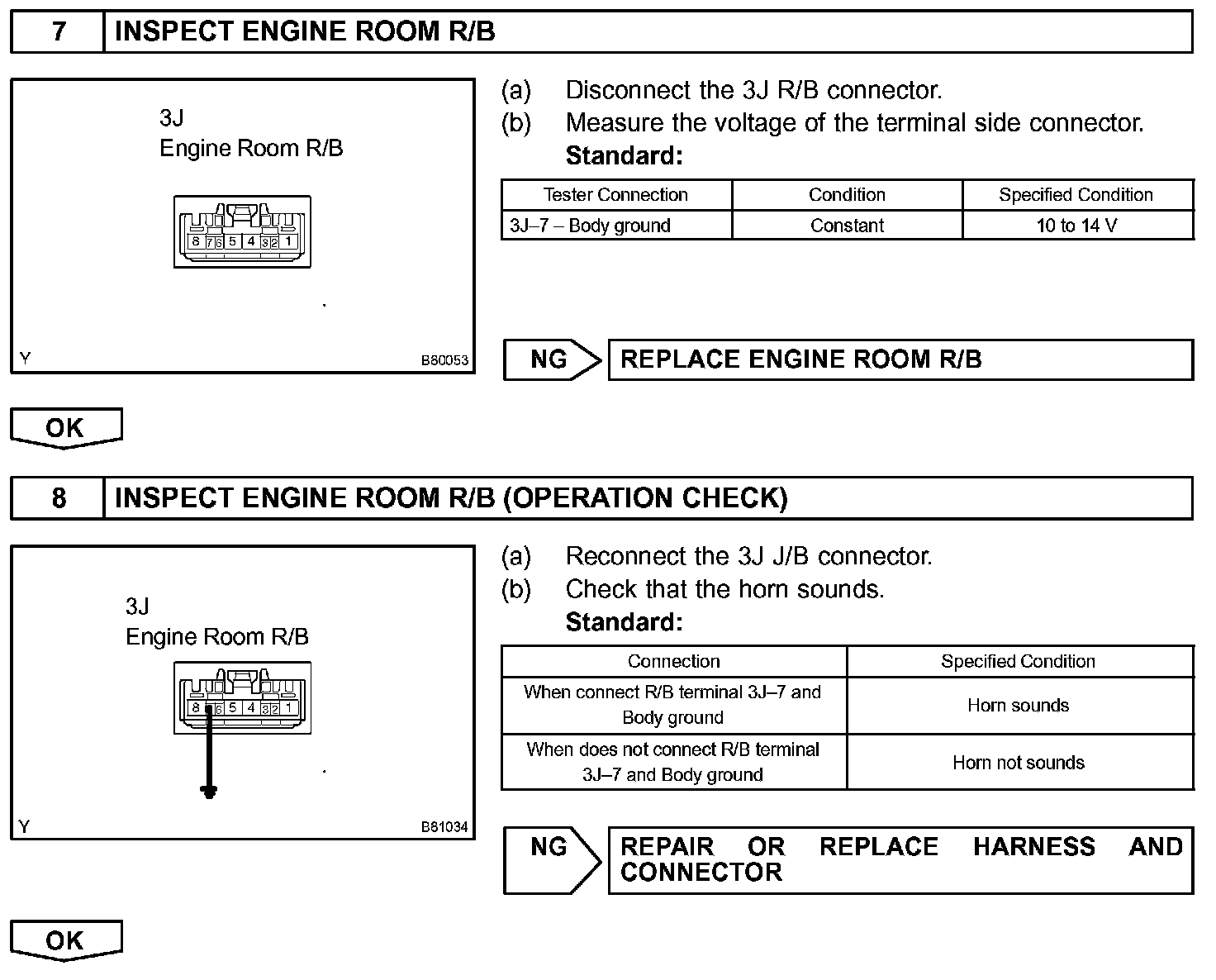

Step 7 - 8:

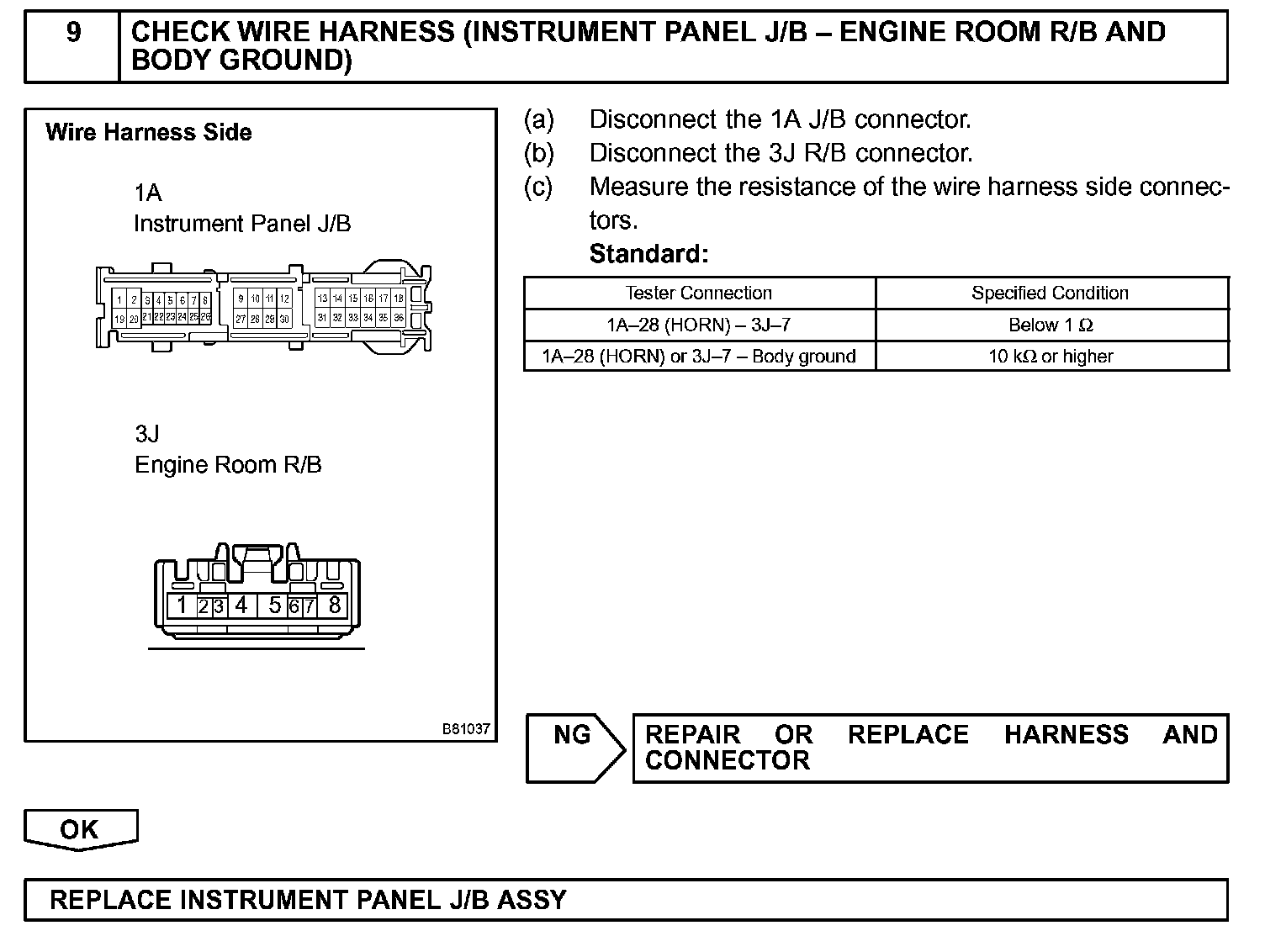

Step 9:

INSPECTION PROCEDURE
