Ignition Circuit
IGNITION CIRCUITCIRCUIT DESCRIPTION
When turning the power switch ON (IG), battery positive voltage is applied to terminal SIG of the multiplex network body ECU.

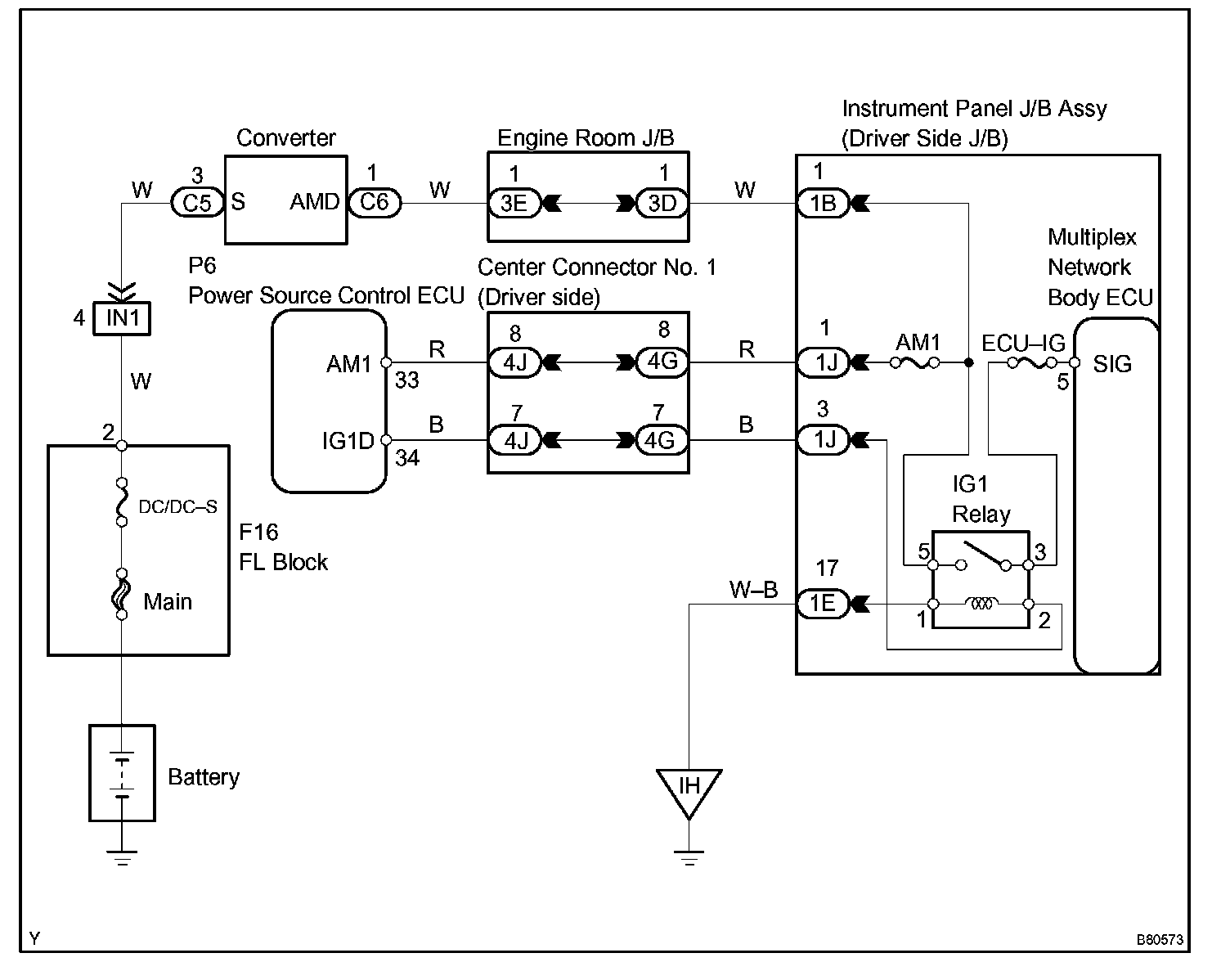

Wiring Diagram:

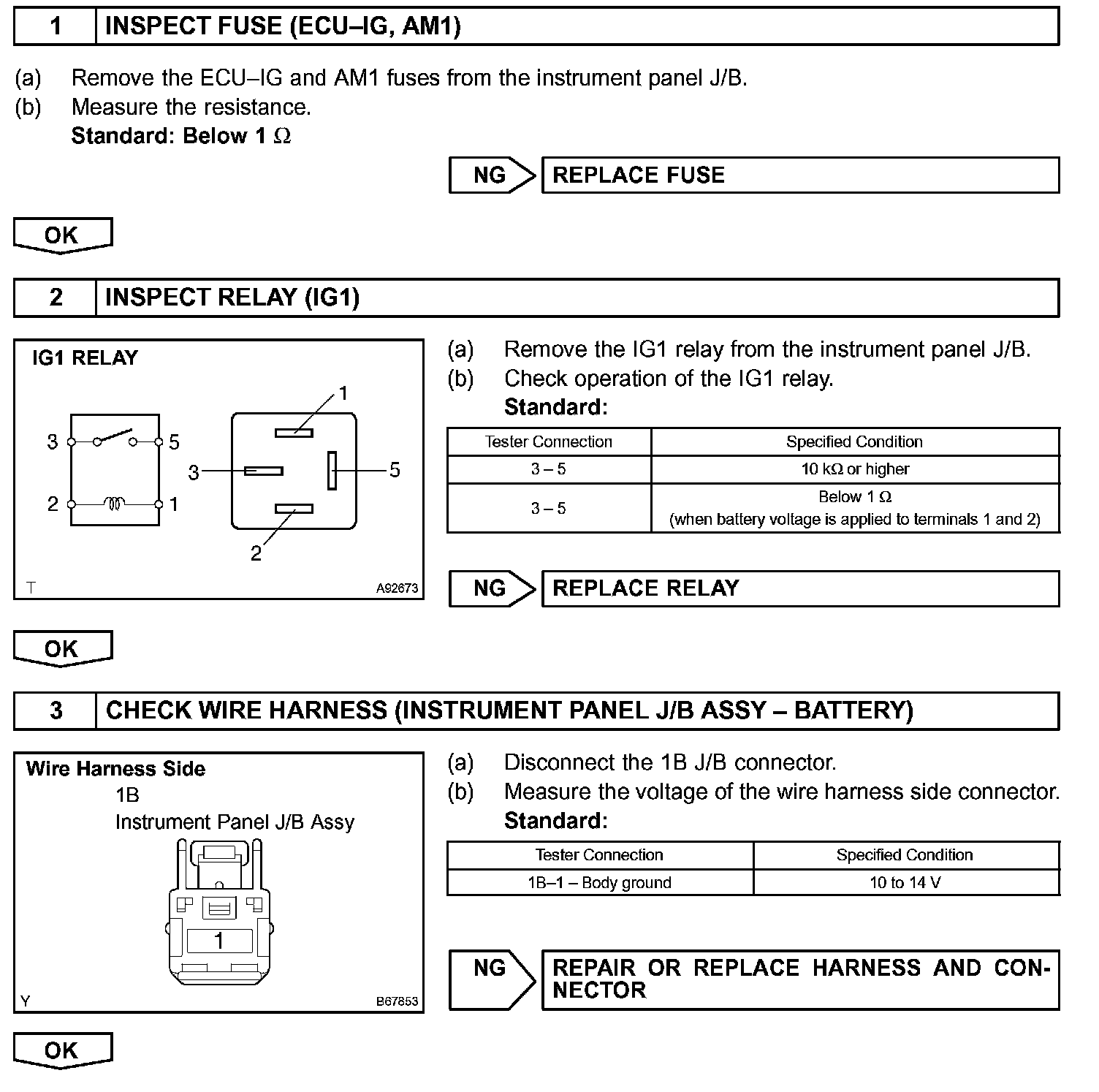

Step 1 - 3:

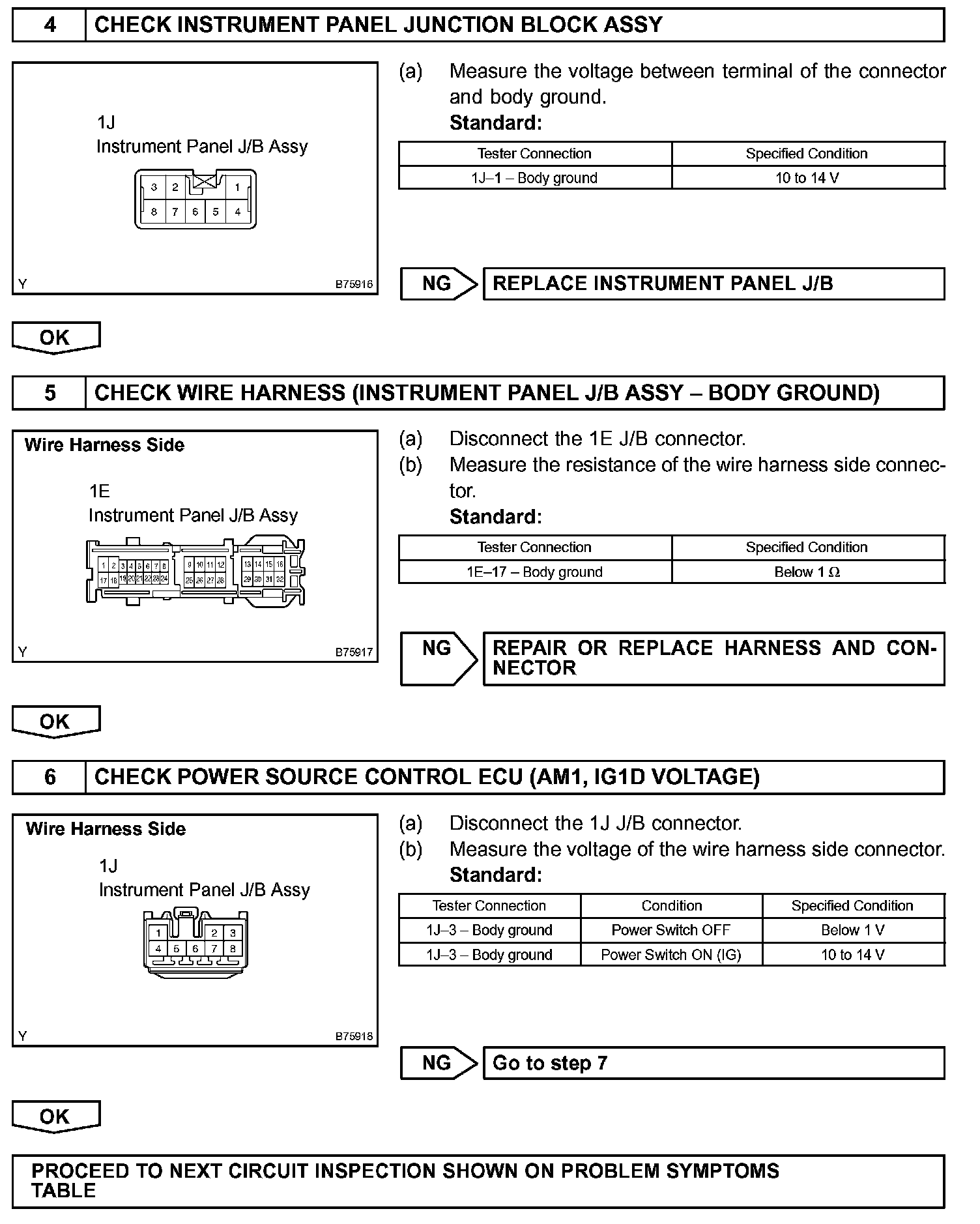

Step 4 - 6:

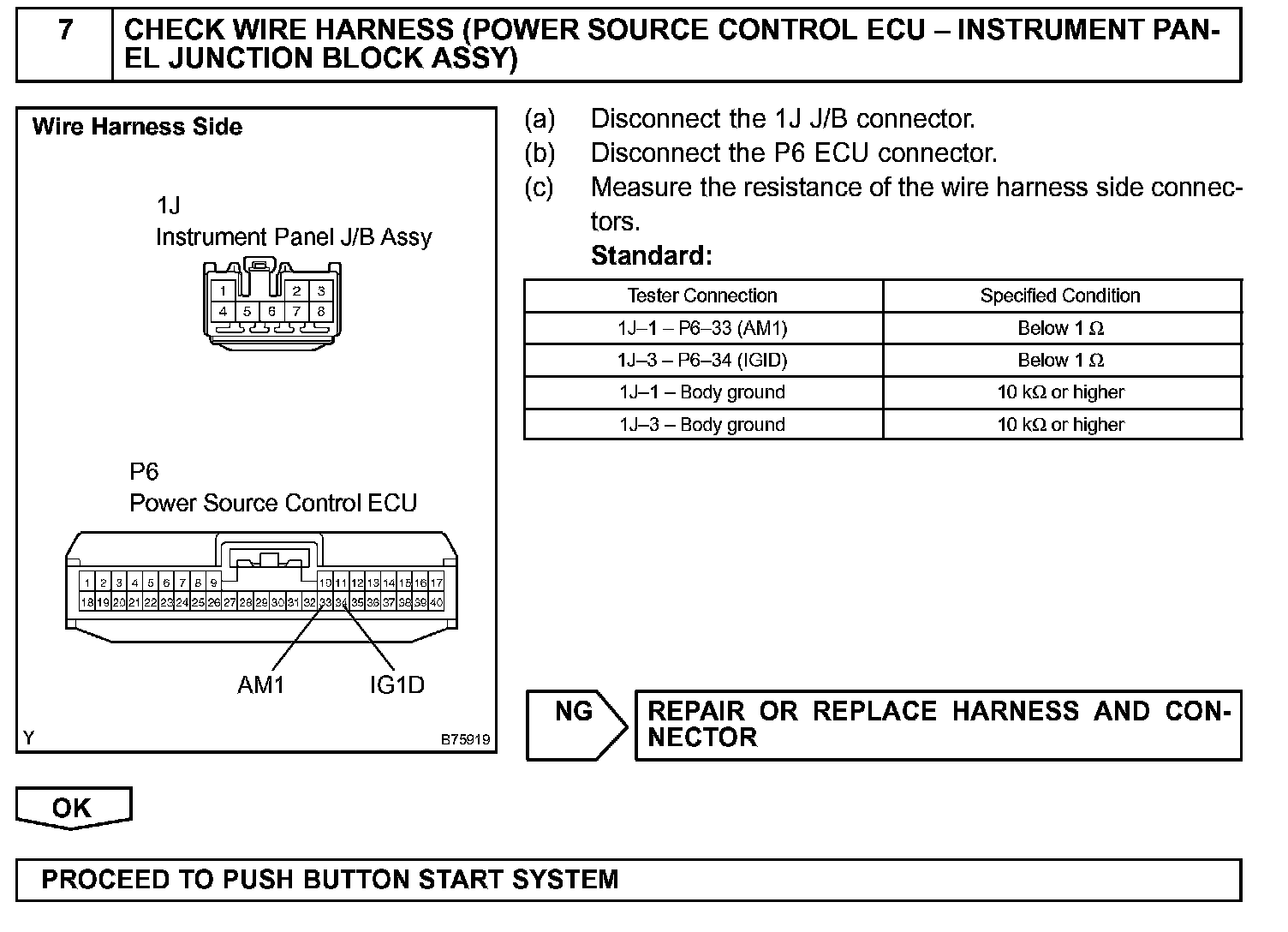

Step 7:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
When turning the power switch ON (IG), battery positive voltage is applied to terminal SIG of the multiplex network body ECU.
INSPECTION PROCEDURE
