Security Horn Circuit
SECURITY HORN CIRCUITCIRCUIT DESCRIPTION
When the theft deterrent system is operating, a relay in the multiplex network body ECU turns ON and OFF continuously at 0.2 seconds intervals, causing the security horn to sound.

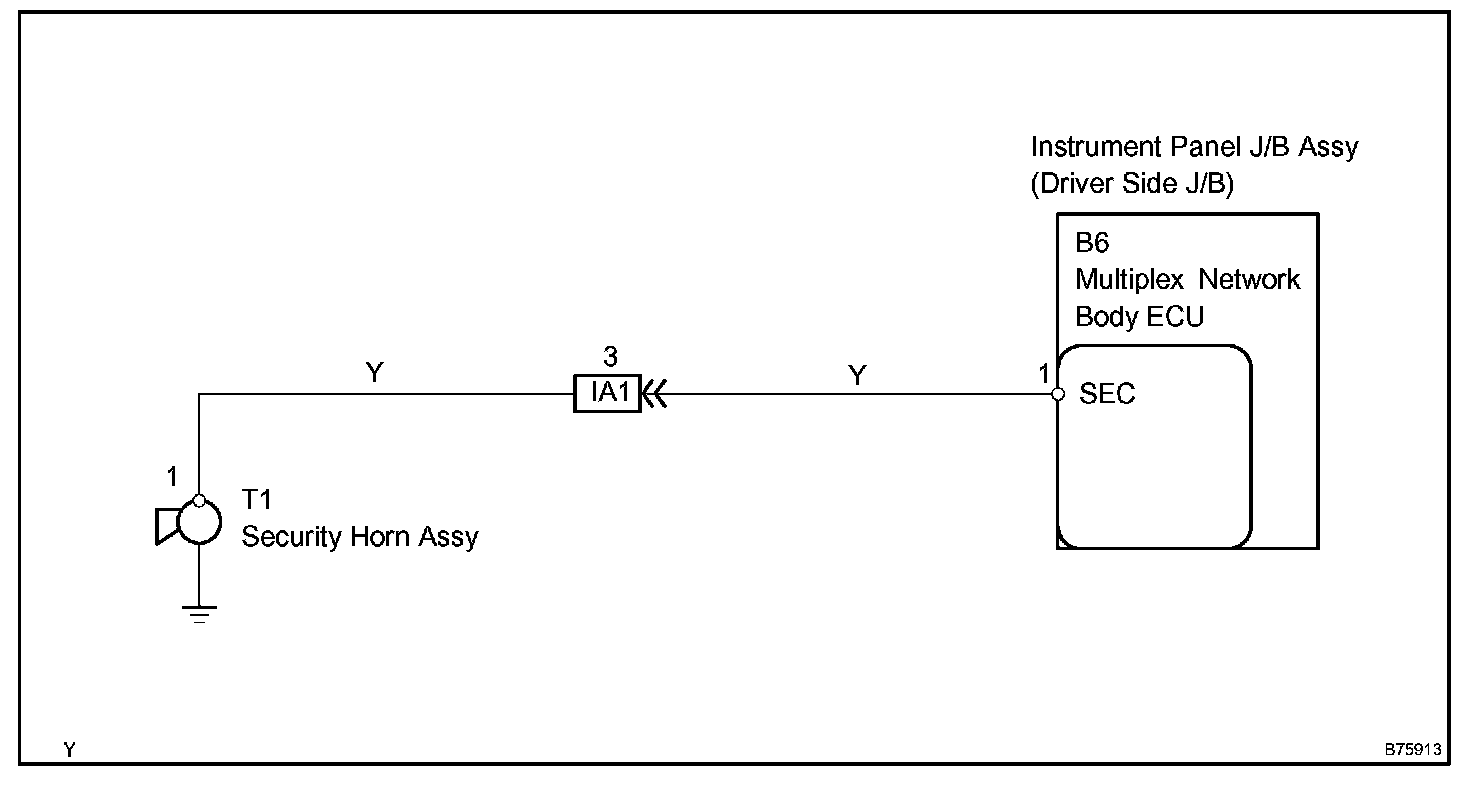

Wiring Diagram:

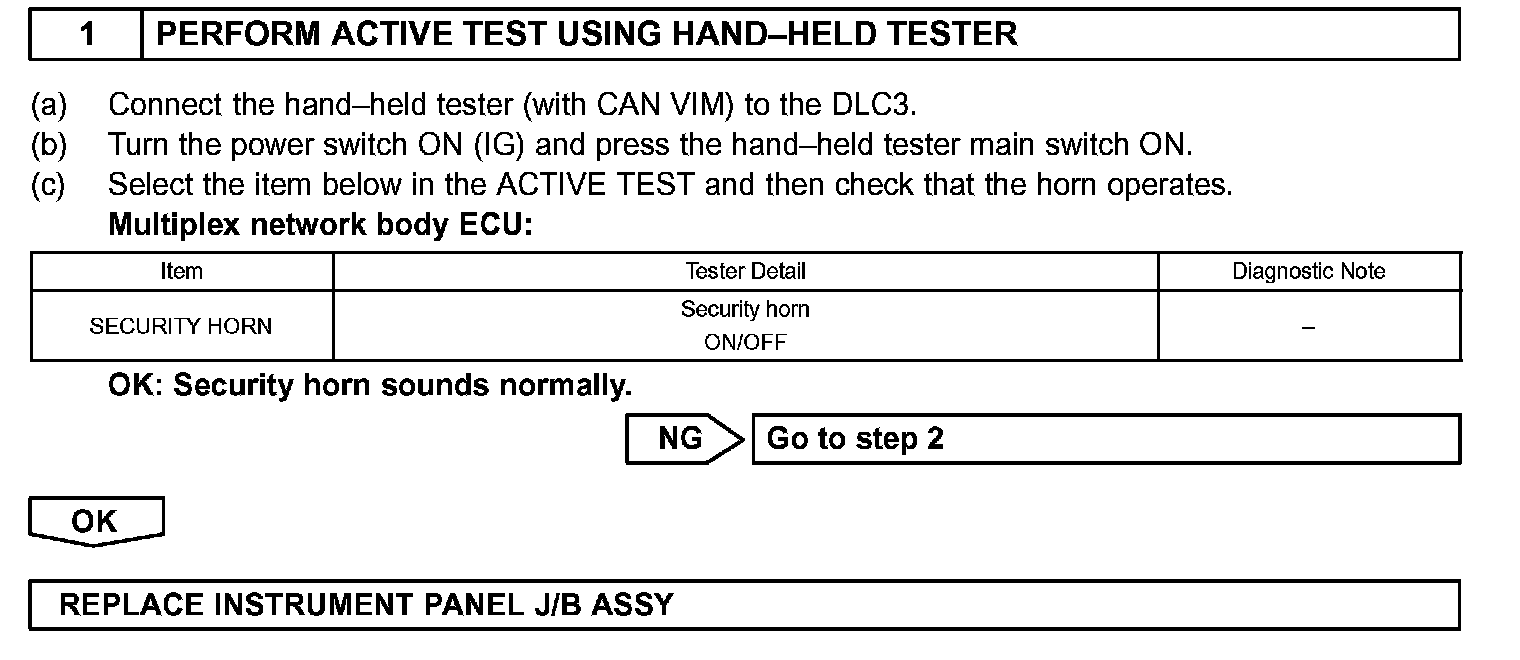

Step 1:

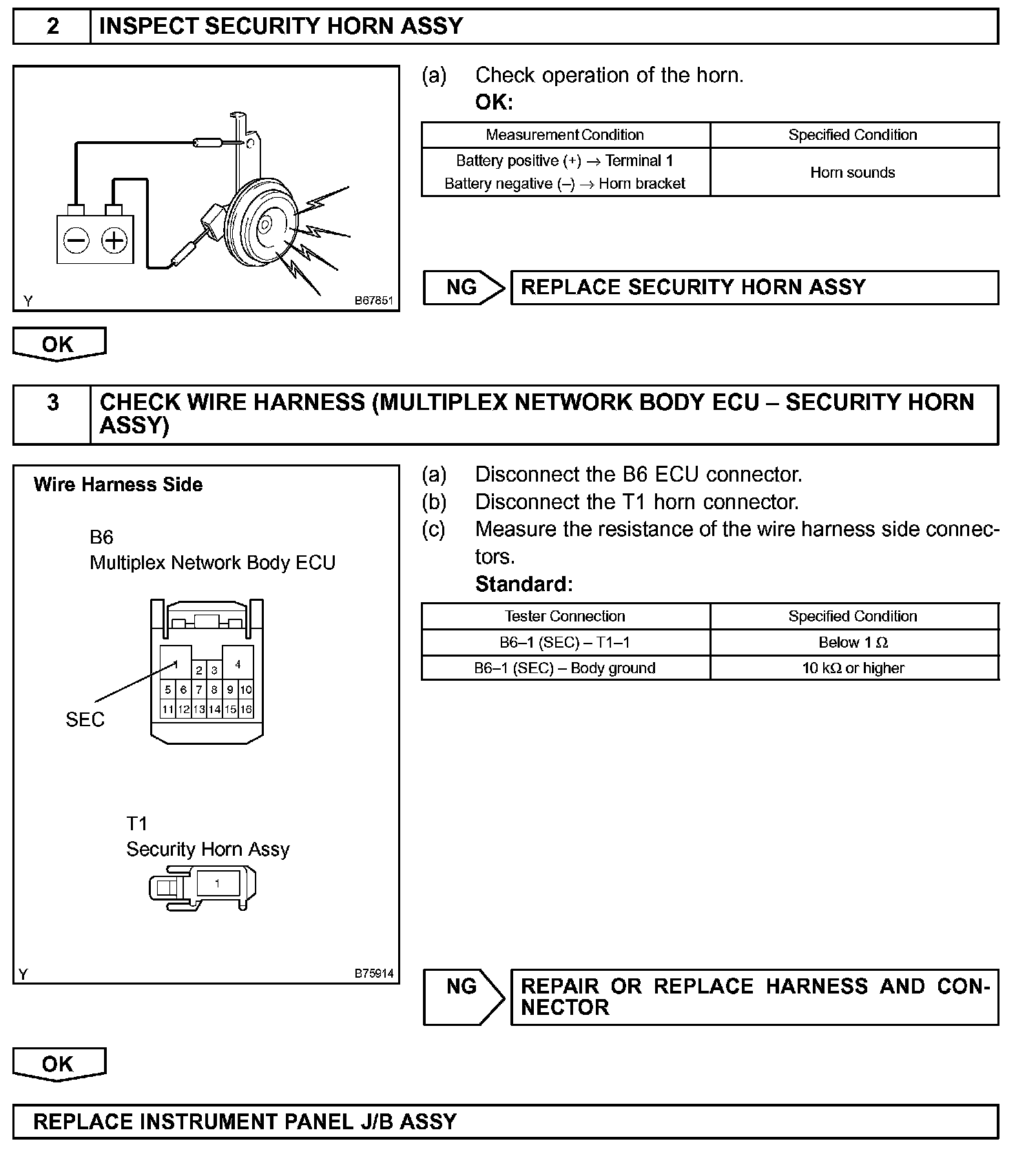

Step 2 - 3:
INSPECTION PROCEDURE
