Symptom Index

PROBLEM SYMPTOMS TABLE

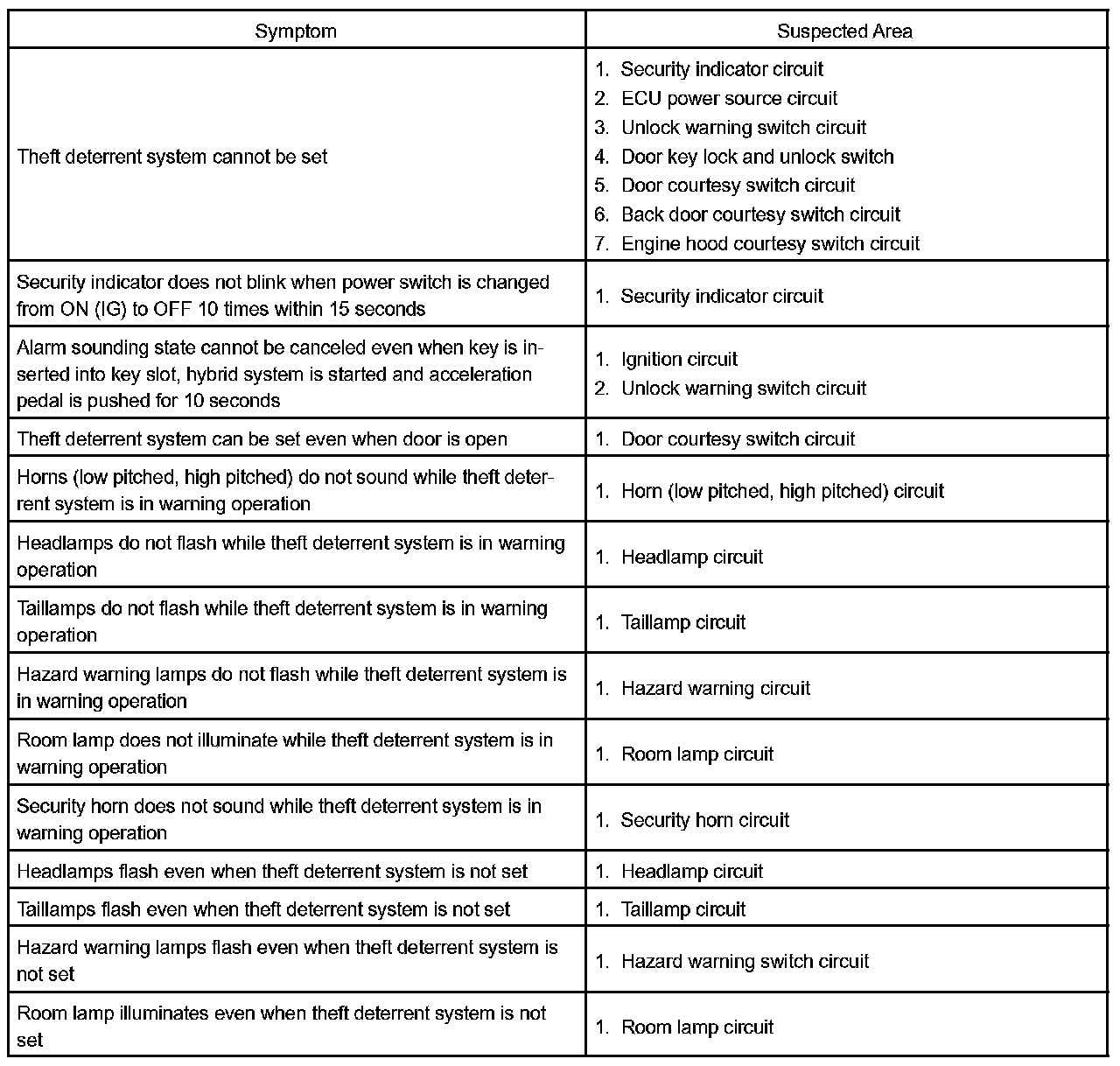

Problem Symptoms Table:

HINT: The theft deterrent system is based on the premise that the power door lock control system and the wireless door lock control system are operating normally. Check these systems first before troubleshooting the theft deterrent system.

HINT: *: If the suspected areas are found to be functioning normally, replace the instrument panel J/B assy.
