Central Control Module: Service and Repair

Audio & Visual System:

NETWORK GATEWAY ECU

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL SUB-ASSY W/ PASSENGER AIRBAG ASSY

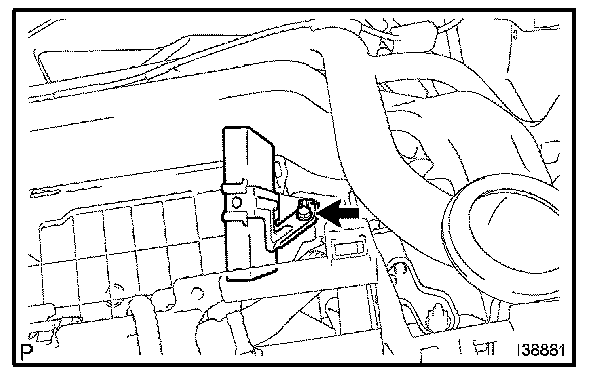

2. REMOVE NETWORK GATEWAY ECU
a. Disconnect the connector.
b. Remove the bolt and network gateway ECU.

3. INSTALL INSTRUMENT PANEL SUB-ASSY W/ PASSENGER AIRBAG ASSY
