Cellular Phone Voice Circuit (Multi-Display - Navigation ECU)

CELLULAR PHONE VOICE CIRCUIT (MULTI-DISPLAY - NAVIGATION ECU)

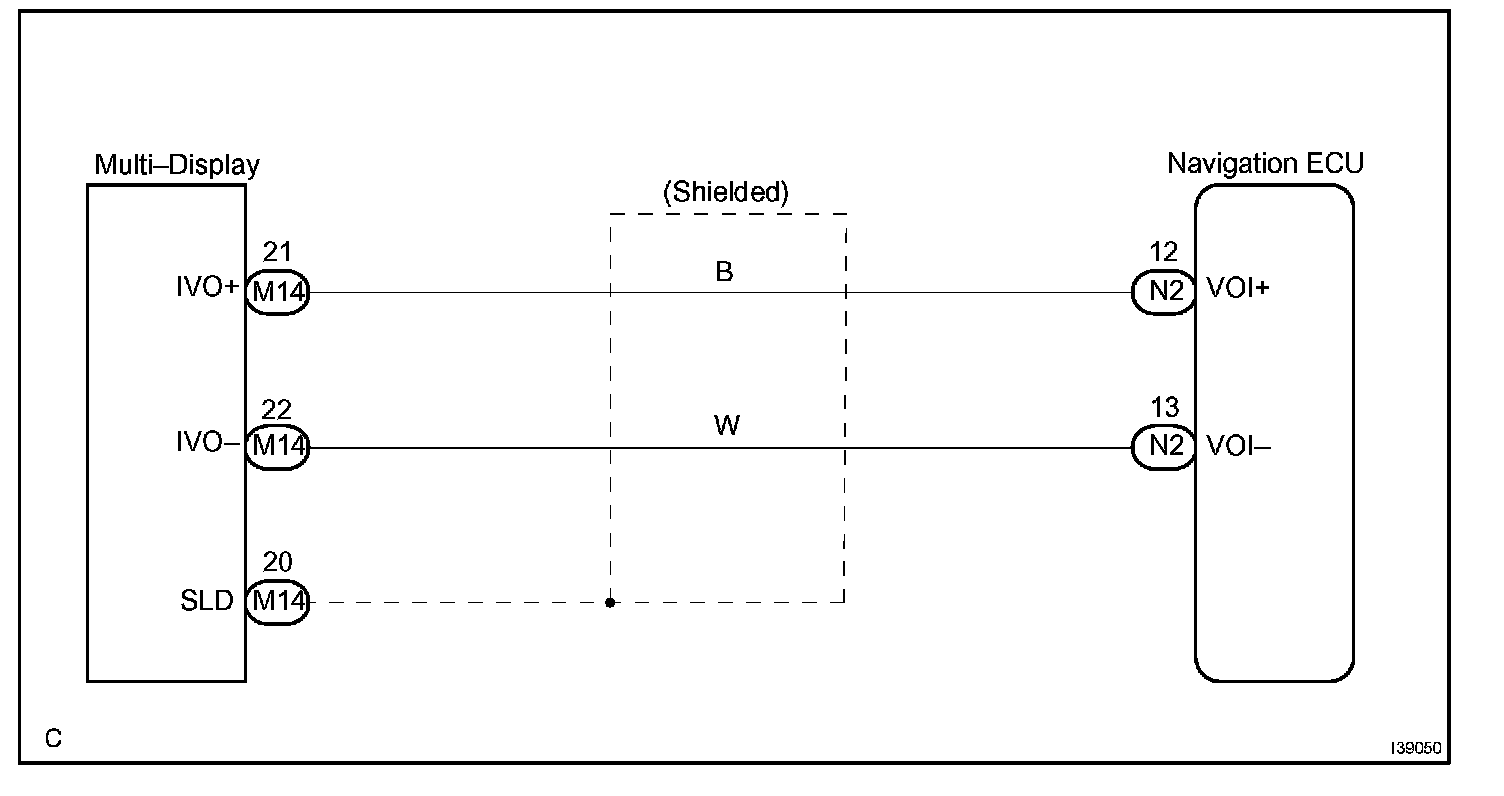

CIRCUIT DESCRIPTION
This circuit sends a voice signal of the cellular phone from the multi-display to the navigation ECU.
