Parking Brake Switch Circuit

PARKING BRAKE SWITCH CIRCUIT

CIRCUIT DESCRIPTION
This is circuit from the parking brake switch to the multi-display.

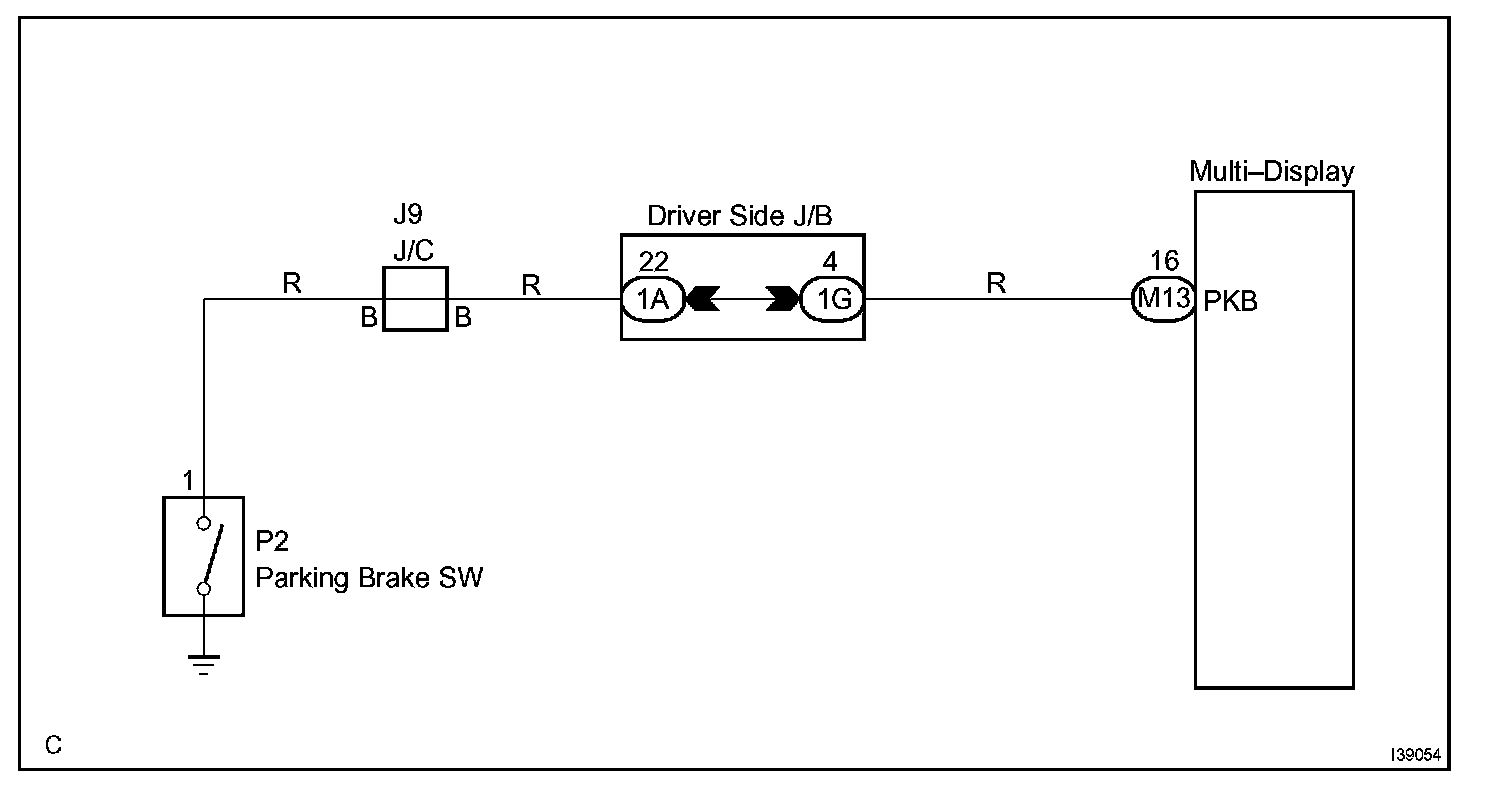

Wiring Diagram:

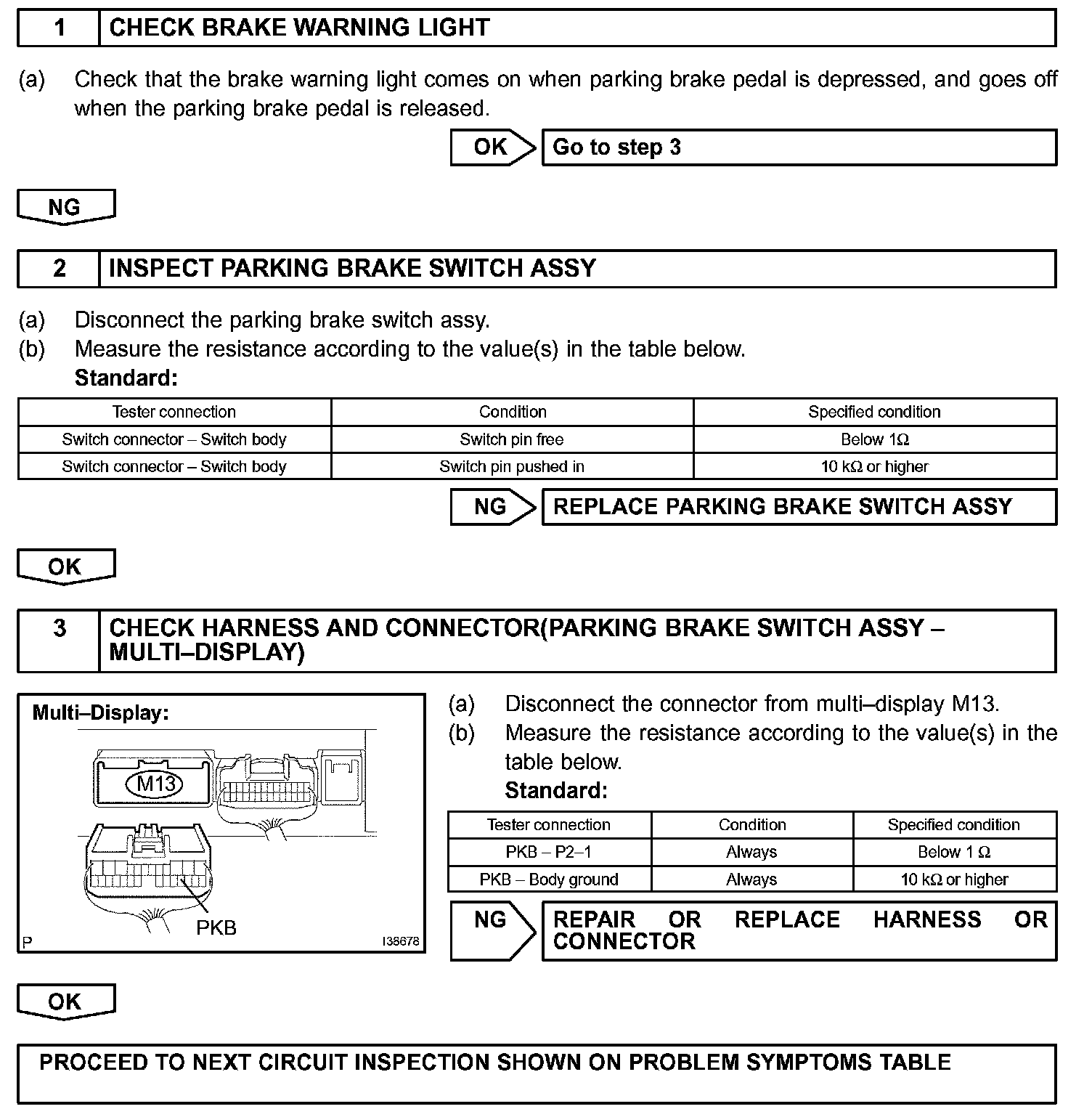

Step 1 - 3:




INSPECTION PROCEDURE
