Power Source Circuit (Multi-Display)

POWER SOURCE CIRCUIT (MULTI-DISPLAY)

CIRCUIT DESCRIPTION
This circuit provides the power to the multi-display.

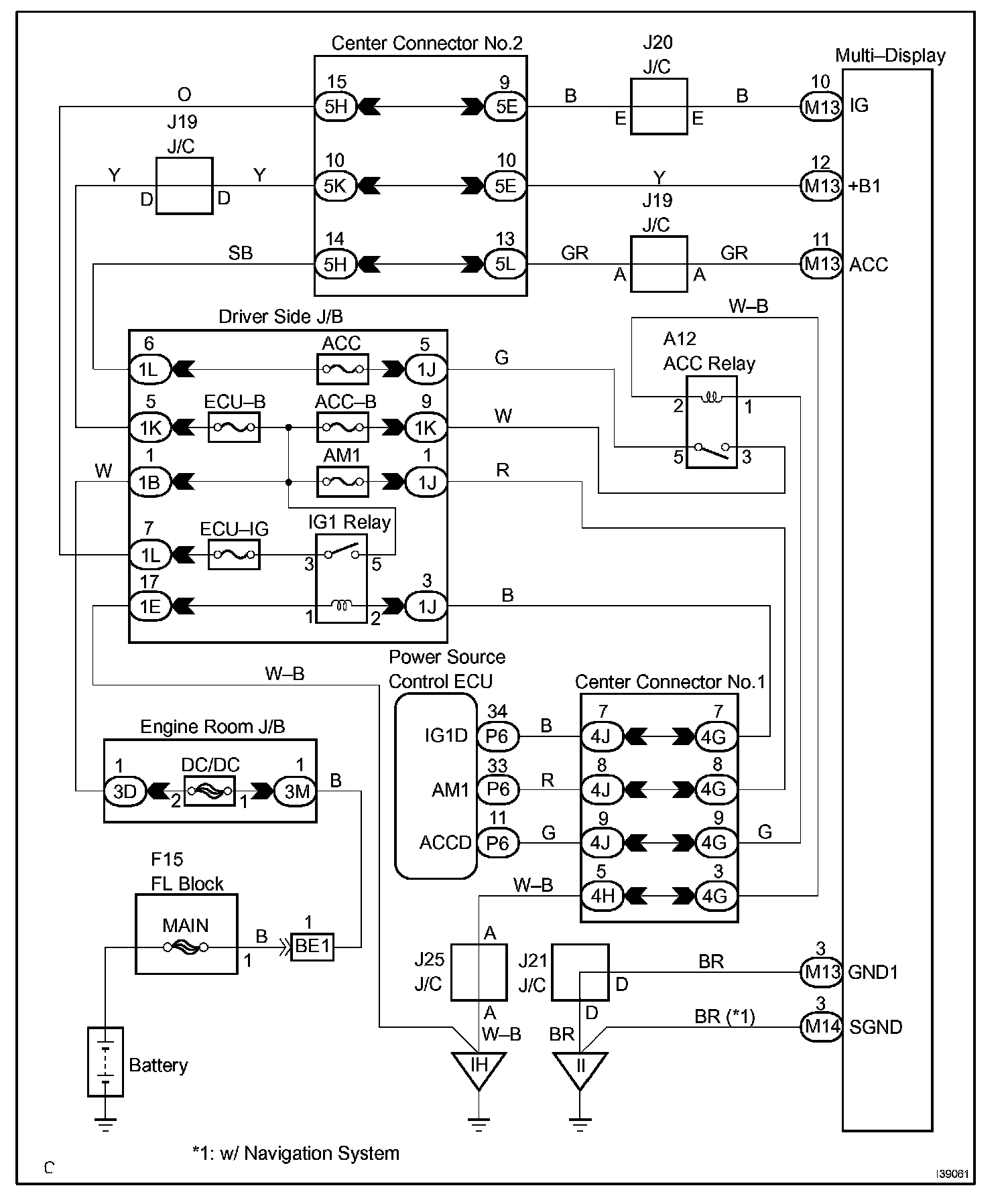

Wiring Diagram:

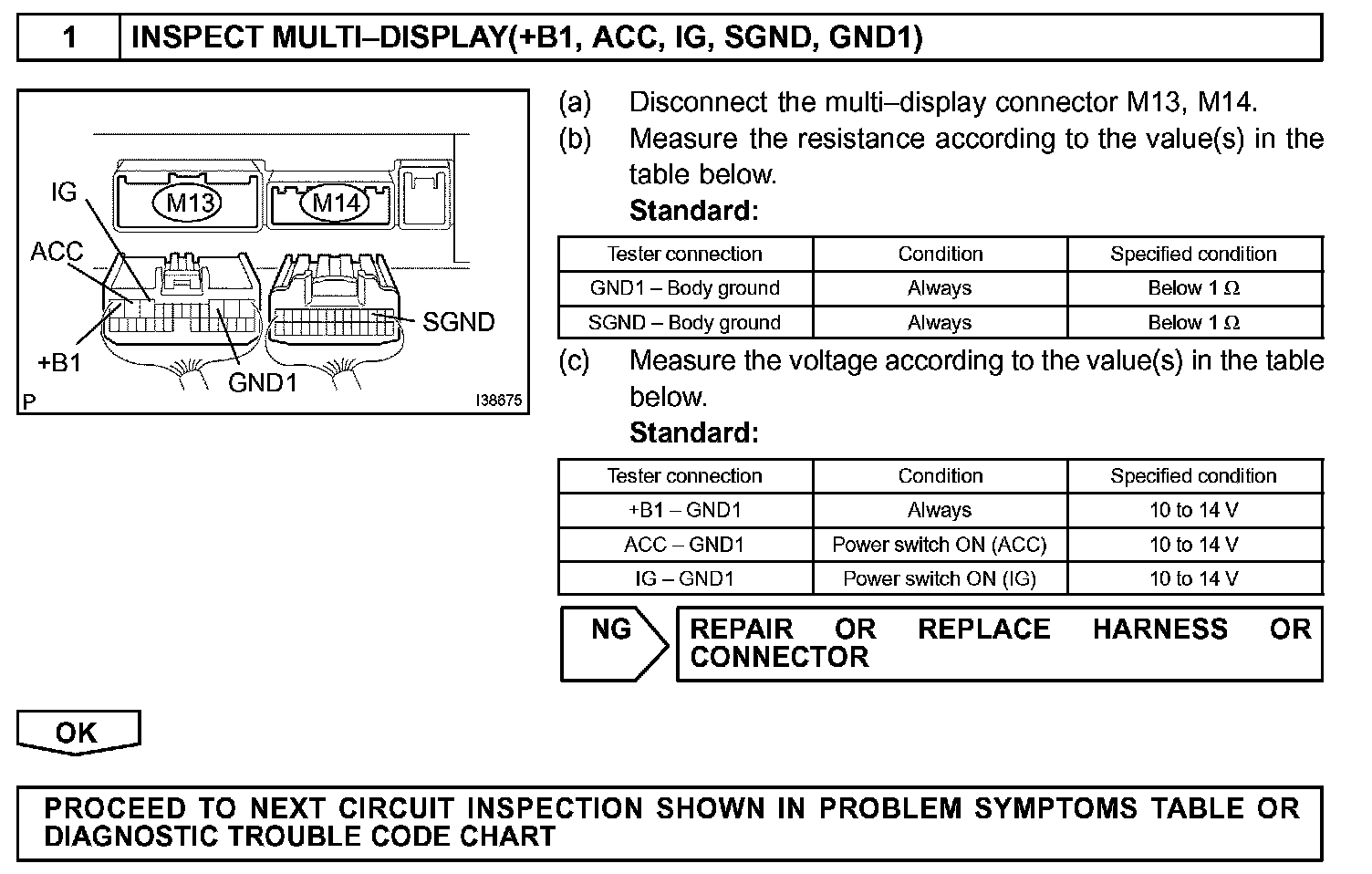

Step 1:




INSPECTION PROCEDURE
