Speaker Circuit (Navigation Voice)

SPEAKER CIRCUIT (NAVIGATION VOICE)

CIRCUIT DESCRIPTION
This circuit is used when the voice guidance in the navigation system is on.

Wiring Diagram:

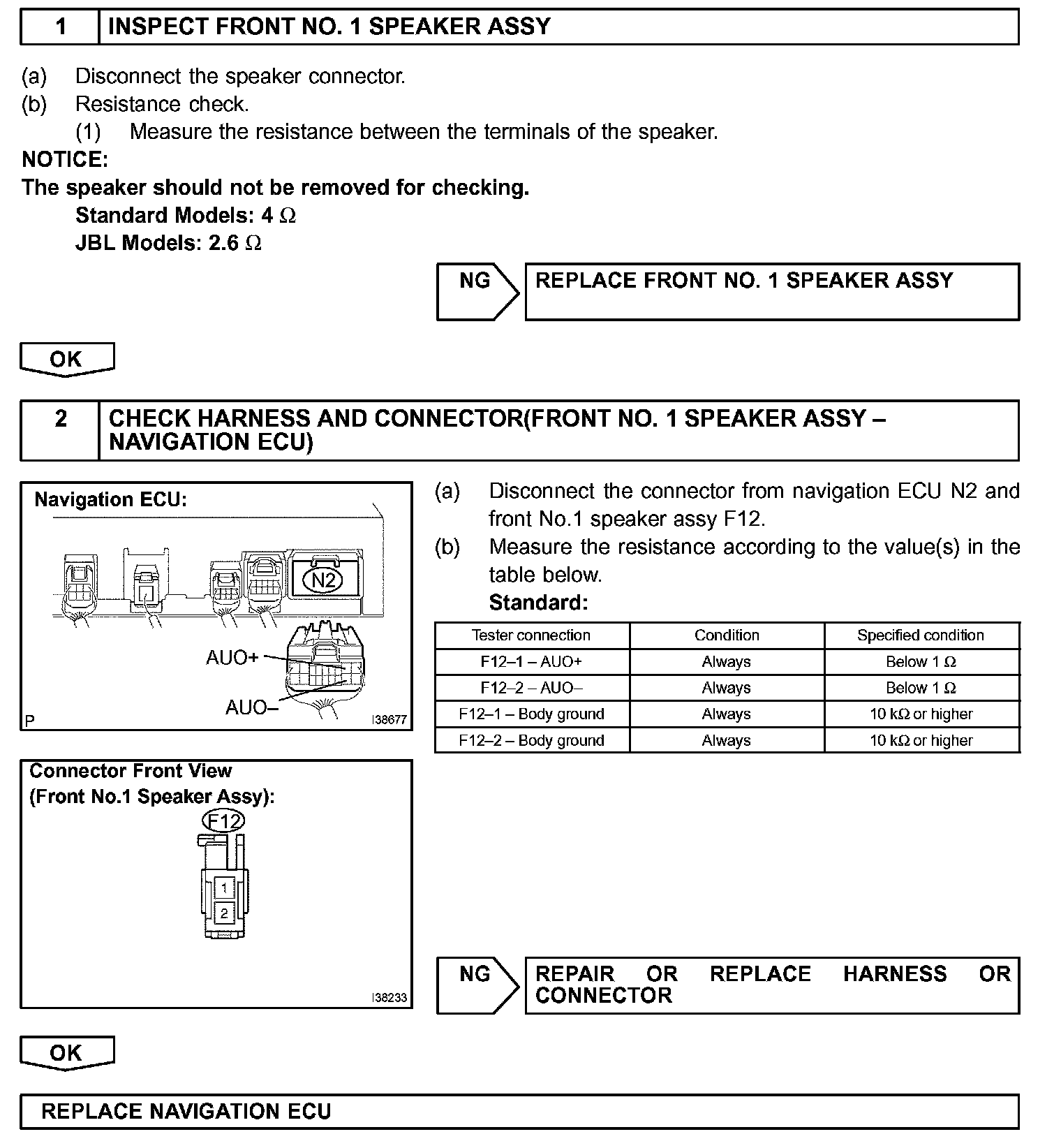

Step 1 - 2:




INSPECTION PROCEDURE
