Pinout Values and Diagnostic Parameters

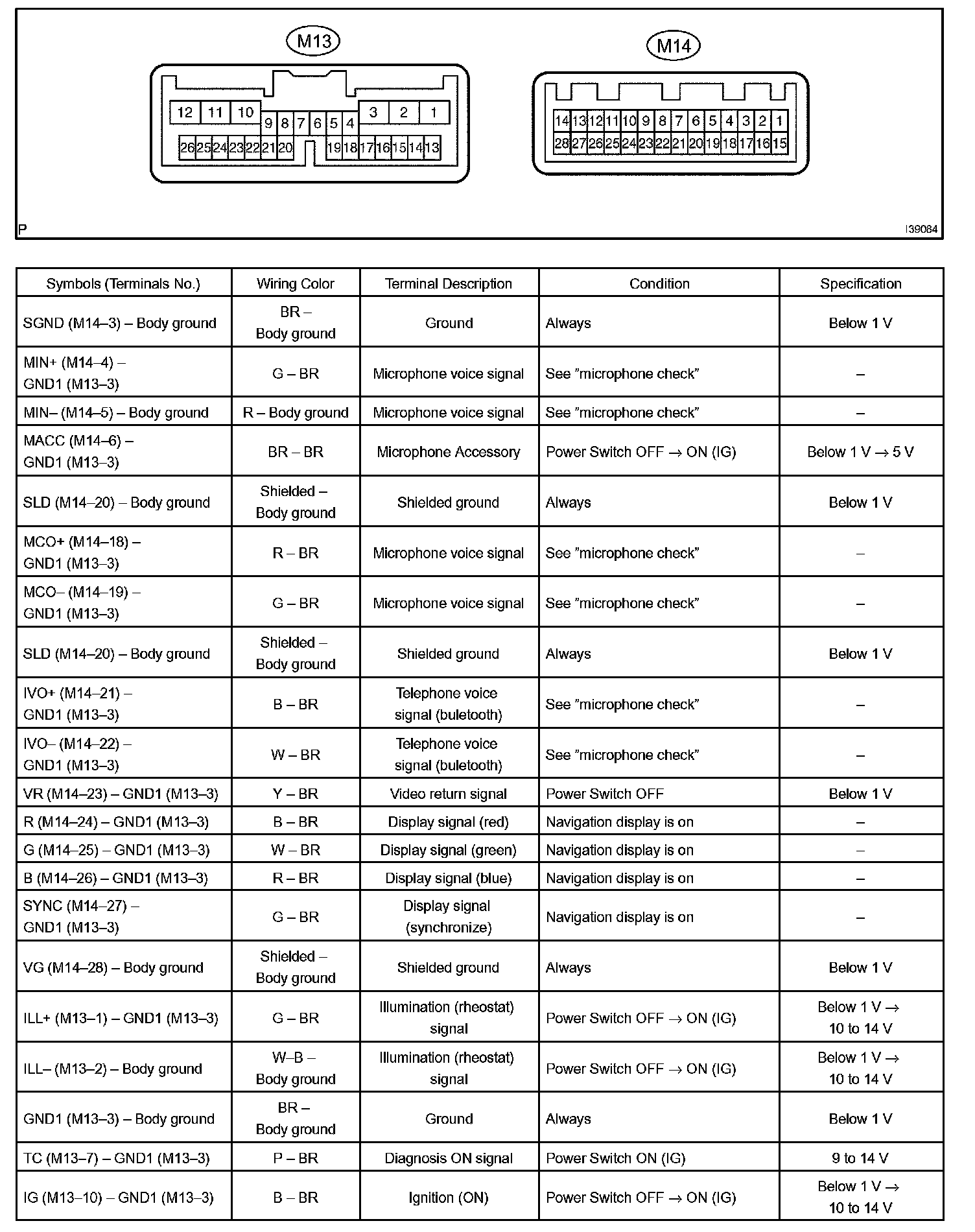

Terminals Of ECU/Pinouts - Multi-Display Assy Part 1:

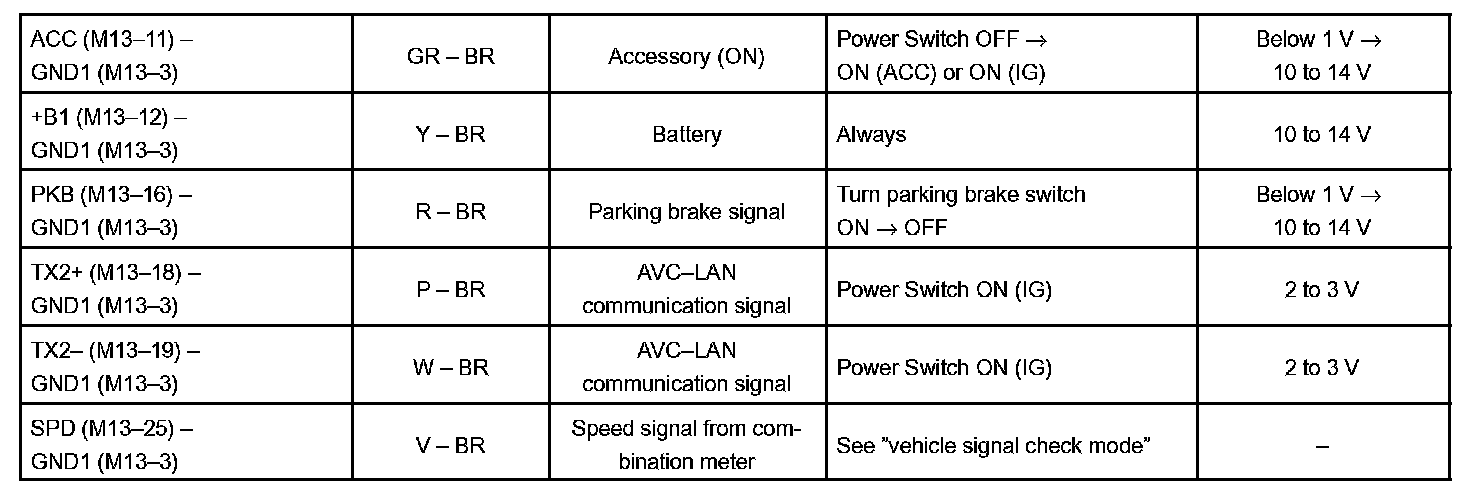

Terminals Of ECU/Pinouts Multi-Display Assy Part 2:

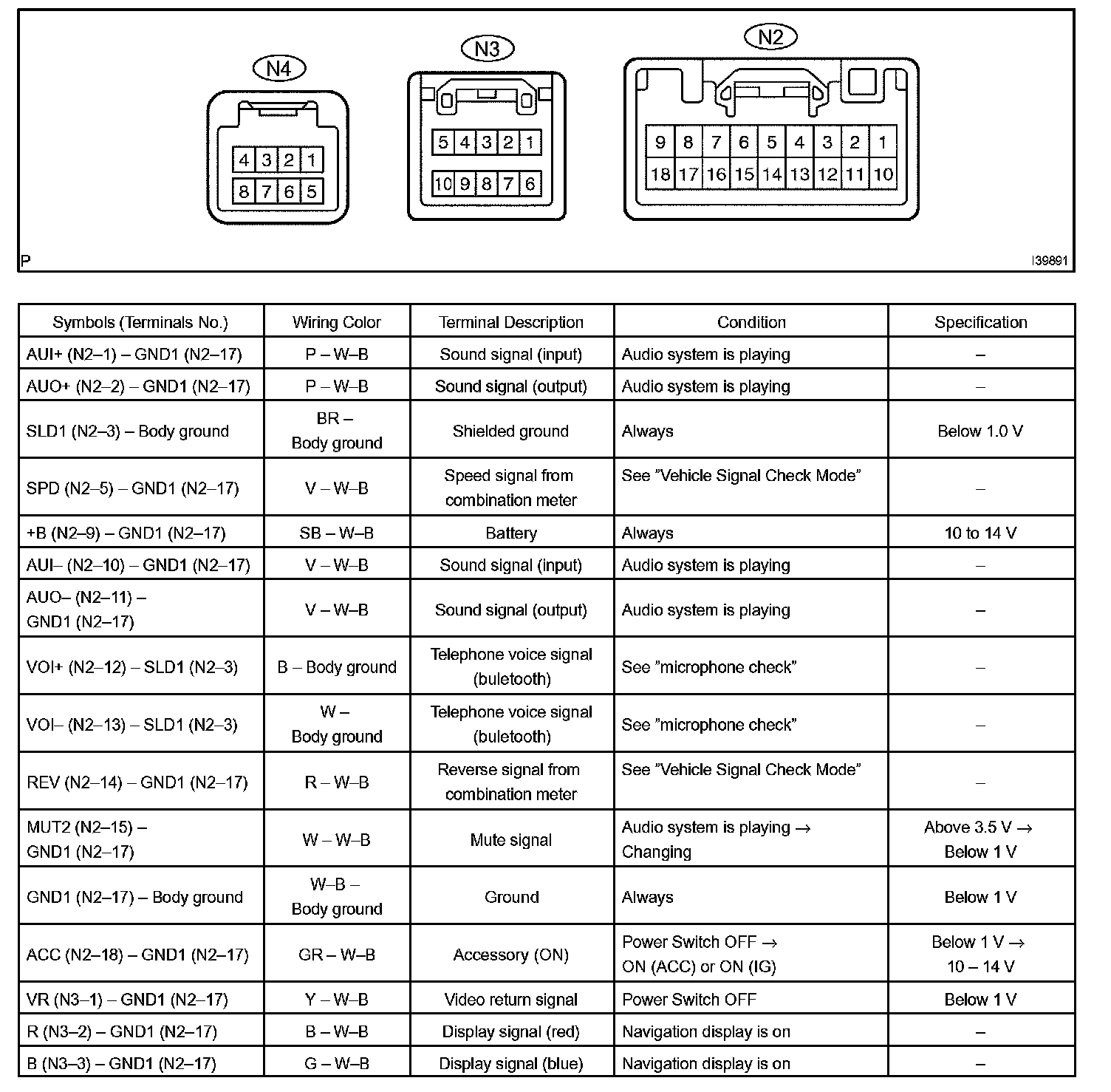

Terminals Of ECU/Pinouts - Navigation ECU Part 1:

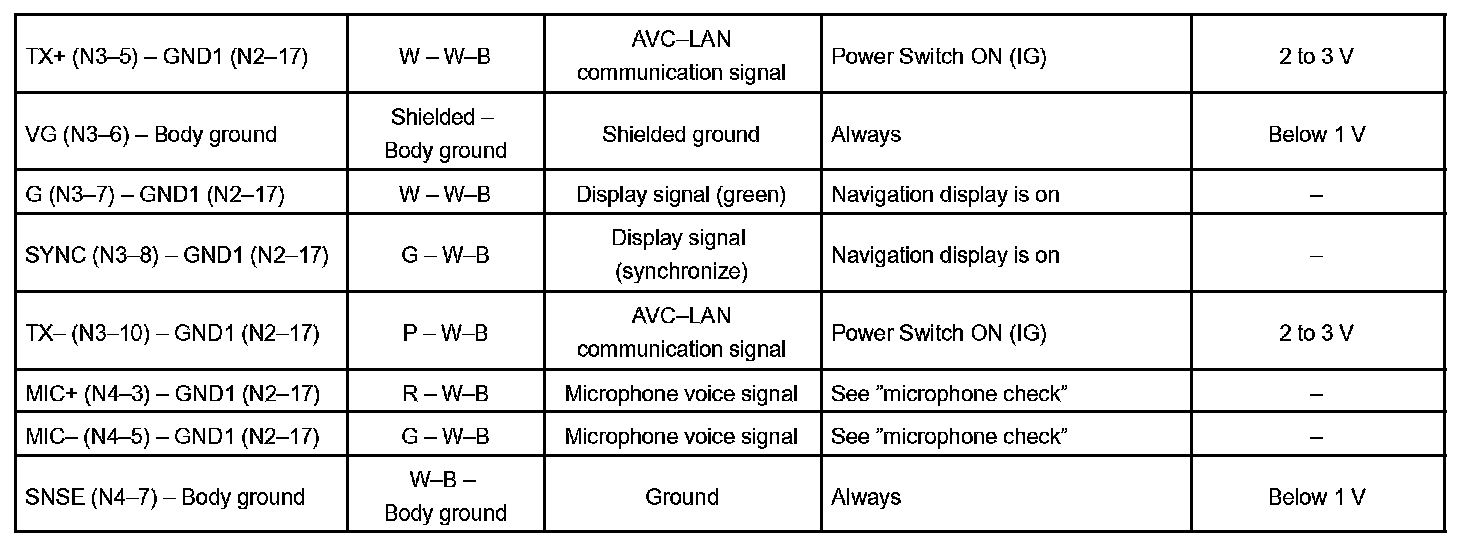

Terminals Of ECU/Pinouts - Navigation ECU Part 2:

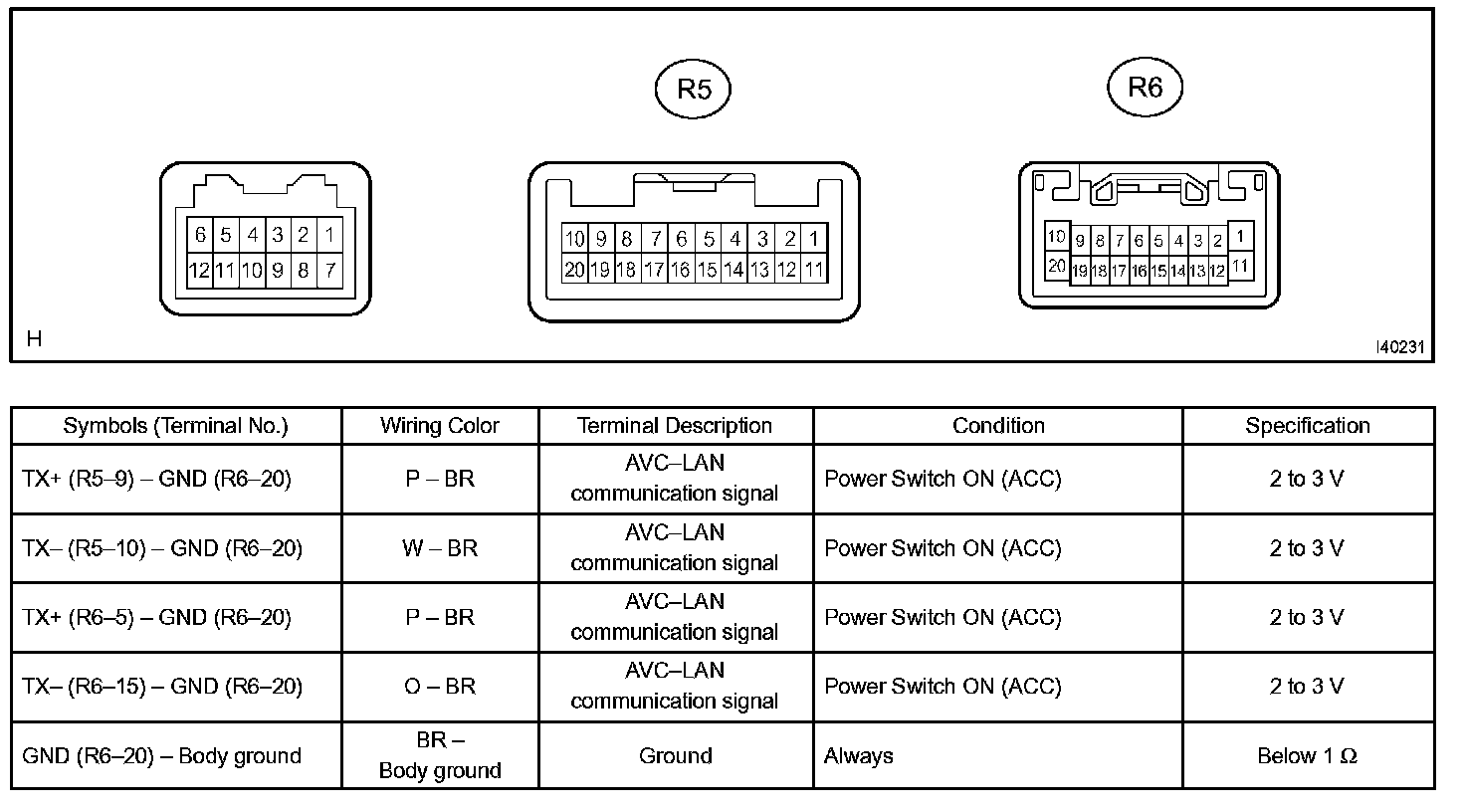

Terminals Of ECU/Pinouts - Radio Receiver Assy (Separate Type Amplifier):

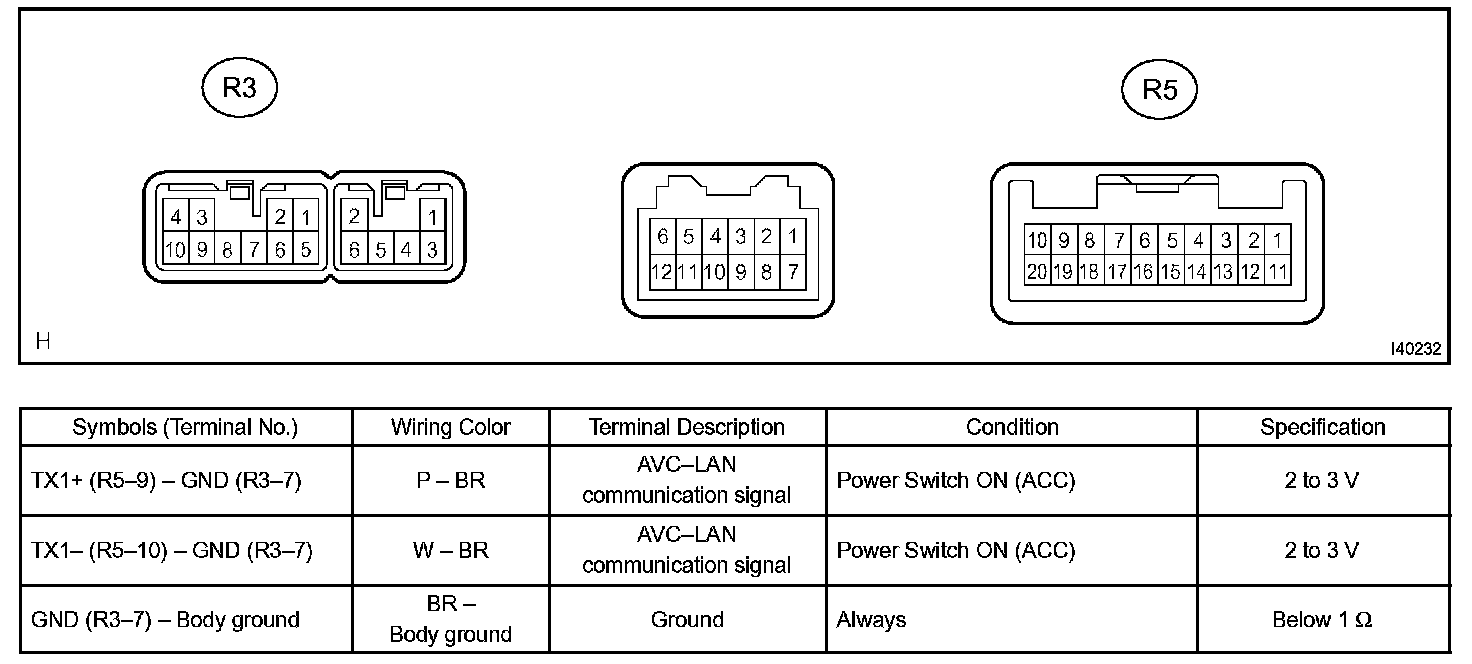

Terminals Of ECU/Pinouts - Radio Receiver Assy (Built-In Type Amplifier):

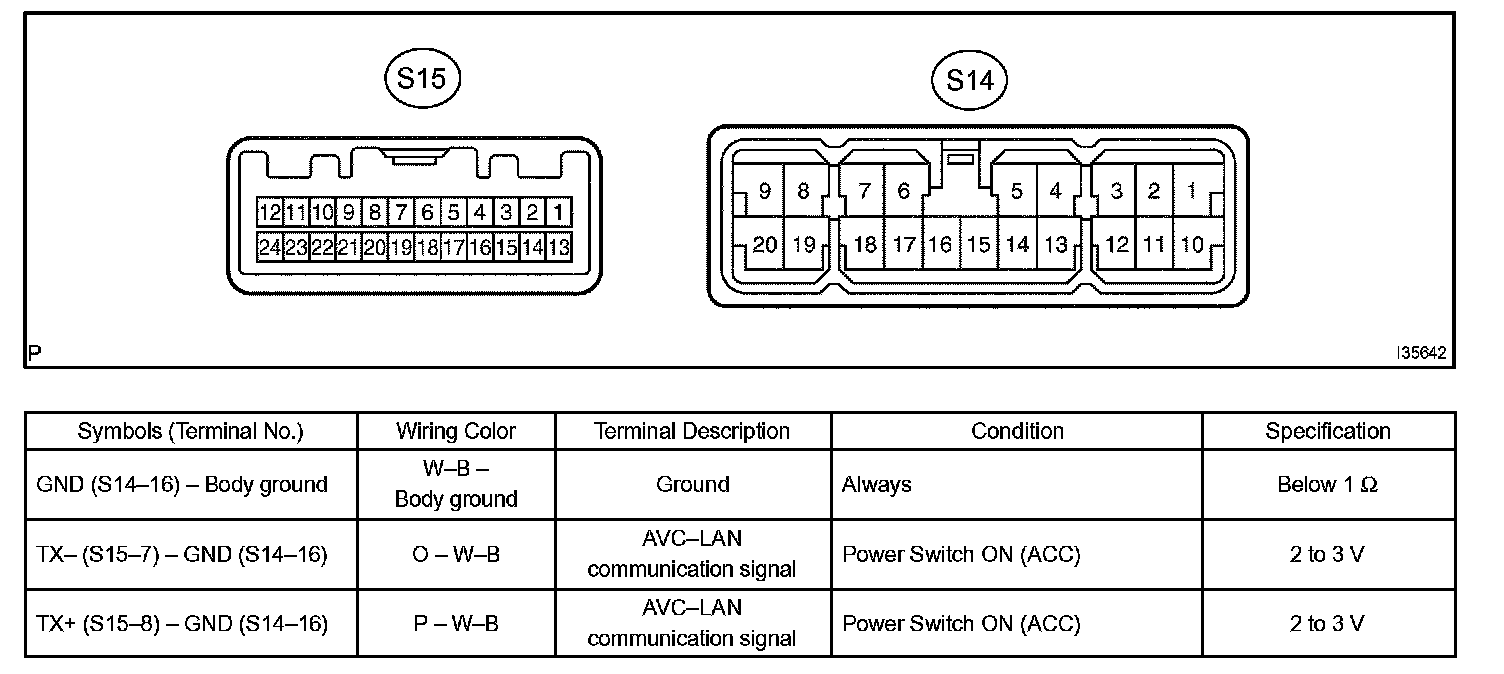

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy:

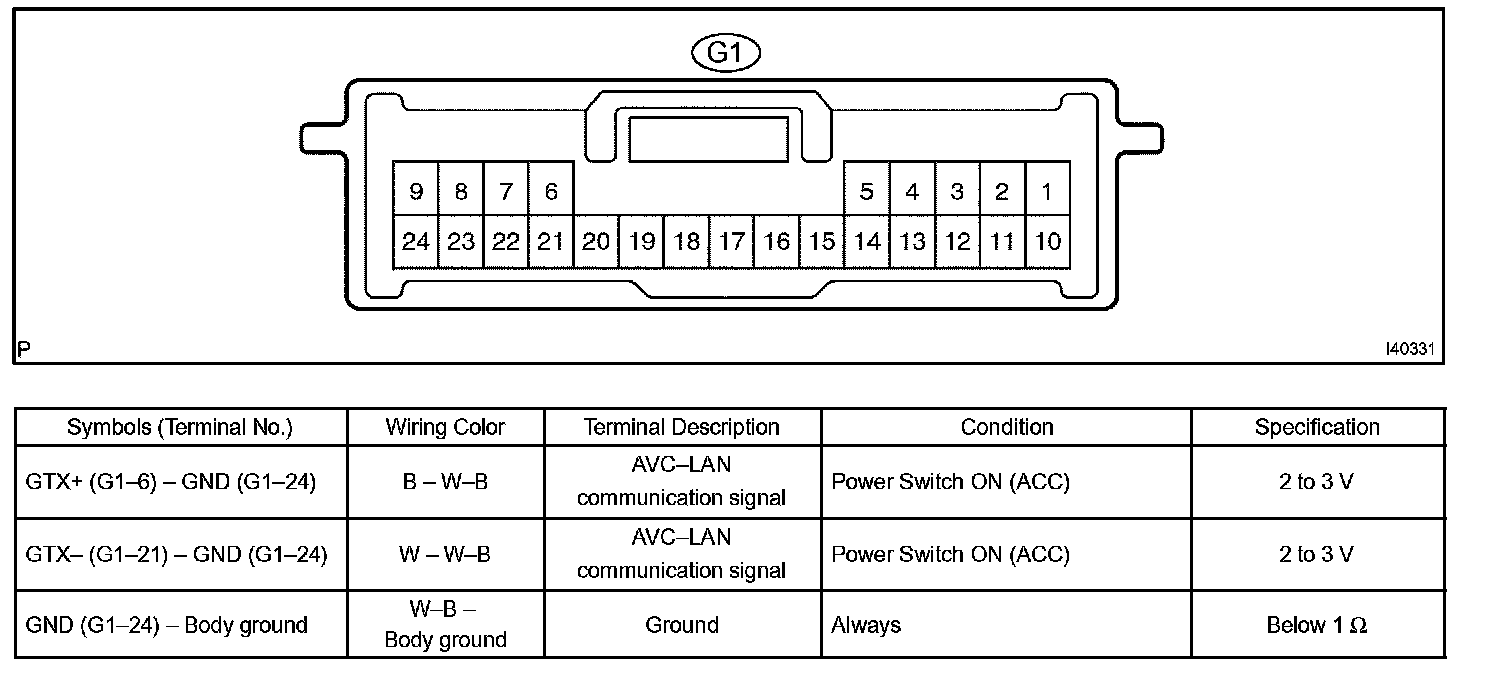

Terminals Of ECU/Pinouts - Gateway ECU:
