Amplifier Microphone Assy

AMPLIFIER MICROPHONE ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE MAP LAMP ASSY

2. REMOVE AMPLIFIER MICROPHONE ASSY

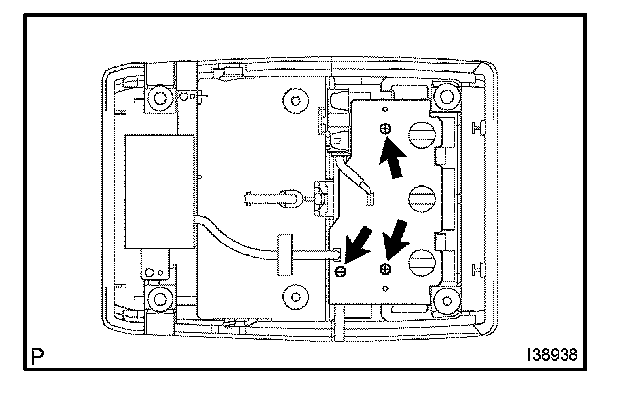

a. Remove the 3 screws and print board.

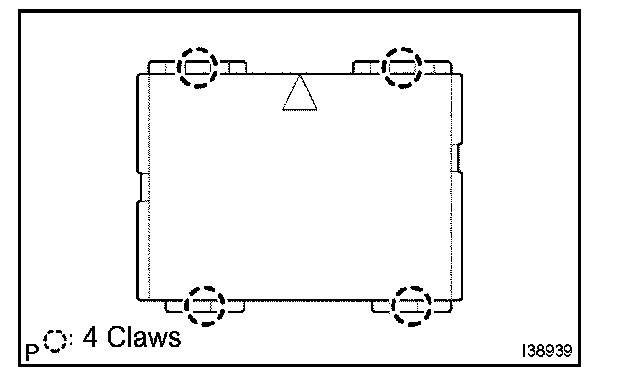

b. Disengage the 4 claws and remove the microphone amplifier cover.

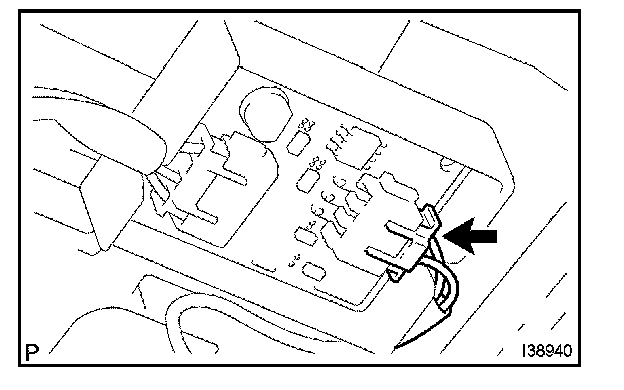

c. Disconnect the connector and remove the amplifier microphone.
