Stereo Component Amplifier Assy

Audio & Visual System:

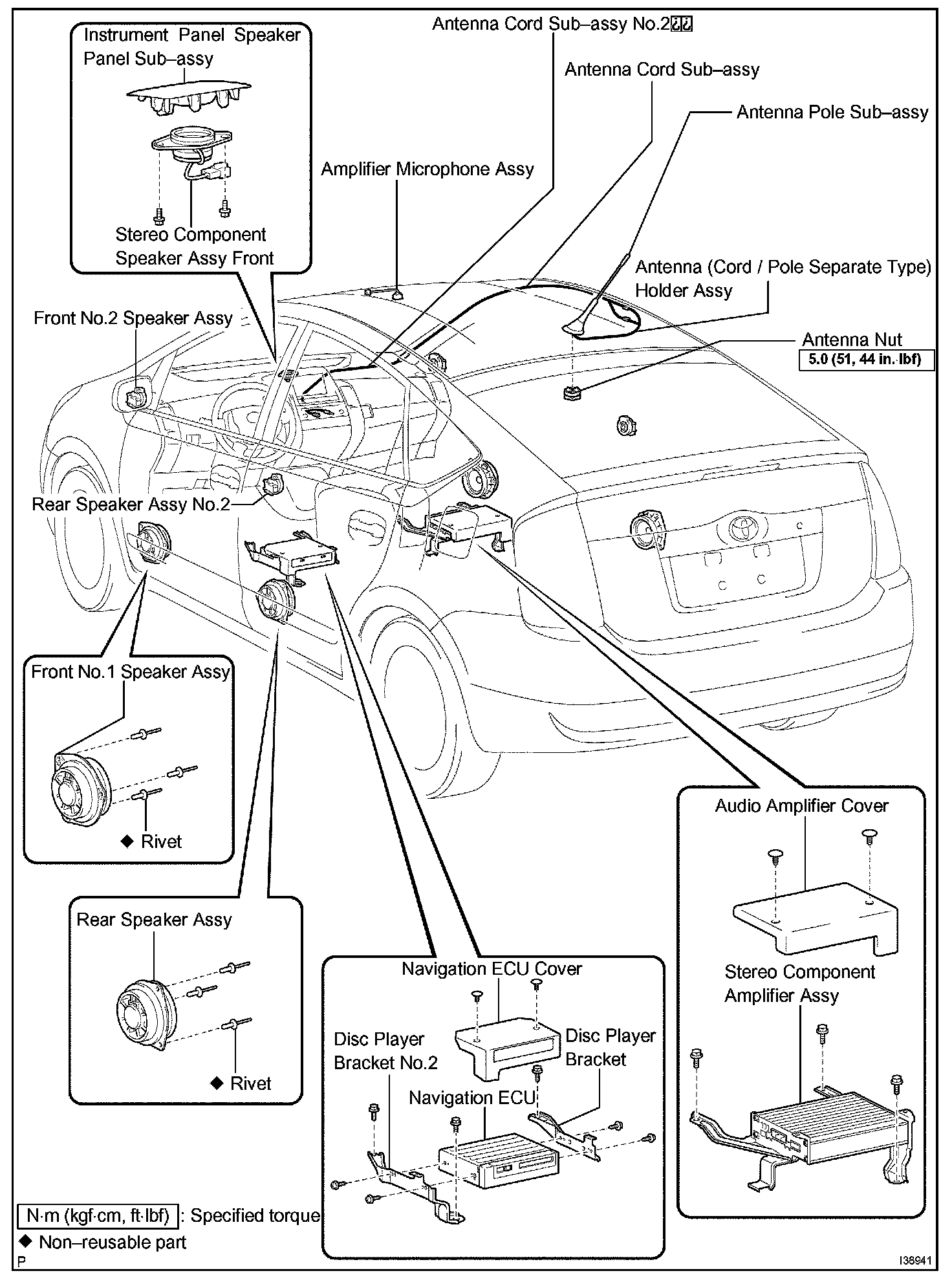

STEREO COMPONENT AMPLIFIER ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE FRONT SEAT ASSEMBLY RH




2. REMOVE AUDIO AMPLIFIER COVER

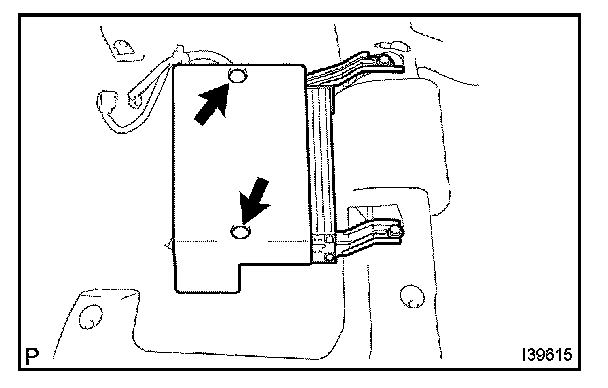

a. Remove the 2 clips and audio amplifier cover.




3. REMOVE STEREO COMPONENT AMPLIFIER ASSY
a. Disconnect each connector.

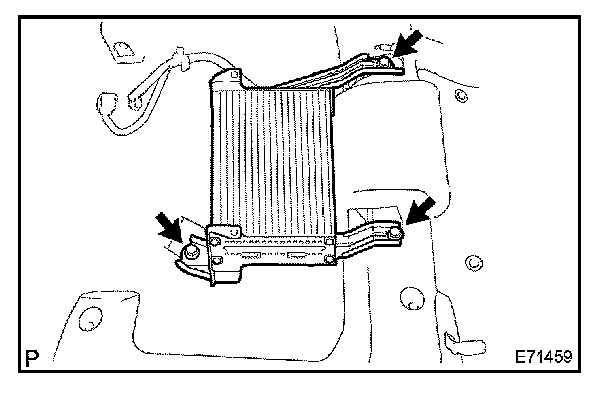

b. Remove the 3 bolts and stereo component amplifier assy.

4. INSTALL FRONT SEAT ASSEMBLY RH
