Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Diagrams
>>
Exploded Views

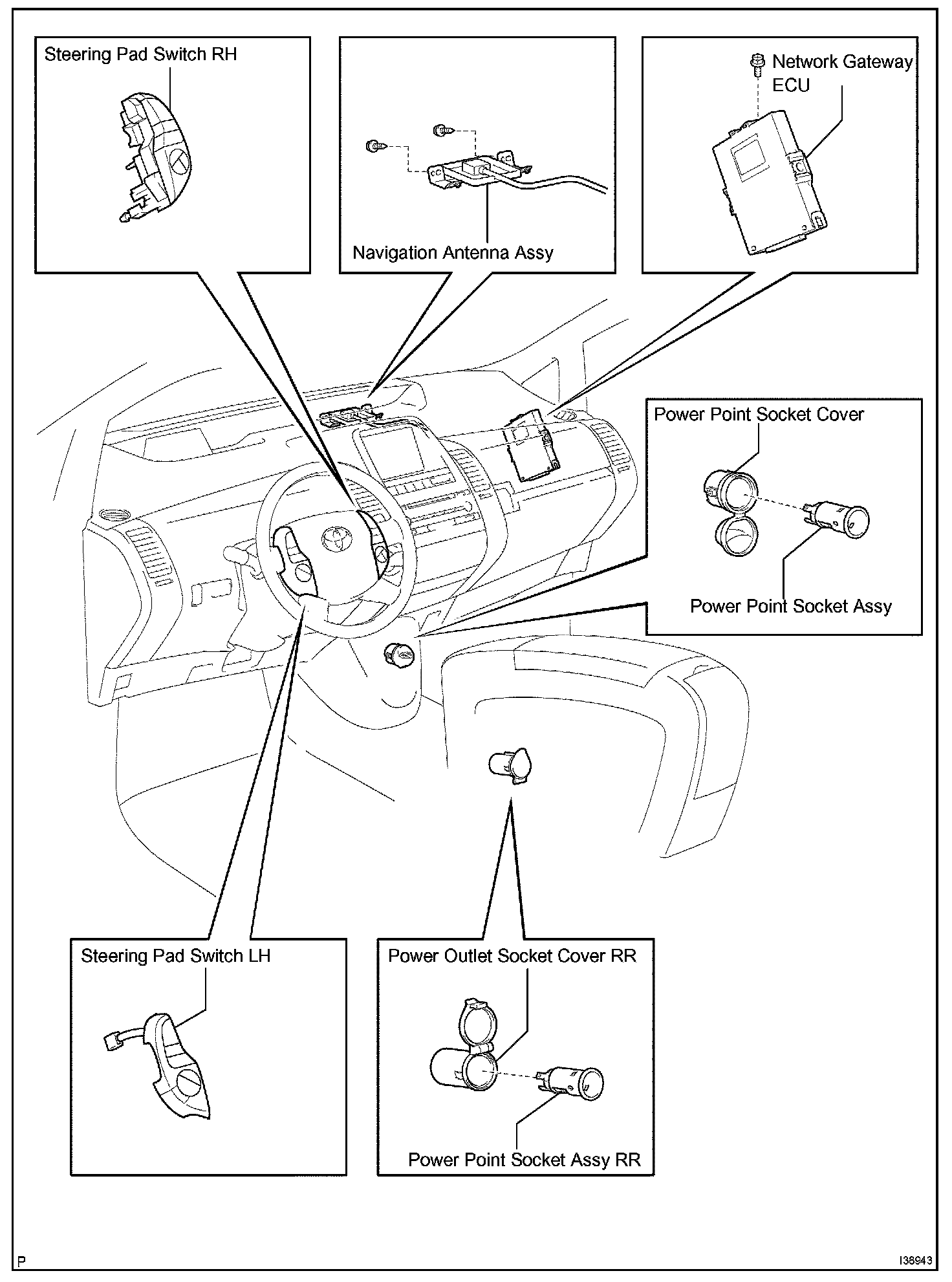

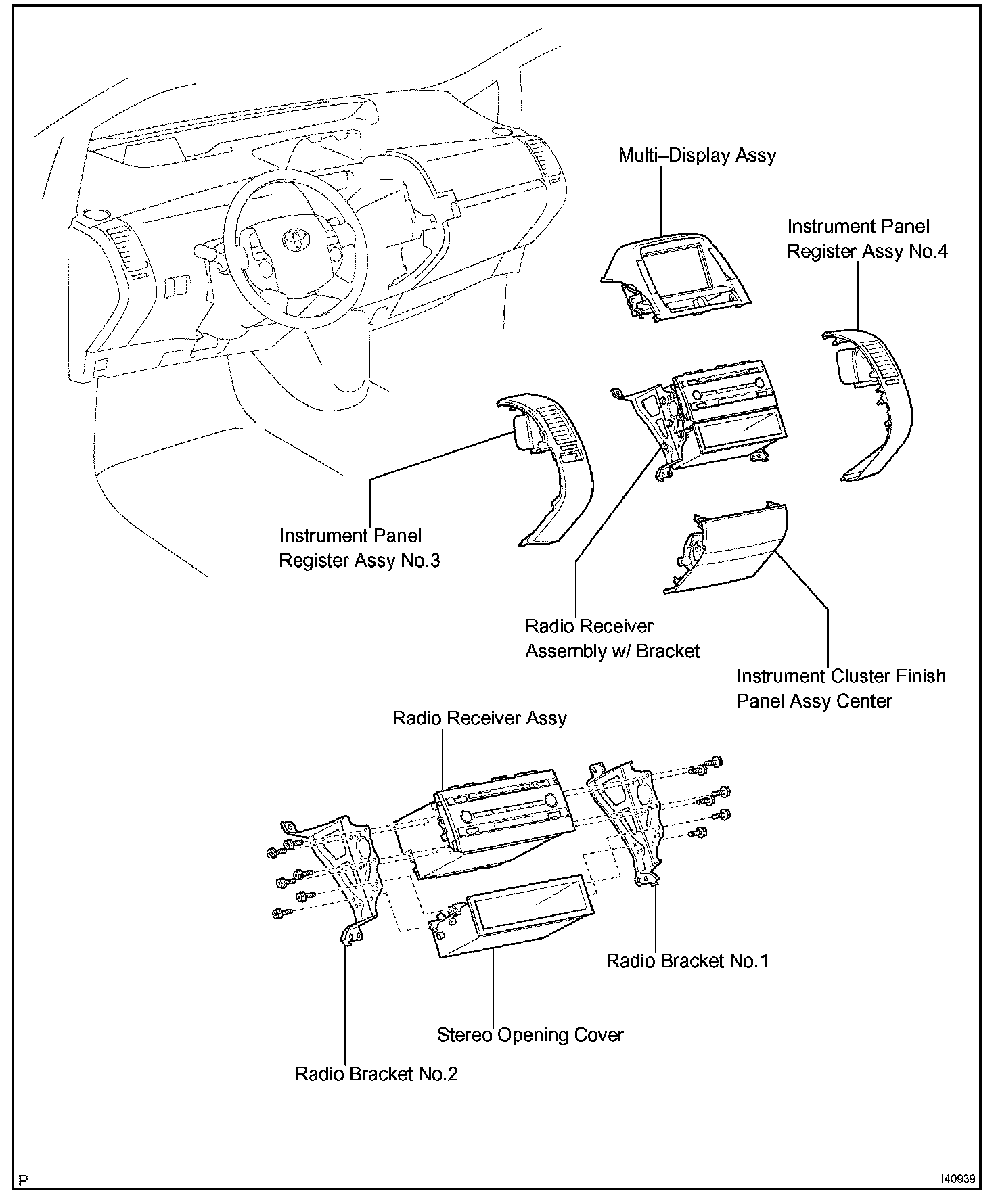

Exploded Views
Audio & Visual System:
Audio & Visual System:
Audio & Visual System:
