Radio/Stereo: Service and Repair

Audio & Visual System:

RADIO RECEIVER ASSY REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL REGISTER ASSY N0.3
2. REMOVE INSTRUMENT PANEL REGISTER ASSY N0.4
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER
4. REMOVE MULTI-DISPLAY ASSY

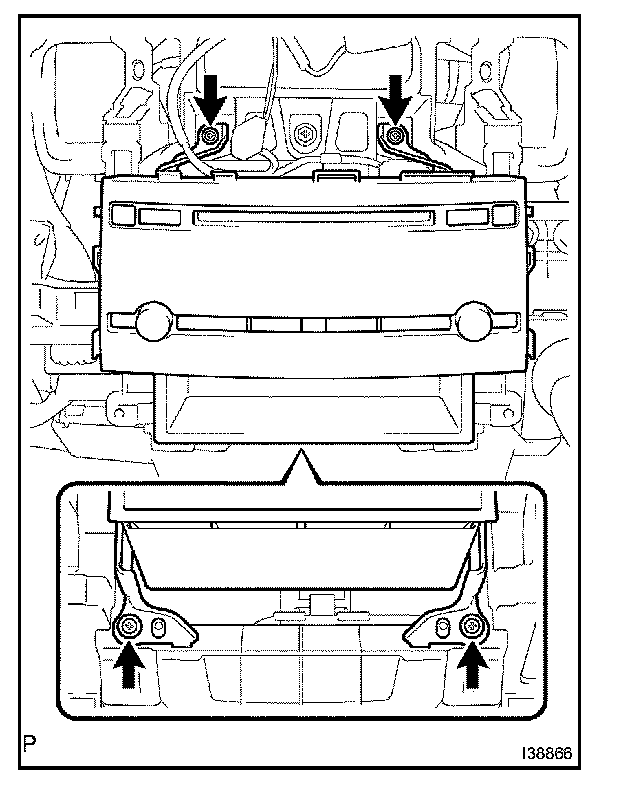

5. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
a. Remove the 4 screws.
b. Disconnect the connector and remove the radio receiver-assembly w/ bracket.

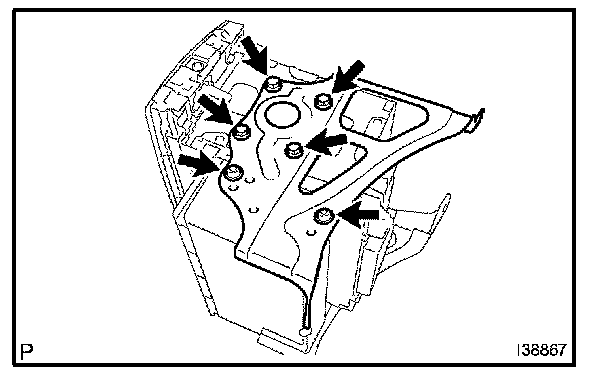

6. REMOVE RADIO BRACKET N0.1
a. Remove the 6 screws and radio bracket No.1.

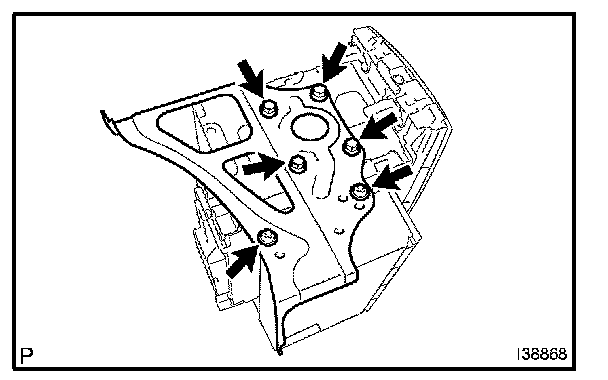

7. REMOVE RADIO BRACKET N0.2
a. Remove the 6 screws and radio bracket No.2.

8. REMOVE RADIO RECEIVER ASSY
