Front No.2 Speaker Assy

Audio & Visual System:

FRONT NO.2 SPEAKER ASSY REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH




2. REMOVE FRONT N0.2 SPEAKER ASSY

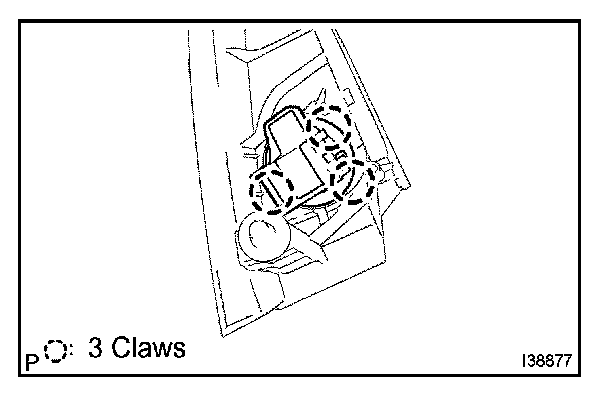

a. Disengage the 3 claws and remove the front No.2 speaker assy.
