Rear Speaker Assy No.2

Audio & Visual System:

REAR SPEAKER ASSY NO.2

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL LH
2. REMOVE DOOR PULL HANDLE
3. REMOVE REAR DOOR ARMREST BASE PANEL UPPER LH
4. REMOVE REAR DOOR TRIM BOARD SUB-ASSY LH




5. REMOVE REAR SPEAKER ASSY NO.2

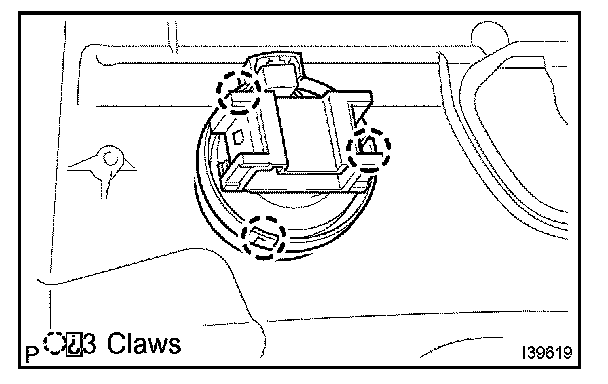

a. Disengage the 3 claws and remove the rear speaker assy No.2.
