Stereo Speaker

Audio & Visual System:






STEREO COMPONENT SPEAKER ASSY FRONT REPLACEMENT

HINT:
- Installation is in the reverse order of removal.




1. REMOVE STEREO COMPONENT SPEAKER ASSY FRONT

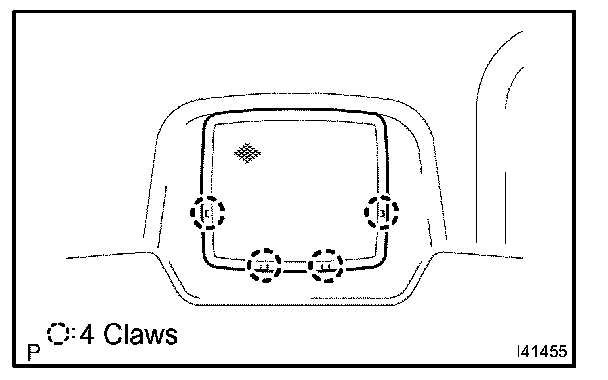

a. Disengage the 4 claws and remove the instrument panel speaker panel.
b. Disconnect the connector.

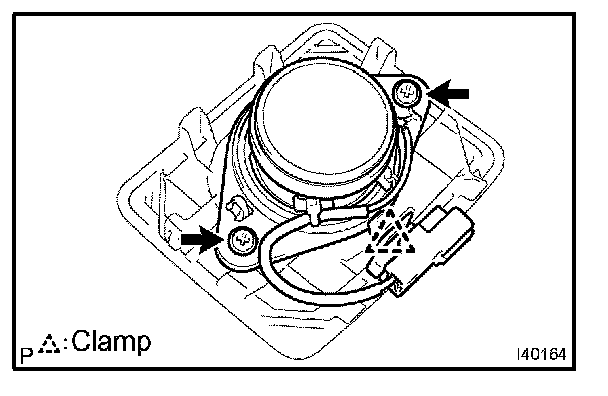

c. Remove the 2 screws and disengage the clamp and then remove the stereo component speaker assy front.
