Identification Of Noise Source

IDENTIFICATION OF NOISE SOURCE

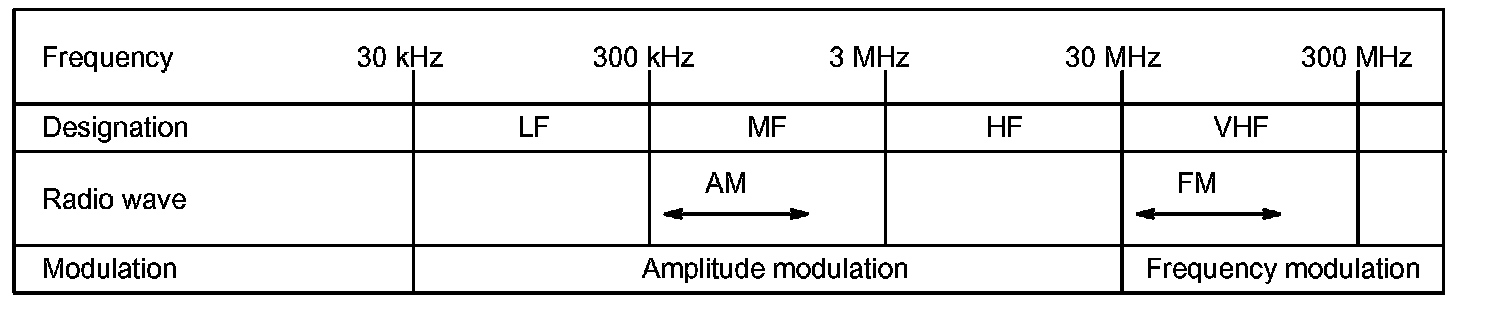

1. RADIO WAVE BAND
The radio wave bands used in radio broadcasting are as given.

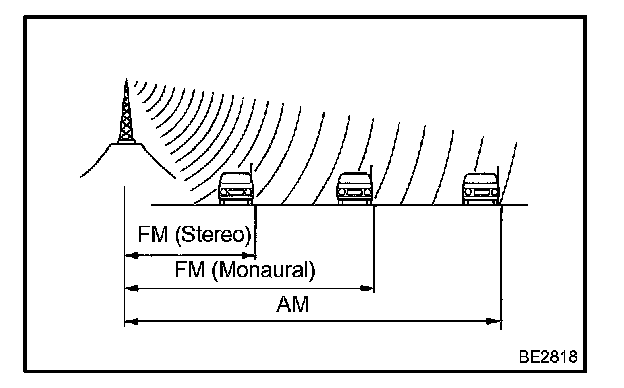

2. SERVICE AREA




a. There is a great difference in the size of the service areas for AM and FM broadcasting. Sometimes an FM stereo broadcast cannot be received even though AM can be received very clearly. FM stereo has the smaller service area, it also picks up static and other types of interference ("noise") easily.

3. RECEPTION PROBLEMS

HINT: Besides the problem of static, there are other problems called "phasing", "multipath" and "fade out". These problems are caused not by electrical noise but by the nature of the radio waves themselves.

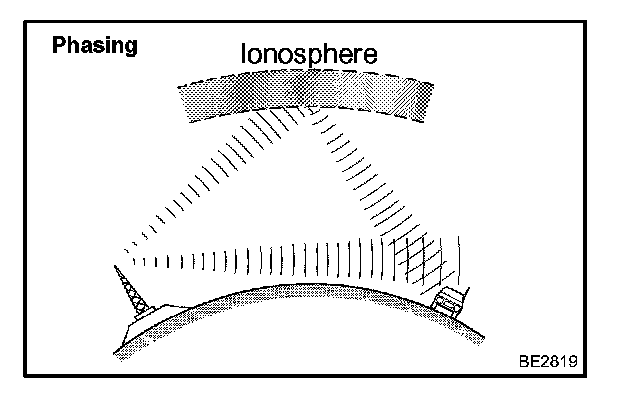

a. Phasing
Besides electrical interference, AM broadcasts are also susceptible to other types of interference, especially at night. This is because AM radio waves bounce off the ionosphere at night. These radio waves then interfere with the signals that reach the vehicle's antenna directly from the same transmitter. This type of interference is called "phasing".

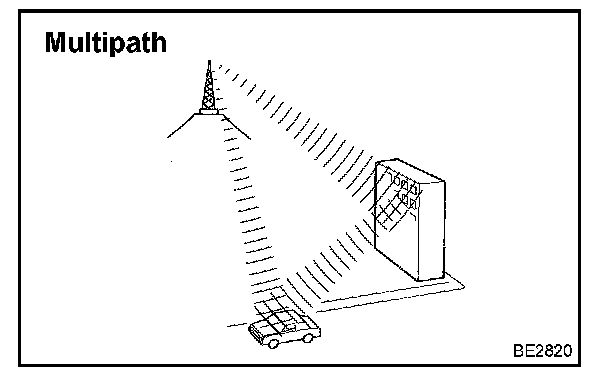

b. Multipath
Interference caused by reflection of radio waves against obstructions is called "Multipath". Multipath occurs when radio signals emitted from the broadcast transmitter antenna are reflected against tall buildings or mountains and interferes with other signals which are to be received directly.

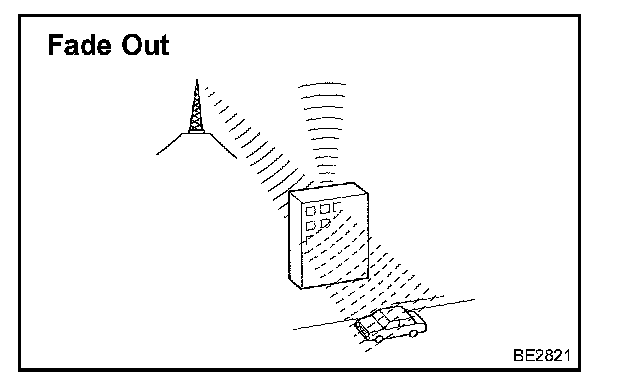

c. Fade Out
FM radio wave tends to be reflected against obstructions such as tall buildings or mountains because FM frequency is higher than that of AM. For this reason, FM signals often seem to gradually disappear or fade away as the vehicle goes behind those obstructions. This phenomenon is called "fade out".

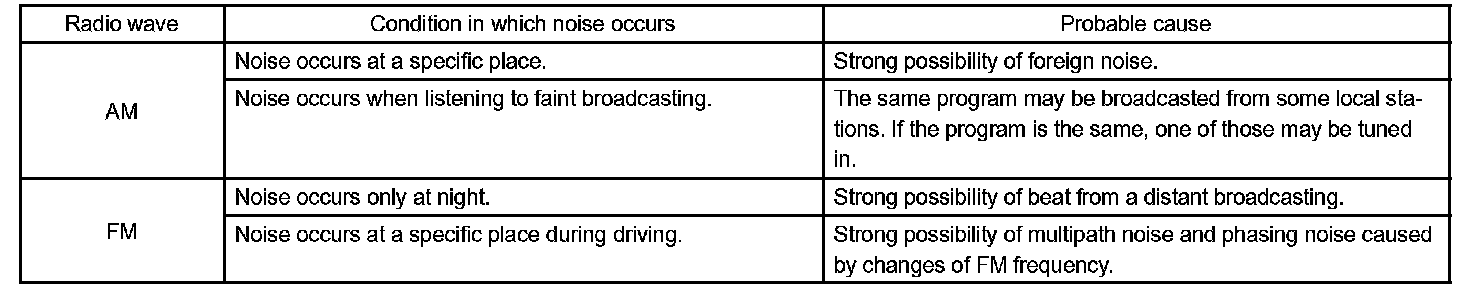

4. NOISE PROBLEMS




a. It is very important for technicians to understand a customer's claim about noise clearly. Use the given table to diagnose the phenomena.

HINT: If the condition when the noise occurs does not meet any of the above, find out the cause based on "Reception Problems". Refer to the description about Multipath and Phasing.

5. IDENTIFICATION OF NOISE SOURCE

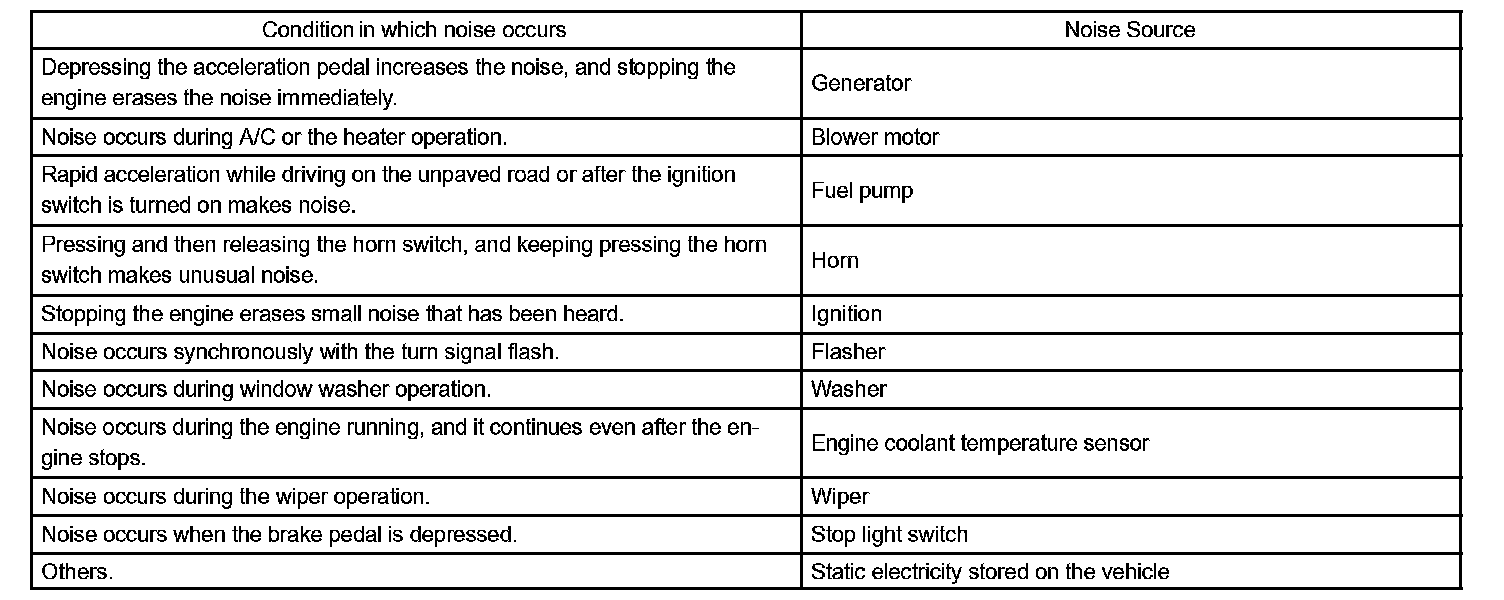

a. Identify the condition in which the noise occurs, and check the noise filter on the related part.

b. Reference:
- Make sure first that there is no noise from outside. Failing to do so makes the noise source detection difficult and leads to misunderstanding.
- The noise should be removed in descending order of loudness.
- Setting the radio unturned makes noise noticeable, making the recognition of the phenomenon easier.
