Diagnosis Display Detailed Description

DIAGNOSIS DISPLAY DETAILED DESCRIPTION

HINT:
- This section contains a detailed description of displays within diagnostic mode.
- Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Service Check (System Check)

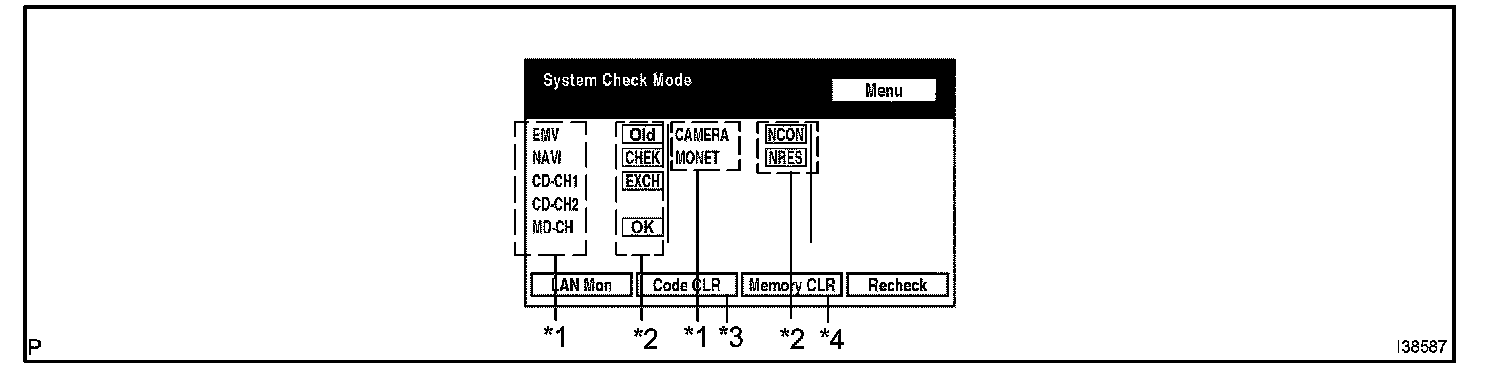

a. System Check Mode Display

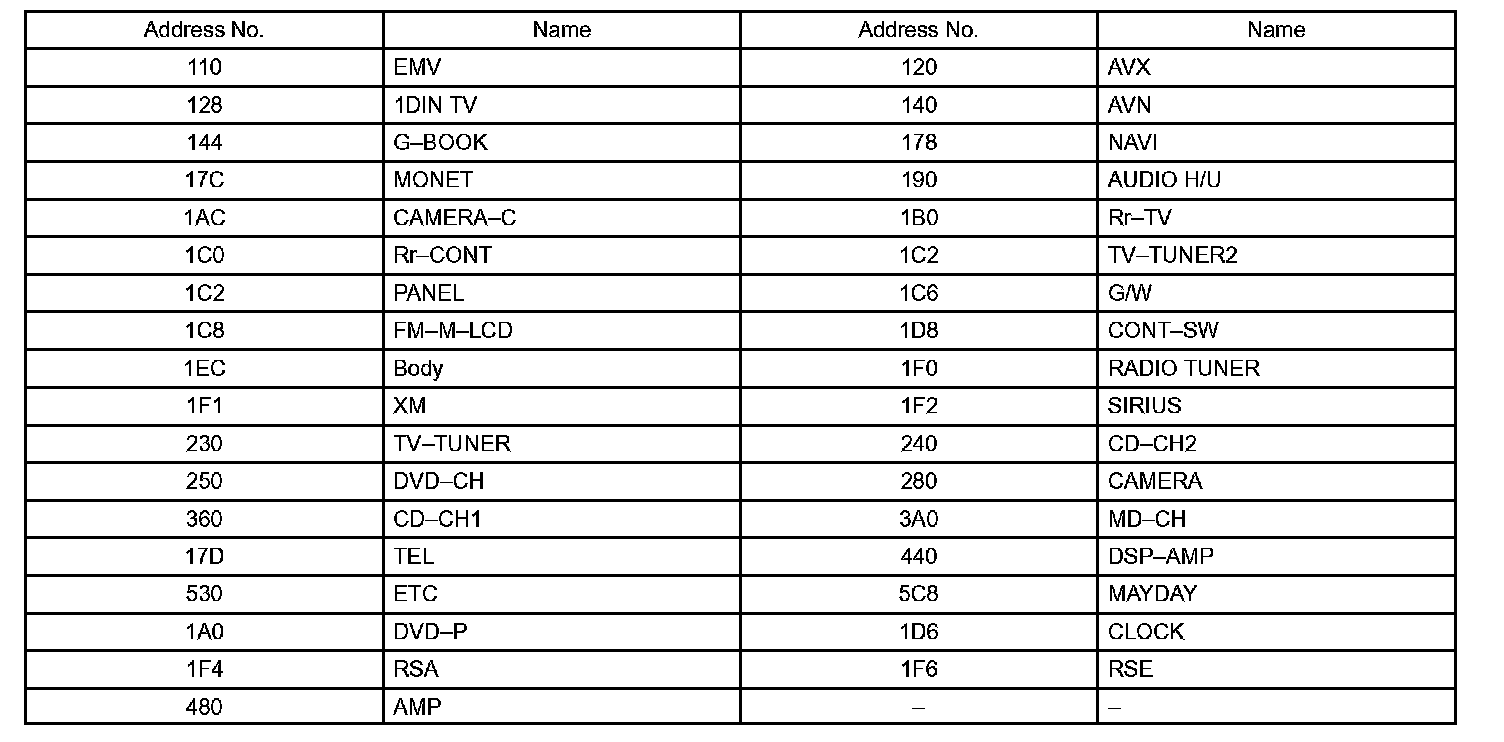

Device Names and hardware Address/*1

HINT:
- Registered device names are displayed.
- If a device name is unknown to the system, its physical address is shown instead.




Check Result/*2

HINT: Result codes for all devices are shown.

Code Clear/*3
Present DTCs are cleared.

Memory Clear/*4
Present and past DTCs and registered connected device names are cleared.

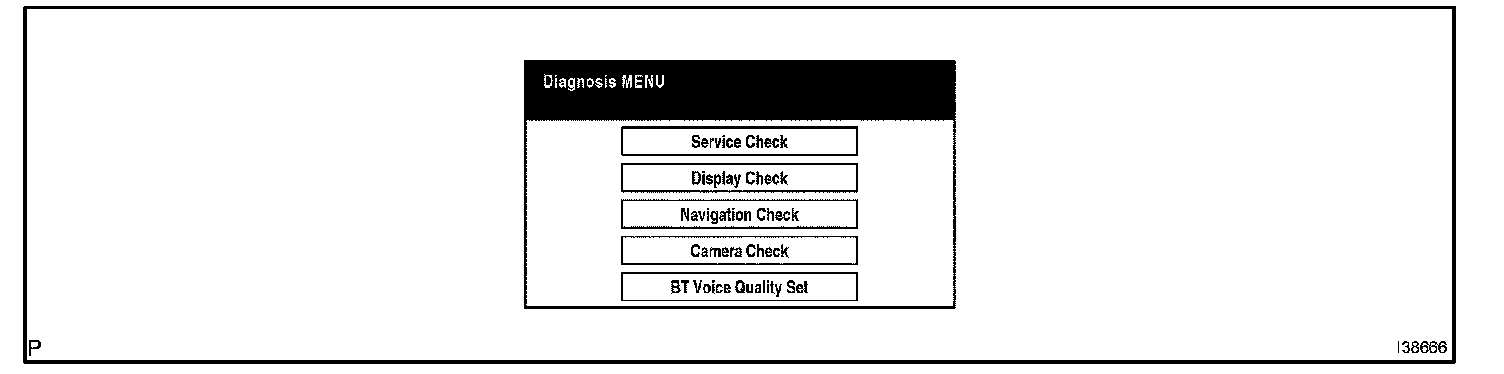

b. Diagnosis MENU Display

HINT: Each item is grayed out or not displayed based on the device settings.

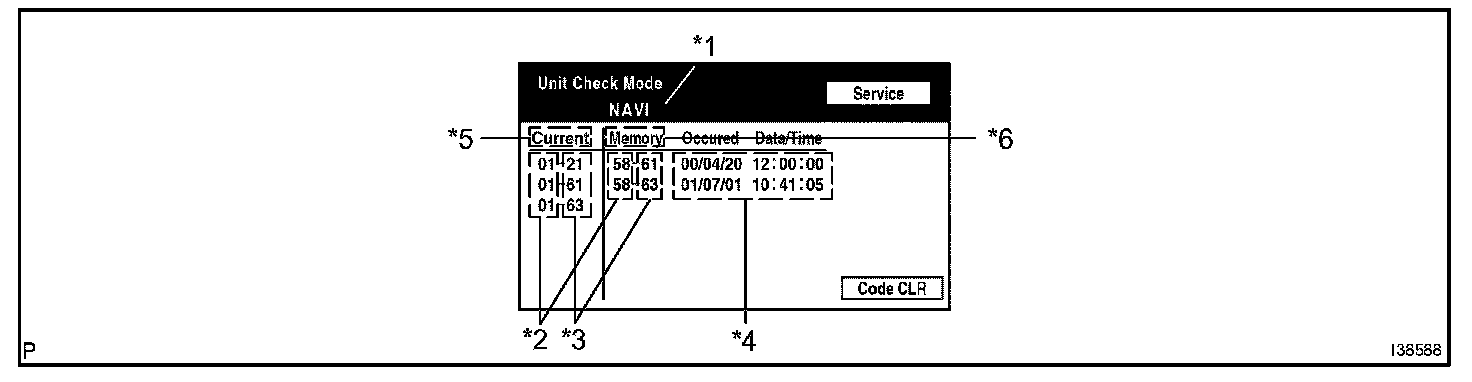

c. Unit Check Mode Screen




Screen Description

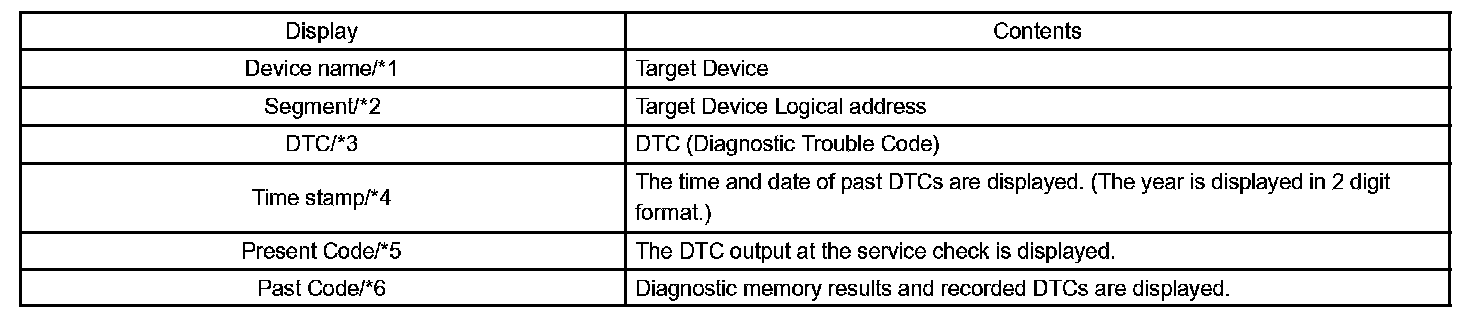

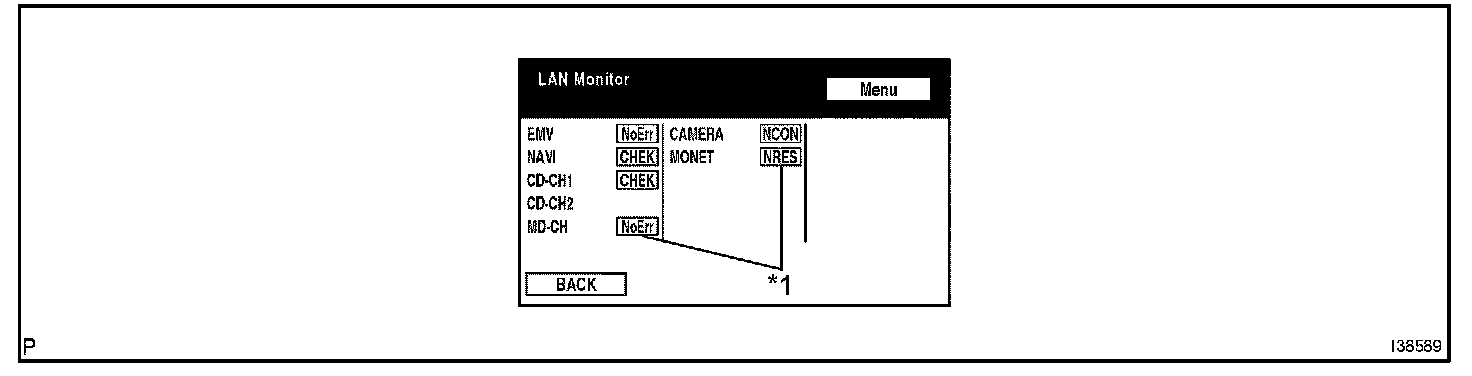

d. LAN Monitor Original Screen

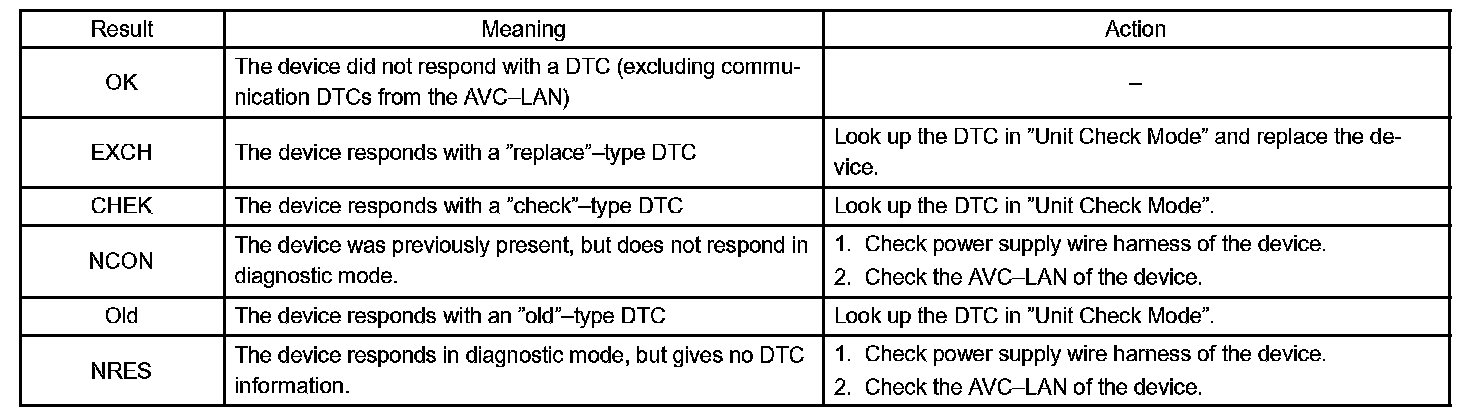

Check result

HINT: Check results of all the devices are displayed.

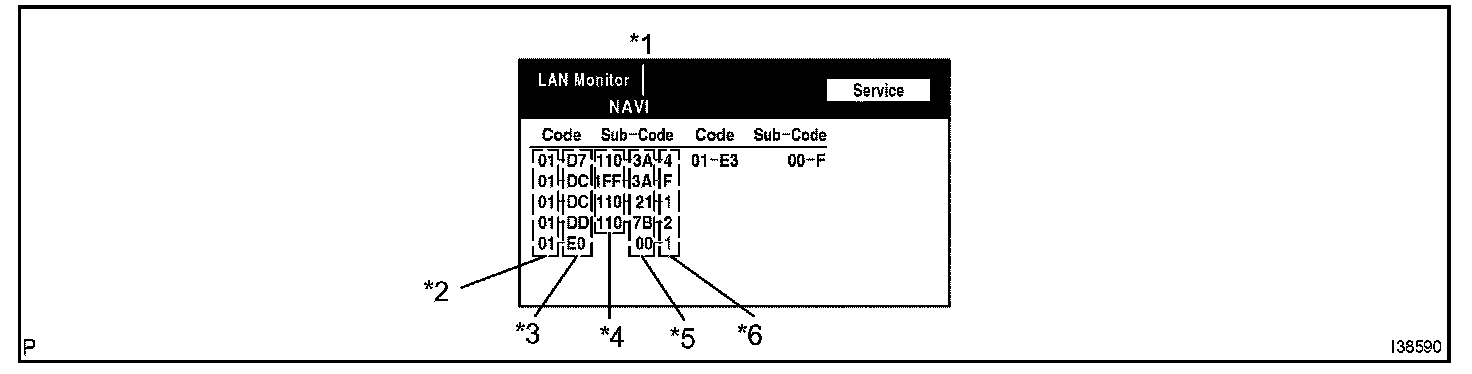

e. LAN Monitor (Individual) Screen

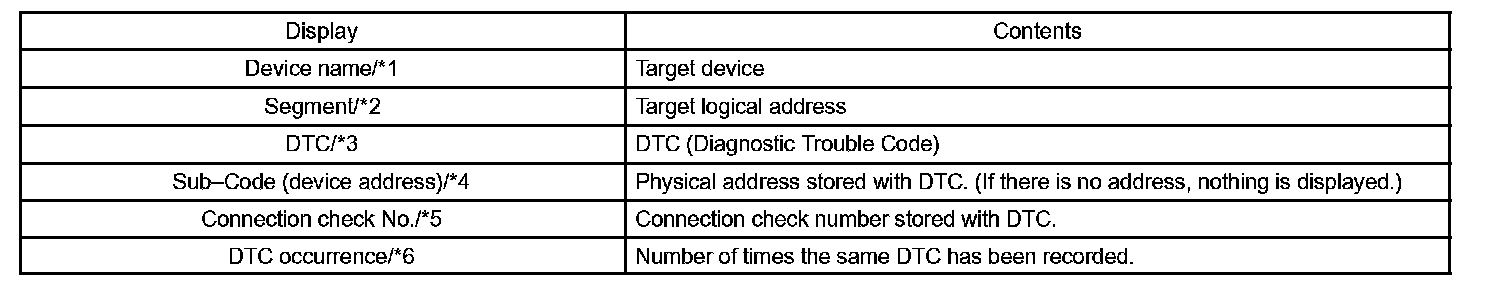

Screen Description

2. DISPLAY CHECK

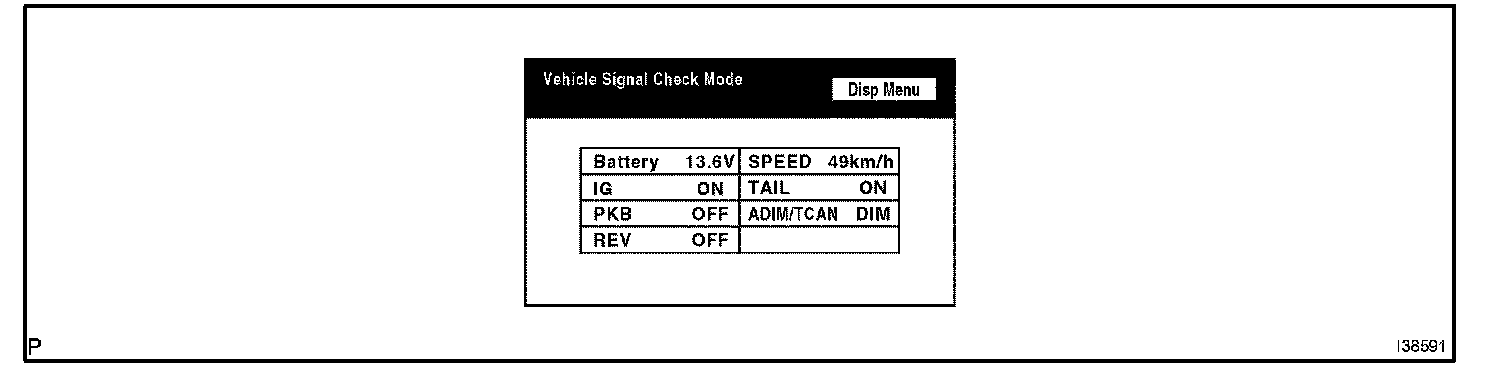

a. Vehicle Signal Check Mode Screen

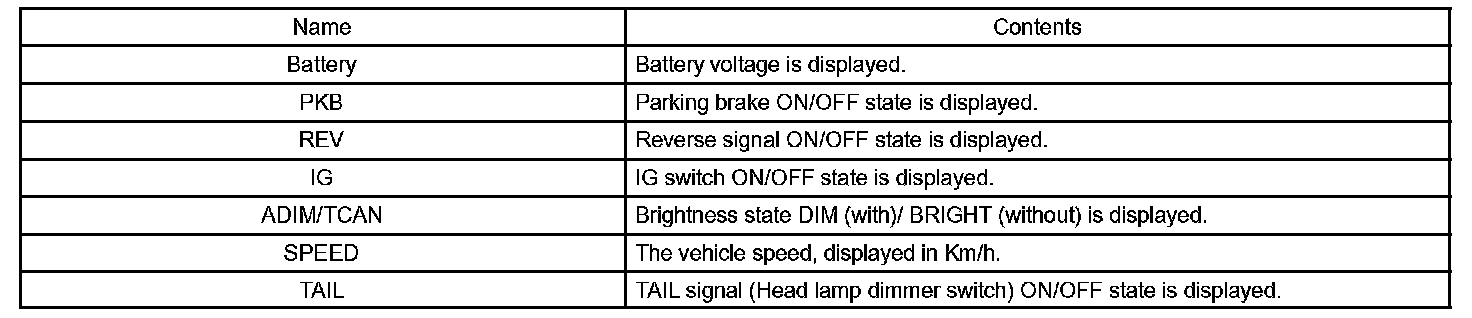

Screen Description

HINT:
- Only items sending a vehicle signal will be displayed.
- This screen is updated once per second when input signals to the vehicle are changed.
