Pinout Values and Diagnostic Parameters

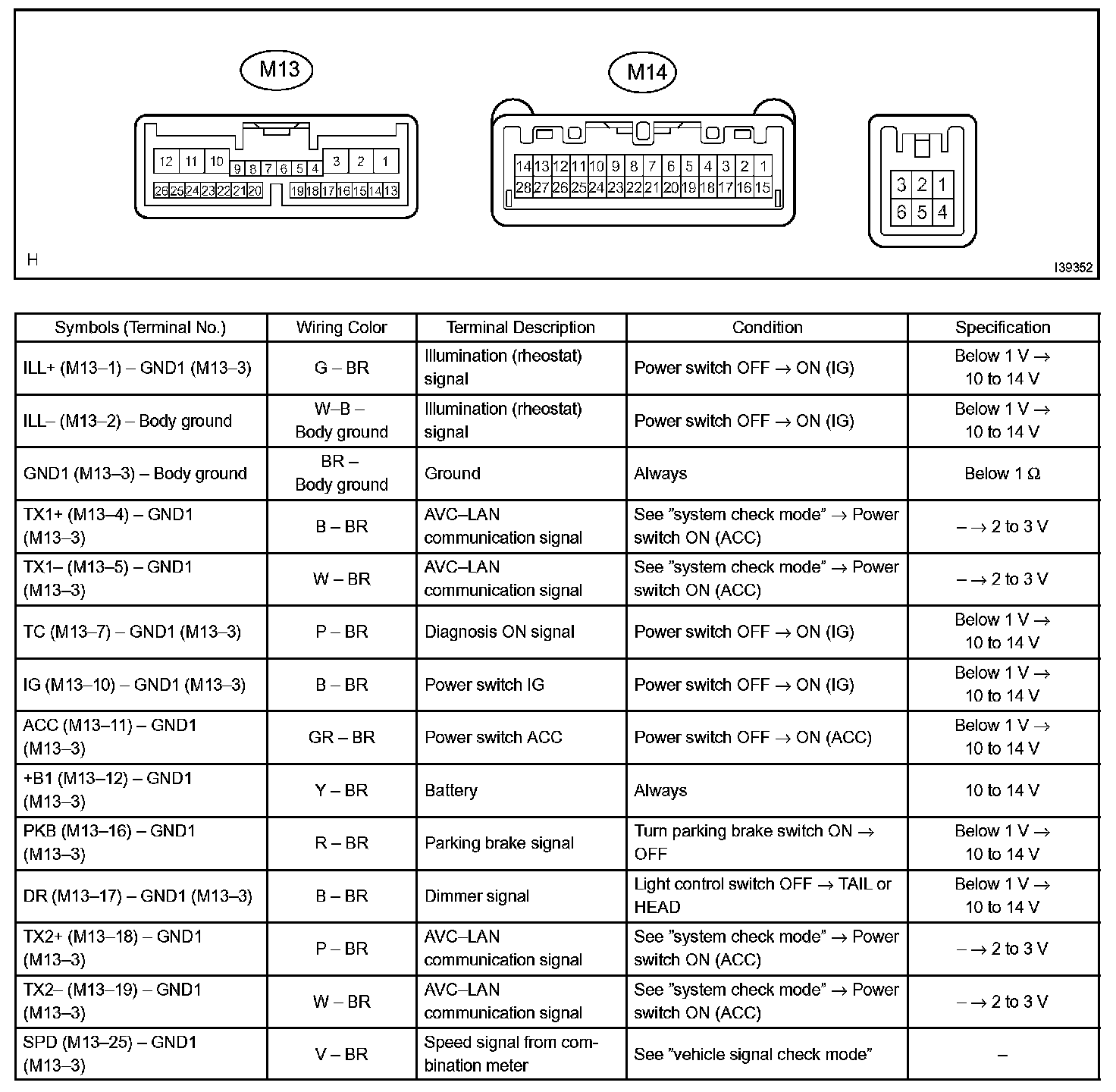

Terminals Of ECU/Pinouts - Multi Display:

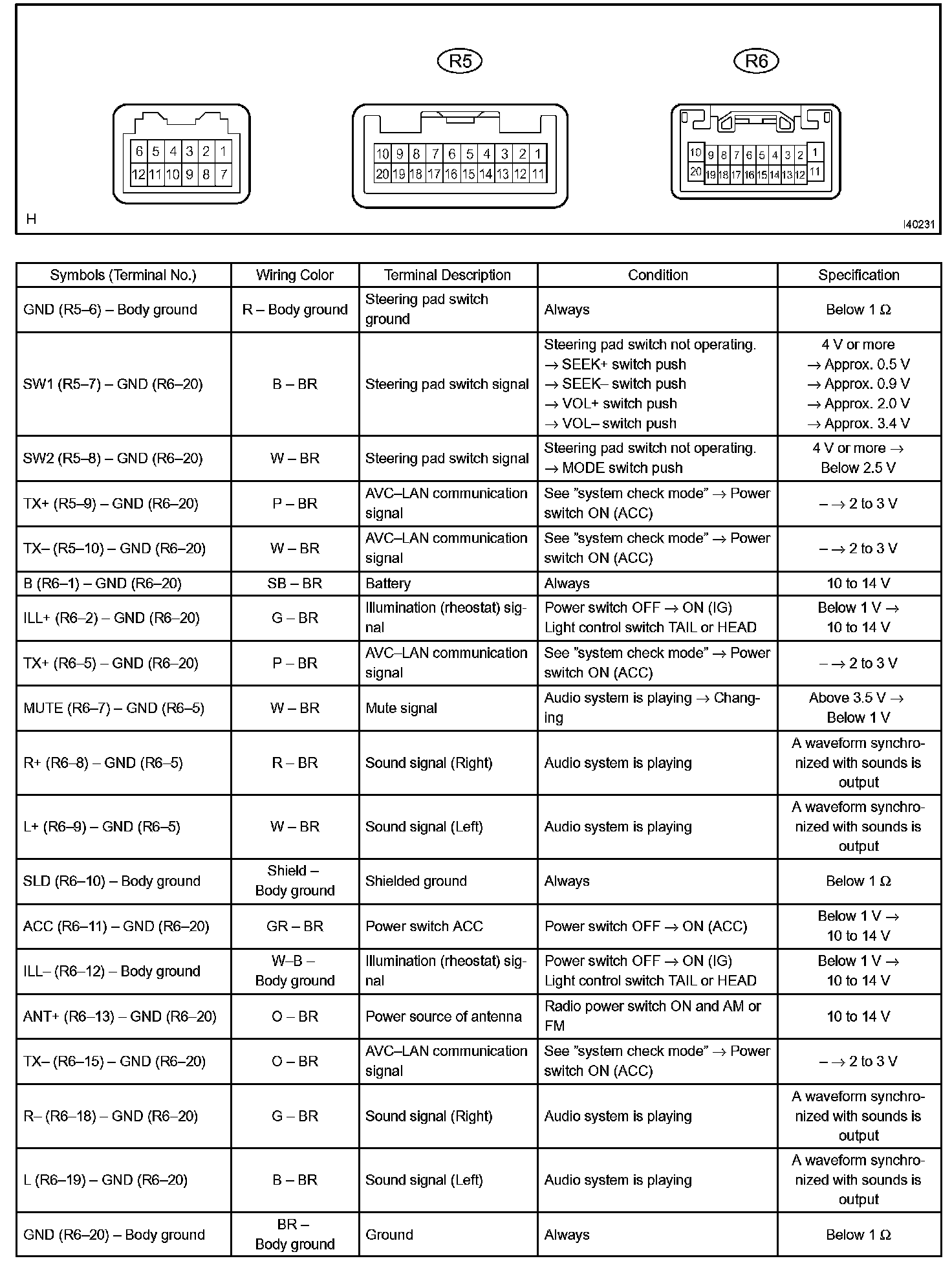

Terminals Of ECU/Pinouts - Radio Receiver Assy (Separate Type Amplifier):

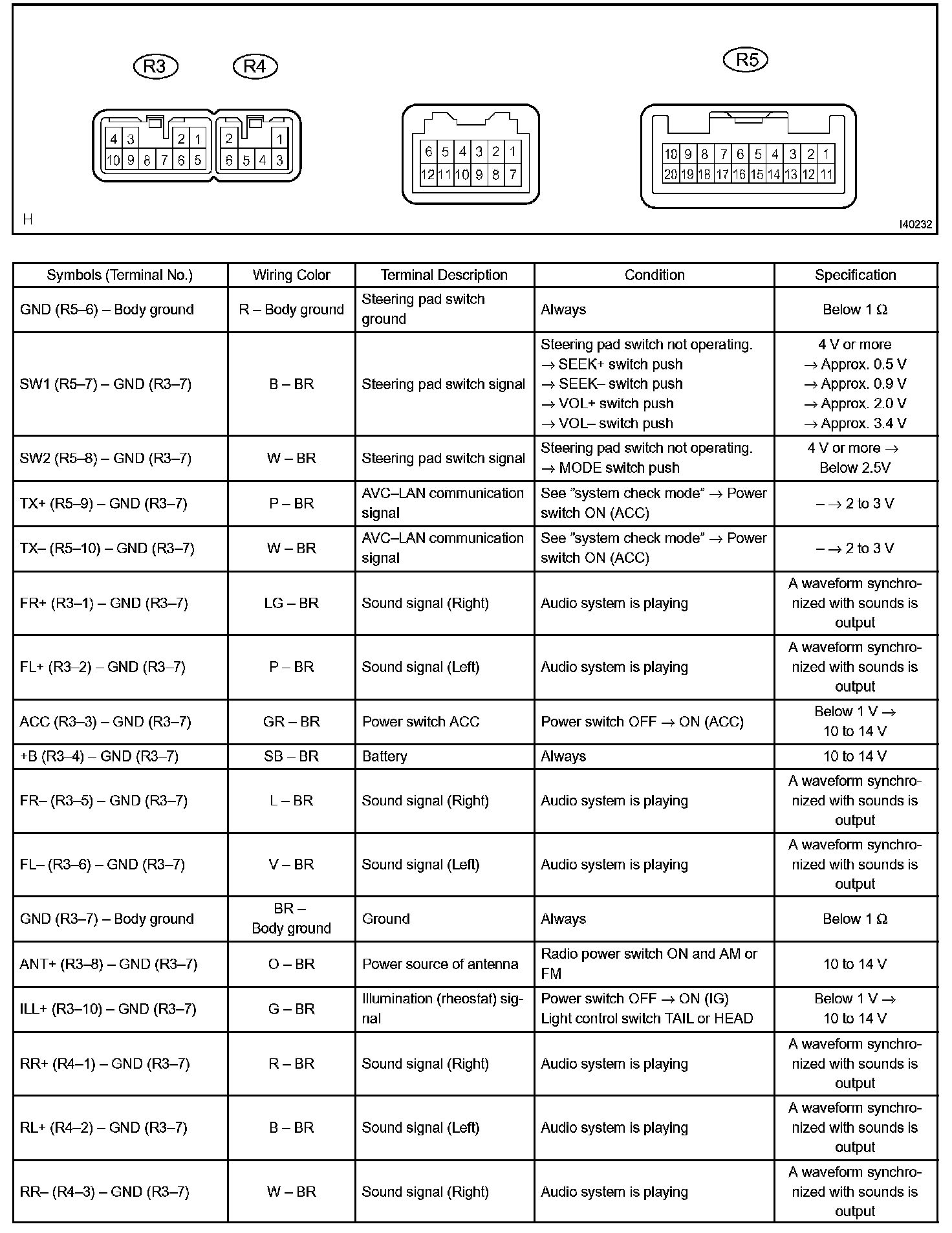

Terminals Of ECU/Pinouts - Radio Receiver Assy (Built In Type Amplifier) Part 1:

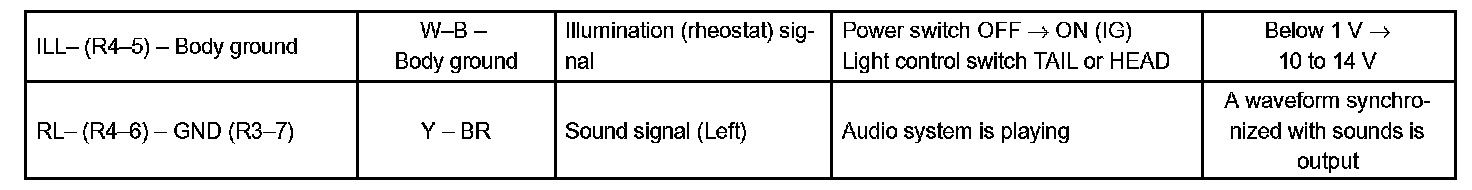

Terminals Of ECU/Pinouts - Radio Receiver Assy (Built In Type Amplifier) Part 2:

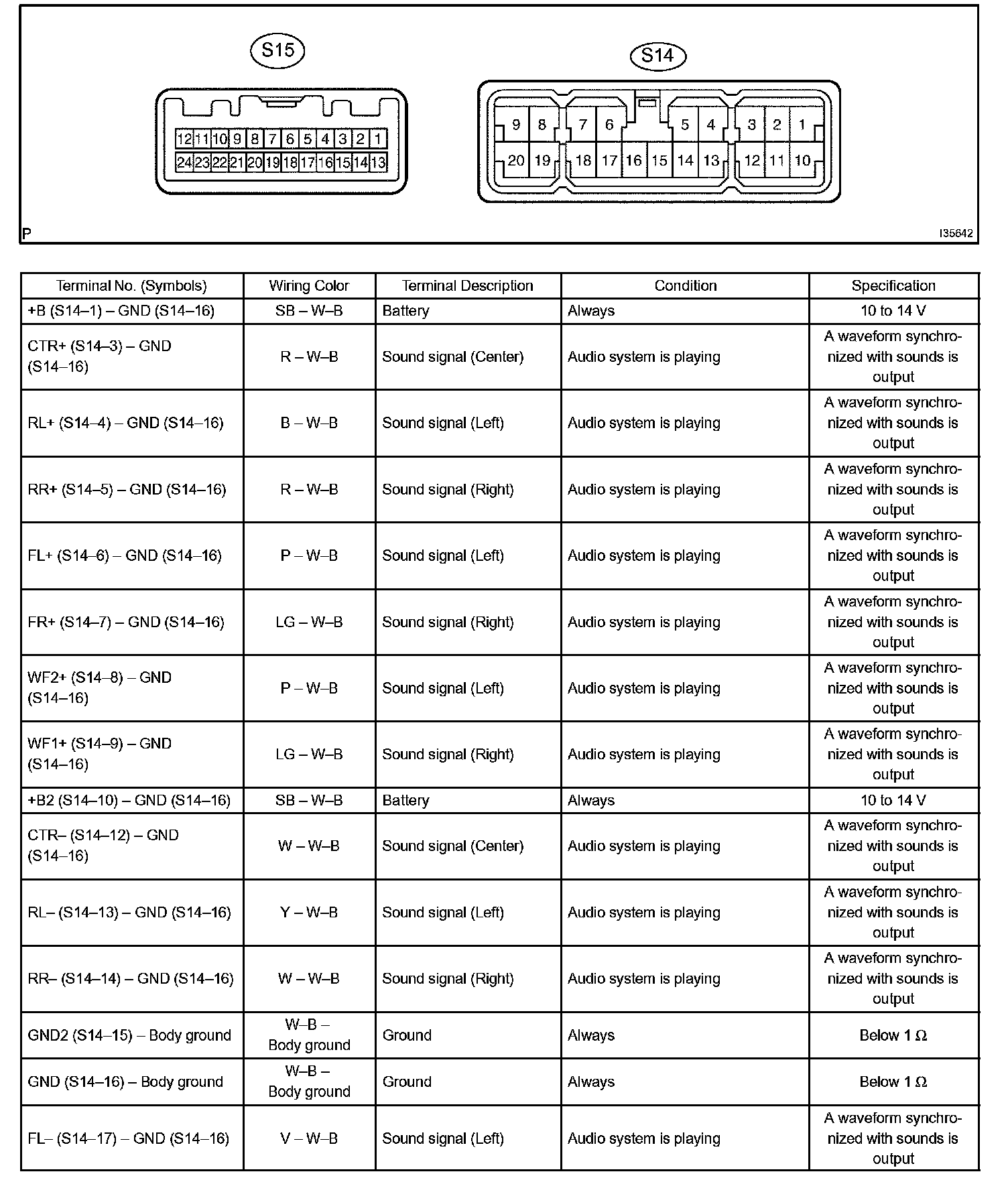

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy Part 1:

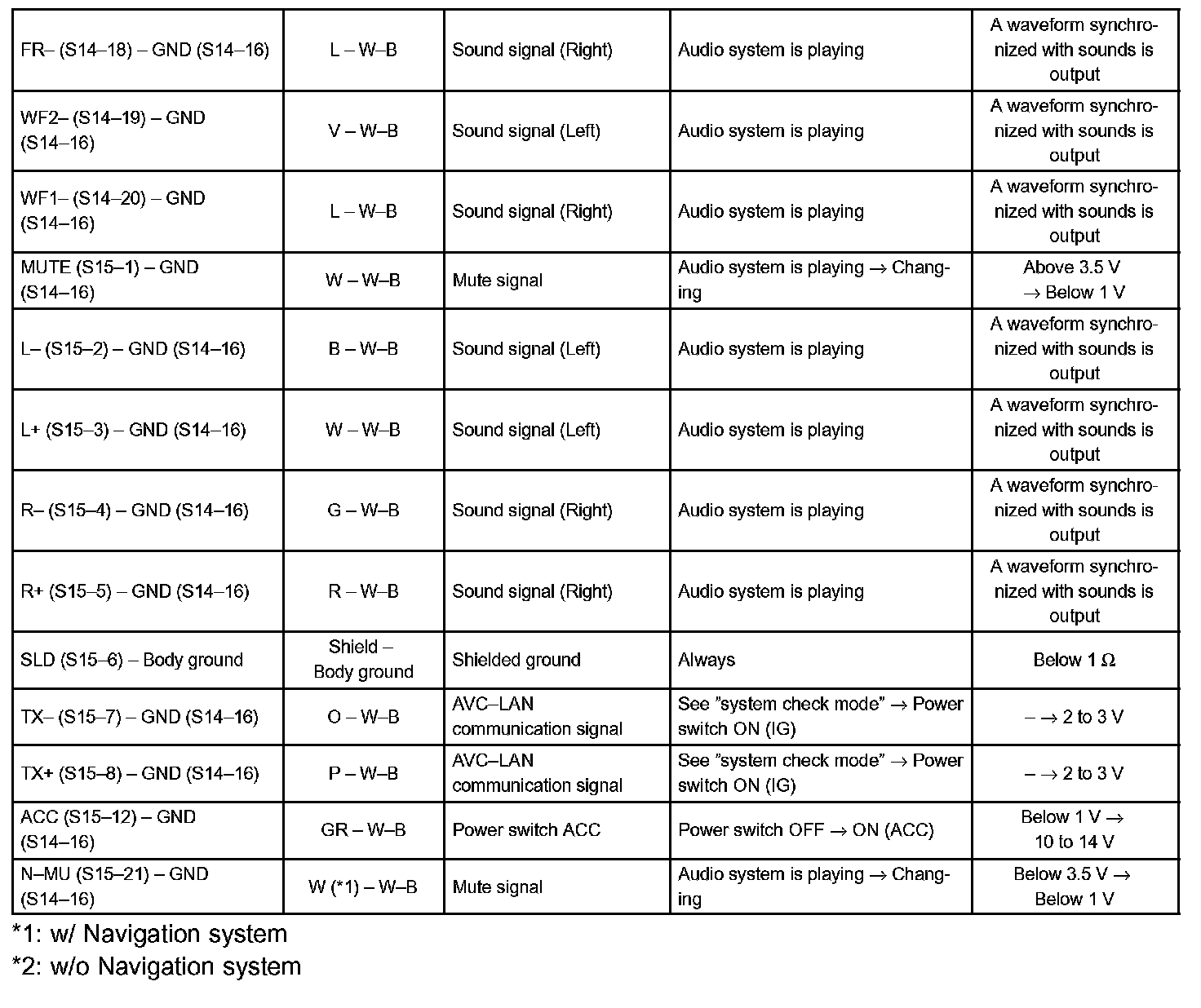

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy Part 2:
