AMP Sound Signal Circuit (Radio Receiver Assy - AMP)

AMP SOUND SIGNAL CIRCUIT (RADIO RECEIVER ASSY - AMP)

CIRCUIT DESCRIPTION
The radio receiver assy sends a sound signal to the stereo component amplifier assy through this circuit. The sound signal that has been sent is amplified by the stereo component amplifier assy, and then sent to the speaker.
If there is an open or short in the circuit, sound can not be heard from the speaker even if there is no malfunction in the stereo component amplifier assy or speaker.

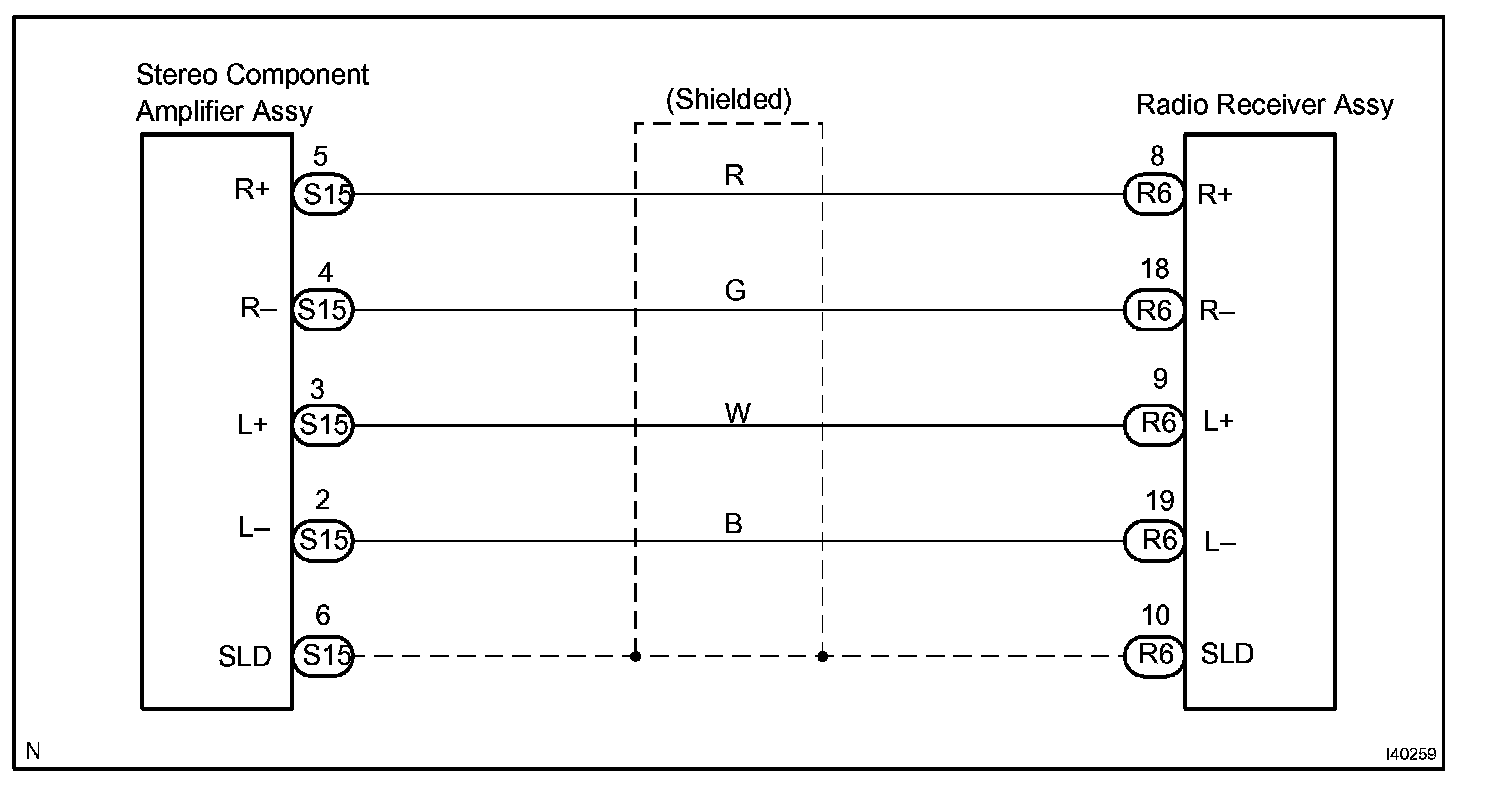

Wiring Diagram:

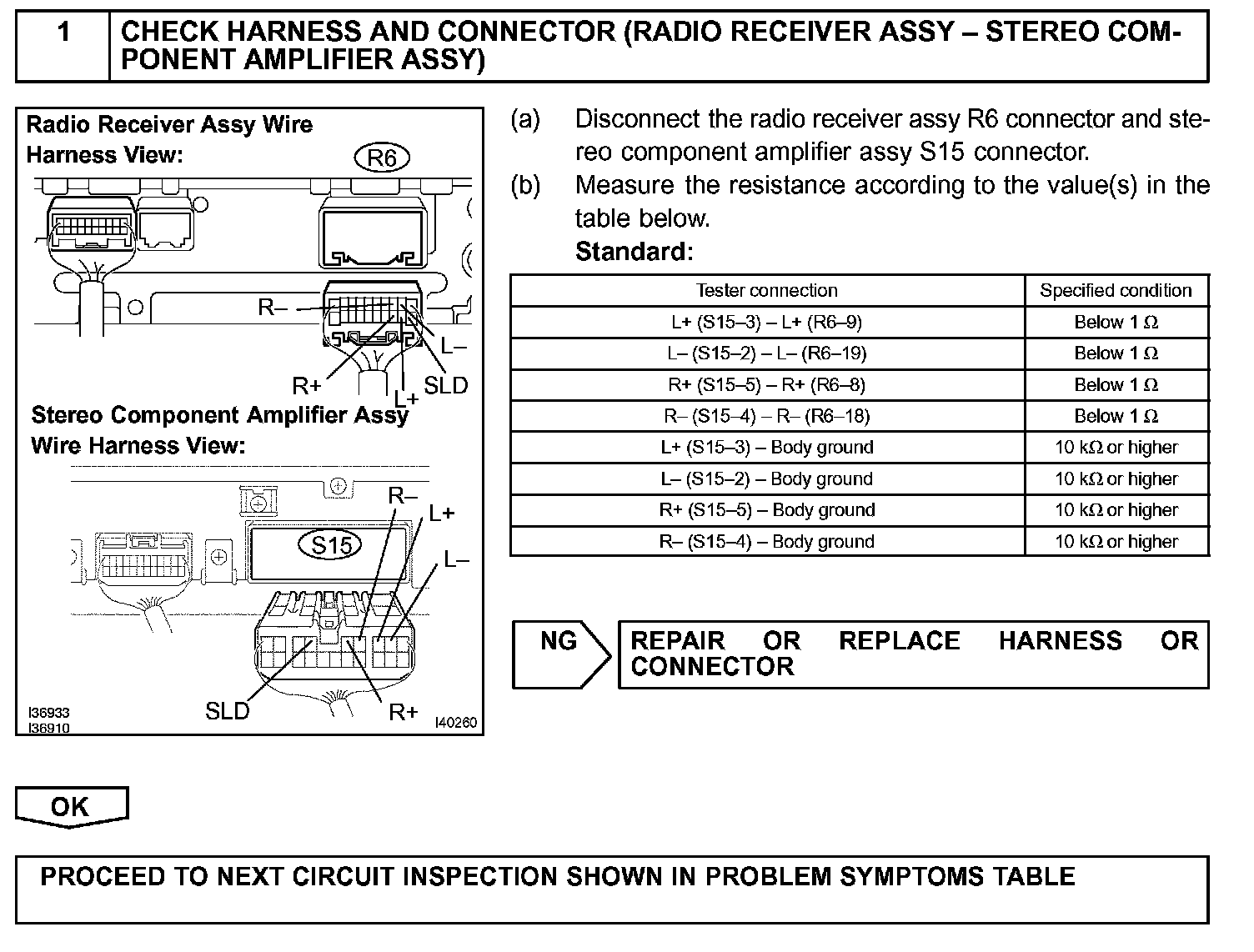

Step 1:

INSPECTION PROCEDURE
