Power Source Circuit (Stereo Component Amplifier Assy)

POWER SOURCE CIRCUIT (STEREO COMPONENT AMPLIFIER ASSY)

CIRCUIT DESCRIPTION
This circuit provides power to the stereo component amplifier assy.

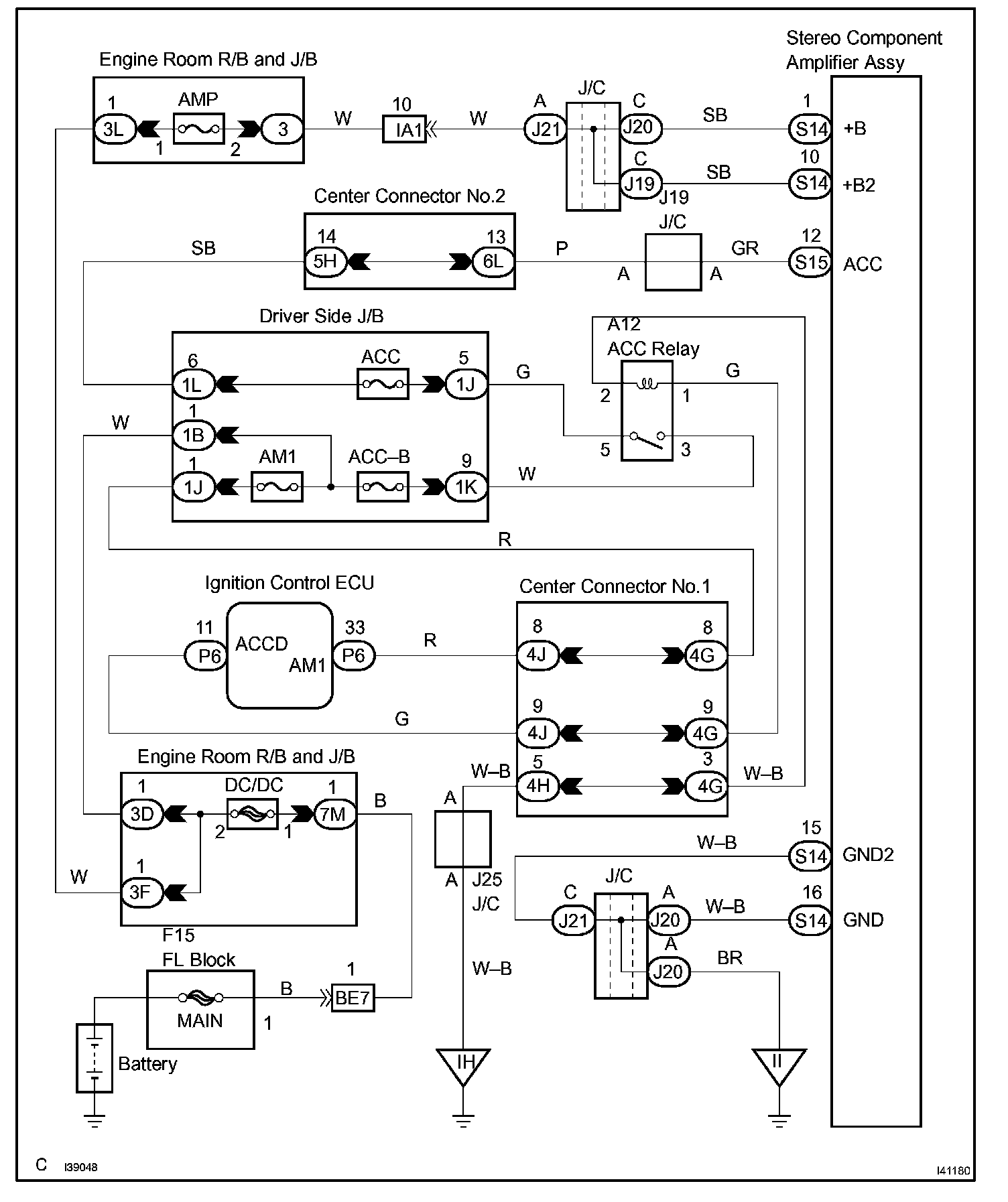

Wiring Diagram:






Step 1:

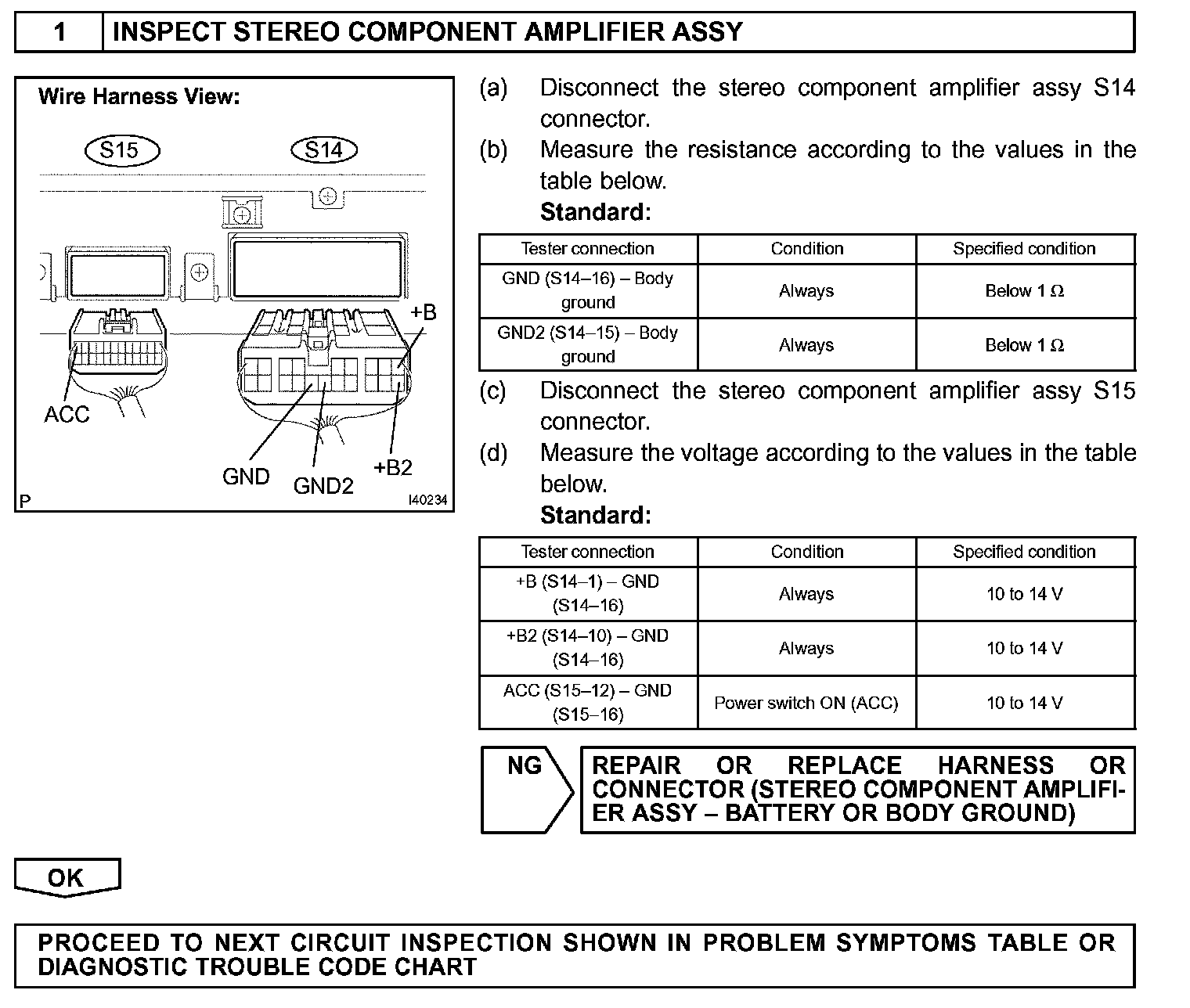

INSPECTION PROCEDURE
