Back Door Fixed Glass
Back Window Fix Glass:
BACK WINDOW FIX GLASS
REPLACEMENT
HINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- A bolt without a torque specification is shown in the standard bolt chart.
1. REMOVE BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE
a. Remove the back door trim board (lower).
b. Remove the back door trim board (upper).
c. Remove the back door garnish outside.
2. REMOVE REAR SPOILER SUB-ASSEMBLY
3. REMOVE BACK WINDOW FIX GLASS

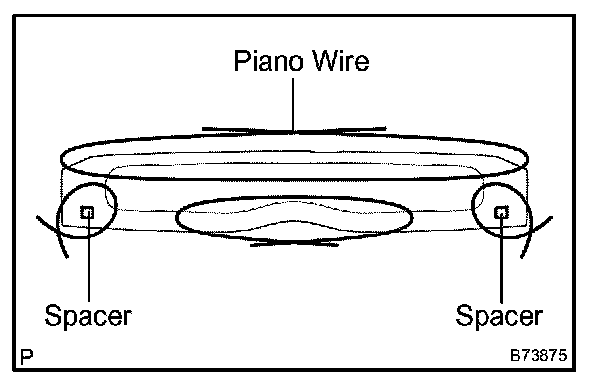

a. From the interior, insert piano wires between the vehicle body and glass, as shown in the illustration.
b. Tie objects that can serve as handles (for example, wooden blocks) to all wire ends.

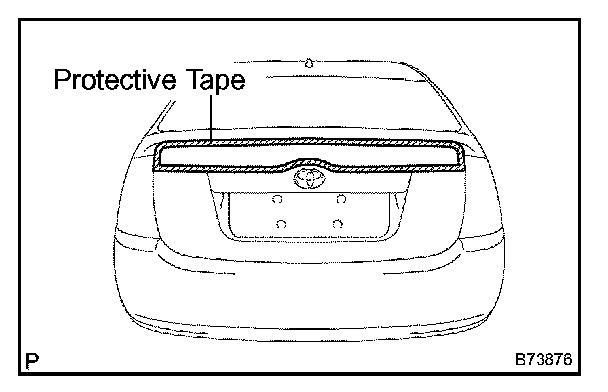

HINT: Apply protective tape to the outer surface of the vehicle body to prevent its surface from being scratched.
NOTE:
- When separating the glass from the vehicle, be careful not to damage the vehicle's paint or interior / exterior ornaments.
c. Cut through the adhesive by pulling the piano wire around the glass.
d. Using a suction cup, remove the glass.
NOTE: Leave as much adhesive on the vehicle body as possible when removing the glass.
4. CLEAN BACK WINDOW FIX GLASS
a. Using a scraper, remove the spacers, dam, moulding and adhesive sticking to the glass.
b. Clean the outer circumference of the glass with white gasoline.
NOTE:
- Do not touch the glass surface after cleaning it.
- Even if using new glass, clean the glass with white gasoline.
5. CLEAN VEHICLE BODY

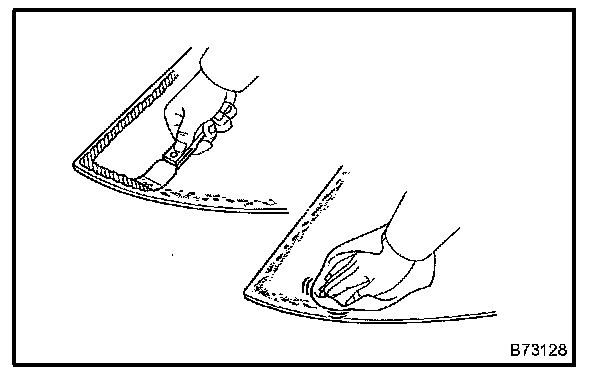

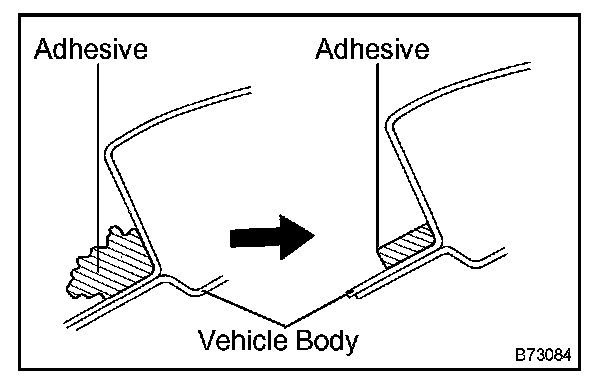

a. Clean and shape the contact surface of the vehicle body.
1. Using a knife, cut away any rough adhesive on the contact surface of the vehicle body to ensure the appropriate surface shape.
NOTE: Be careful not to damage the vehicle body.
HINT: Leave as much adhesive on the vehicle body as possible.
2. Clean the contact surface of the vehicle body with a piece of shop rag saturated with cleaner.
HINT: Even if all the adhesive has been removed, clean the vehicle body.
6. INSTALL BACK WINDOW GLASS SPACER
a. Coat the installation part of the spacers with Primer G.
NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Throw away any leftover Primer G.
- Do not apply too much Primer G.

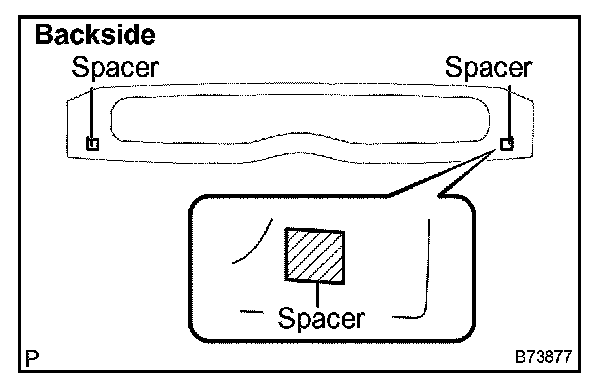

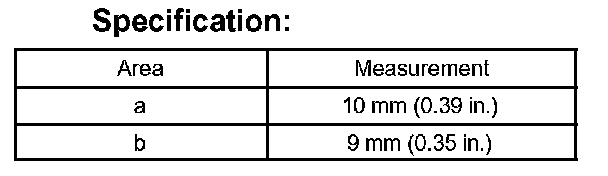

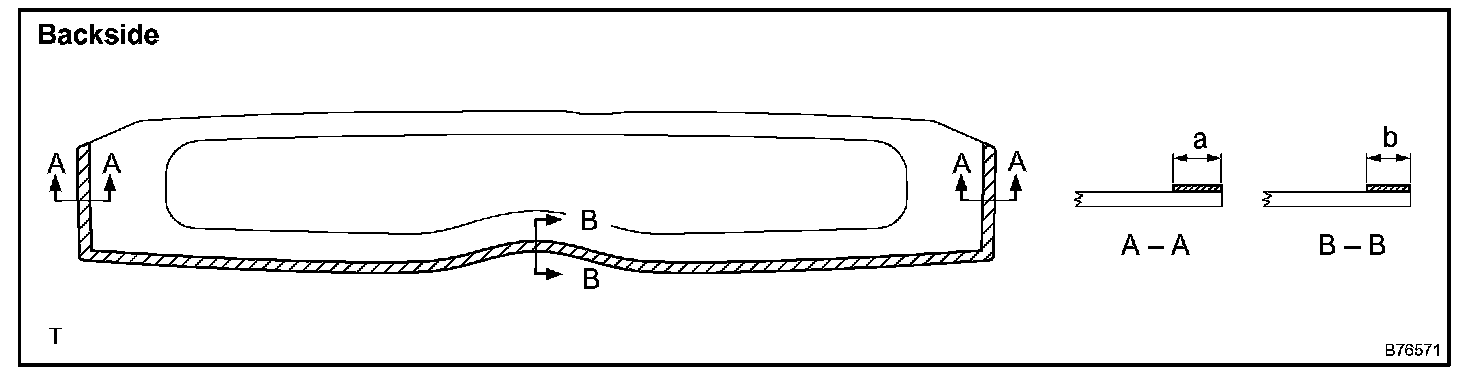

b. Install 2 new spacers onto the glass, as shown in the illustration.
7. INSTALL BACK WINDOW GLASS ADHESIVE DAM KIT
a. Coat the installation part of the back window glass adhesive dam with Primer G.
NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Throw away any leftover Primer G.
- Do not apply too much Primer G.

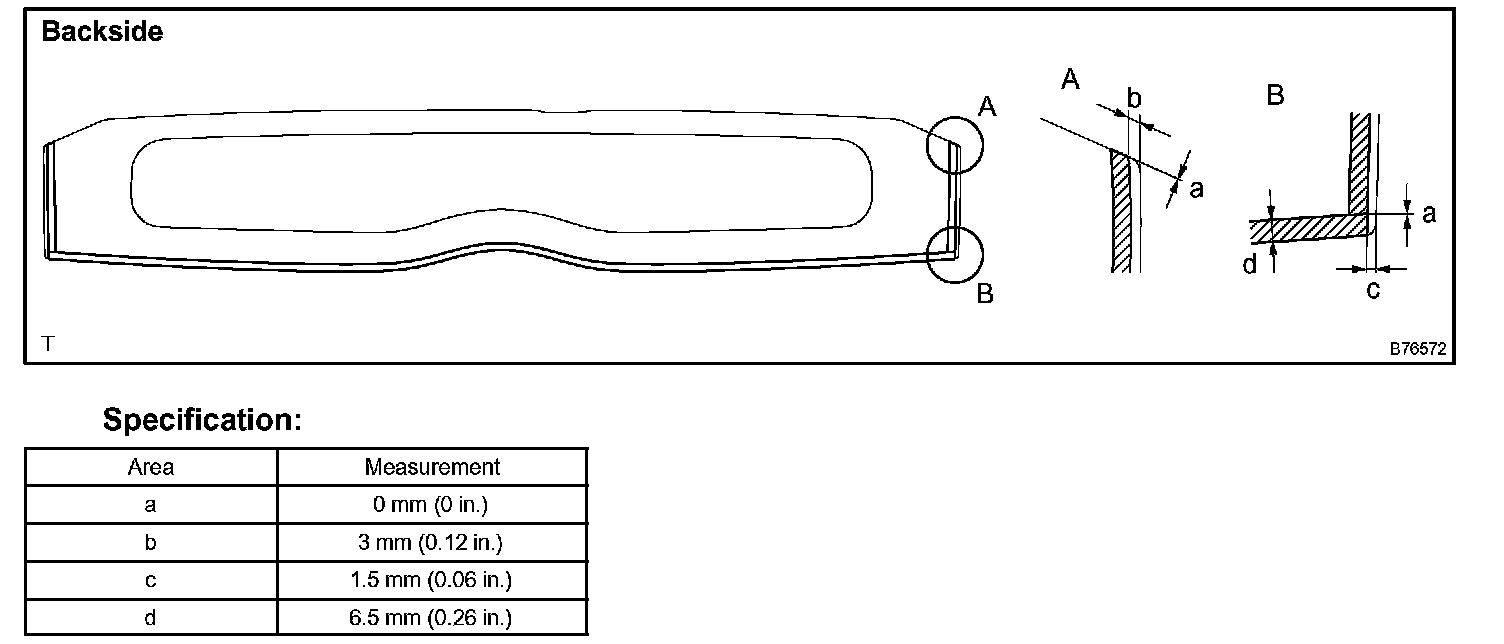

b. Install a new dam, as shown in the illustration.
8. INSTALL BACK WINDOW MOULDING OUTSIDE

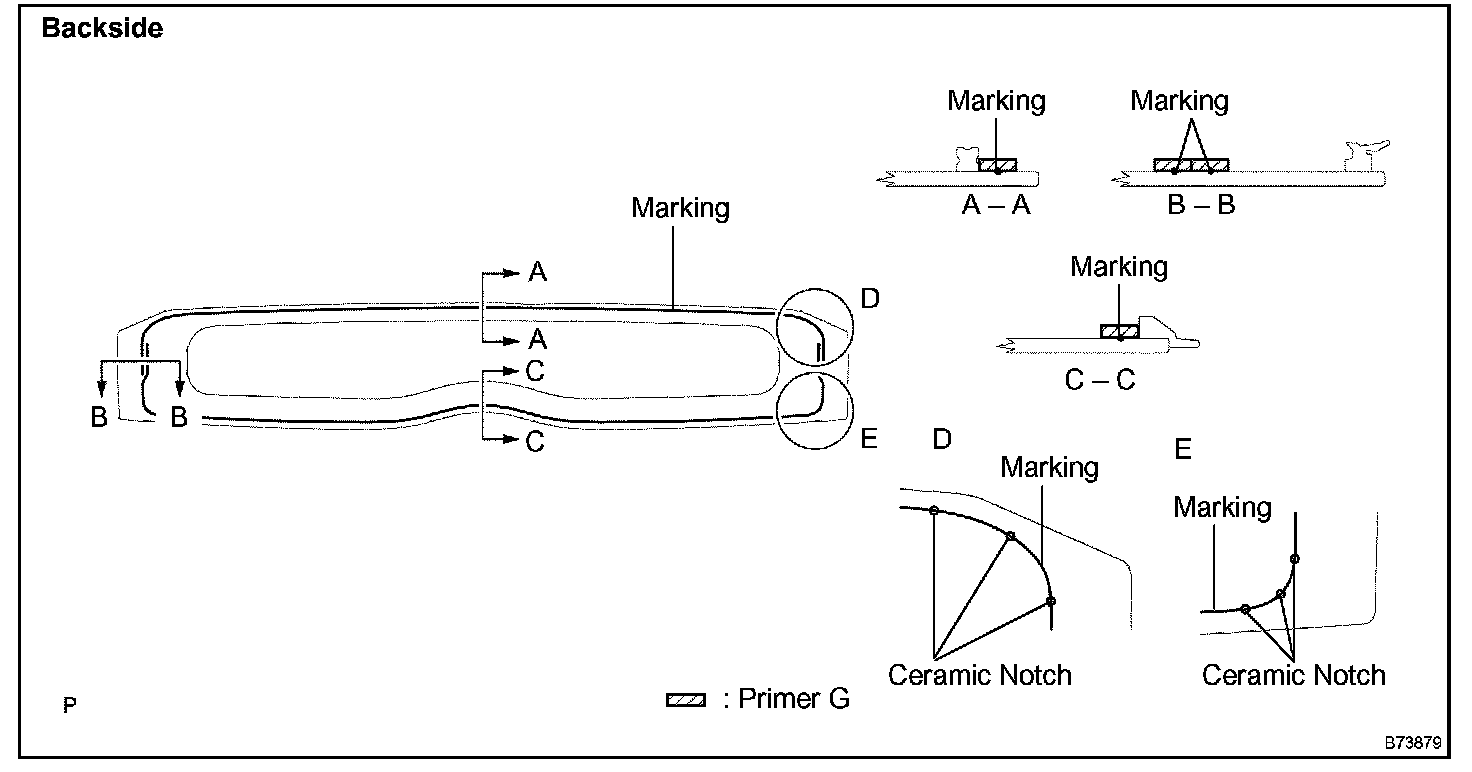

a. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Throw away any leftover Primer G.
- Do not apply too much Primer G.

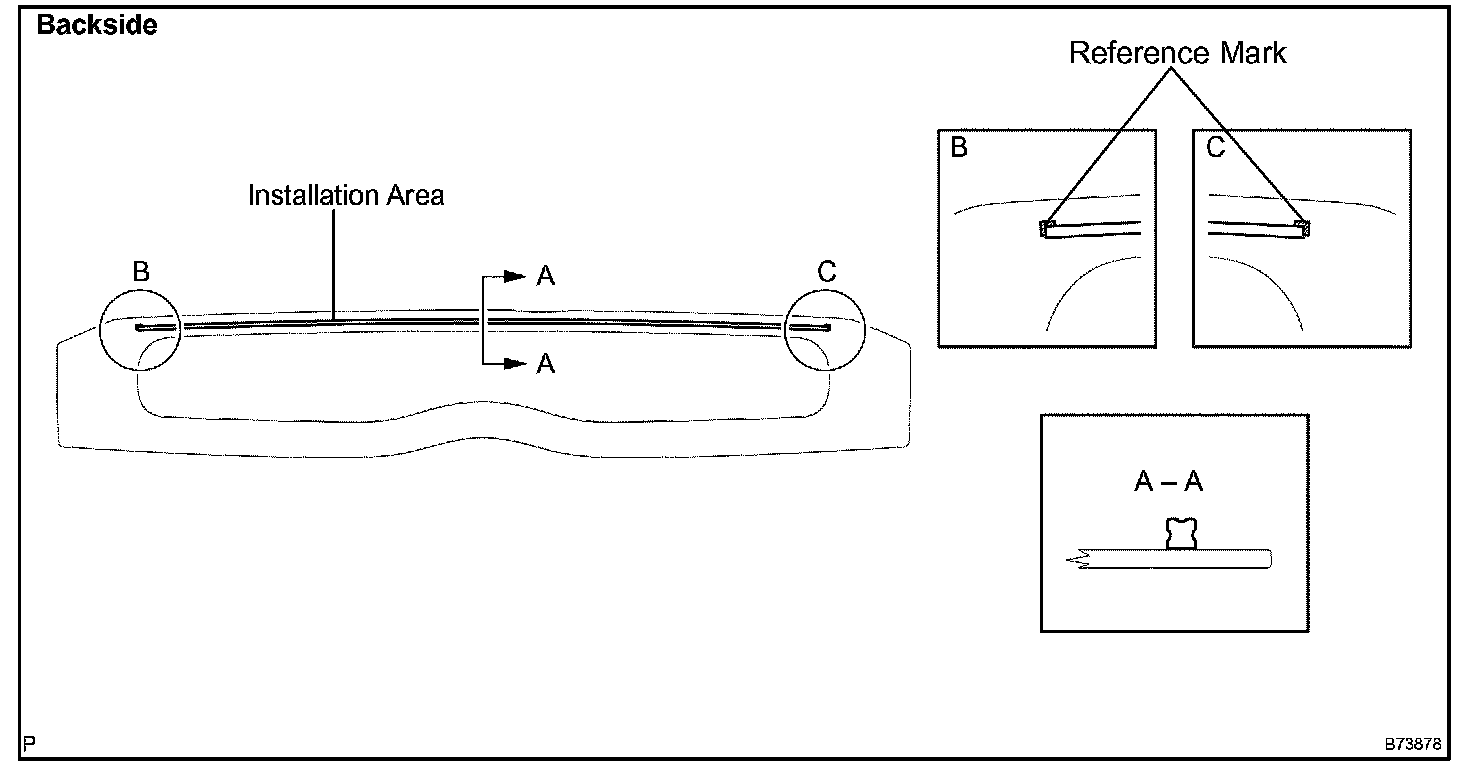

b. Install the moulding, as shown in the illustration.
9. INSTALL BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE
10. INSTALL BACK WINDOW FIX GLASS

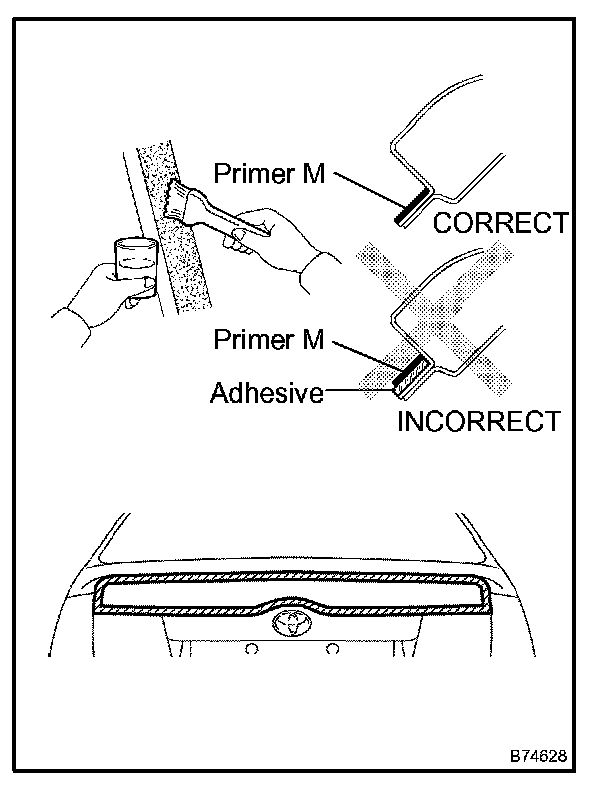

a. Using a brush, coat the exposed part of the vehicle body with Primer M.
NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Do not coat the adhesive with Primer M.
- Throw away any leftover Primer M.
- Do not apply too much Primer M.
b. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
HINT: If an area other than that specified is coated by accident, wipe off the primer with a clean shop rag before it dries.
NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Throw away any leftover Primer G.
- Do not apply too much Primer G.
c. Apply adhesive.
Adhesive: Part No. 08850-00801 or equivalent

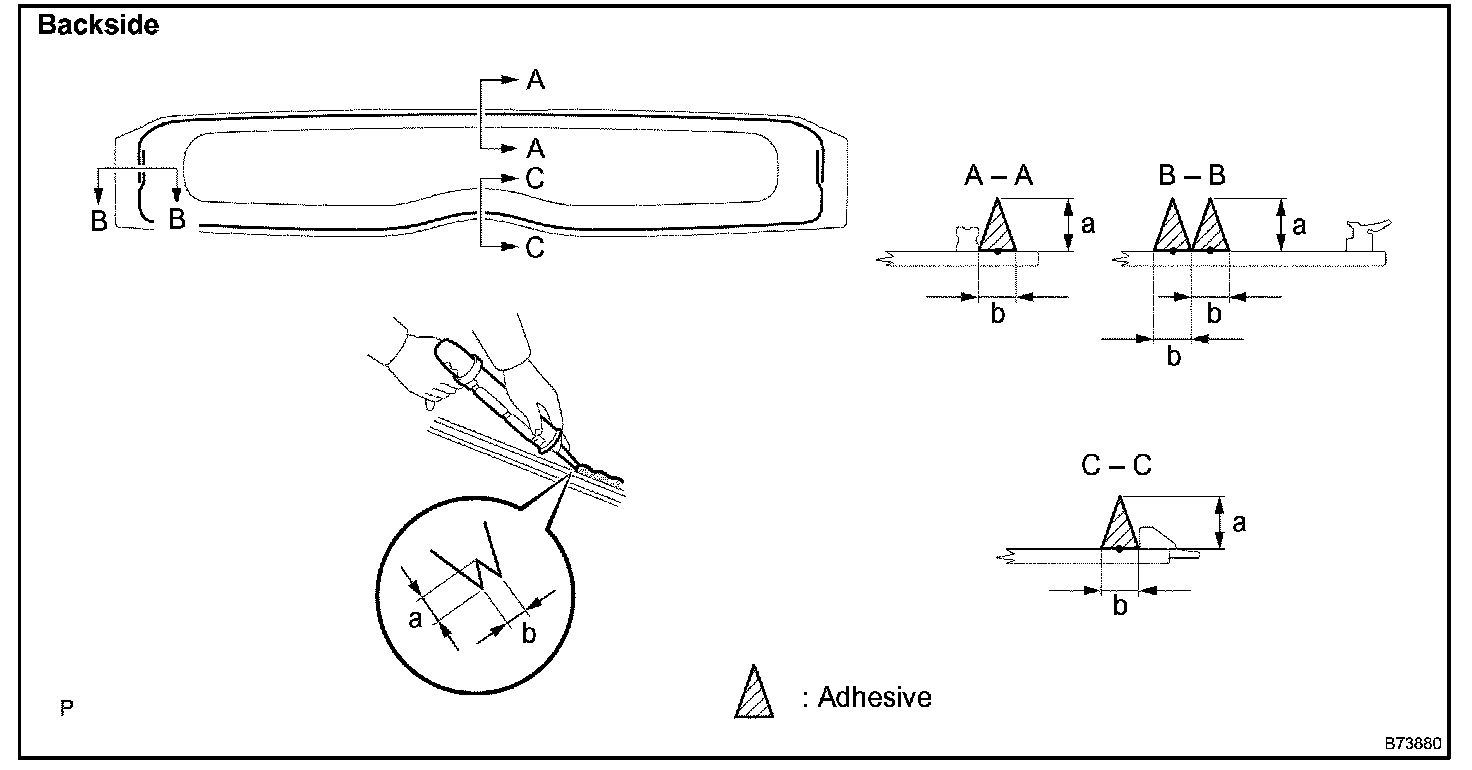

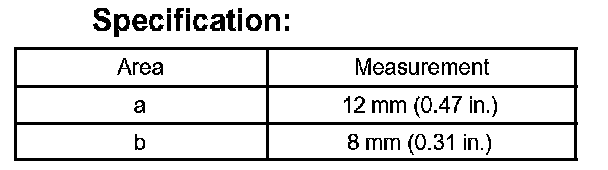

1. Cut off the tip of the cartridge nozzle, as shown in the illustration.

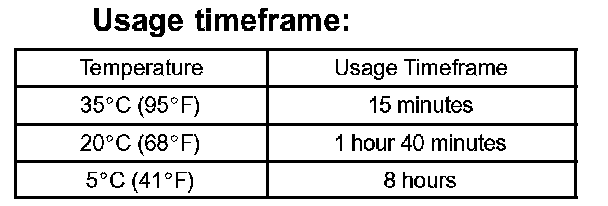

HINT: After cutting off the tip, use all adhesive within the time described in the table.
2. Load the sealer gun with the cartridge.

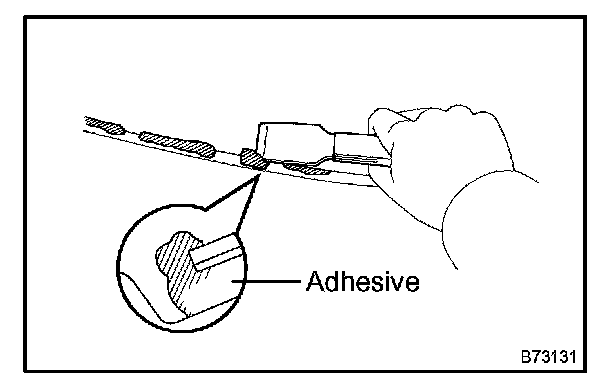

3. Coat the glass with adhesive, as shown in the illustration.
d. Install the back window fix glass to the vehicle body.
1. Hold the back window fix glass in place securely with protective tape or equivalent until the adhesive hardens.
NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Check that the spacers are attached to the vehicle body correctly.
- Check that the vehicle body and glass have a small gap between them.
2. Lightly press the front surface of the glass to ensure that the glass is securely fit to the vehicle body.
3. Using a scraper, remove any excess or protruding adhesive.
HINT: Apply adhesive onto the glass rim.

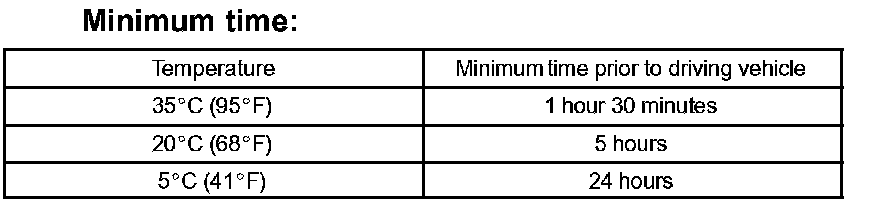

NOTE: Do not drive the vehicle for the amount of time described in the table.
11. CHECK FOR LEAKS AND REPAIR
a. Conduct a leak test after the adhesive has completely hardened.
b. Seal any leaks with auto glass sealer.
