Foot Rest: Service and Repair

FRONT FLOOR FOOTREST

REPLACEMENT

HINT: The installation procedures are the removal procedures in reverse order.

1. REMOVE FRONT FLOOR FOOTREST

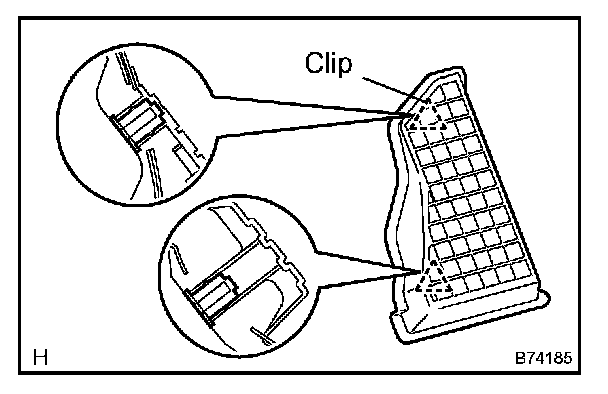

a. Using a screwdriver, disengage the 2 clips and remove the footrest.

HINT: Tape the screwdriver tip before use.
