Only Wireless Control Function Is Inoperative

ONLY WIRELESS CONTROL FUNCTION IS INOPERATIVE

CIRCUIT DESCRIPTION
The door control receiver receives signals from the transmitter and sends these signals to the multiplex network body ECU. The multiplex network body ECU then controls all doors by sending LOCK/UNLOCK signals to each door lock actuator.

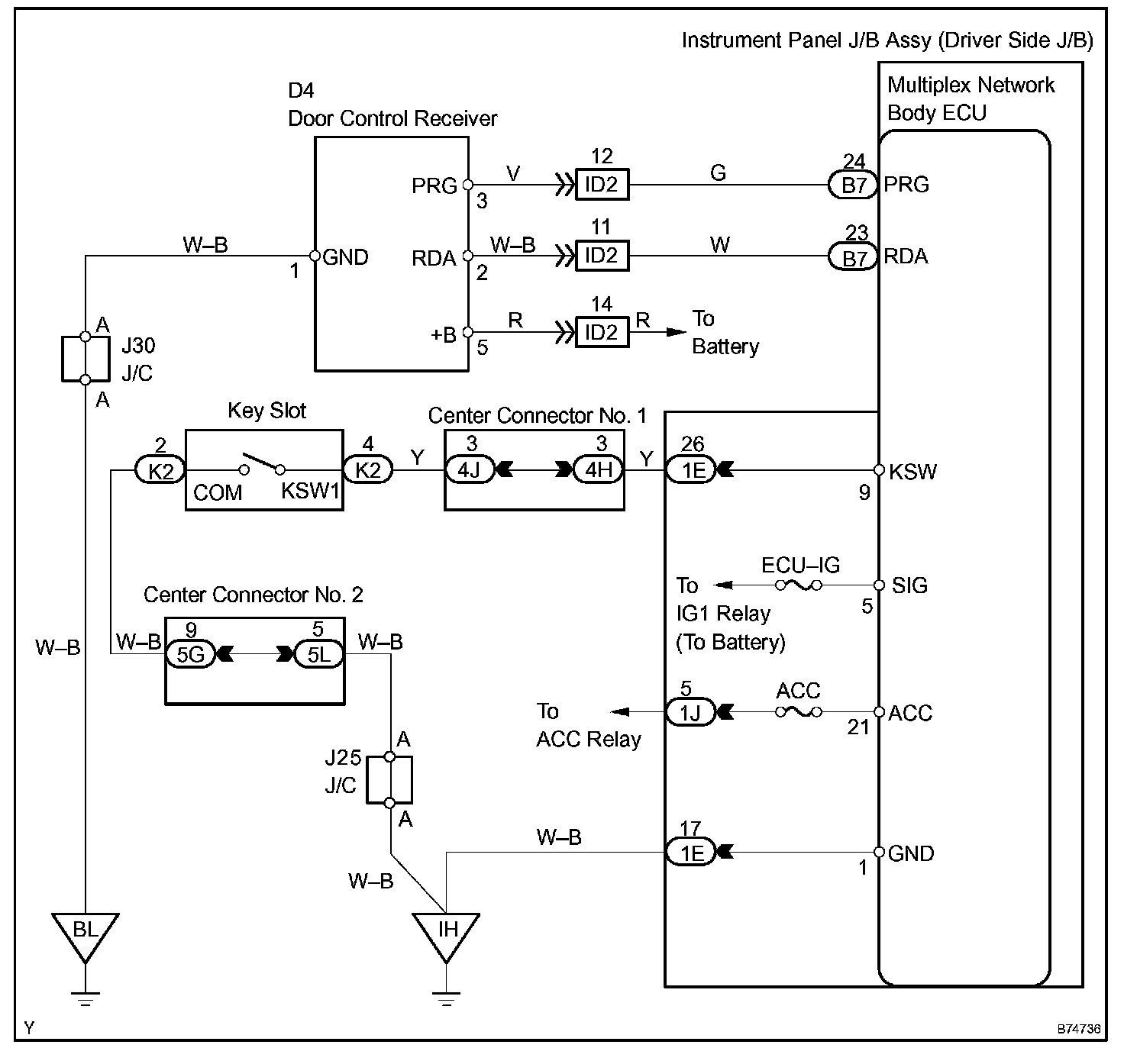

Wiring Diagram:

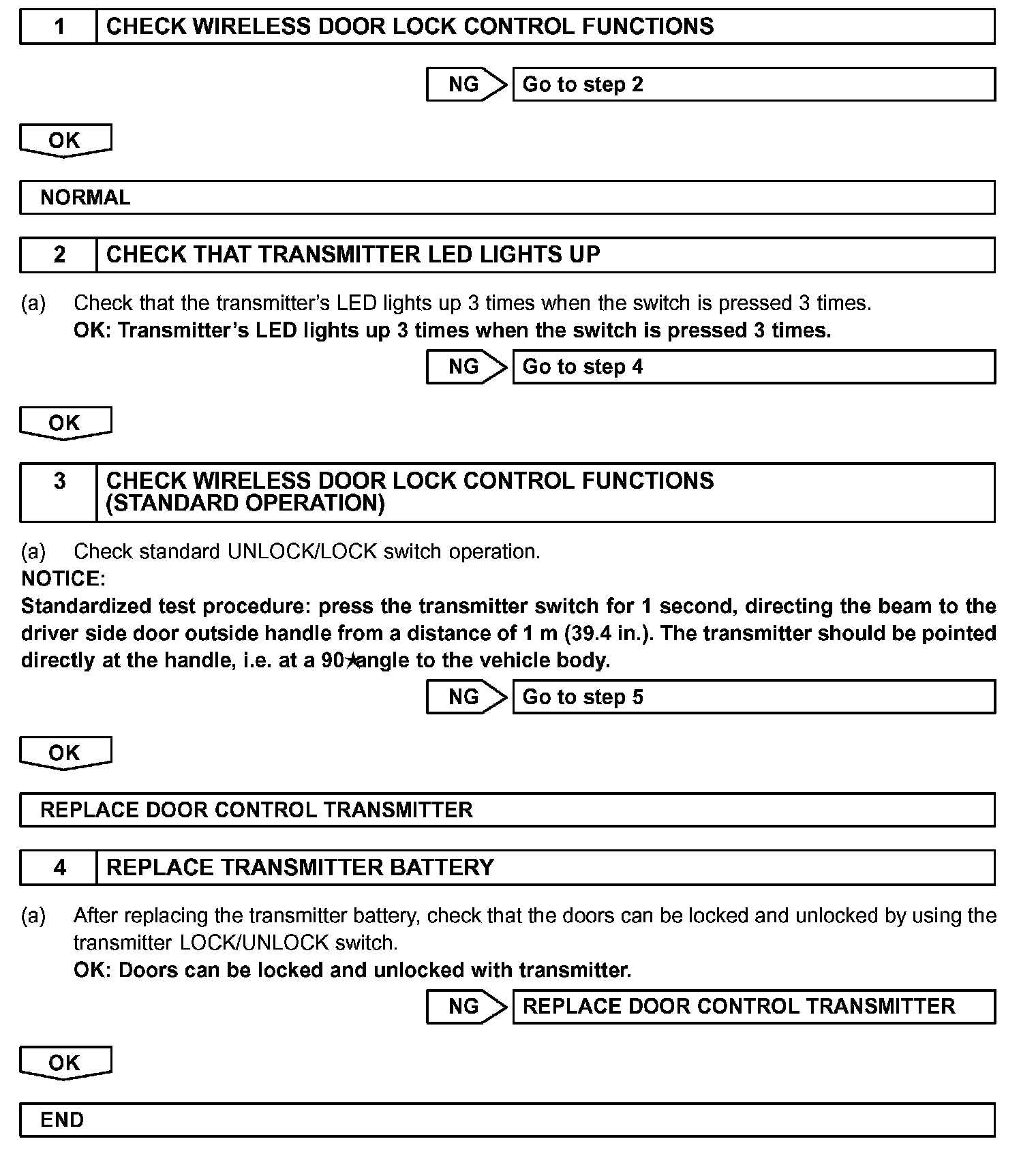

Step 1 - 4:

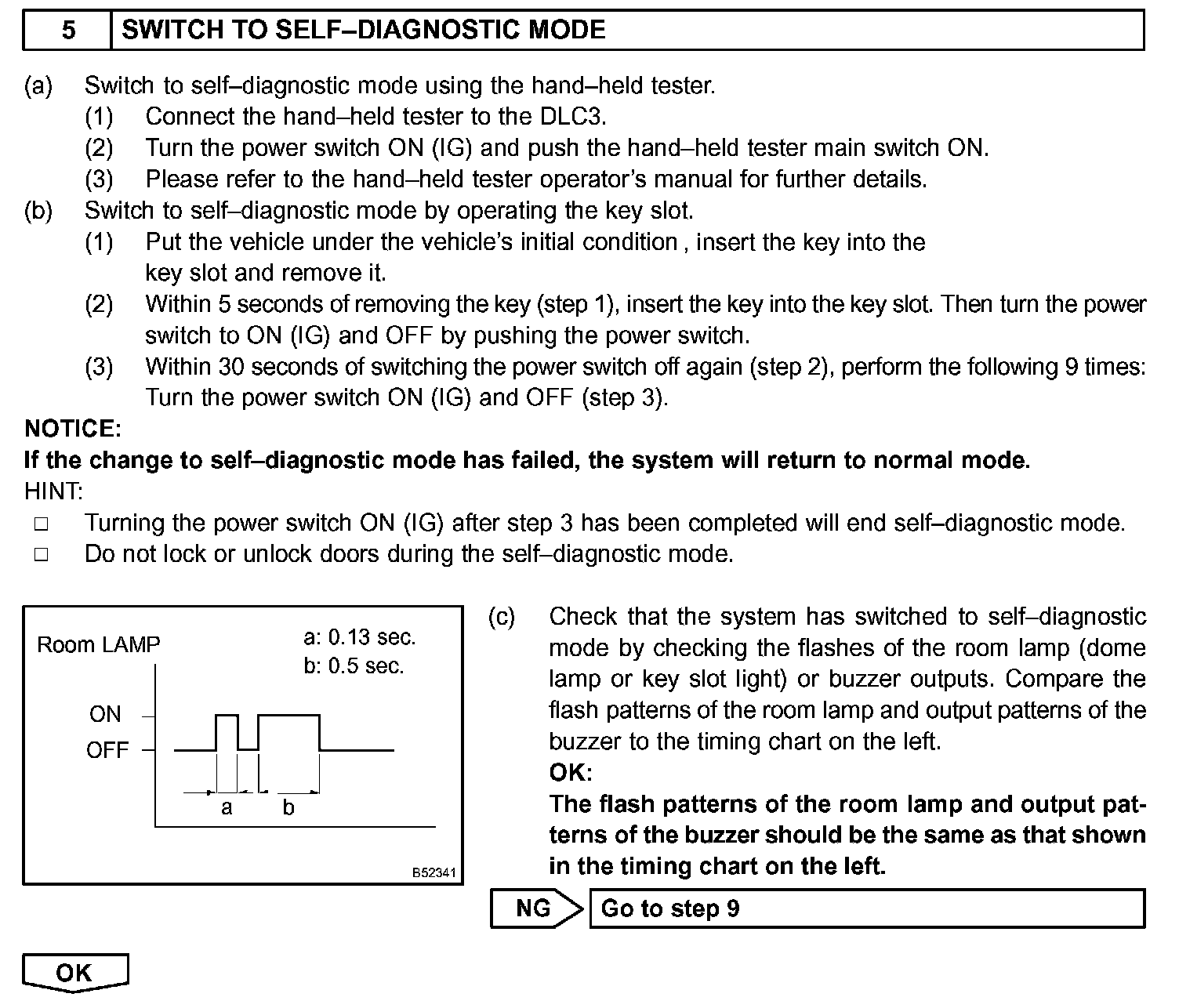

Step 5:

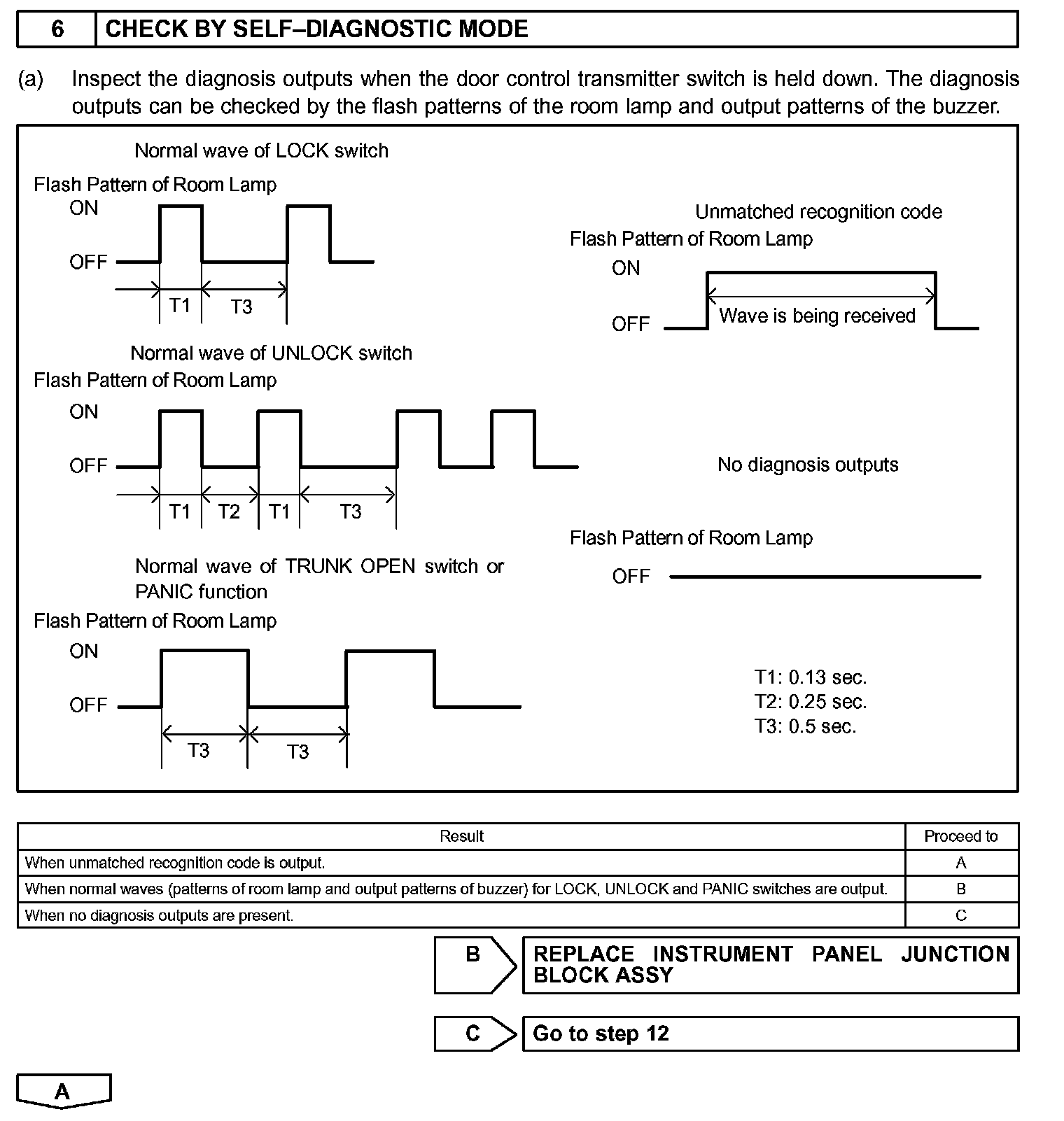

Step 6:

Step 7 - 10:

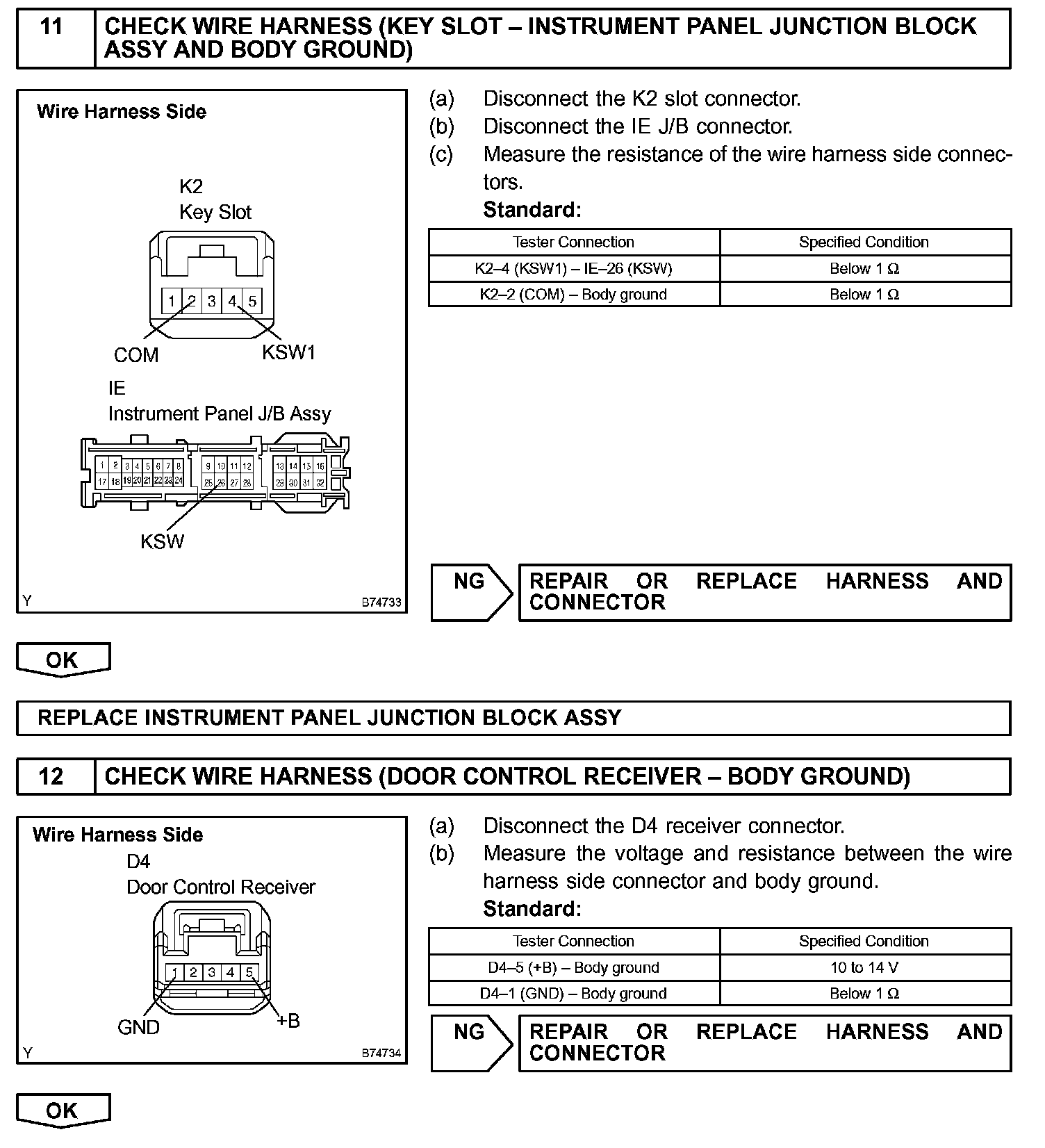

Step 11 - 12:

Step 13 - 14:

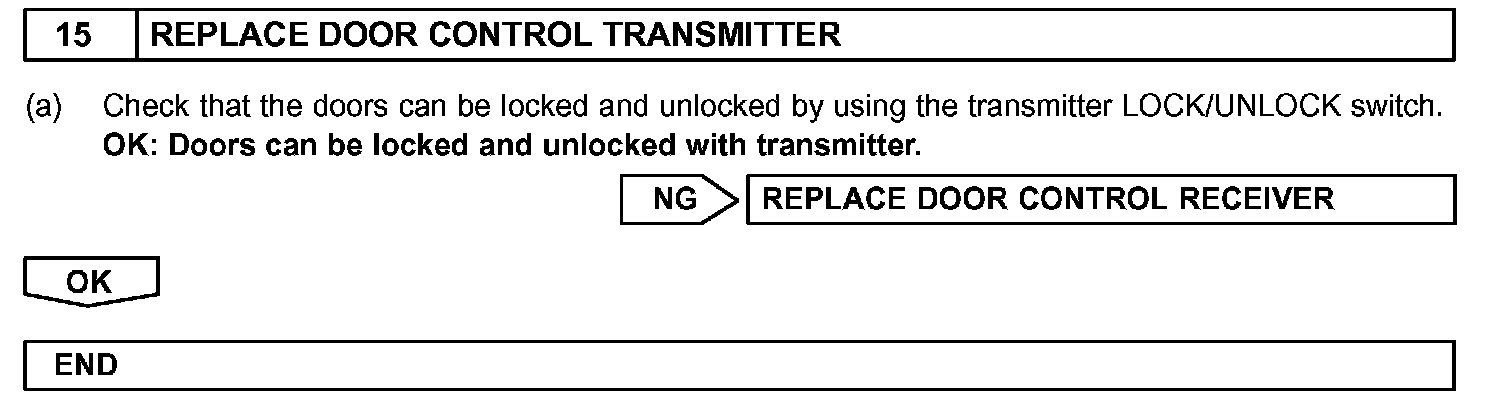

Step 15:

INSPECTION PROCEDURE
