Component Inspection

INSPECTION

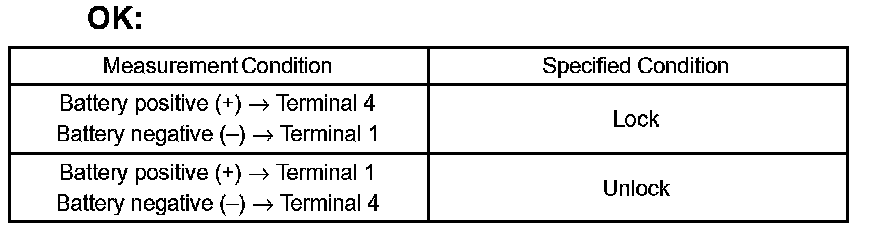

1. INSPECT FRONT DOOR LOCK ASSY LH

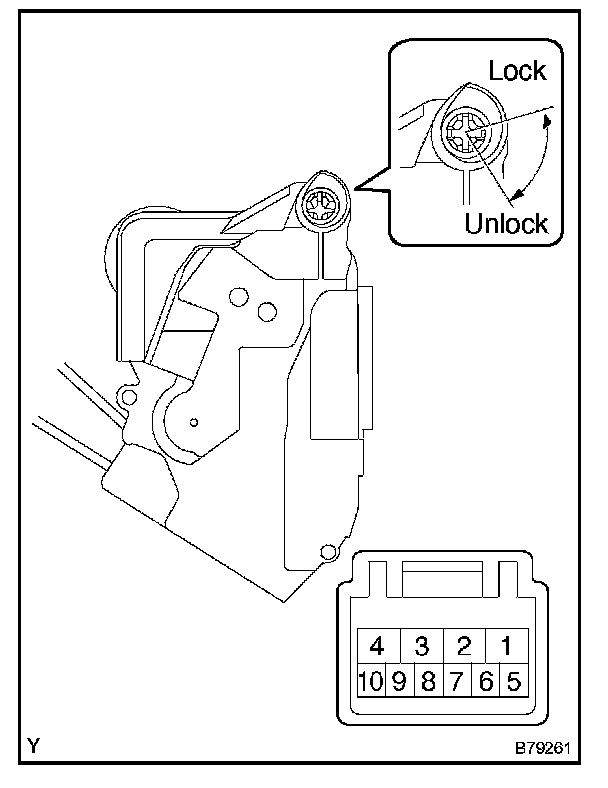

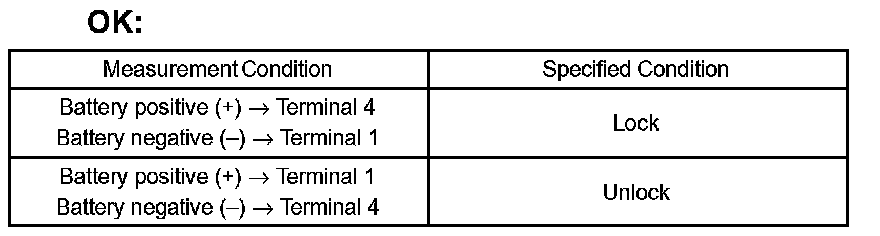

a. Apply battery voltage to the door lock and check operation of the door lock motor.




If the result is not as specified, replace the door lock assy.

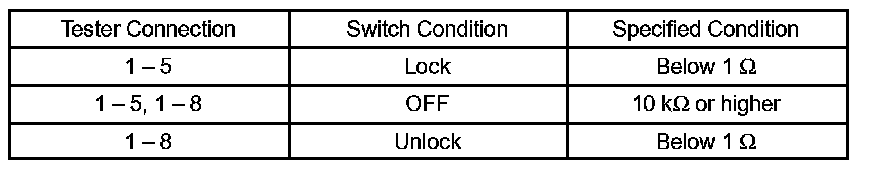

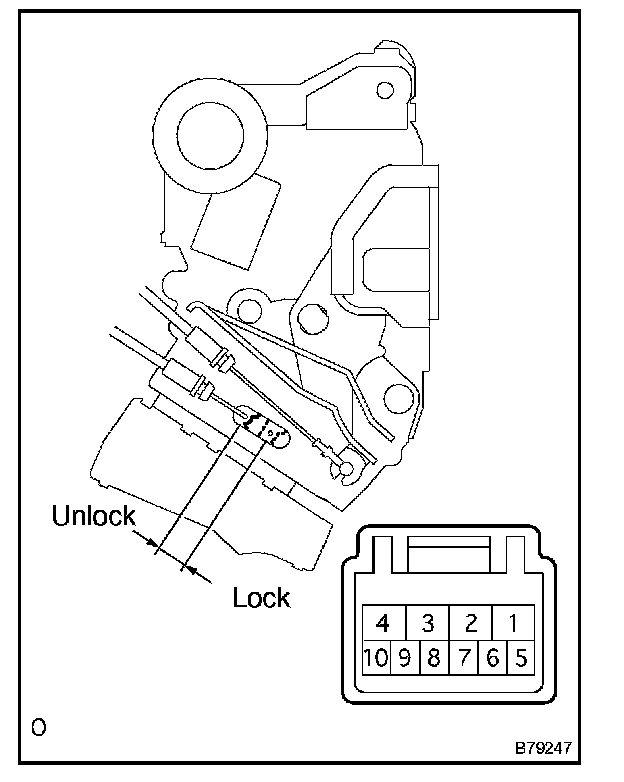

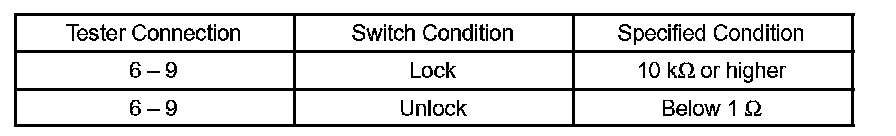

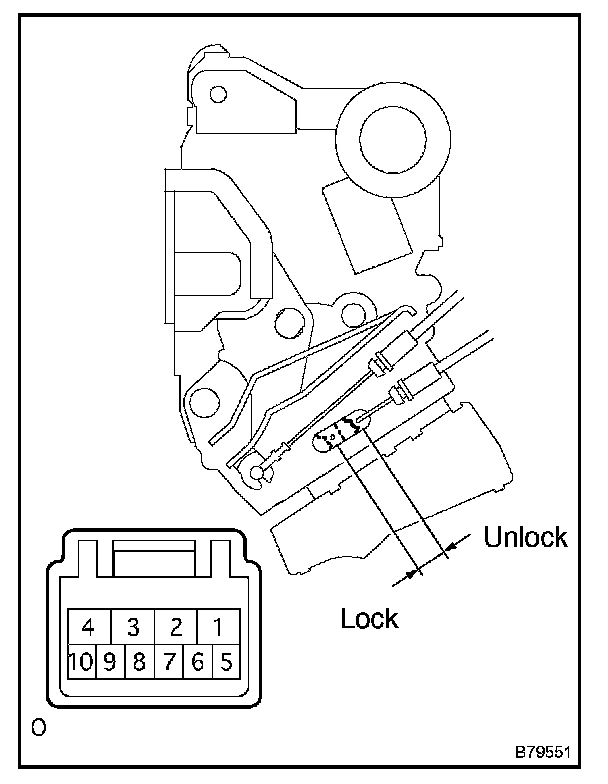

b. Measure the resistance of the position switch.

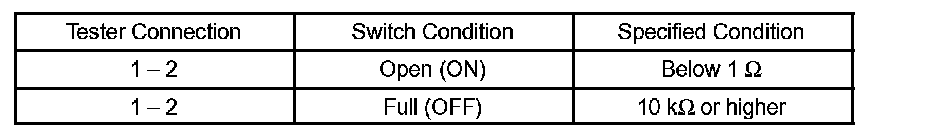

Standard:

Standard:
If the result is not as specified, replace the door lock assy.

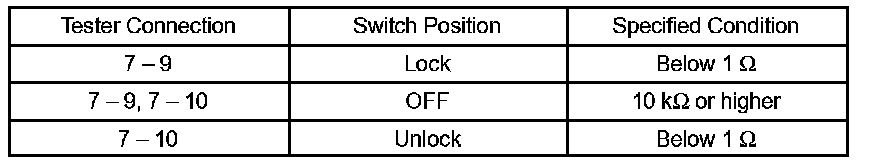

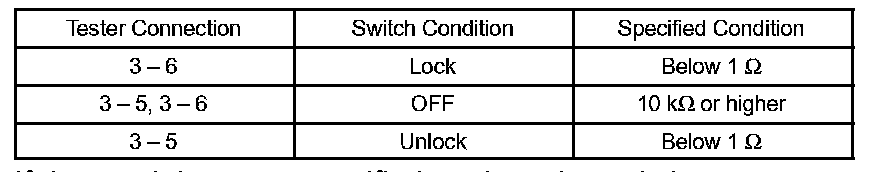

c. Measure the resistance of the door lock and unlock switch.

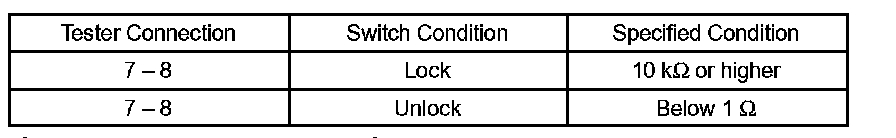

Standard:

Standard:
If the result is not as specified, replace the door lock assy.

2. INSPECT FRONT DOOR LOCK ASSY RH

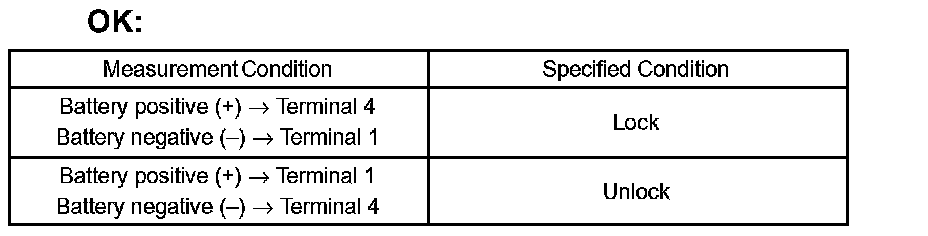

a. Apply battery voltage to the door lock and check operation of the door lock motor.




If the result is not as specified, replace the door lock assy.

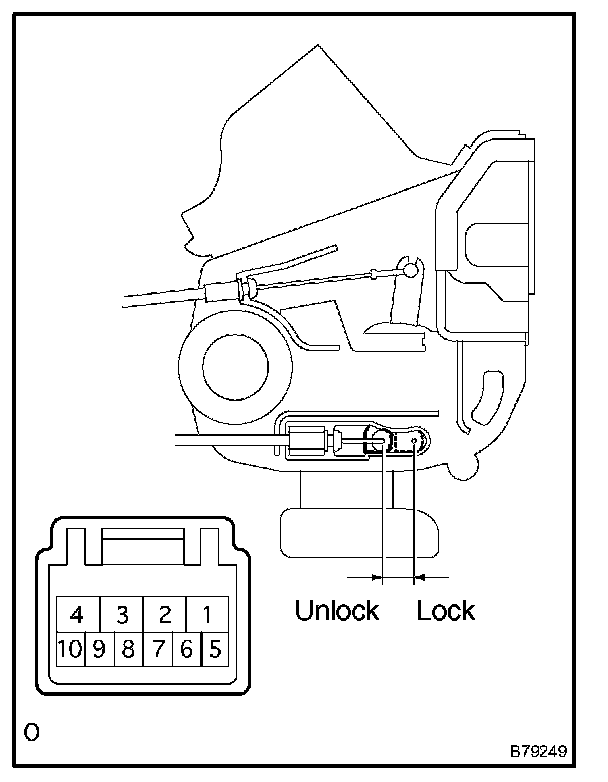

b. Measure the resistance of the position switch.

Standard:

Standard:
If the result is not as specified, replace the door lock assy.

3. INSPECT REAR DOOR LOCK ASSY LH

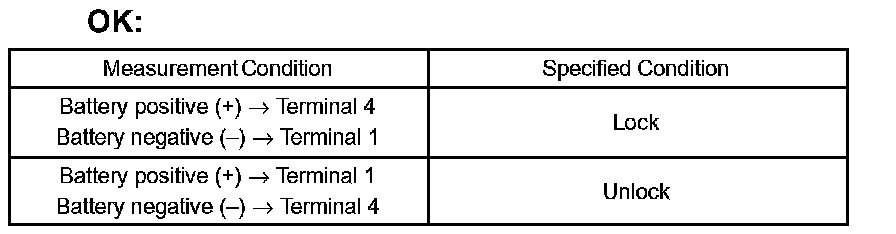

a. Apply battery voltage to the door lock and check operation of the door lock motor.




If the result is not as specified, replace the door lock assy.

b. Measure the resistance of the position switch.

Standard:

Standard:
If the result is not as specified, replace the door lock assy.

4. INSPECT REAR DOOR LOCK ASSY RH




a. Apply battery voltage to the door lock and check operation of the door lock motor.




If the result is not as specified, replace the door lock assy.

b. Measure the resistance of the position switch.

Standard:

Standard:
If the result is not as specified, replace the door lock assy.

5. INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSY

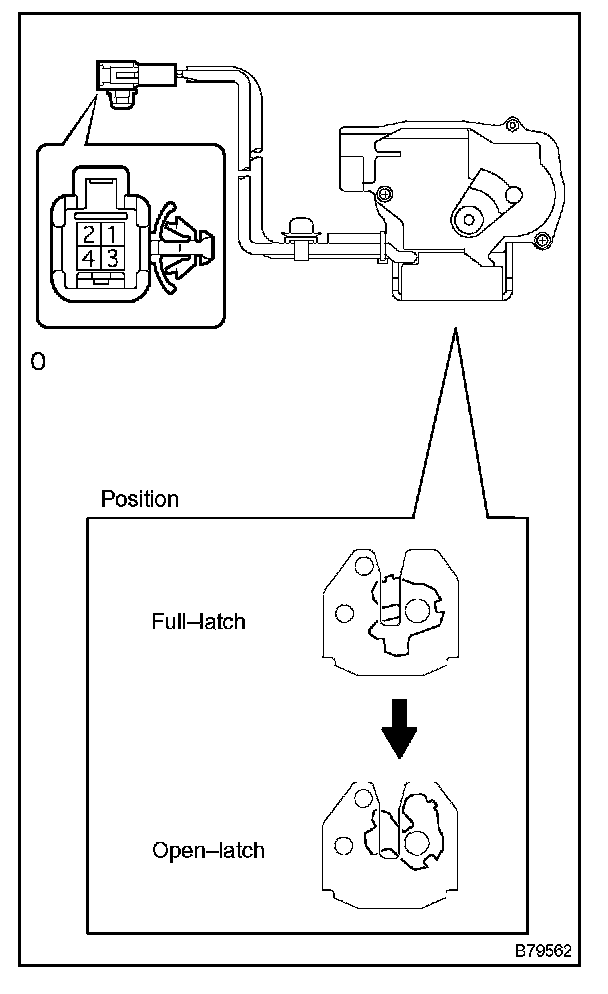

a. Check operation of the door lock.
1. Using a screwdriver, move the latch to the full-latch position.

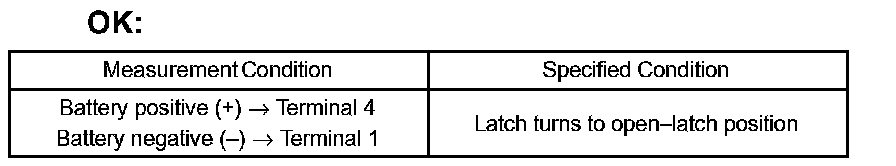

2. Apply battery voltage to the door lock and check operation of the latch.




If the result is not as specified, replace the door lock assy.

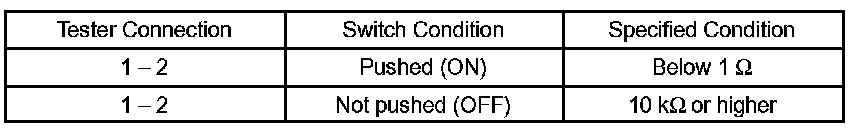

b. Measure the courtesy switch resistance.

Standard:

Standard:
If the result is not as specified, replace the door lock assy.

6. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY

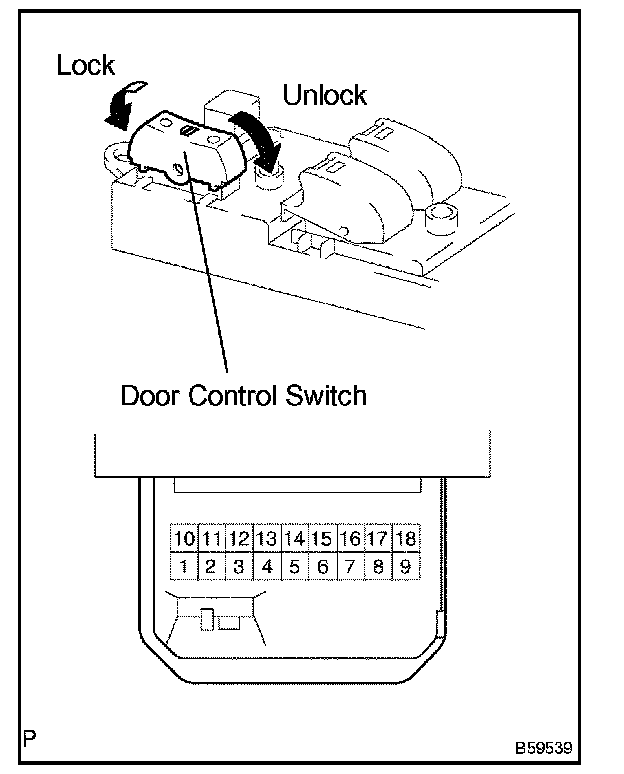

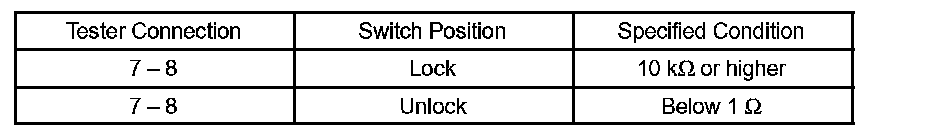

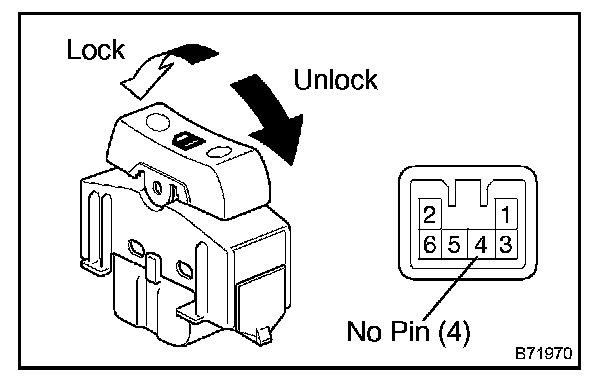

a. Measure the resistance of the door control switch.

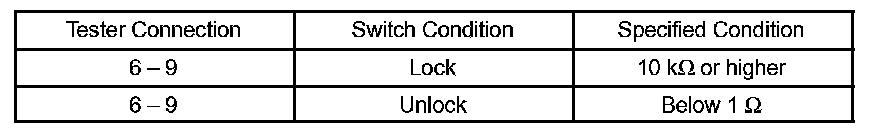

Standard:

Standard:
If the result is not as specified, replace the switch assy.

7. INSPECT DOOR CONTROL SWITCH ASSY




a. Measure the resistance of the door control switch.

Standard:

Standard:
If the result is not as specified, replace the switch assy.

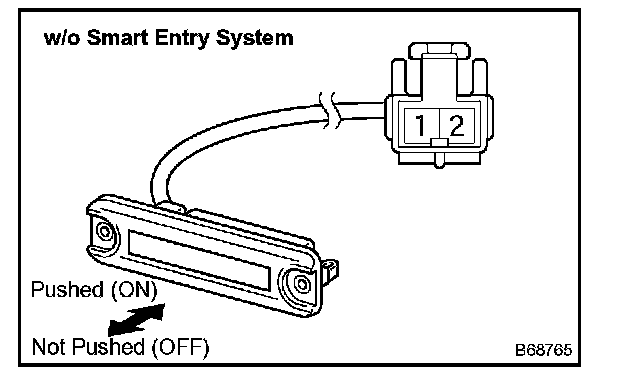

8. INSPECT LUGGAGE COMPARTMENT DOOR OPENER SWITCH ASSY

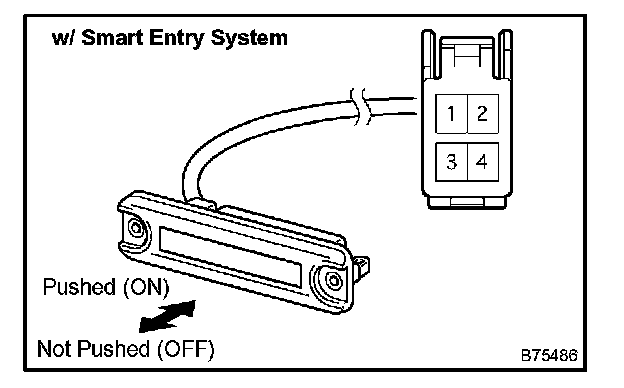

a. Measure the resistance of the switch.

Standard:

Standard:
If the result is not as specified, replace the switch assy.
