All Doors Lock/Unlock Functions Do Not Operate Via Master Switch

ALL DOORS LOCK/UNLOCK FUNCTIONS DO NOT OPERATE VIA MASTER SWITCH

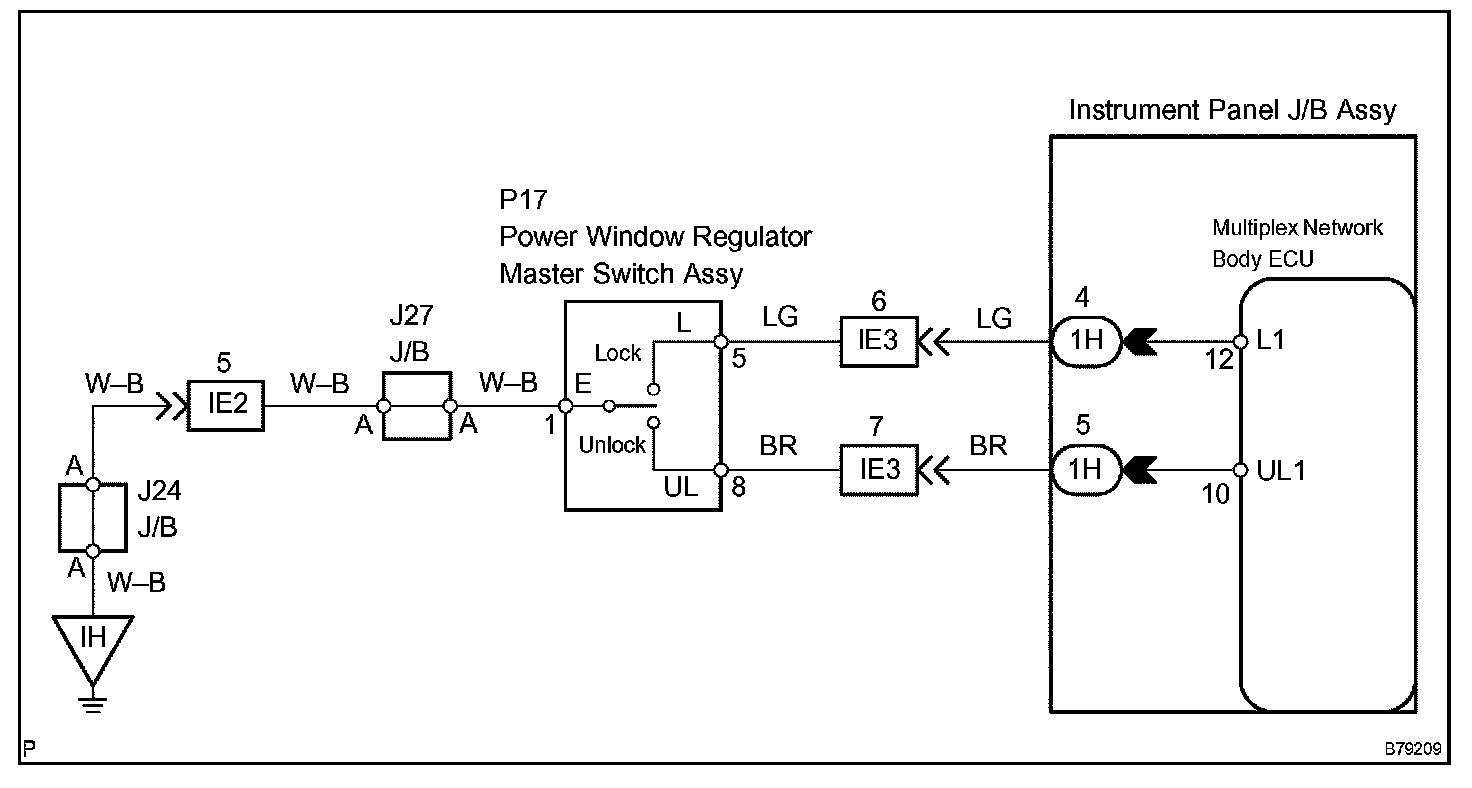

CIRCUIT DESCRIPTION
The instrument panel J/B assy (multiplex network body ECU) receives switch signals from the power window regulator master switch assy and activates the door lock motors on each door according to the signal.
