Only Luggage Door Lock/Unlock Functions Do Not Operate

ONLY LUGGAGE DOOR LOCK/UNLOCK FUNCTIONS DO NOT OPERATE

CIRCUIT DESCRIPTION
The instrument panel J/B assy (multiplex network body ECU) receives switch signals from the power window regulator master switch assy and activates the luggage compartment door lock motor according to the signals.

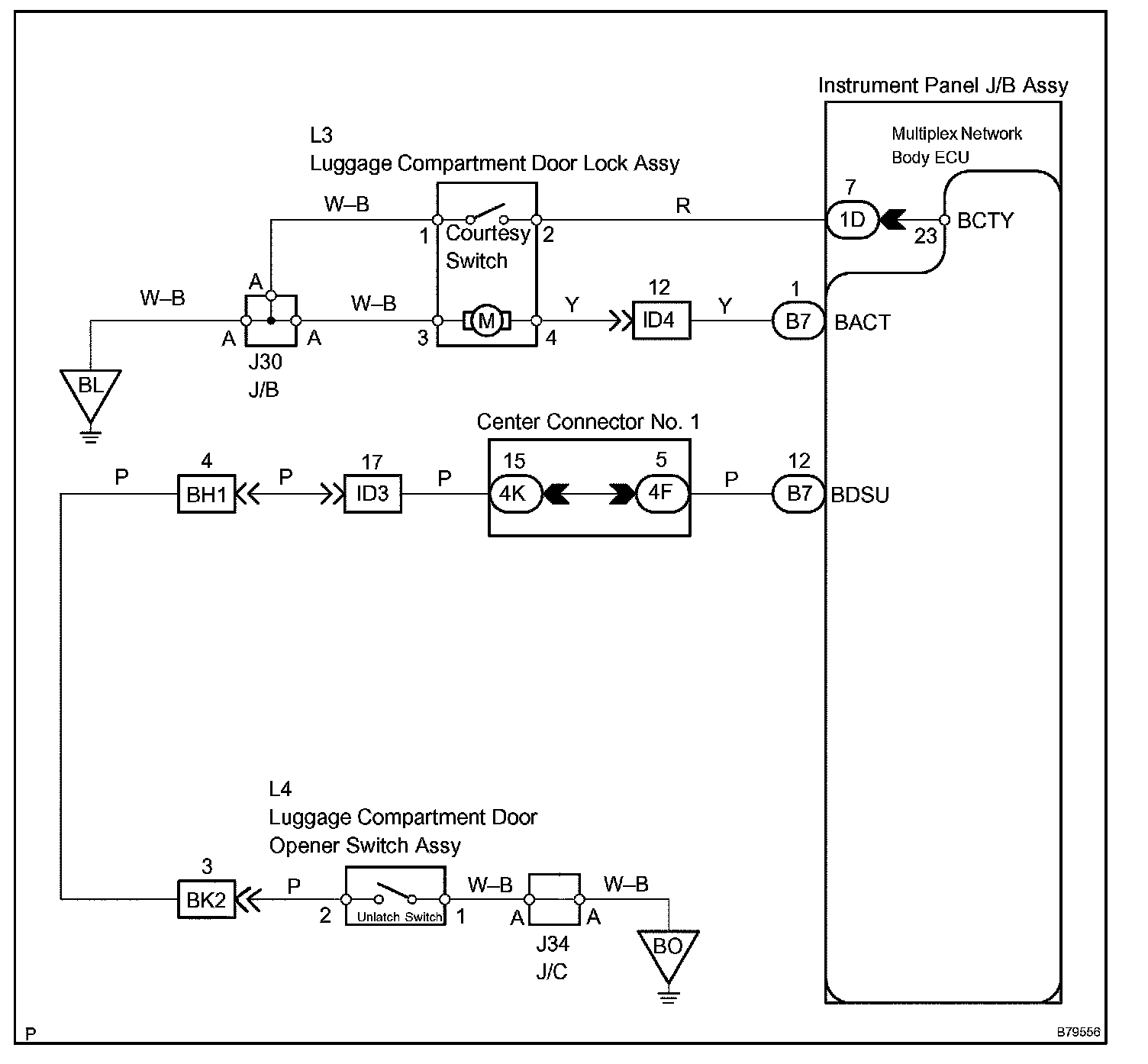

Wiring Diagram:

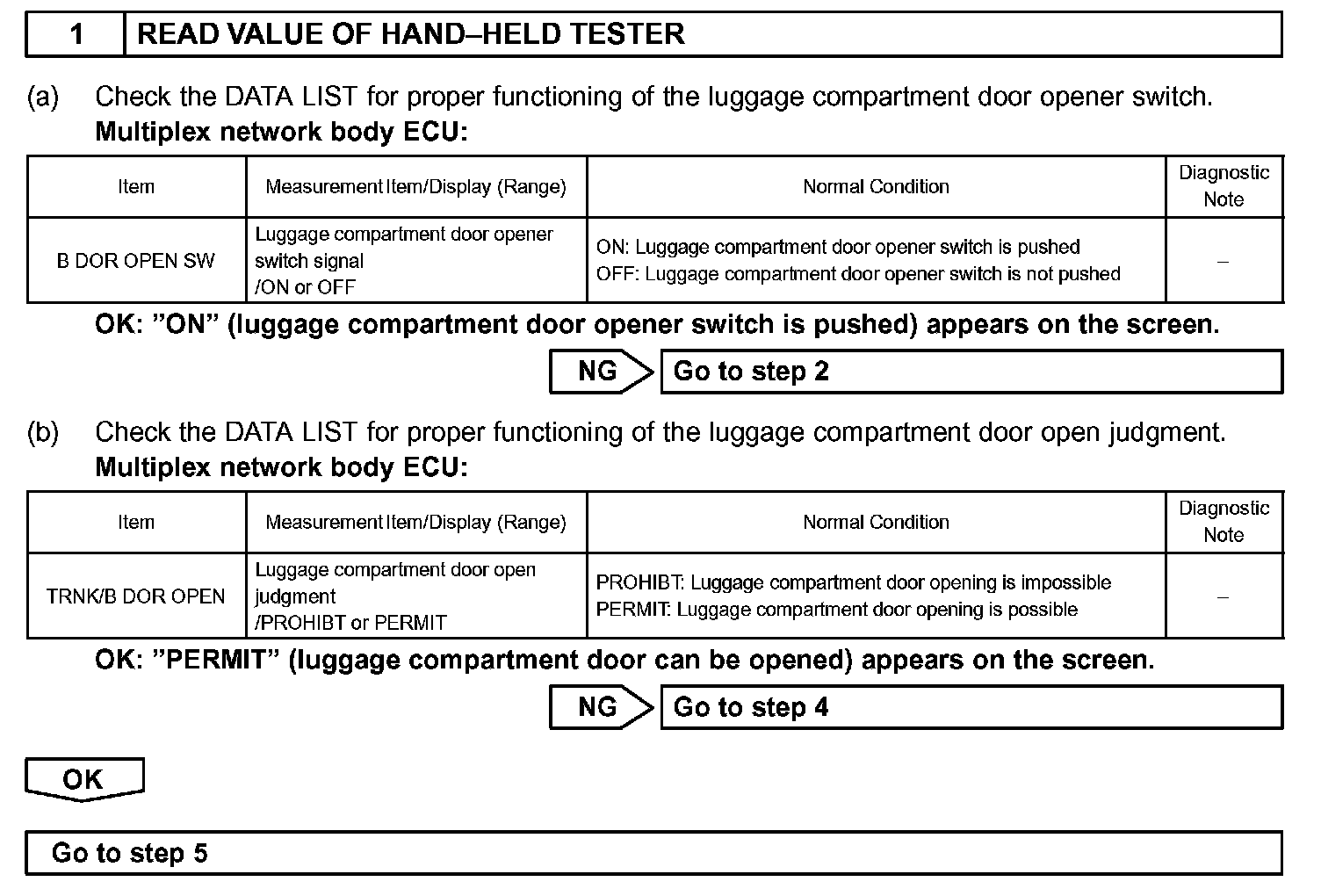

Step 1:

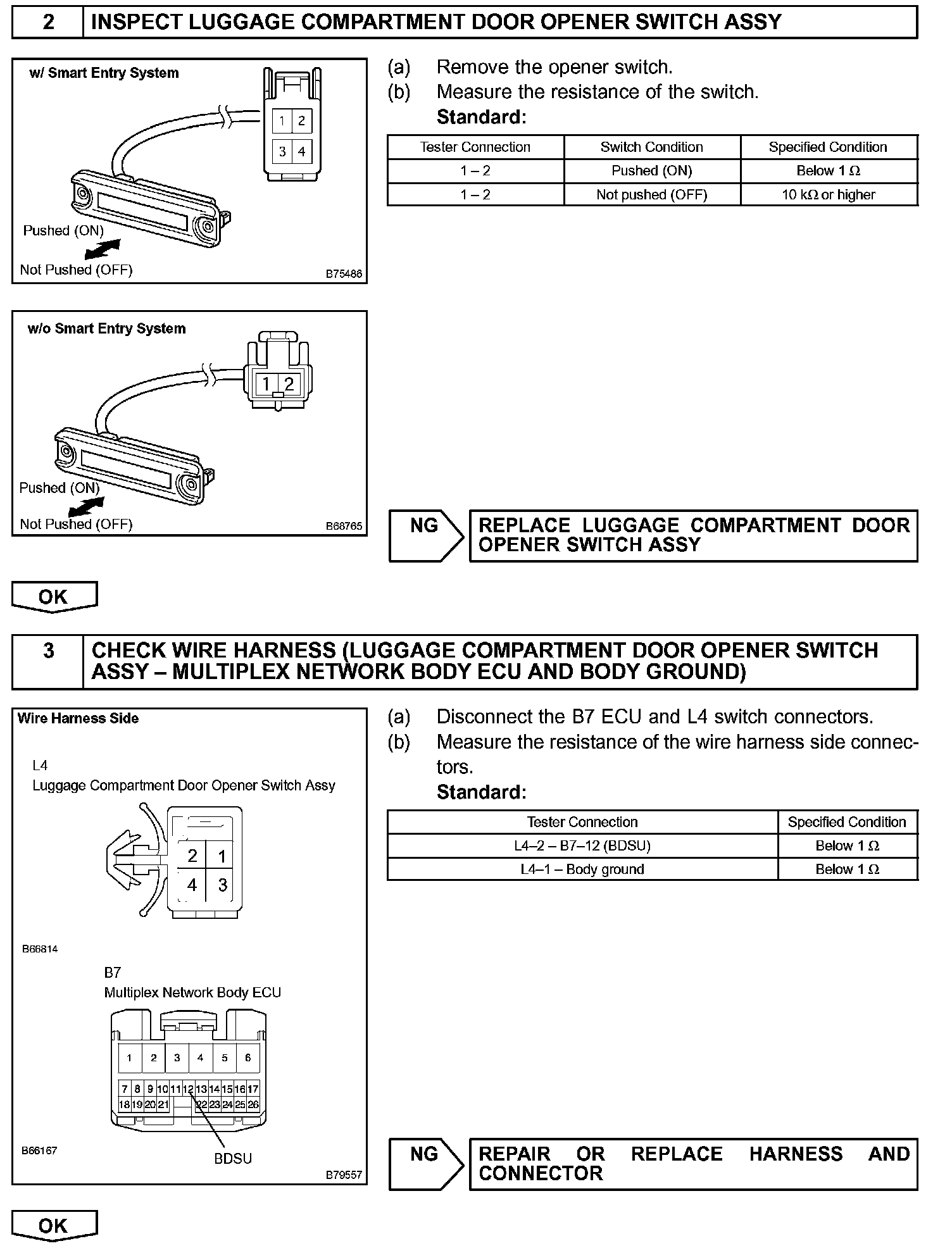

Step 2 - 3:

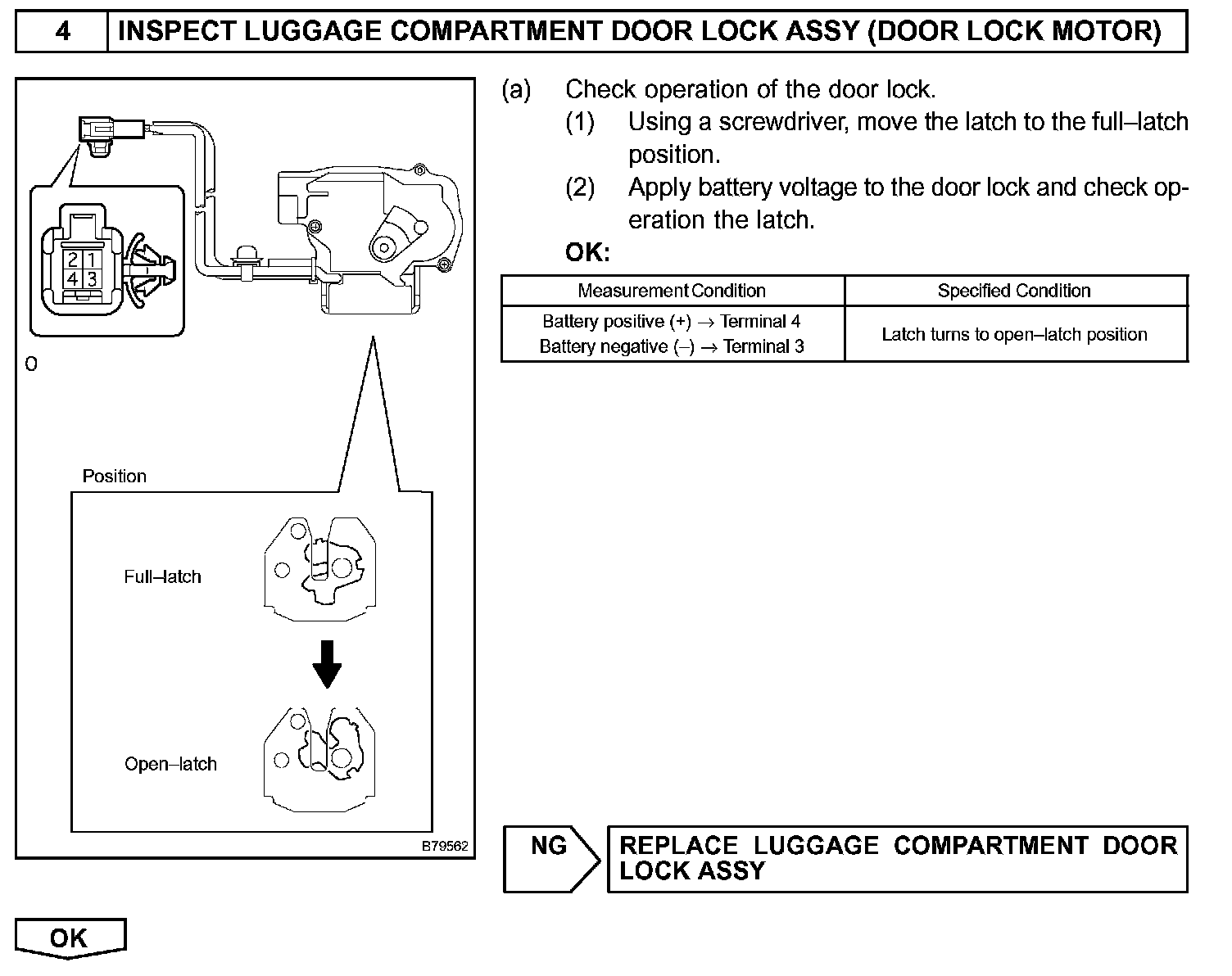

Step 4:

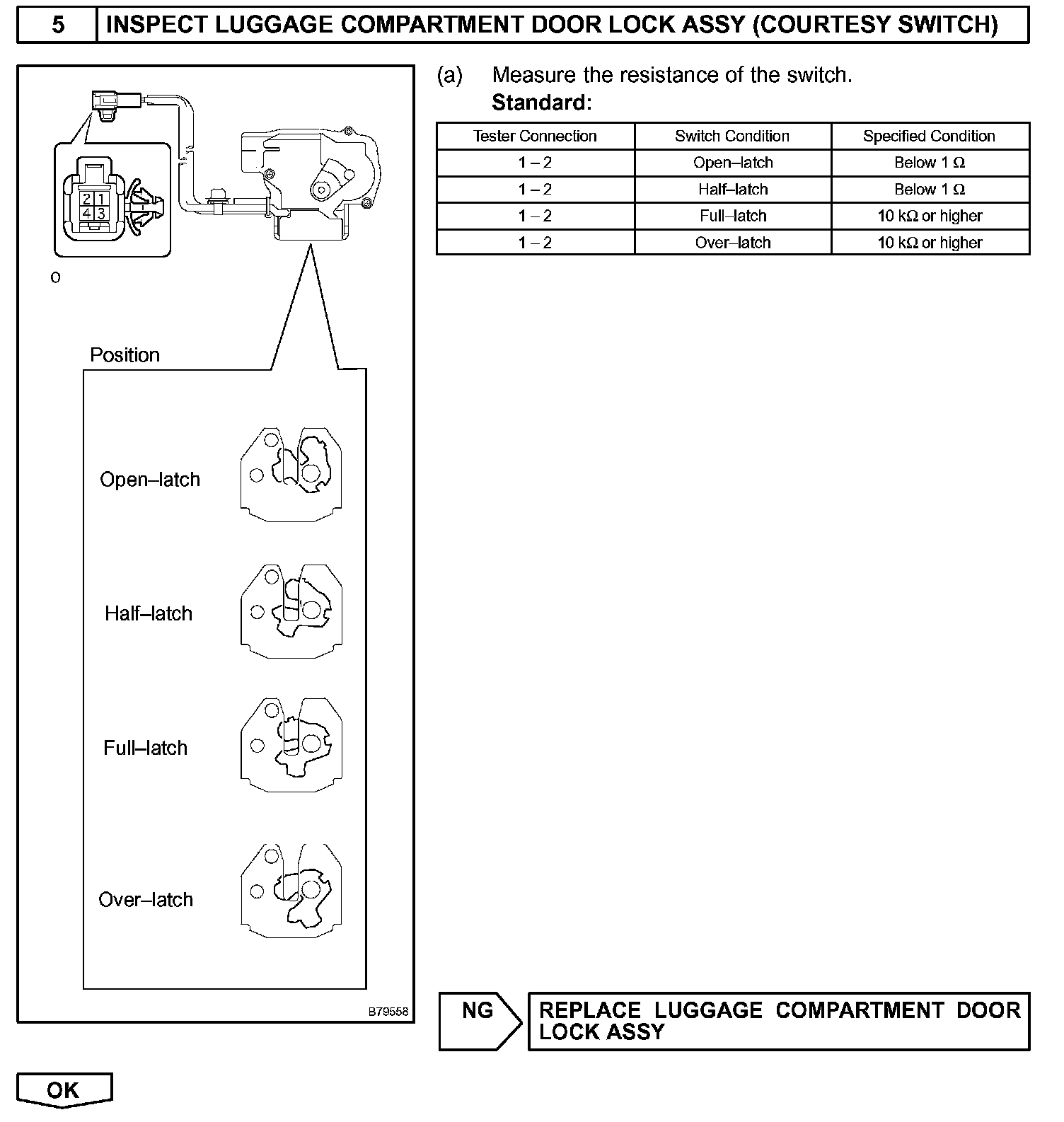

Step 5:

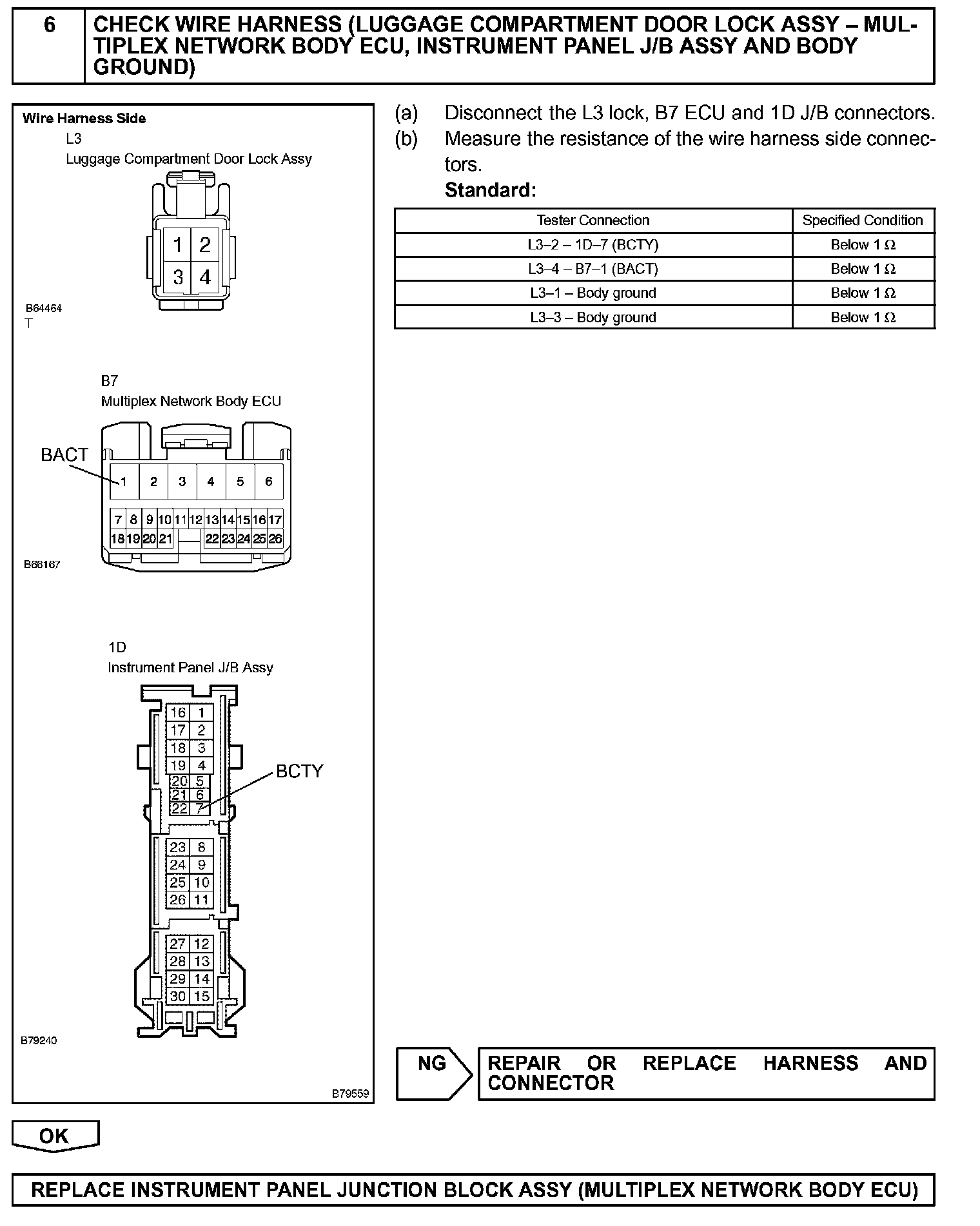

Step 6:

INSPECTION PROCEDURE
