Only Rear LH Door Lock/Unlock Functions Do Not Operate

ONLY REAR LH DOOR LOCK/UNLOCK FUNCTIONS DO NOT OPERATE

CIRCUIT DESCRIPTION
The instrument panel J/B assy (multiplex network body ECU) receives lock/unlock switch signals and activates the door lock motor according to the signals.

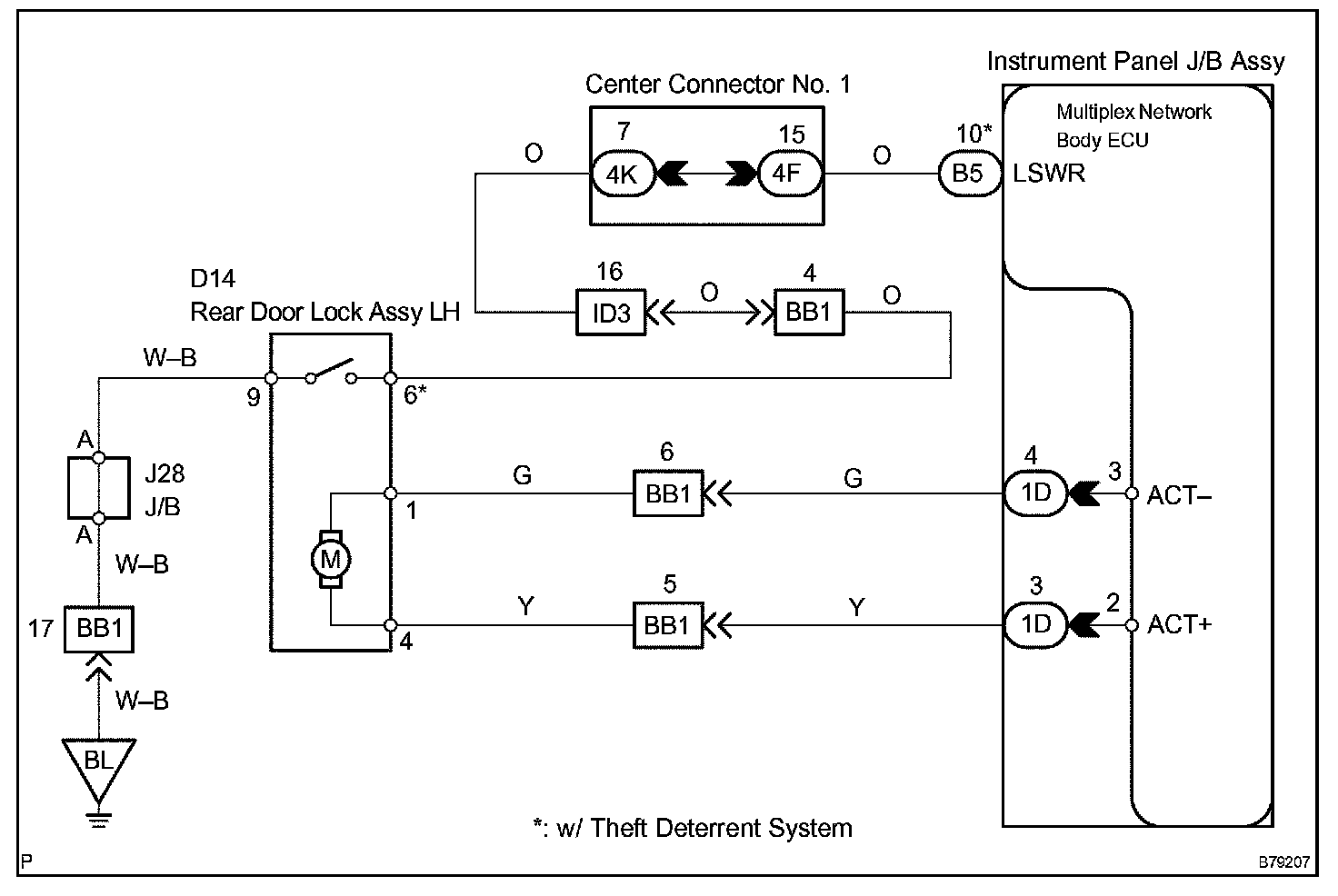

Wiring Diagram:

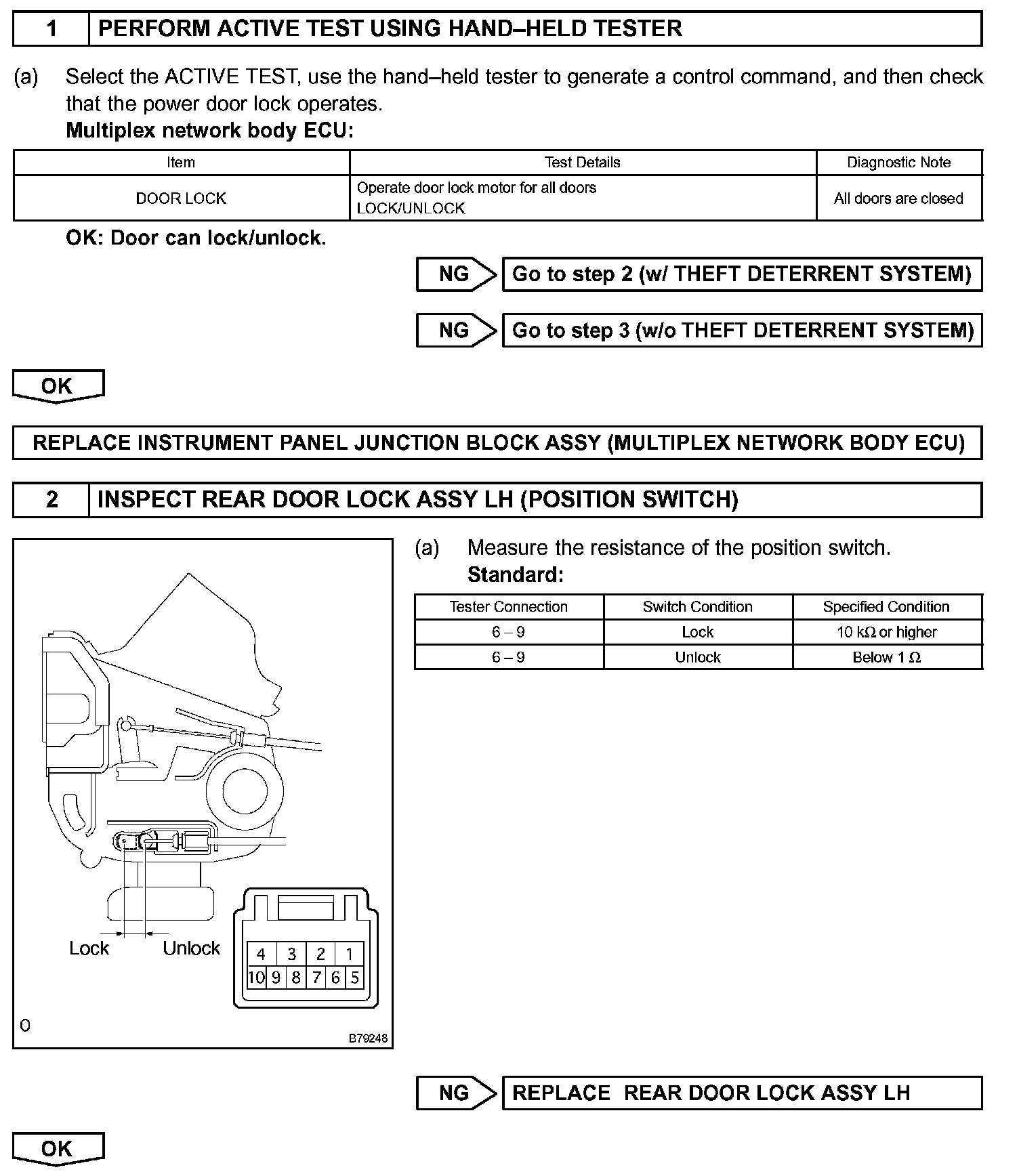

Step 1 - 2:

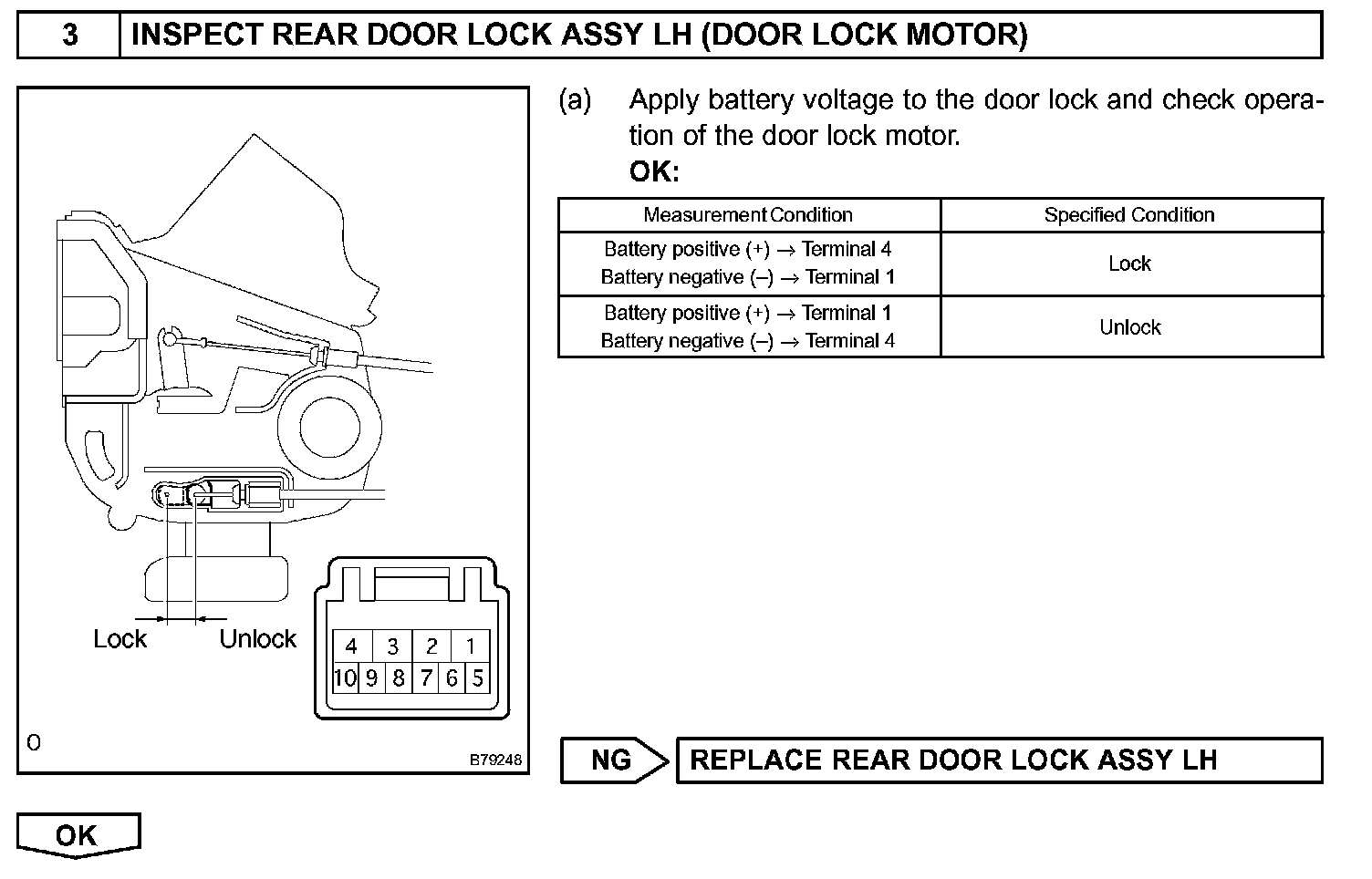

Step 3:

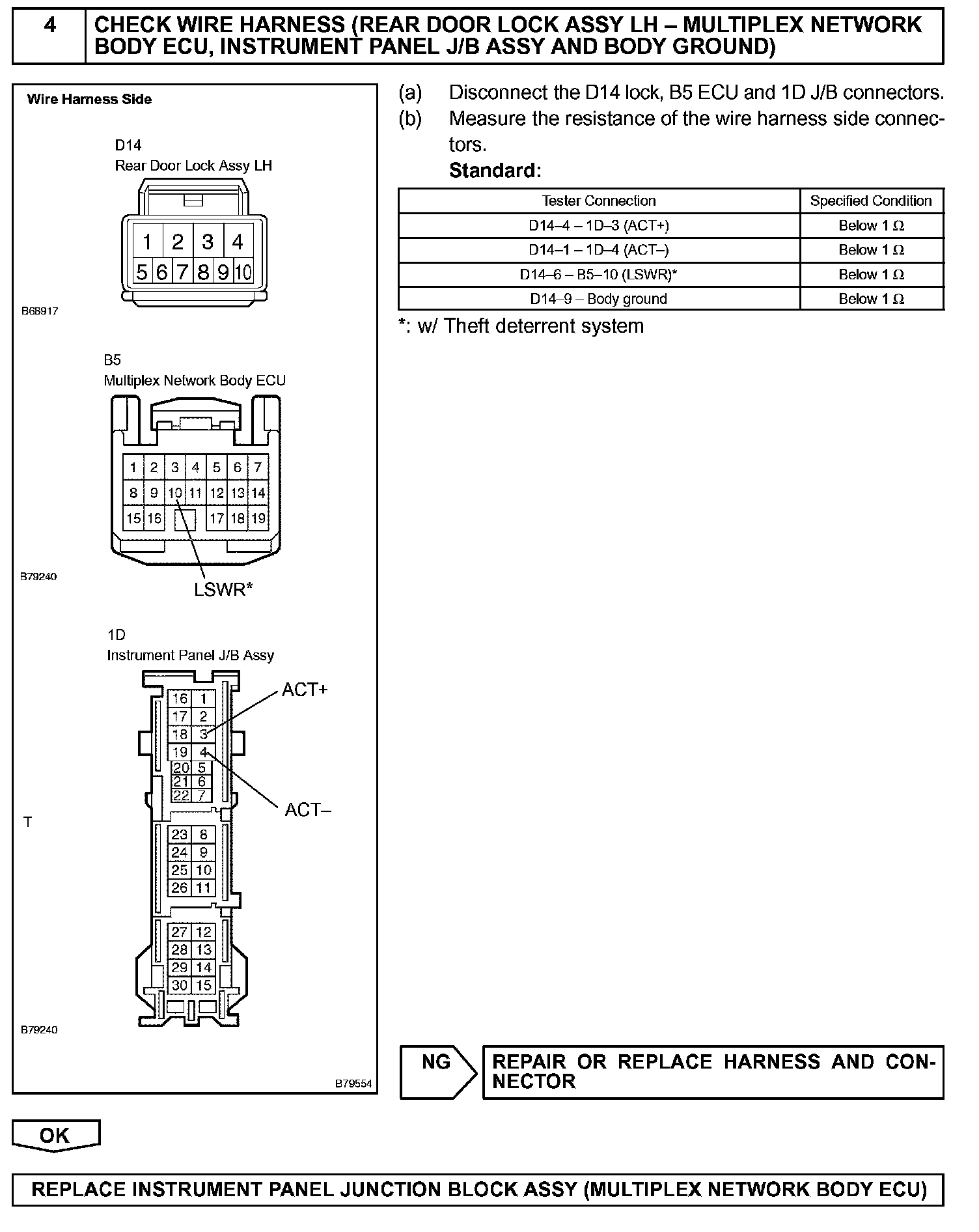

Step 4:

INSPECTION PROCEDURE
