Inner Rear View Mirror

INNER REAR VIEW MIRROR ASSY

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order.
- EC mirror stands for "electrochromic mirror".




1. w/o EC mirror:
REMOVE INNER REAR VIEW MIRROR ASSY

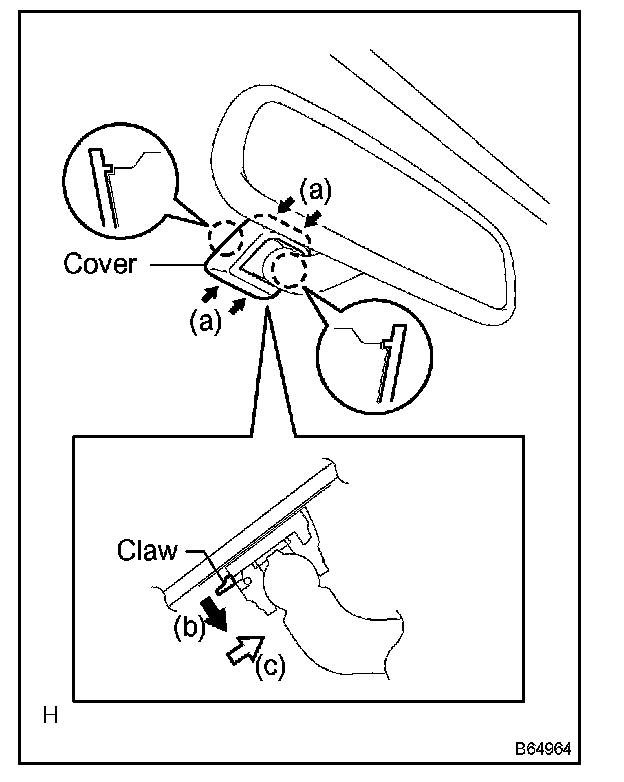

a. Push the cover in the direction indicated by the arrows labeled (a) and remove it.
b. While holding down the claw in the direction of the arrow labeled (b), slide the inner rear view mirror in the direction of the arrow labeled (c) and remove it.




2. w/ EC mirror:
REMOVE INNER REAR VIEW MIRROR ASSY

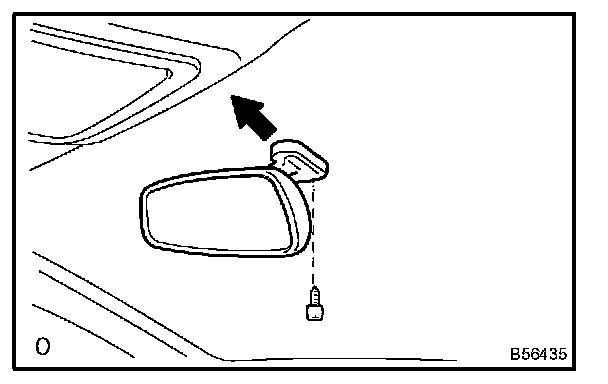

a. Remove the screw.
b. Slide the mirror in the direction indicated by the arrow in the illustration, and remove the mirror.
