Spoiler: Service and Repair

REAR SPOILER SUB-ASSEMBLY

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order.
- A bolt without a torque specification is shown in the standard bolt chart.

1. REMOVE REAR WIPER ARM COVER
2. REMOVE REAR WIPER ARM ASSEMBLY
3. REMOVE BACK DOOR TRIM BOARD
4. REMOVE BACK DOOR TRIM BOARD
5. REMOVE REAR WIPER MOTOR ASSEMBLY
6. REMOVE REAR SPOILER SUB-ASSEMBLY

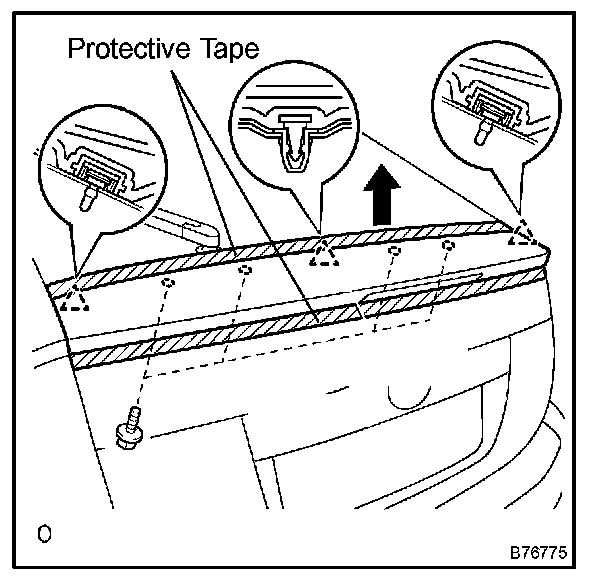

a. Put protective tape under the rear spoiler.
b. Remove the 4 bolts.
c. Using a screwdriver, disengage the 3 clips and remove the rear spoiler.

HINT: Tape the screwdriver tip before use.

d. Disconnect the center stop lamp connector.

7. REMOVE CENTER STOP LAMP ASSEMBLY
a. Remove the 2 screws and stop lamp.
