Without Scan Tool

DTC CHECK (USING SST CHECK WIRE)

a. Check DTCs.

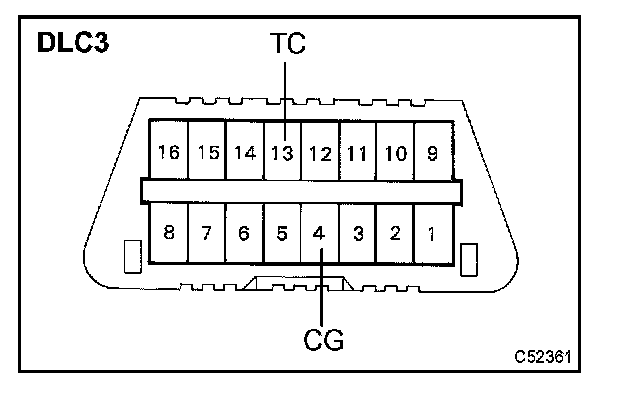

1. Using SST, connect terminals TC and CG of the DLC3.

SST 09843-18040

2. Turn the power switch ON (READY).

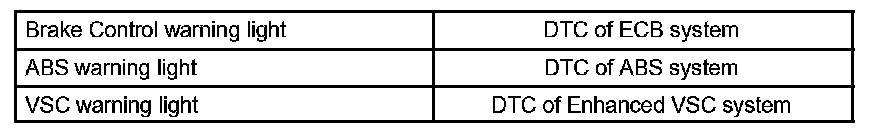

3. Read the DTC from the Brake Control warning light, ABS warning light and VSC warning light on the combination meter.

HINT:
- If no code appears, inspect the diagnostic circuit or ABS warning light circuit.

Trouble Area
TC and CG terminal circuit
Brake Control warning light circuit
ABS warning light circuit
VSC warning light circuit

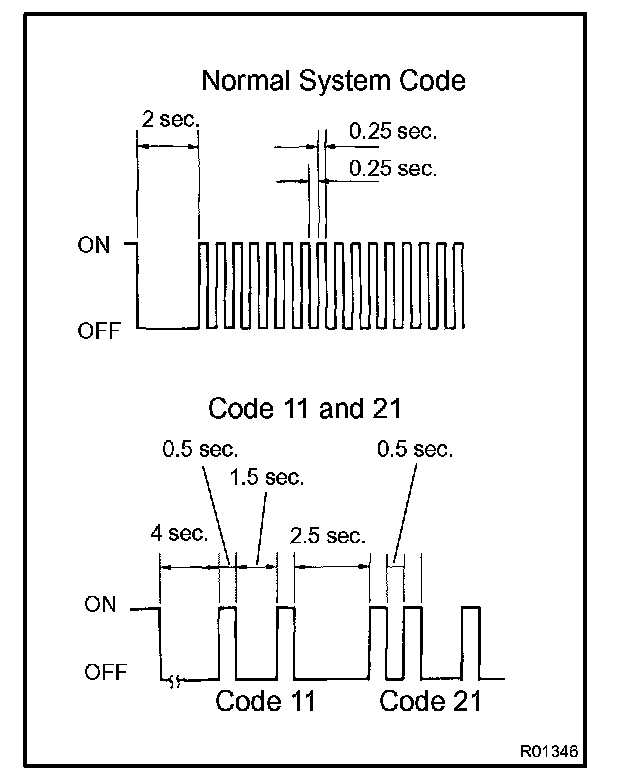

- As an example, the blinking patterns for a normal system code and trouble codes 11 and 21 are shown.

4. Codes are explained in the code table.
5. After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display.

If 2 or more DTCs are detected at the same time, the DTCs will be displayed in ascending order.

END OF CHECK
a. Turn the power switch ON (READY).
b. Check that the Brake Control warning light, ABS warning light and VSC warning light go off within approximately 3 seconds.
