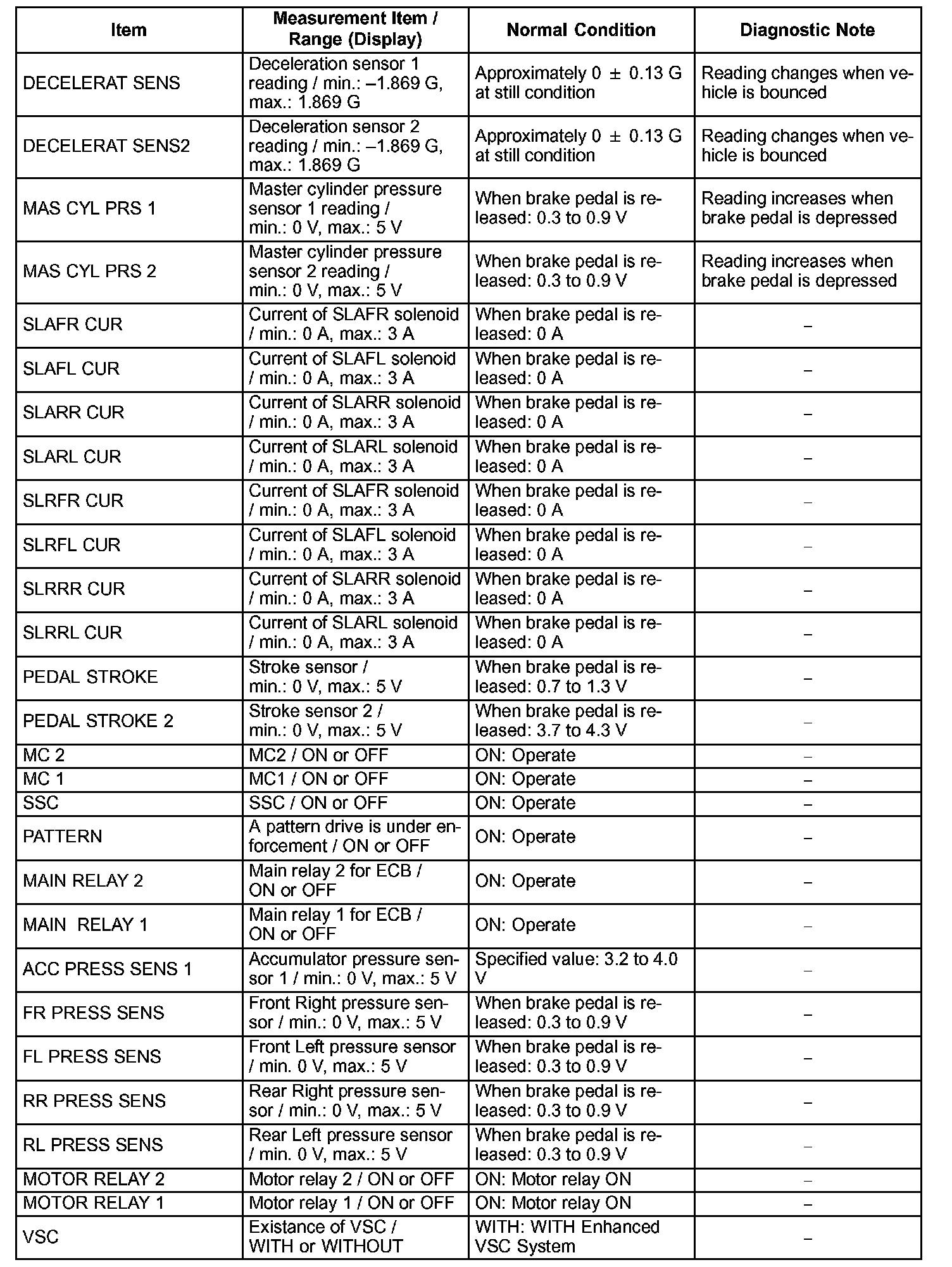

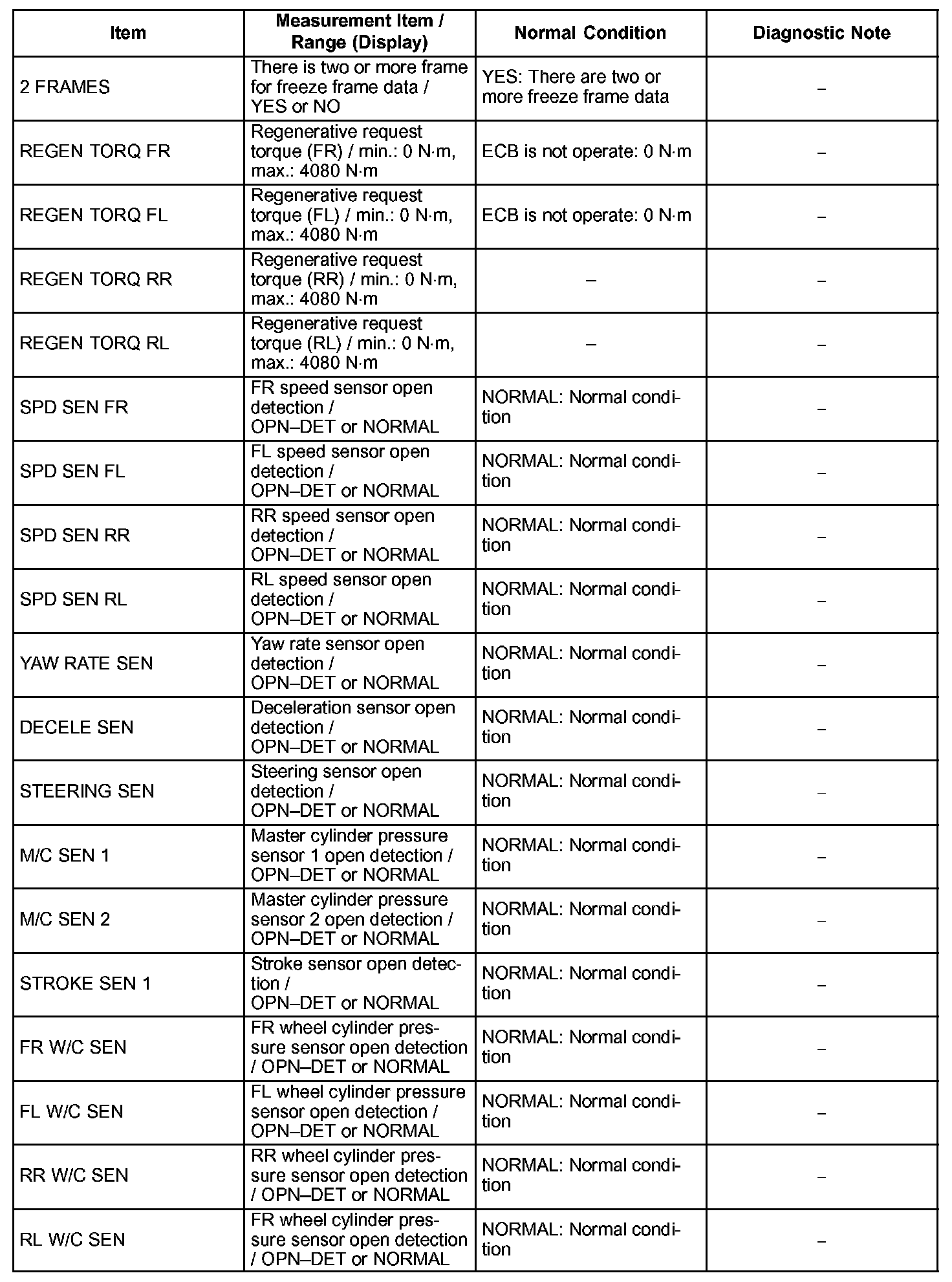

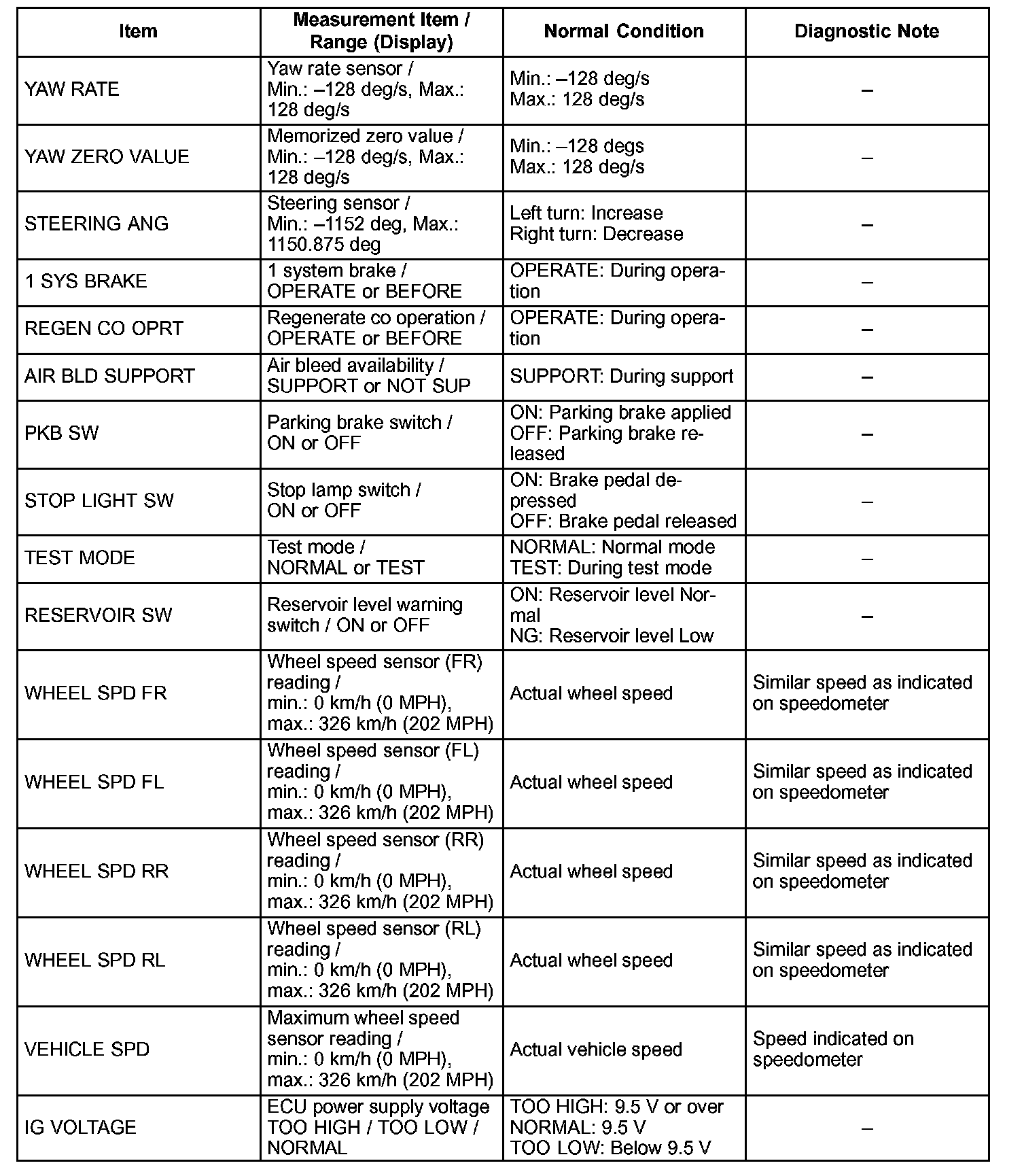

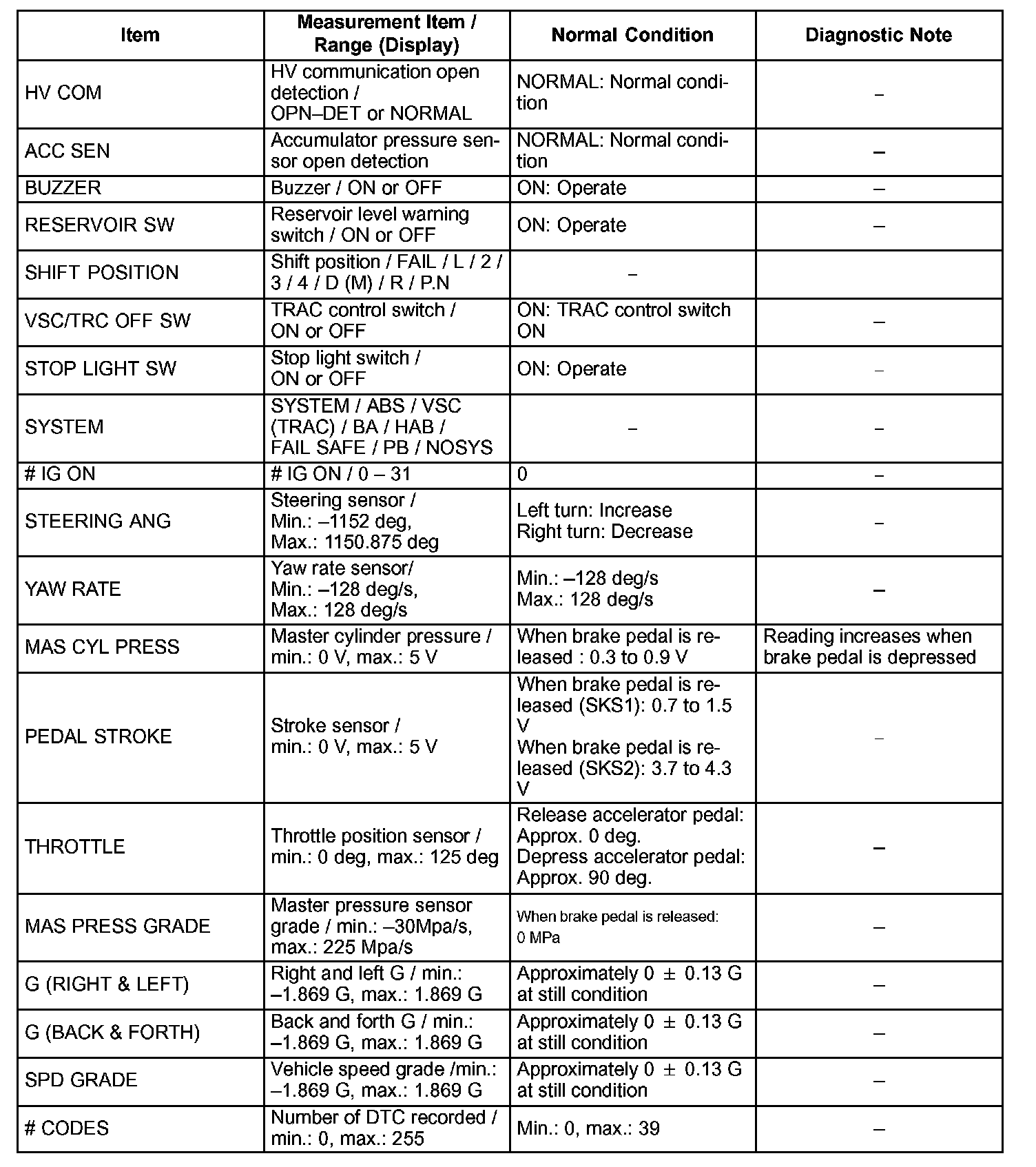

Data List

DATA LIST

Part 1:

Part 2:

Part 3:

Part 4:

HINT: With the hand-held tester connected to the DLC3 and the power switch in the ON position, the ECB, ABS, and Enhanced VSC data list can be displayed. Follow the prompts on the tester screen to access the DATA LIST.
