ABS Warning Light Circuit (Remains On)

ABS WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION

Inform the driver that there is trouble with ABS by illuminating the ABS warning light.

When DTC output is normal and the ABS warning lamp remains on, perform troubleshooting as indicated.

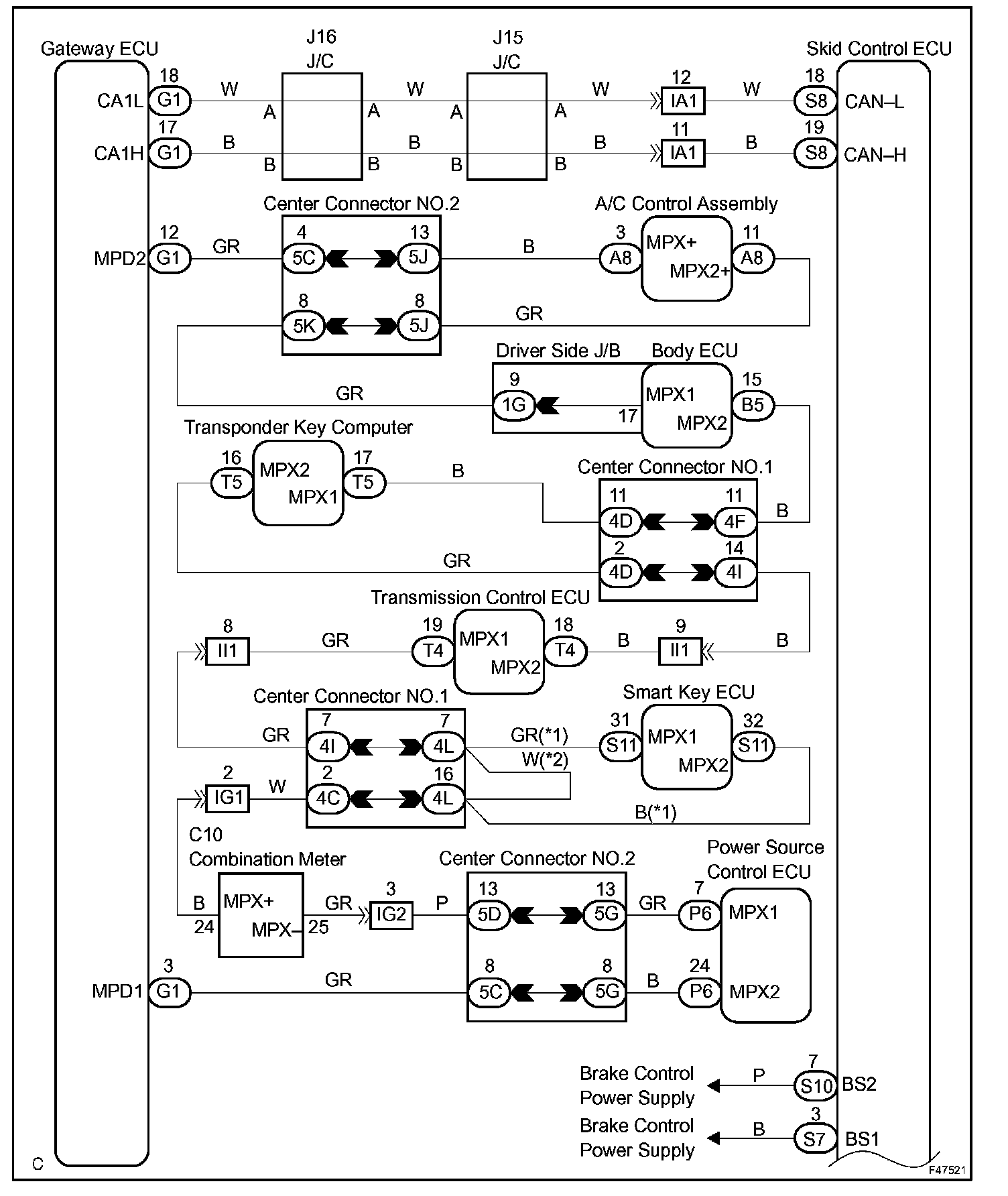

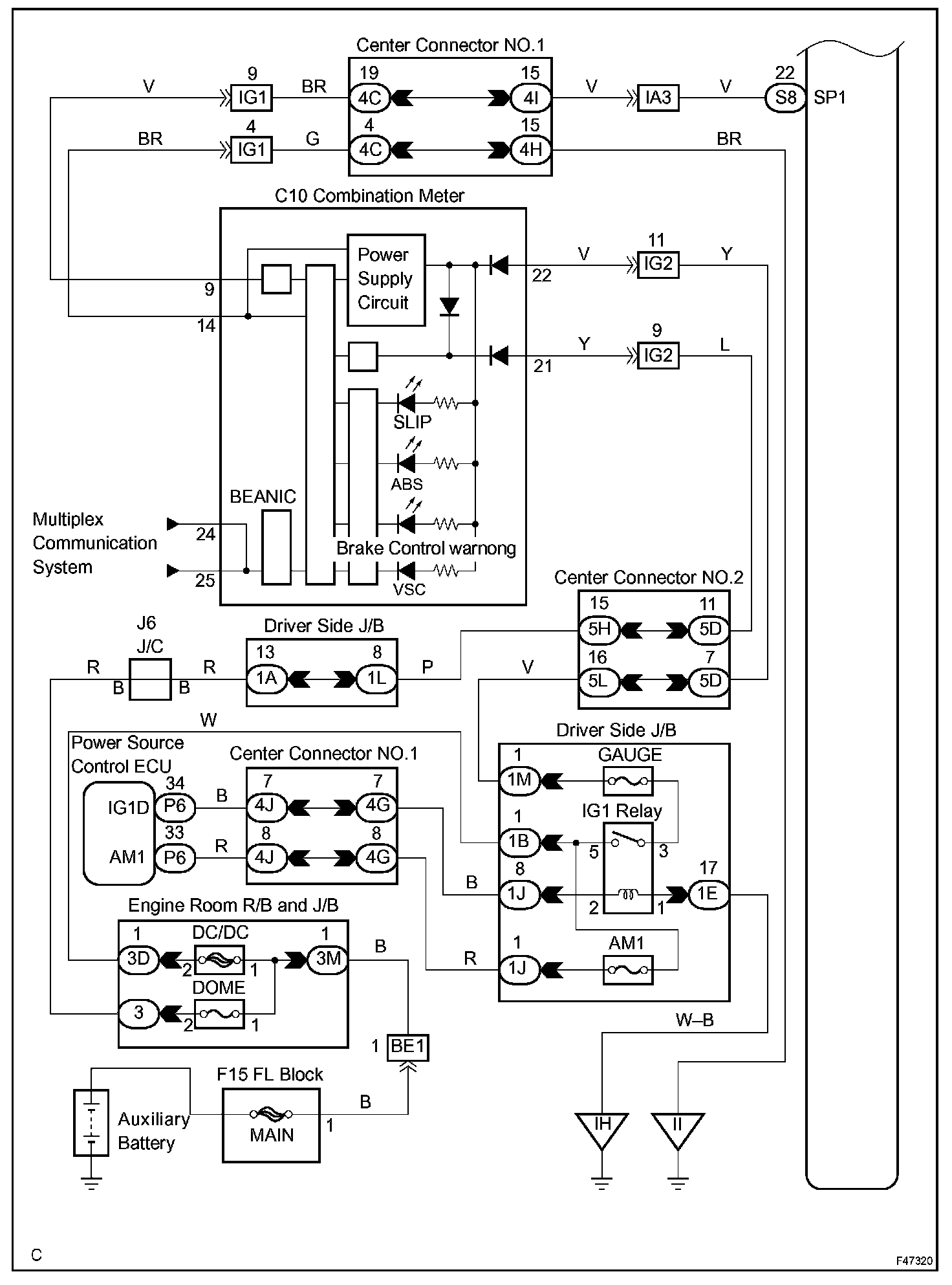

Wiring Diagram:

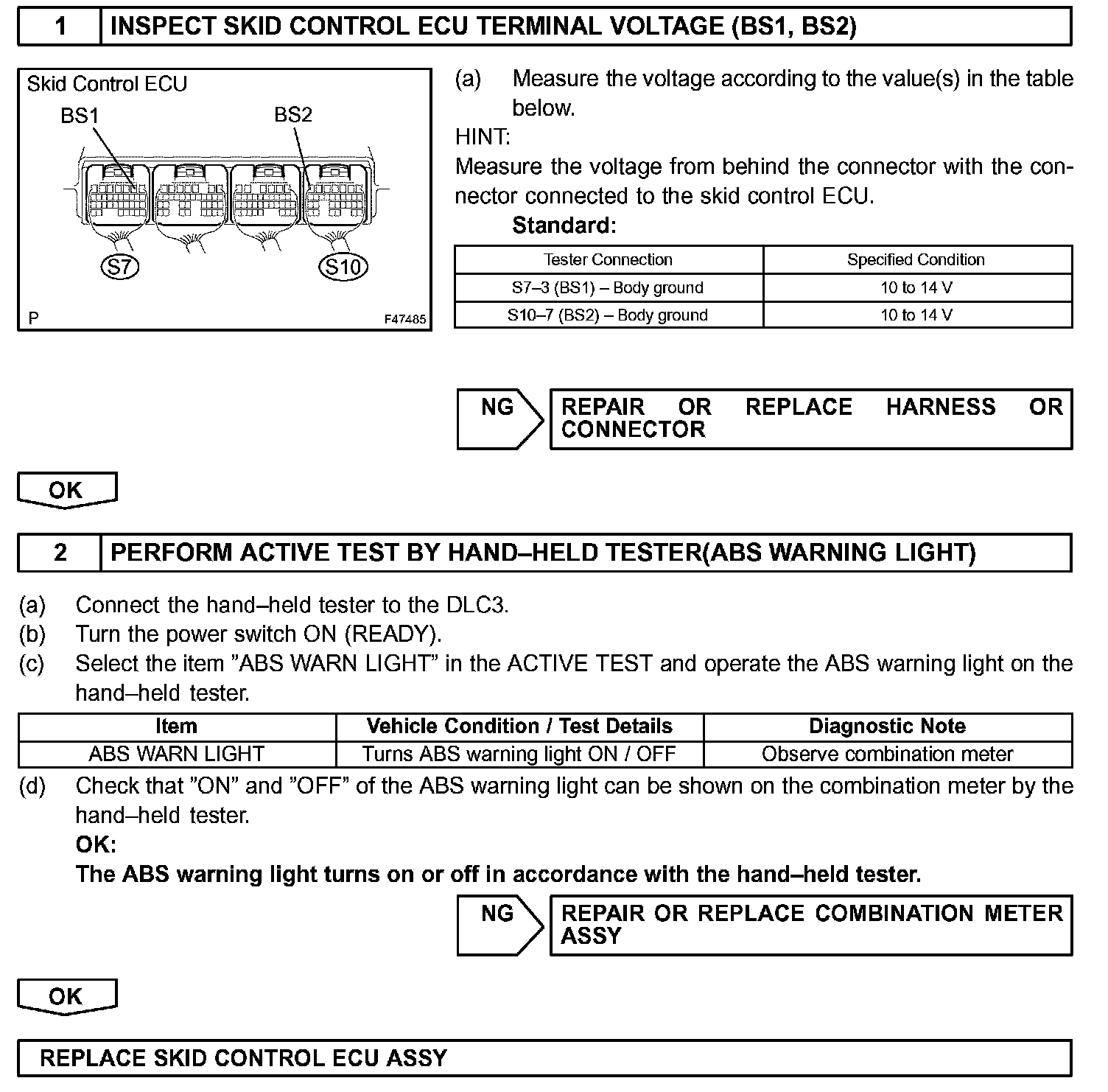

Step 1 - 2:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU assy, perform initialization of linear solenoid valve and calibration.
