Brake Control Warning Light Circuit (Does Not Light Up)
Brake Control Warning Light Circuit (Does Not Light Up)
BRAKE CONTROL WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)

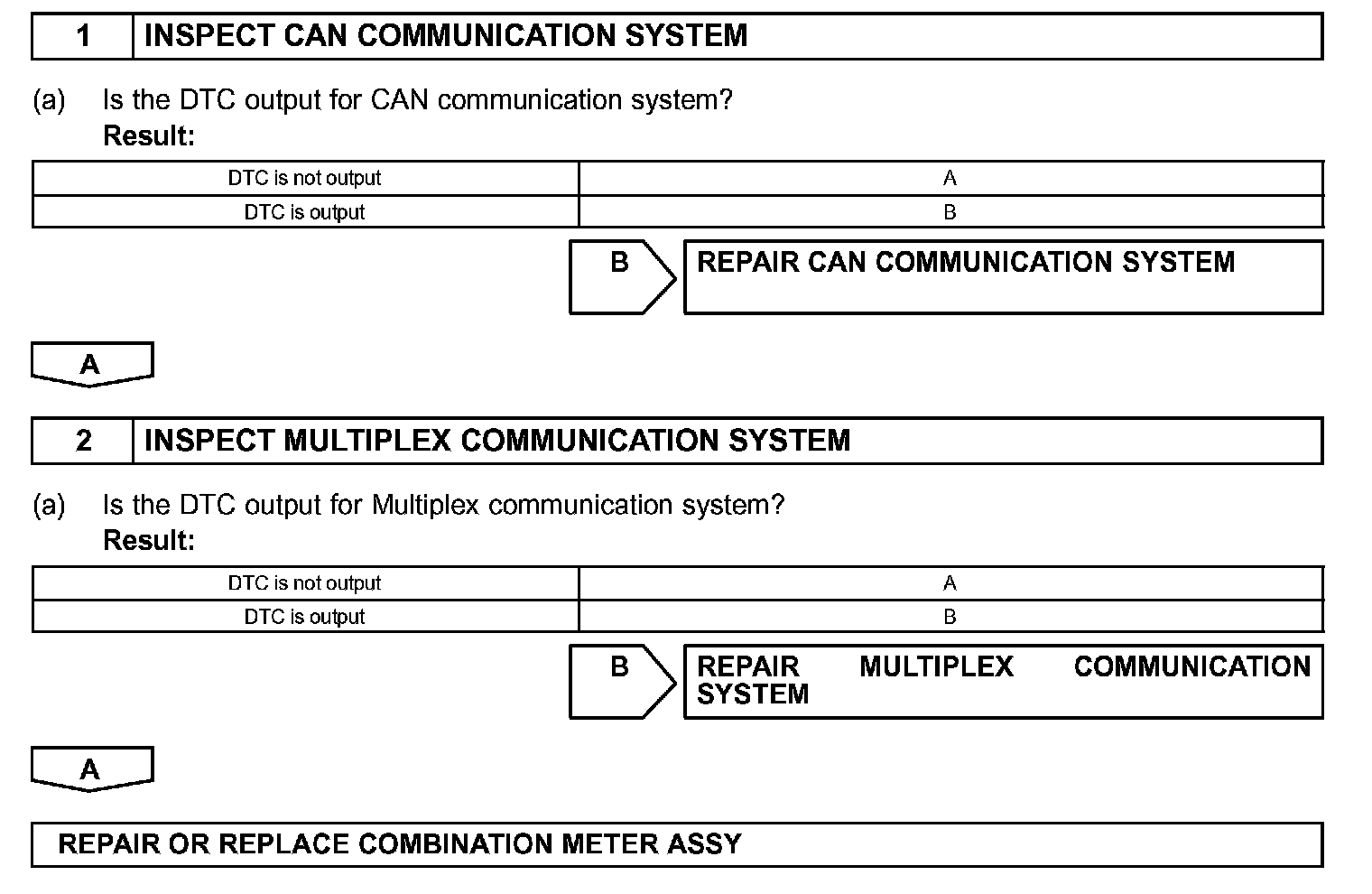

Step 1 - 2:
INSPECTION PROCEDURE
