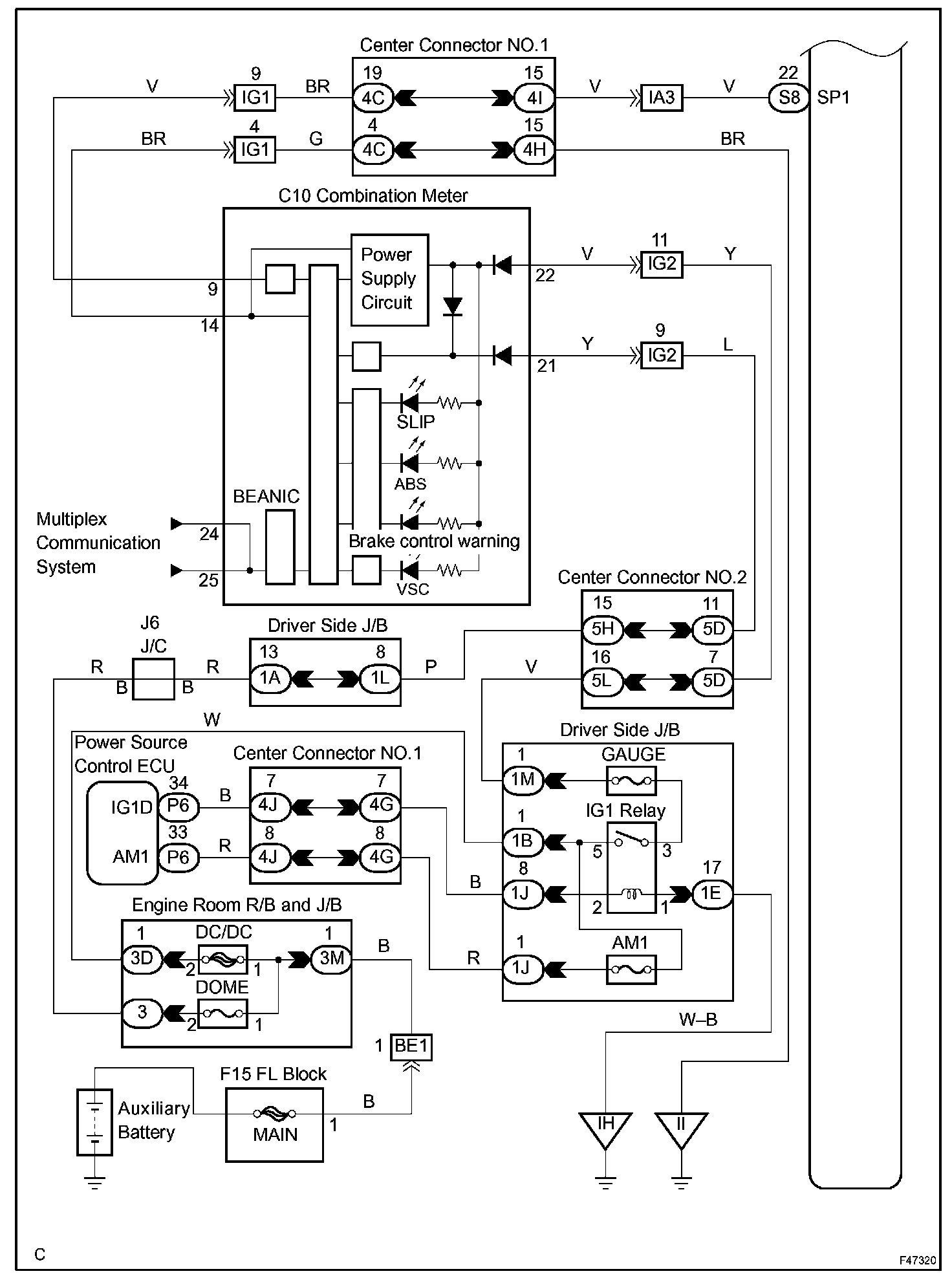

Brake Control Warning Light Circuit (Remains On)

BRAKE CONTROL WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION

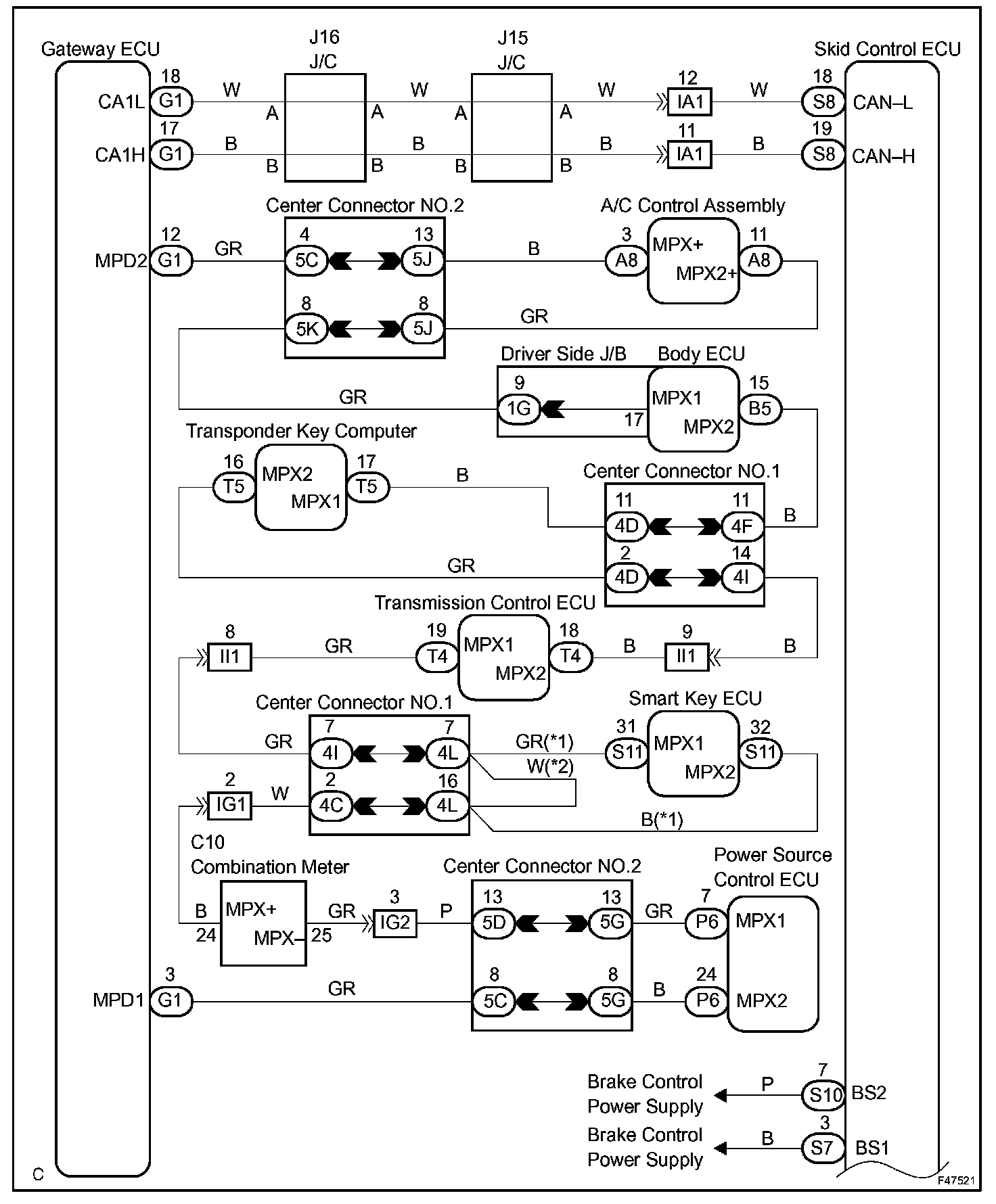

The skid control ECU is connected to the combination meter via CAN and Multiplex communications. Informs the driver when there is trouble with ECB or a problem with the brake system that has no influence on driving, by turning on.
