VSC Warning Light Circuit (Remains On)

VSC WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION

Inform the driver that there is trouble with Enhanced VSC by illuminating the VSC warning light.

When DTC output is normal and the VSC warning lamp remains on, perform troubleshooting as indicated.

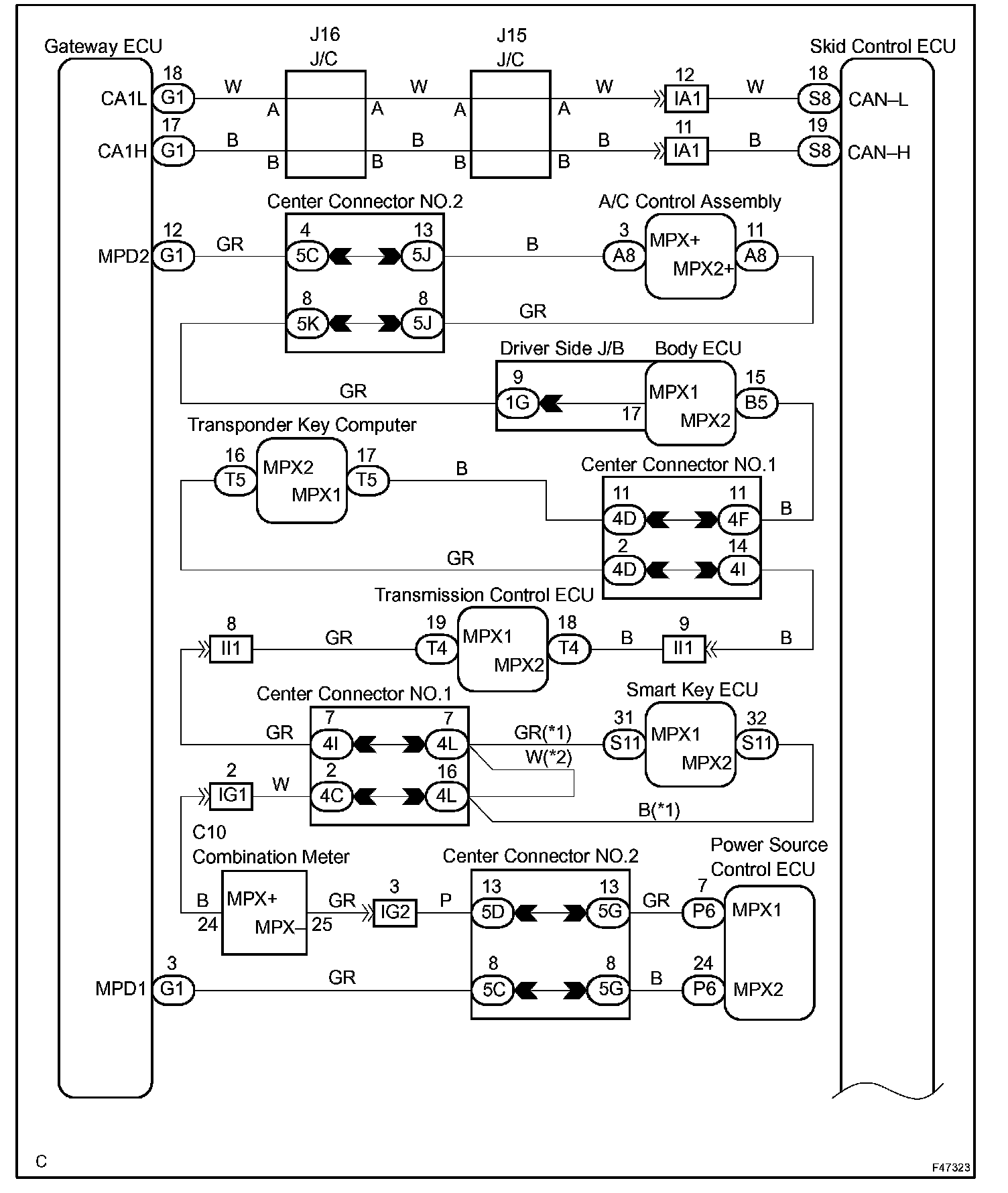

Wiring Diagram:

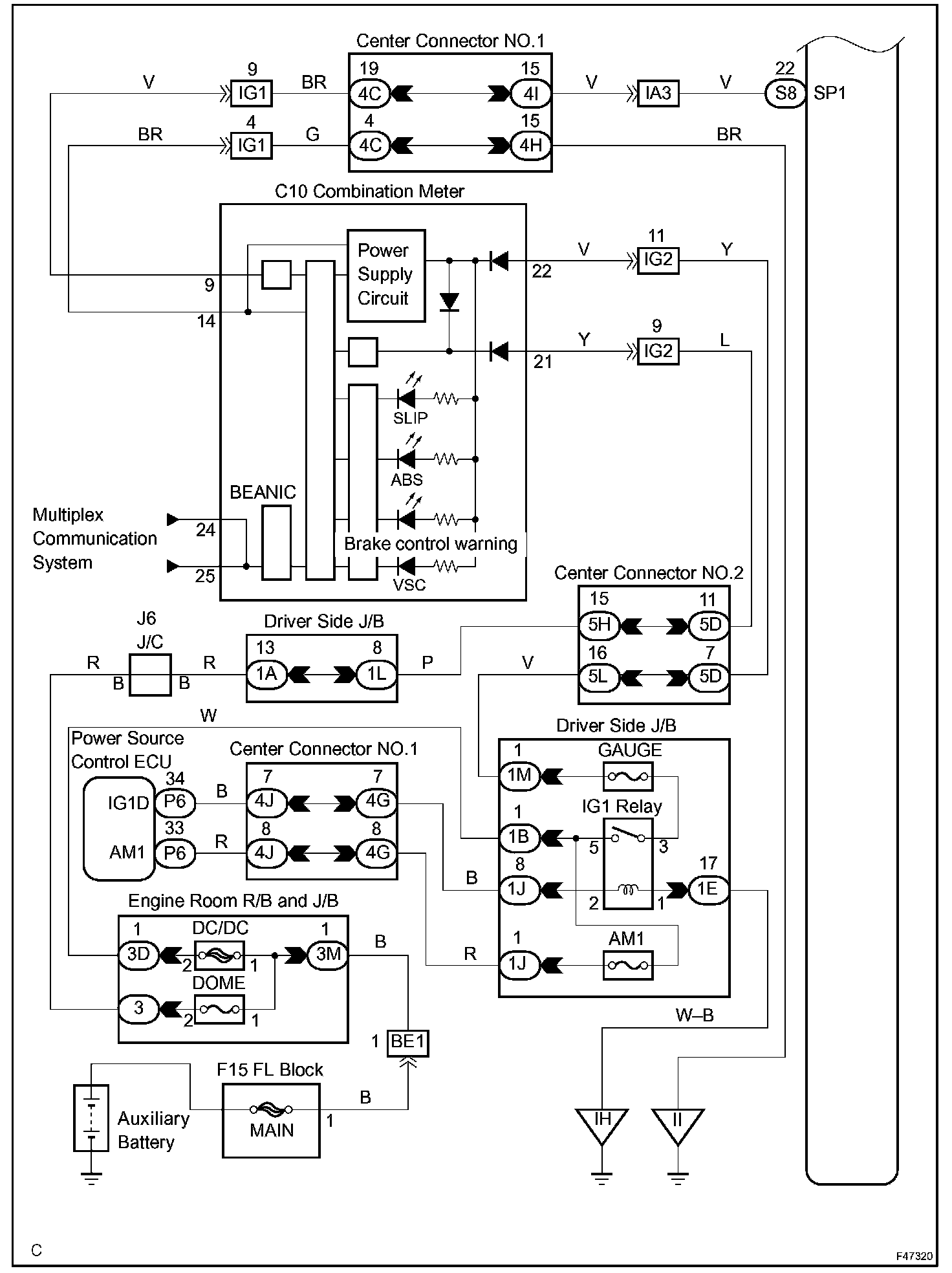

Wiring Diagram:






Step 1 - 2:

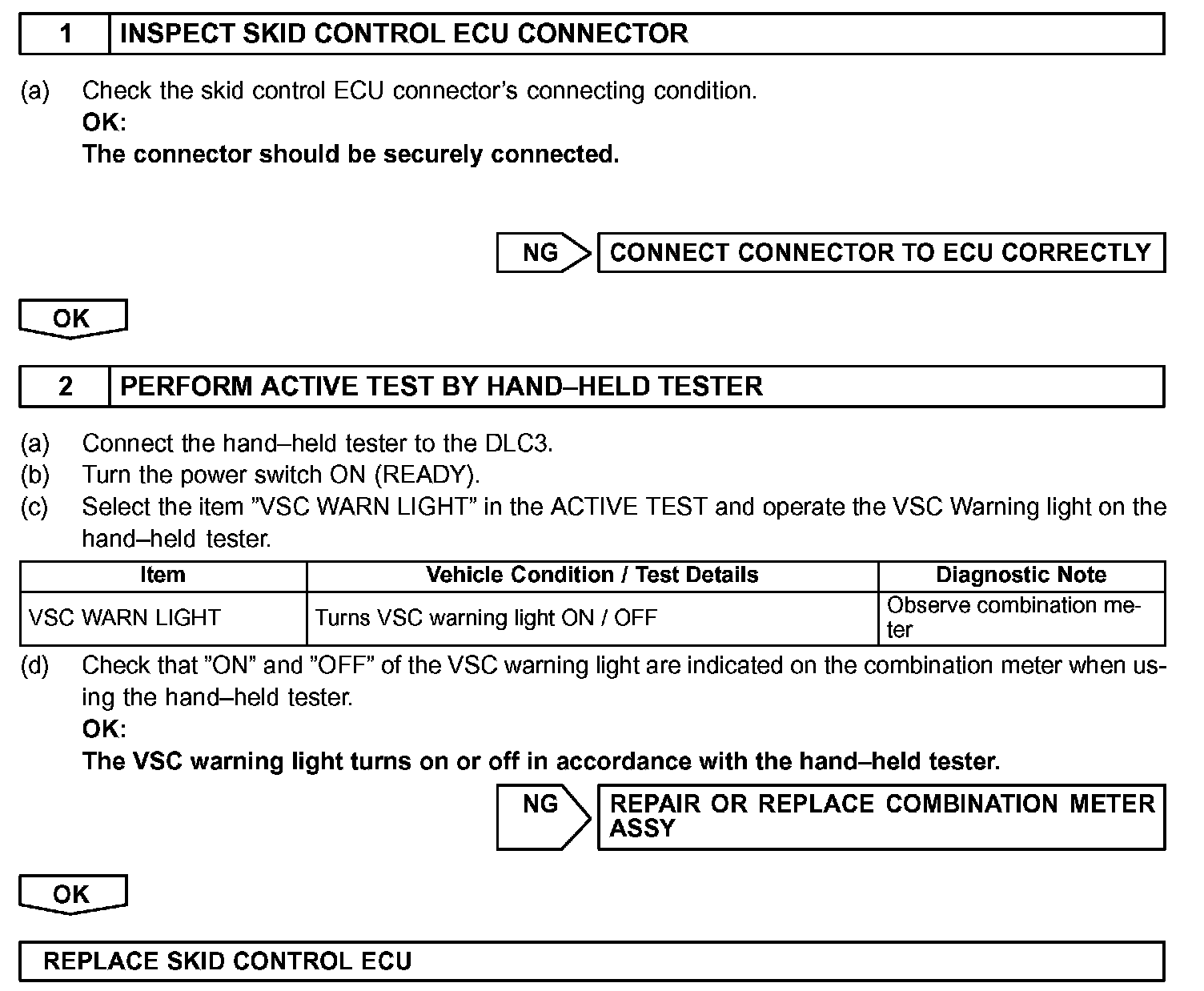

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU assy, perform initialization of linear solenoid valve and calibration.
