Parking Brake Cable Assembly No. 1






PARKING BRAKE CABLE ASSY NO.1
REPLACEMENT
1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
SST 07110-58060 (07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)
2. DISCONNECT SUCTION HOSE SUB-ASSY
SST 09870-00015
3. DISCONNECT COOLER REFRIGERANT LIQUID PIPE E (TO COOLER UNIT)
SST 09870-00025
4. DISCONNECT HEATER WATER HOSE B
5. DISCONNECT HEATER WATER HOSE A
6. REMOVE REAR FLOOR BOARD NO.2
7. REMOVE DECK FLOOR BOX REAR
8. REMOVE REAR FLOOR BOARD NO.3
9. DISCONNECT BATTERY NEGATIVE TERMINAL
10. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
11. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER
12. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY UPPER
13. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.3
14. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.4
15. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.2
16. REMOVE MULTI-DISPLAY ASSY
17. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSY
18. REMOVE GLOVE COMPARTMENT DOOR ASSY
19. REMOVE GLOVE COMPARTMENT DOOR
20. REMOVE INSTR PANEL SPEAKER PANEL SUB-ASSY NO.1 W/CTR SPEAKER
21. REMOVE FRONT PILLAR GARNISH CORNER PIECE LH
22. REMOVE FRONT PILLAR GARNISH CORNER PIECE RH
23. REMOVE FRONT PILLAR GARNISH LH
24. REMOVE FRONT PILLAR GARNISH RH
25. DISCONNECT PASSENGER AIRBAG CONNECTOR
26. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
27. REMOVE STEERING WHEEL COVER LOWER NO.2
28. REMOVE STEERING WHEEL COVER LOWER NO.3
29. REMOVE HORN BUTTON ASSY
30. REMOVE STEERING WHEEL ASSY
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
31. REMOVE TILT LEVER BRACKET
32. REMOVE STEERING COLUMN COVER
33. REMOVE TURN SIGNAL SWITCH ASSY W/SPIRAL CABLE SUB-ASSY
34. REMOVE FRONT DOOR SCUFF PLATE LH
35. REMOVE FRONT DOOR SCUFF PLATE RH
36. REMOVE COWL SIDE TRIM BOARD LH
37. REMOVE COWL SIDE TRIM BOARD RH
38. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER
39. REMOVE RADIO RECEIVER ASSY W/STEREO OPENING COVER
40. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
41. REMOVE GLOVE COMPARTMENT DOOR LOCK COVER
42. REMOVE GLOVE COMPARTMENT DOOR LOCK ASSY
43. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
44. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
45. REMOVE POWER STEERING ECU ASSY
46. REMOVE SHIFT LEVER ASSY LWR
47. REMOVE AIR DUCT REAR NO.3
48. REMOVE HEATER TO REGISTER DUCT NO.3
49. REMOVE HEATER TO REGISTER DUCT NO.1
50. REMOVE HEATER TO REGISTER DUCT NO.2
51. REMOVE DEFROSTER NOZZLE ASSY
52. REMOVE TRANSMISSION CONTROL ECU ASSY
53. REMOVE ECM
54. REMOVE NETWORK GATEWAY ECU
55. REMOVE INSTRUMENT PANEL BRACE SUB-ASSY NO.1
56. REMOVE AIR CONDITIONING AMPLIFIER ASSY
57. REMOVE STEERING COLUMN ASSY
58. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSY
59. REMOVE FRONT SEAT ASSY LH
60. REMOVE FRONT SEAT ASSY RH
61. REMOVE CONSOLE PANEL SUB-ASSY UPPER
62. REMOVE CONSOLE BOX POCKET
63. REMOVE CONSOLE BOX CARPET
64. REMOVE CONSOLE BOX ASSY RR
65. REMOVE FRONT FLOOR FOOTREST
66. REMOVE AIR BAG ECU ASSY
67. REMOVE YAWRATE SENSOR (W/ VSC)
68. REMOVE CONSOLE BOX MOUNTING BRACKET NO.1

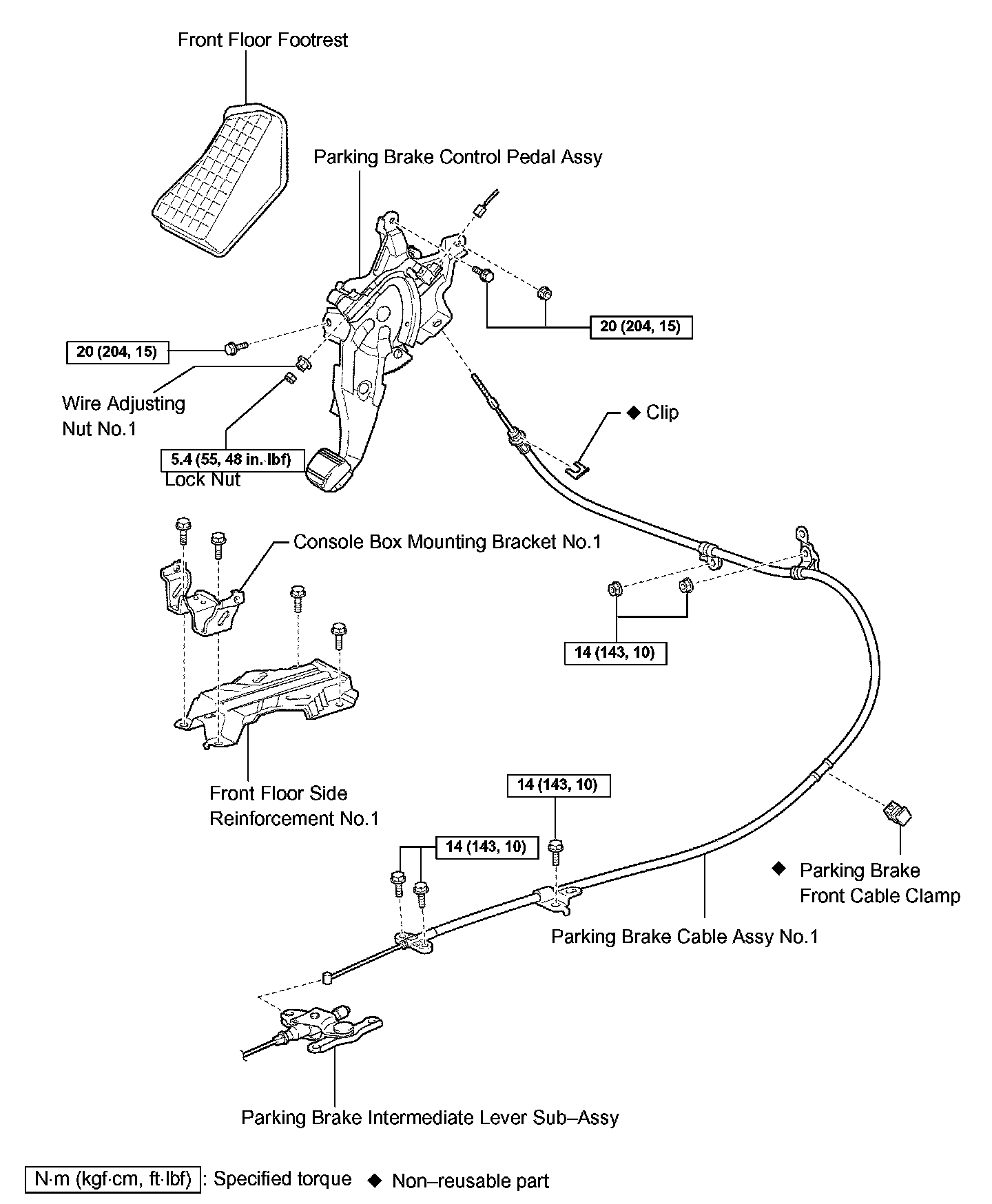

69. REMOVE PARKING BRAKE CONTROL PEDAL ASSY
70. REMOVE PARKING BRAKE CABLE ASSY NO.1

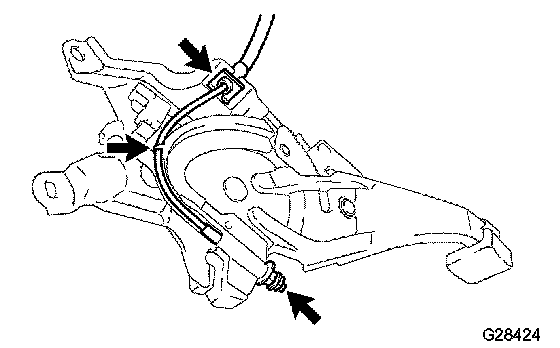

a) Unbend the parking brake pedal claw.
b) Remove the lock nut and adjusting nut of the parking brake cable assy No.1 from the parking brake pedal.
c) Disengage the clip and remove the parking brake cable assy No.1 from the parking brake pedal assy.
71. INSTALL PARKING BRAKE CABLE ASSY NO.1

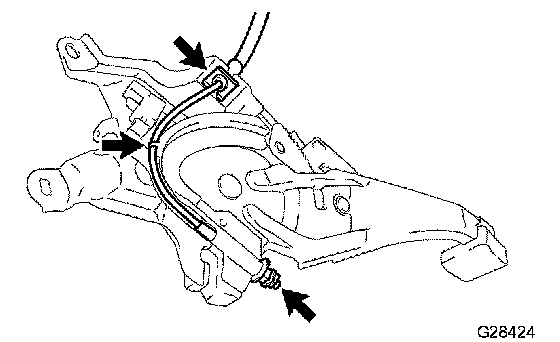

a) Thread the parking brake cable assy No.1 through the pedal bracket and hold it with a new clip.
b) Thread the parking brake cable through the pedal guide. Temporarily tighten the adjusting nut and lock nut.

HINT: Fully tighten the adjusting nut and lock nut when adjusting the parking brake pedal free play.

c) Bend the parking brake pedal claw fully.
72. INSTALL PARKING BRAKE CONTROL PEDAL ASSY
73. INSTALL CONSOLE BOX MOUNTING BRACKET NO.1
74. INSTALL YAWRATE SENSOR (W/ VSC)
75. INSTALL AIR BAG ECU ASSY
76. INSTALL FRONT FLOOR FOOTREST
77. INSTALL FRONT SEAT ASSY LH
78. INSTALL FRONT SEAT ASSY RH
79. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSY
80. INSTALL INSTRUMENT PANEL BRACE SUB-ASSY NO.1
81. FULLY TIGHTEN AIR CONDITIONER UNIT ASSY
82. INSTALL STEERING COLUMN ASSY
83. INSTALL INSTRUMENT PANEL SUB-ASSY LOWER
84. INSTALL SHIFT LEVER ASSY LWR
85. INSTALL POWER STEERING ECU ASSY
86. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
87. INSTALL COOLER REFRIGERANT LIQUID PIPE E (TO COOLER UNIT)
88. INSTALL SUCTION HOSE SUB-ASSY
89. INSPECT LEAKAGE OF REFRIGERANT
90. ADJUST SPIRAL CABLE SUB-ASSY
91. INSTALL STEERING COLUMN COVER
92. INSTALL TILT LEVER BRACKET
93. INSTALL STEERING WHEEL ASSY
94. INSTALL HORN BUTTON ASSY
95. INSPECT HORN BUTTON ASSY
96. CONNECT BATTERY NEGATIVE TERMINAL
97. INSTALL REAR FLOOR BOARD NO.3
98. INSTALL DECK FLOOR BOX REAR
99. INSTALL REAR FLOOR BOARD NO.2
100. ADD ENGINE COOLANT
101. CHARGE REFRIGERANT
SST 07110-58060 (07117-58060, 07117-58070, 07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)
102. CHECK FOR ENGINE COOLANT LEAKS
103. WARM UP ENGINE
104. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL
105. INSPECT SRS WARNING LIGHT
106. PERFORM CALIBRATION OF TORQUE SENSOR ZERO POINT
107. PERFORM INITIALIZATION
